Stilla Naica Geode Prism3 DNA PCR Analyzer 12 Samples 10-95C Digital Quantification
Stilla
Details
-
CategoryMolecular Biology
-
Dimension15.0in x 42.0in x 12.0in
-
Serial19325, 030, 0264
-
Shipping TypeFedEx Ground
-
ManufacturingDoes Not Apply
-

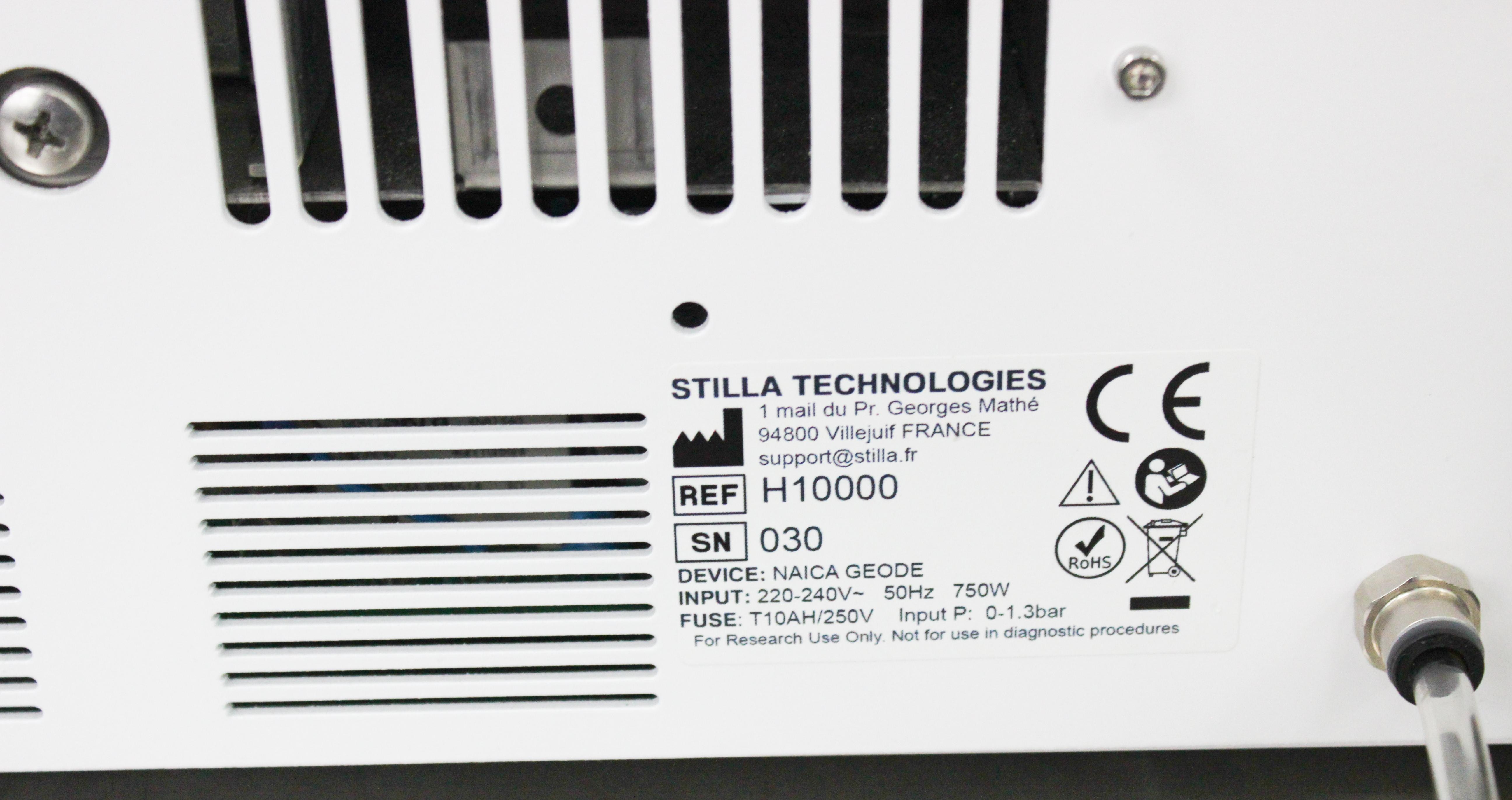

Voltage / Hertz220-240V / 1ac15c531b
Description

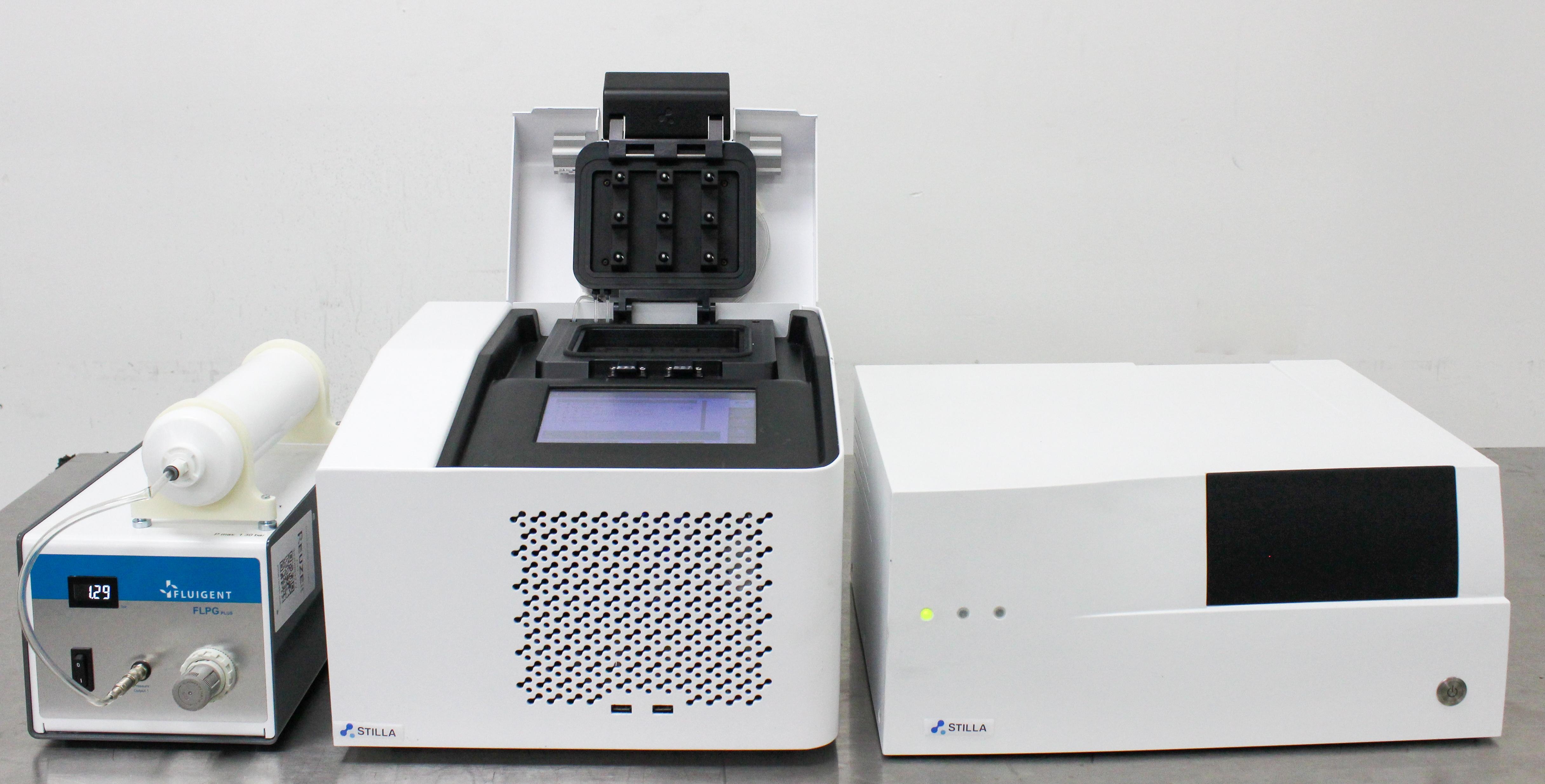

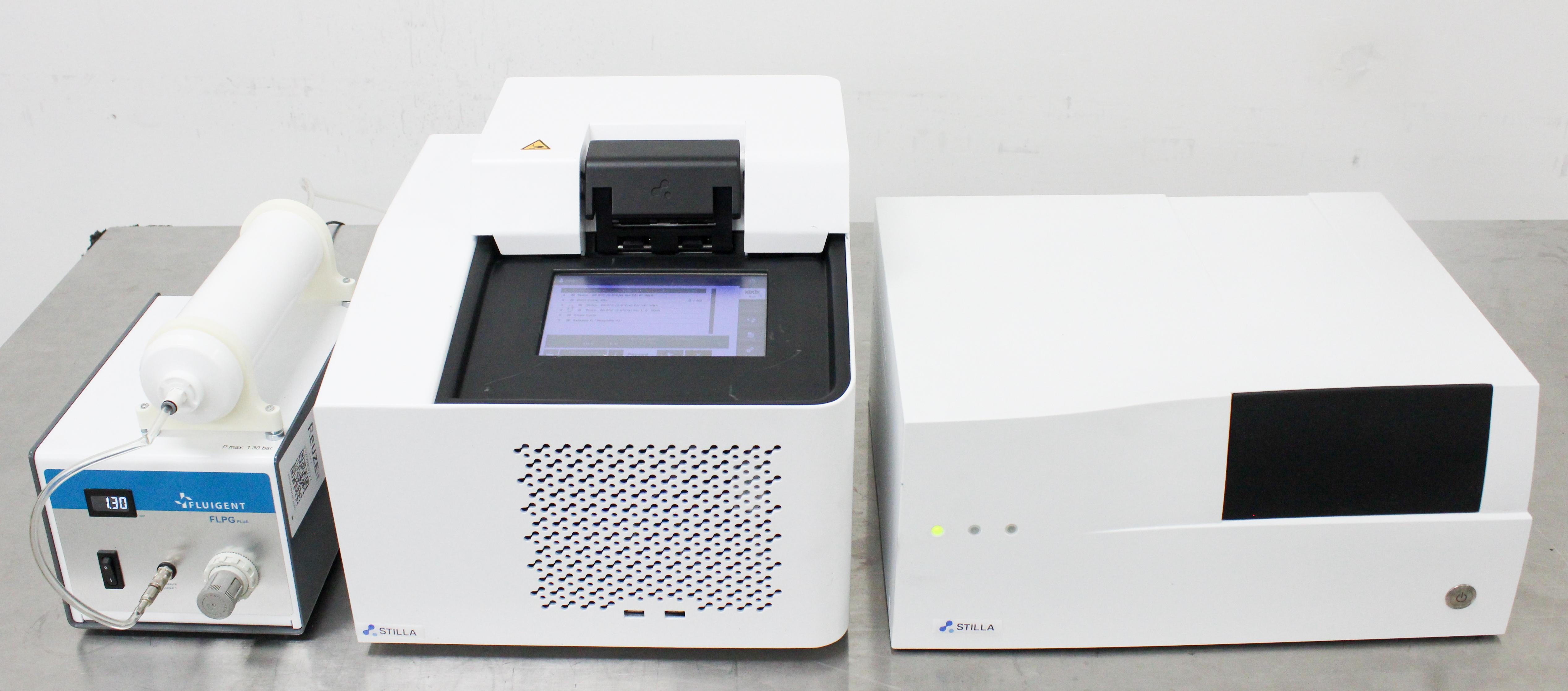

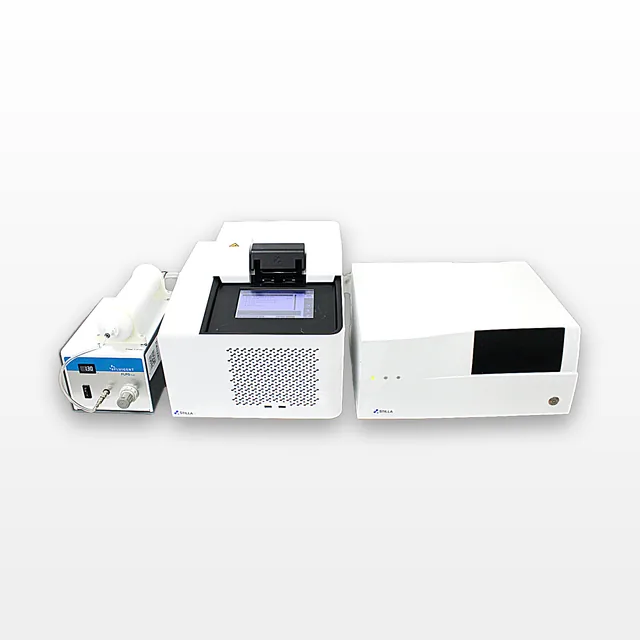

Introducing the Stilla Naica Geode with Prism3 & FLPG Plus Pump, a powerful digital PCR solution designed for efficient and reliable nucleic acid quantification. This compact system offers a unique three-color detection capability and supports up to 12 samples per run using three chips. Relying on Crystal Digital PCR technology, it enables swift and precise analysis of nucleic acids through microfluidic innovations and droplet crystal formation. The instrument accommodates a thermo block temperature range from 10°C to 95°C with excellent block uniformity, making it ideal for absolute quantification, multiplex analyses, liquid biopsy, and more. This used instrument powers on and passes basic tests, with no known functionality issues. Includes power cord, ready for integration into your laboratory workflow.
Technician comment

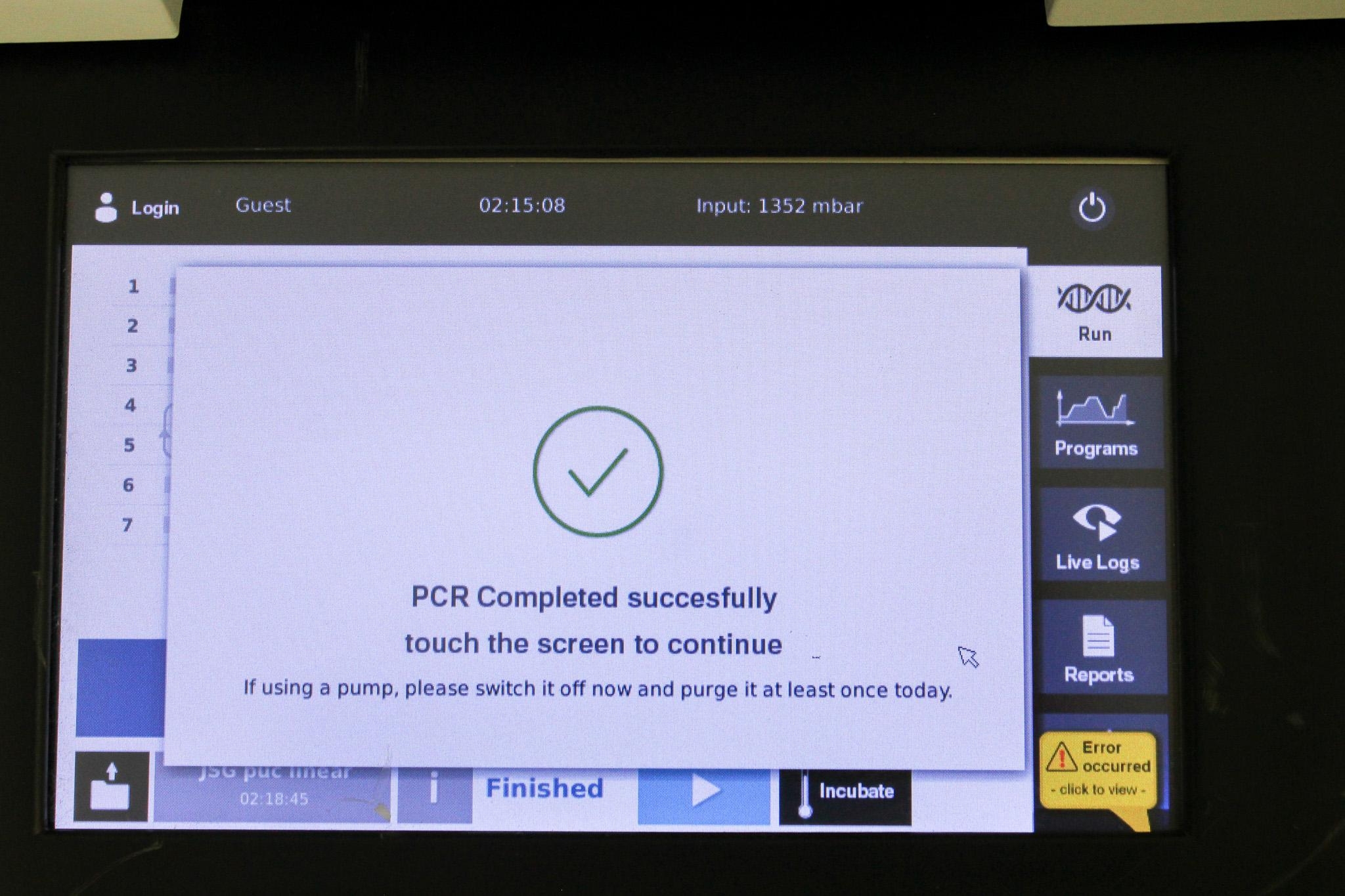

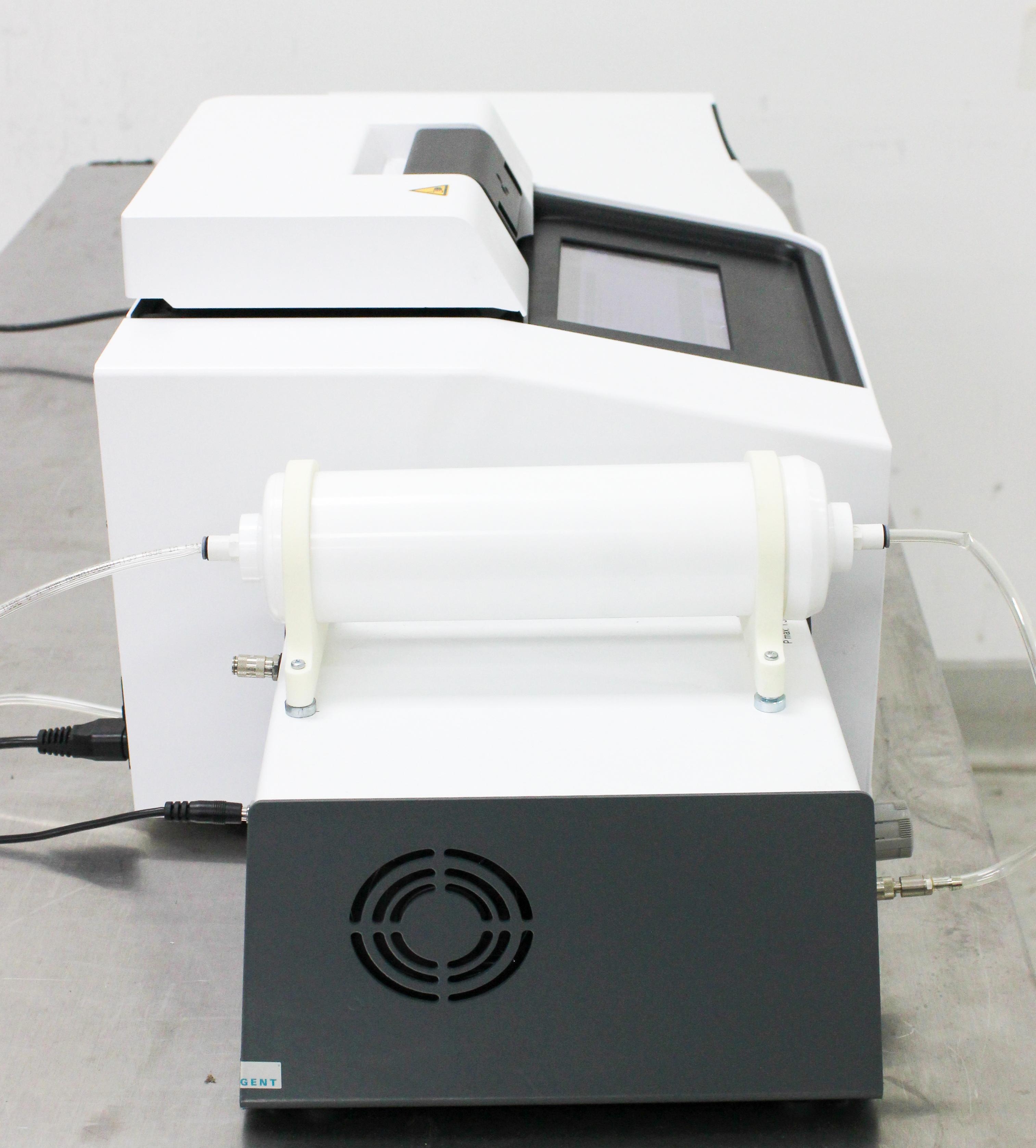

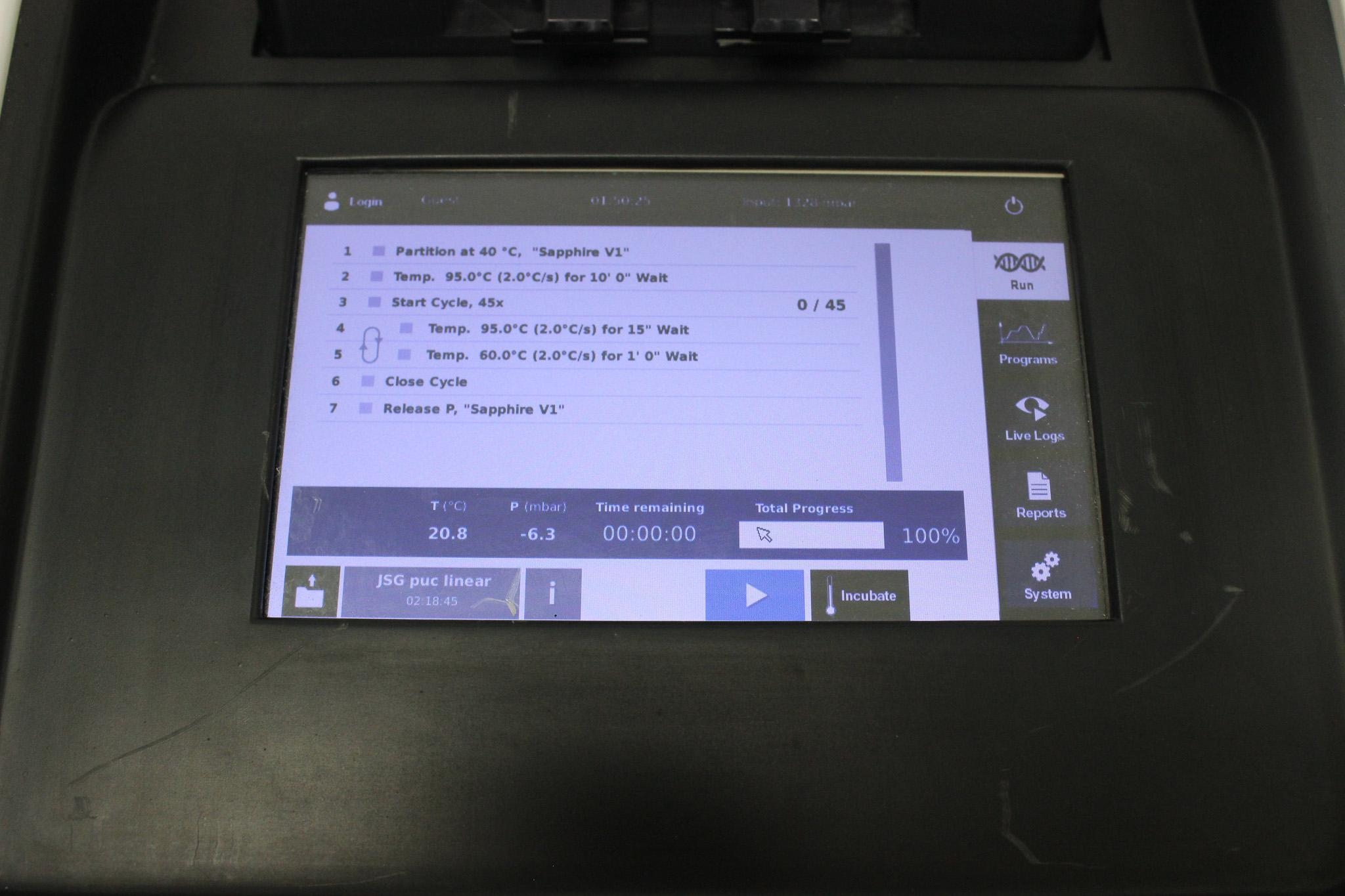

Unit powers on and performs basic functions as expected. PCR cycle completed succesfully. No error codes were observed, and there is no visible damage. The instrument is preowned and was removed from a working laboratory environment. Includes: Naica Geode with Prism3 & FLPG Plus Pump
Key Features
- Crystal Digital PCR technology for absolute quantification
- Supports up to 12 samples per run with three chips
- Temperature range: 10°C to 95°C
- Blocks temperature uniformity: ± 0.5 °C
- Adjustable ramping from 0.1 to 1.0 °C
- Three-color detection system: Blue, Green, Red
- Uses Crystal Miner software for data analysis
- Fast time-to-result: under 2.5 hours
Specifications

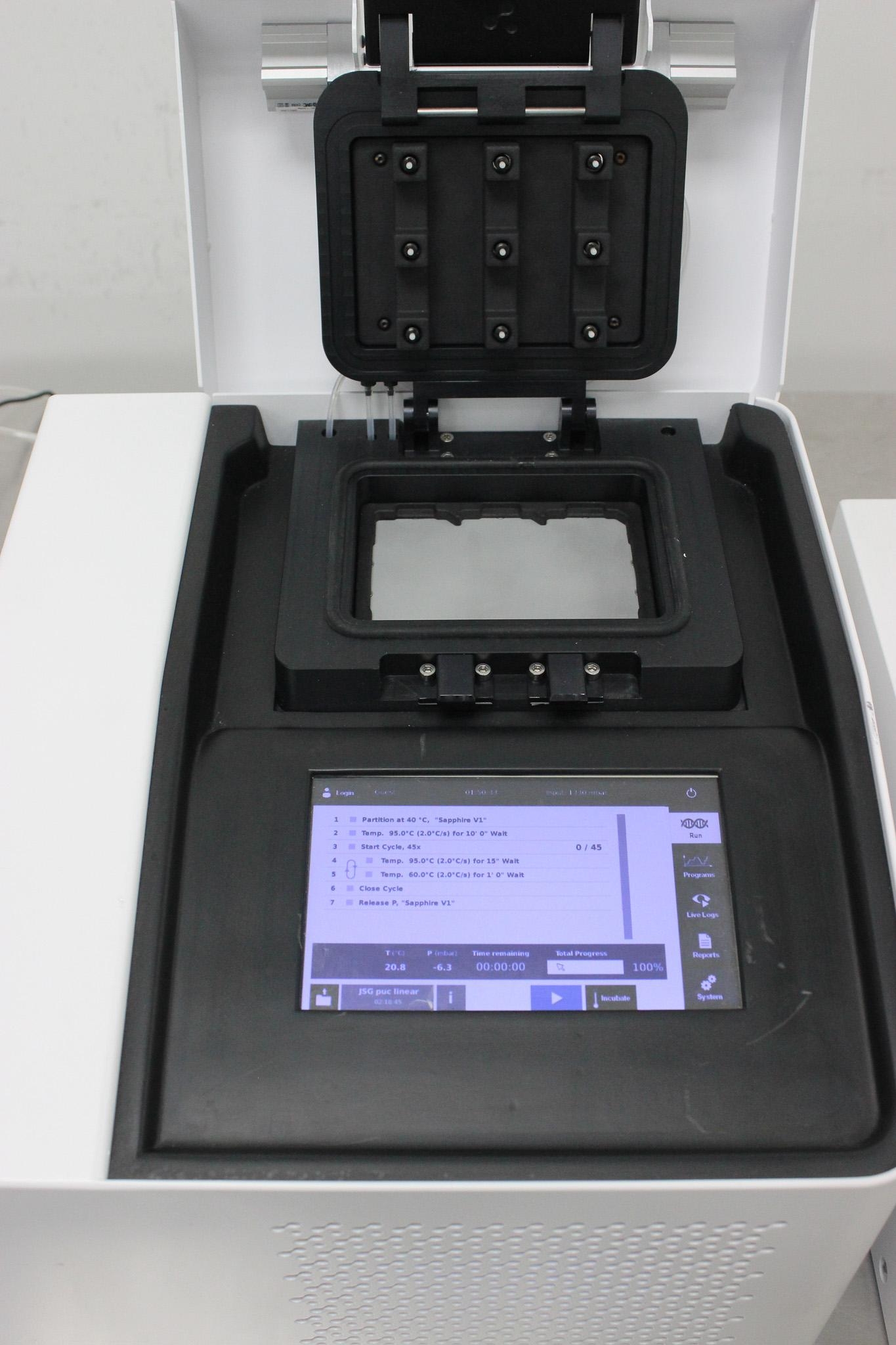

- Capacity: Up to 12 samples (3 chips) per run
- Thermo block temperature range: 10°C to 95°C
- Block uniformity: ± 0.5 °C at 72 °C
- Adjustable ramping: 0.1 to 1.0 °C
- Dimensions (Geode): W 35 x D 37 x H 29 cm
- Weight (Geode): 15 kg
- Pressure input: 1.3 bar (19 psi)

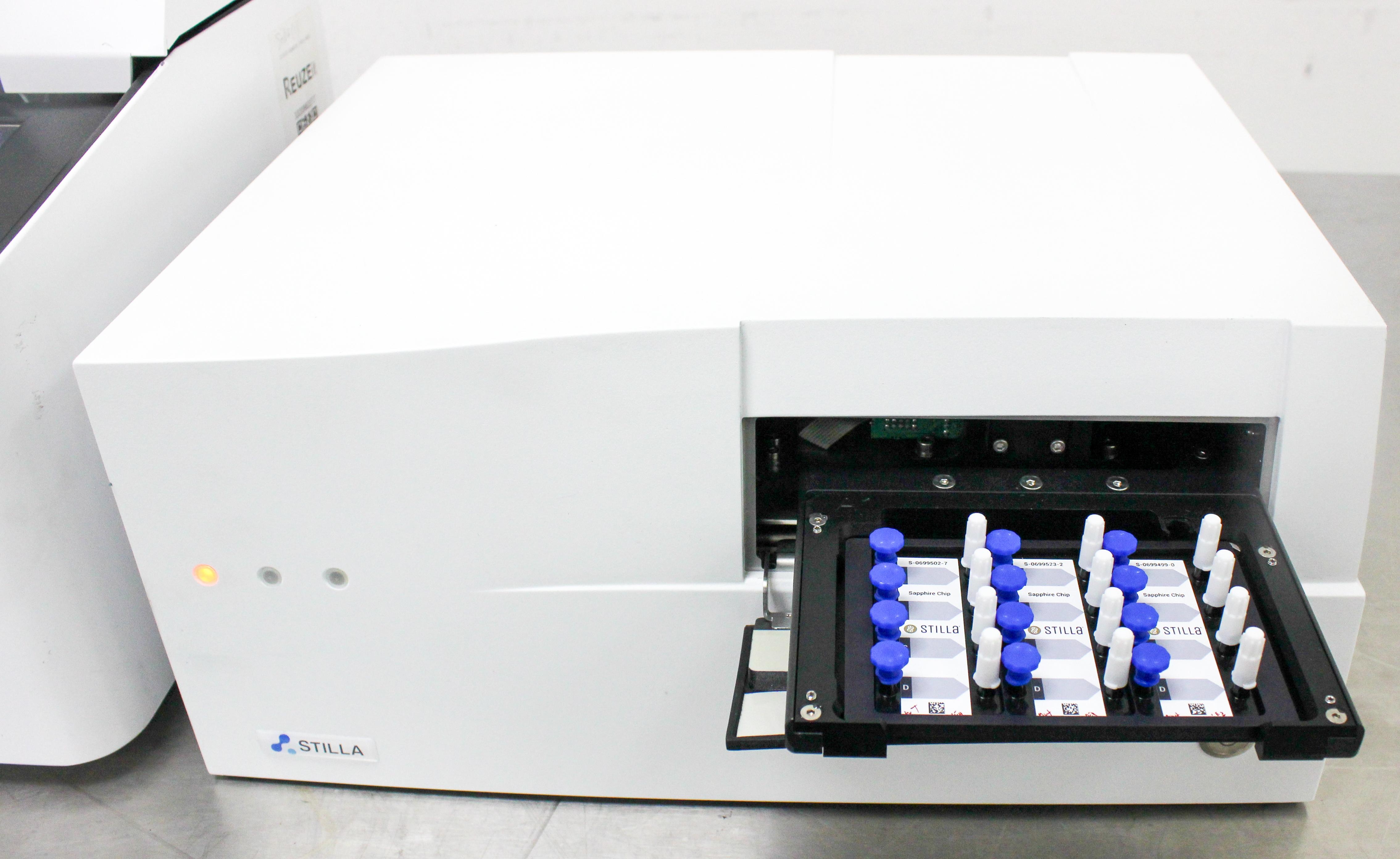

- Dimensions (Prism3): W 44 x D 34 x H 21 cm
- Weight (Prism3): 18 kg

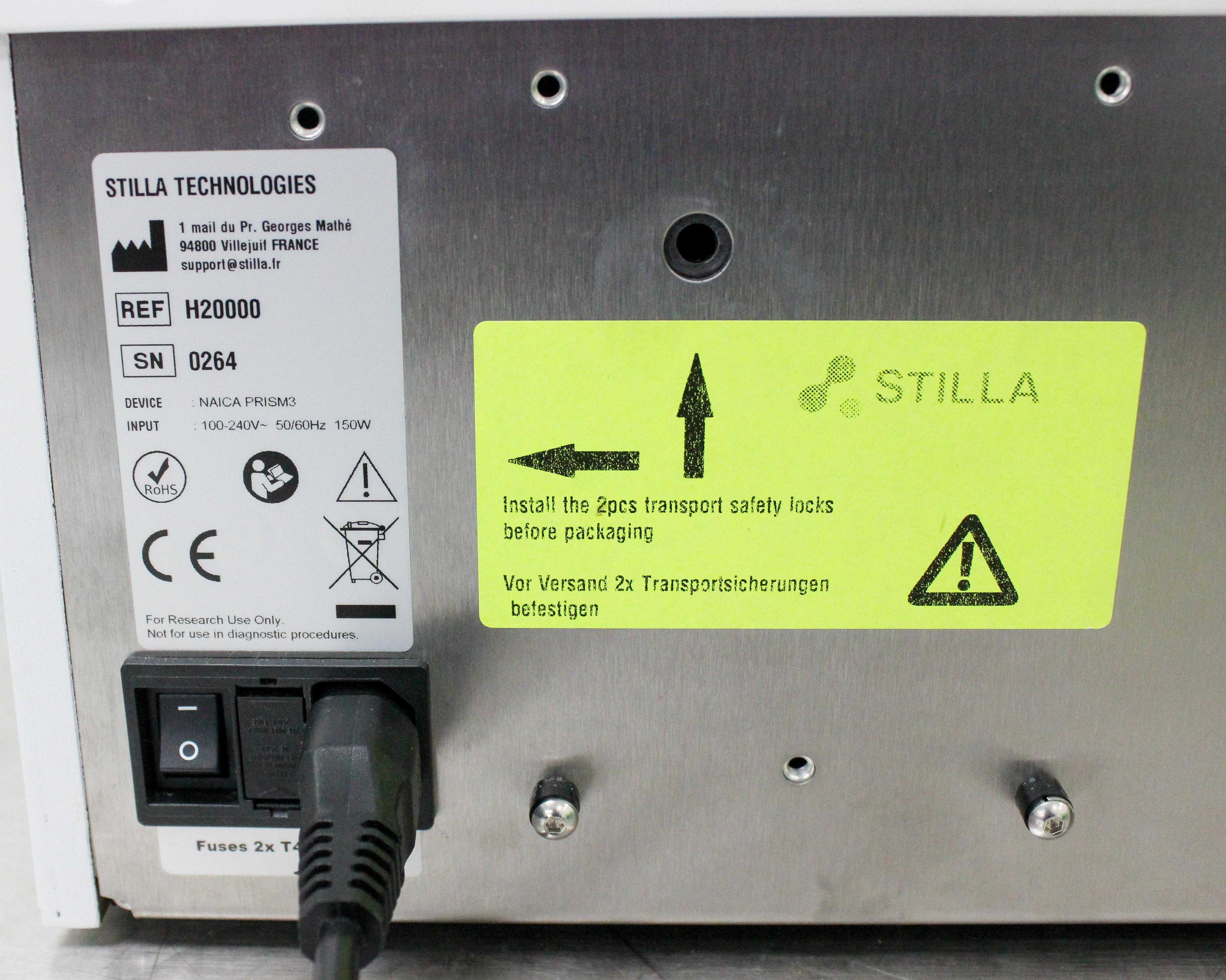

- Power supply: 100-240 V // 50 - 60 Hz
- Scan time: 50 seconds per sample
- Sample illumination: High power LED
- Excitation wavelengths: 415-480 nm (blue), 530-550 nm (green), 615-645 nm (red)
- Detection wavelengths: 495-520 nm, 560-610 nm, 655-720 nm
Weight
Imperial: 120.0 Pounds
Metric: 54.43 Kilograms
Shipping Dimensions
Imperial: 18.0 lb x 50.4 lb x 14.4 lb
Metric: 45.72 cm x 128.02 cm x 36.58 cm
Harmonized Code
902750
Harmonized Code Details
902750 - Chromatographs, electrophoresis instruments and similar - The most appropriate code for PCR analyzers due to its application in laboratory analyses, aligning with the technological and analytical functions provided by the Naica Geode and Prism3 system.
