Watson Marlow 520DUN/REL Pump, 220RPM, IP66, Watertight, Preowned, 30lb
Watson Marlow
Details
-
CategoryPump
-
Dimension18.0in x 11.0in x 7.0in
-

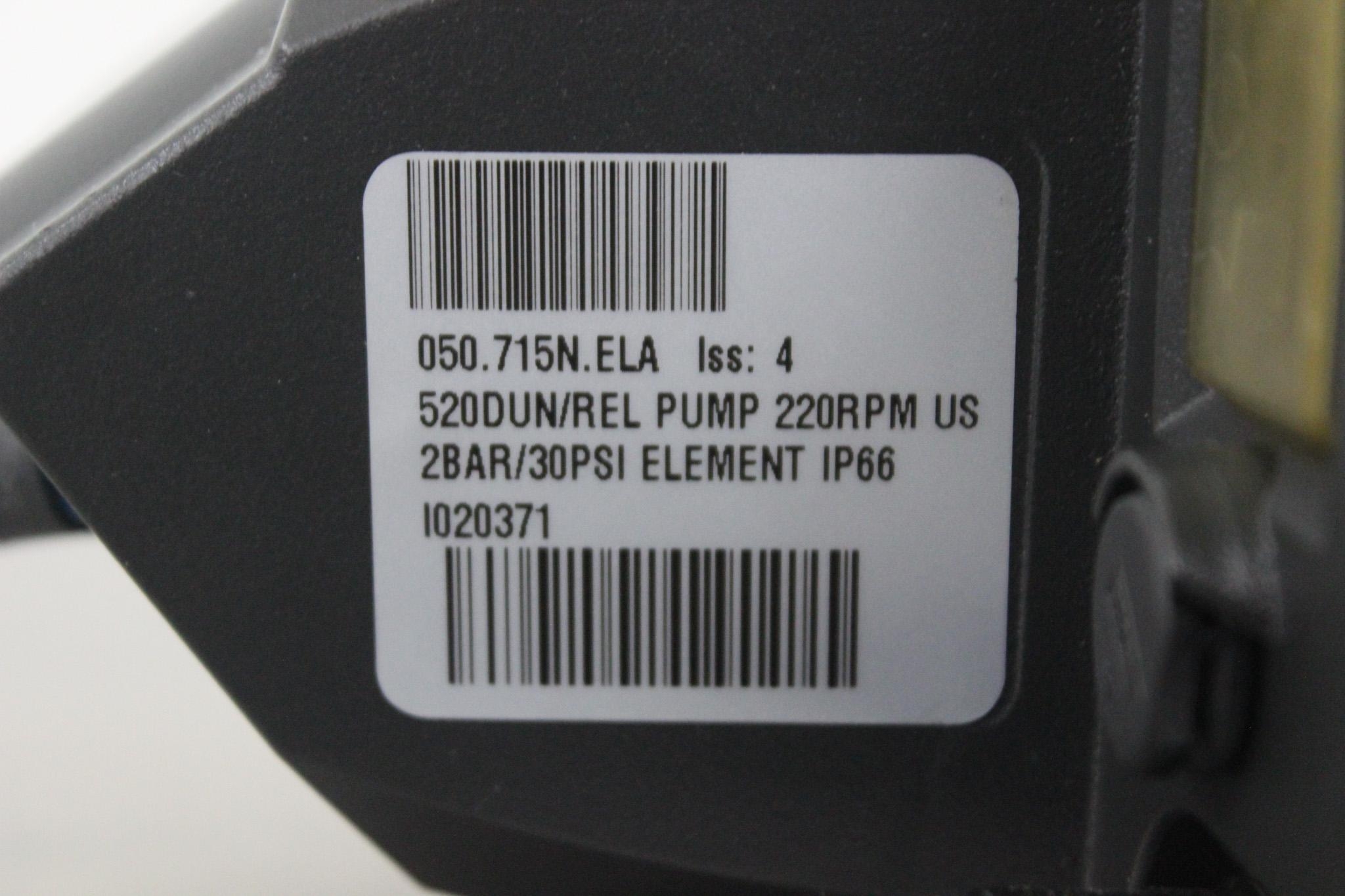

SerialI020371
-
Shipping TypeFedEx Ground
-
ManufacturingDoes Not Apply
-
Voltage / Hertz100-240V / 50Hz/60Hz
Description
The Watson Marlow 520DUN/REL Pump is a durable and efficient preowned unit designed for chemical, food, and pharmaceutical industries. Featuring a robust Nema 4X Watertight Module, this pump supports variable speed up to 220 RPM, providing flexibility for a variety of fluid transfer applications. While it powers on and the motor demonstrates basic functionality, including smooth roller rotation and speed adjustment, it cannot be tested beyond these initial diagnostics. Minor cosmetic wear is present due to prior usage. Operates on a voltage range of 100-240V and frequency of 50Hz/60Hz, making it compatible with different power outlets.
Technician comment

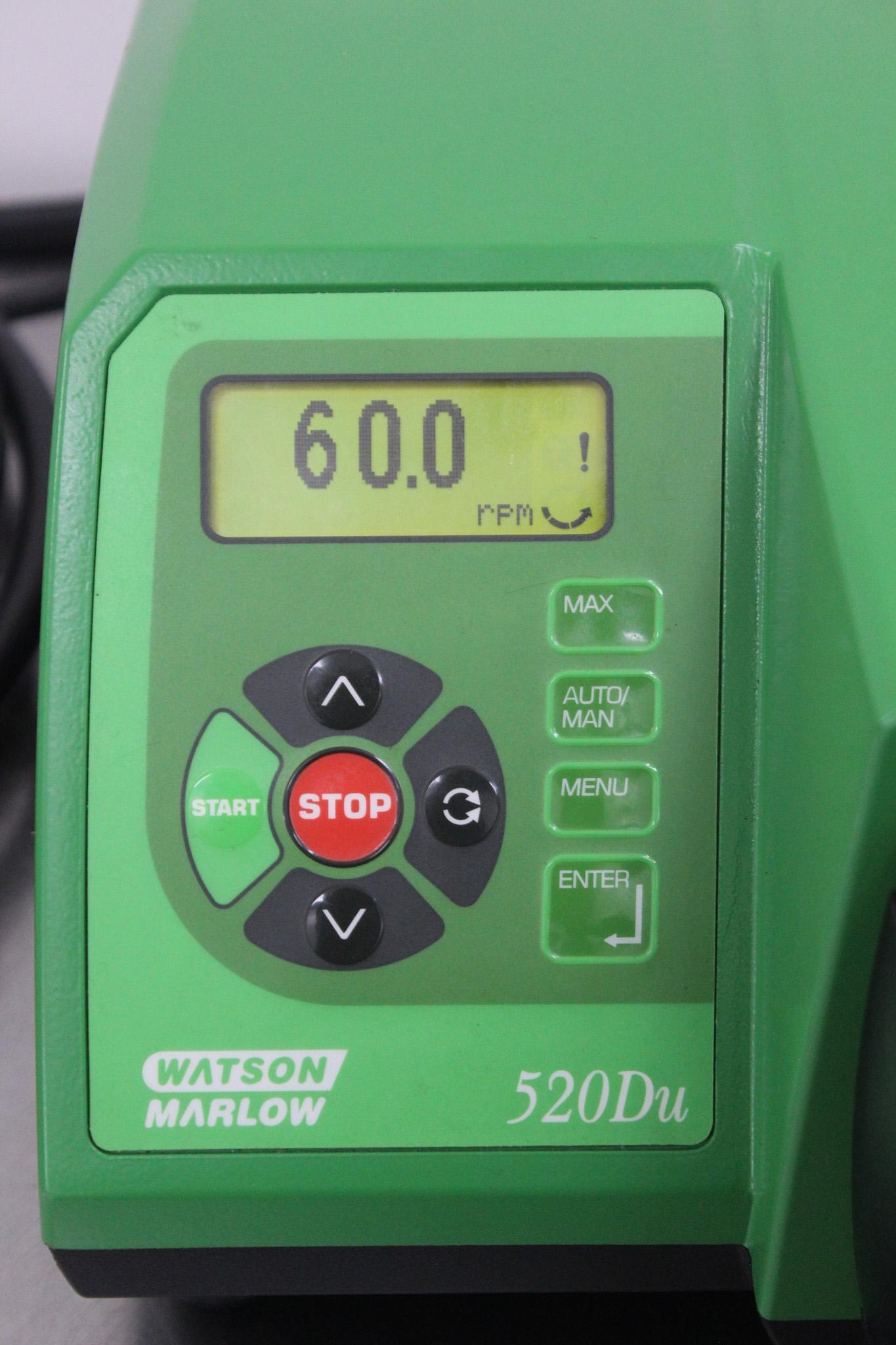

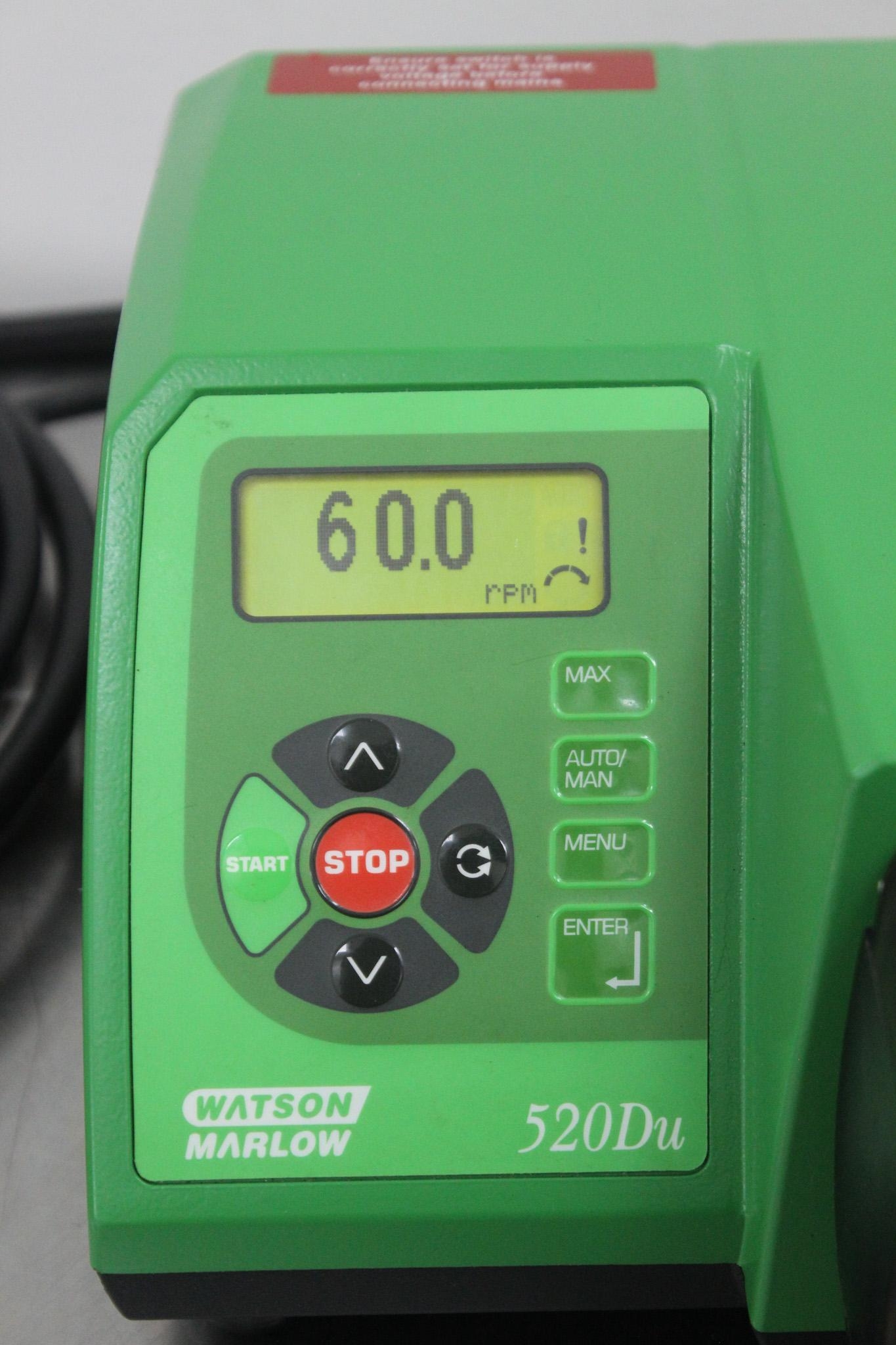

Unit powers on and motor rotates. Preowned with minor cosmetic blemishes from normal use. Pump head rollers rotate smoothly, Speed increases/decreases when adjusted. See photos for further details
Key Features
- Watson Marlow brand
- Model 520DUN/REL

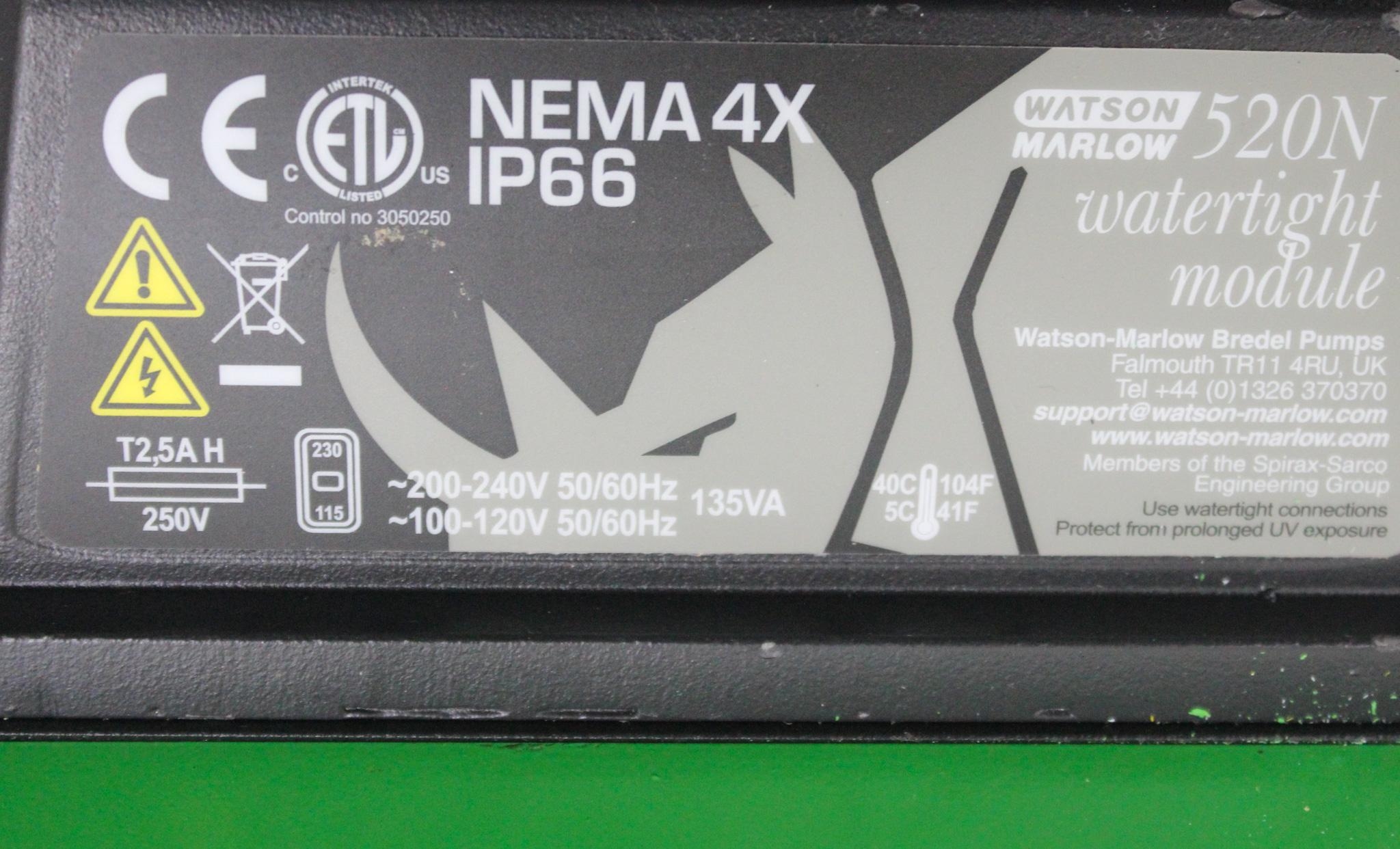

- Nema 4X Watertight Module
- Operates at 220 RPM
- IP66 rated for protection against dust and water
- Variable speed control
- Preowned with minor cosmetic blemishes
Specifications
- Model: 520DUN/REL
- Speed: 220 RPM
- Voltage: 100-240V
- Frequency: 50Hz/60Hz
- Protection: IP66
- Nema 4X Watertight Module
- Actual Weight: 30 lbs (13.6 kg)
- Dimensions: 46 cm x 28 cm x 18 cm (L x W x H)
Weight
Imperial: 36.0 Pounds
Metric: 16.33 Kilograms
Shipping Dimensions
Imperial: 21.6 lb x 13.2 lb x 8.4 lb
Metric: 54.86 cm x 33.53 cm x 21.34 cm
Harmonized Code
84133090
Harmonized Code Details
Harmonized code 84133090 refers to fuel, lubricating or cooling medium pumps for internal combustion piston engines. Selected due to the similarity of function and form for fluid transferring applications common to Watson Marlow pump models.
