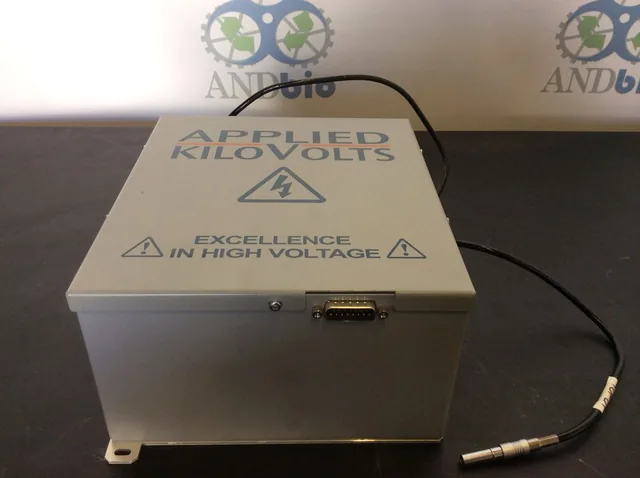

Applied KiloVolts LS015RZZ703 Precision High Voltage Module 15kV Reversible
Applied KiloVolts
Details
-
CategoryMass Spectrometry
-
Dimension12.0in x 12.0in x 12.0in
-
Serial134956
-
Shipping TypeFedEx Ground
Description
The Applied KiloVolts LS015RZZ703 is a precision high voltage module that was removed from a mass spectrometer. It is designed for applications such as mass spectrometry, SIMS, electron microscopy, and surface science. The unit is part of the LS Reversible Series, offering high stability and low ripple with an output voltage range of +/-30V to +/-15kV at 66.7mA. It is short circuit and flashover proof, featuring a 24-hour burn-in period to ensure reliability. Though it has cosmetic wear from use, the equipment powers on and conducts basic operations, ready for integration into scientific environments.
Key Features
- Precision high voltage module
- Output: +/-30V to +/-15kV at 66.7mA
- Short circuit and flashover proof
- Low ripple and drift
- Externally programmable or internal control
- Applications: mass spectrometers, electron microscopes
Specifications
- Brand / Manufacturer: Applied KiloVolts
- Model: LS015RZZ703
- Condition: Used
- Output Voltage: +/-30V to +/-15kV
- Current: 66.7mA
- Line Regulation: <2ppm of maximum voltage for input changes of 1 volt
- Load Regulation: <10ppm of maximum voltage for load changes from 10% to 100%
- Temperature Co-efficient: 10ppm / C (20C ~ 50C)
- Operating Temperature: 0C to +50C
- Drift: .005% per hour
Weight
Imperial: 6.0 Pounds
Metric: 2.72 Kilograms
Shipping Dimensions
Imperial: 14.4 lb x 14.4 lb x 14.4 lb
Metric: 36.58 cm x 36.58 cm x 36.58 cm
Harmonized Code
9030330000
Harmonized Code Details
9030330000 - 'Other measuring or checking instruments, appliances and machines, with or without a recording device', appropriate for precision measuring instrument used in scientific and technical fields.
