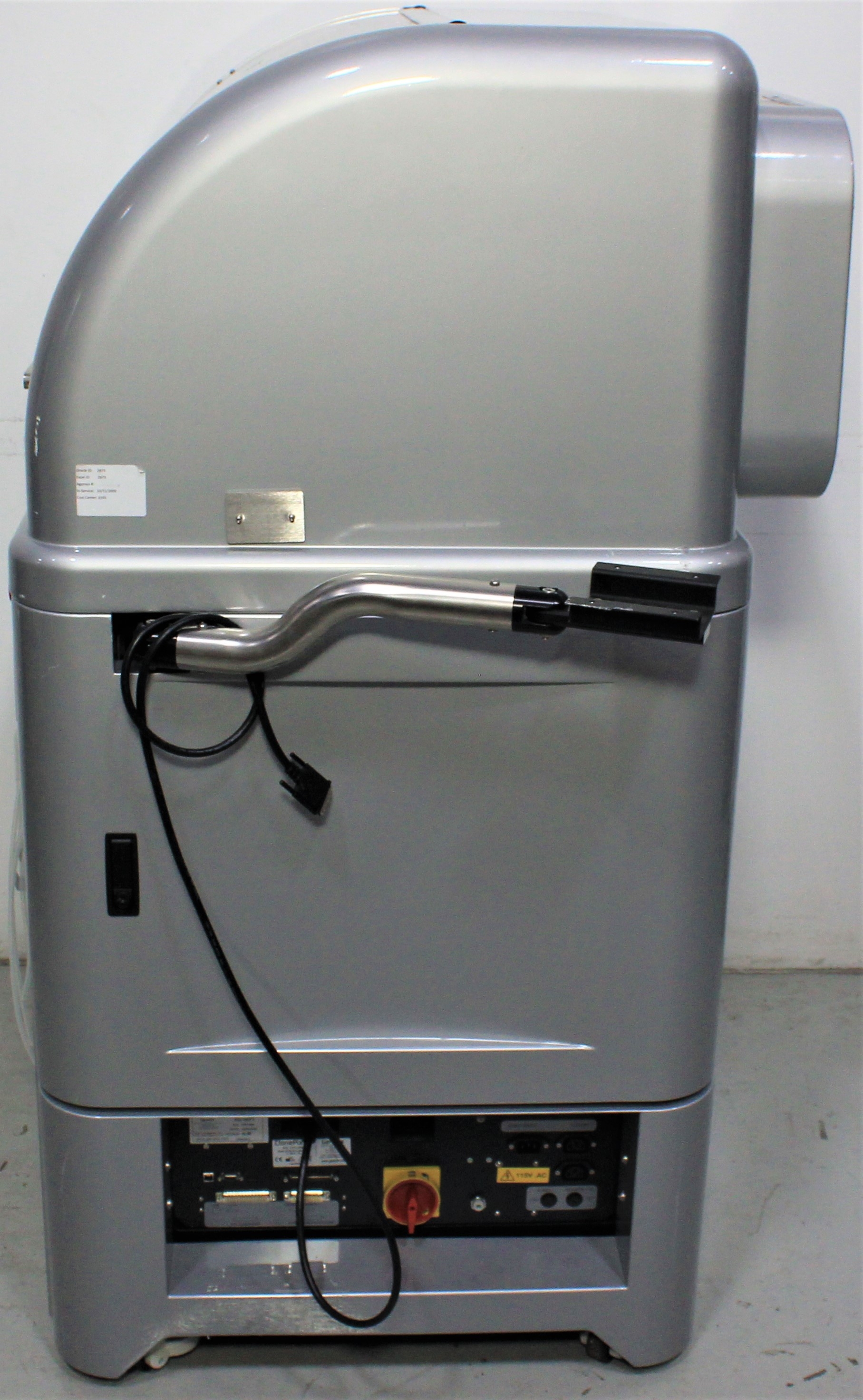

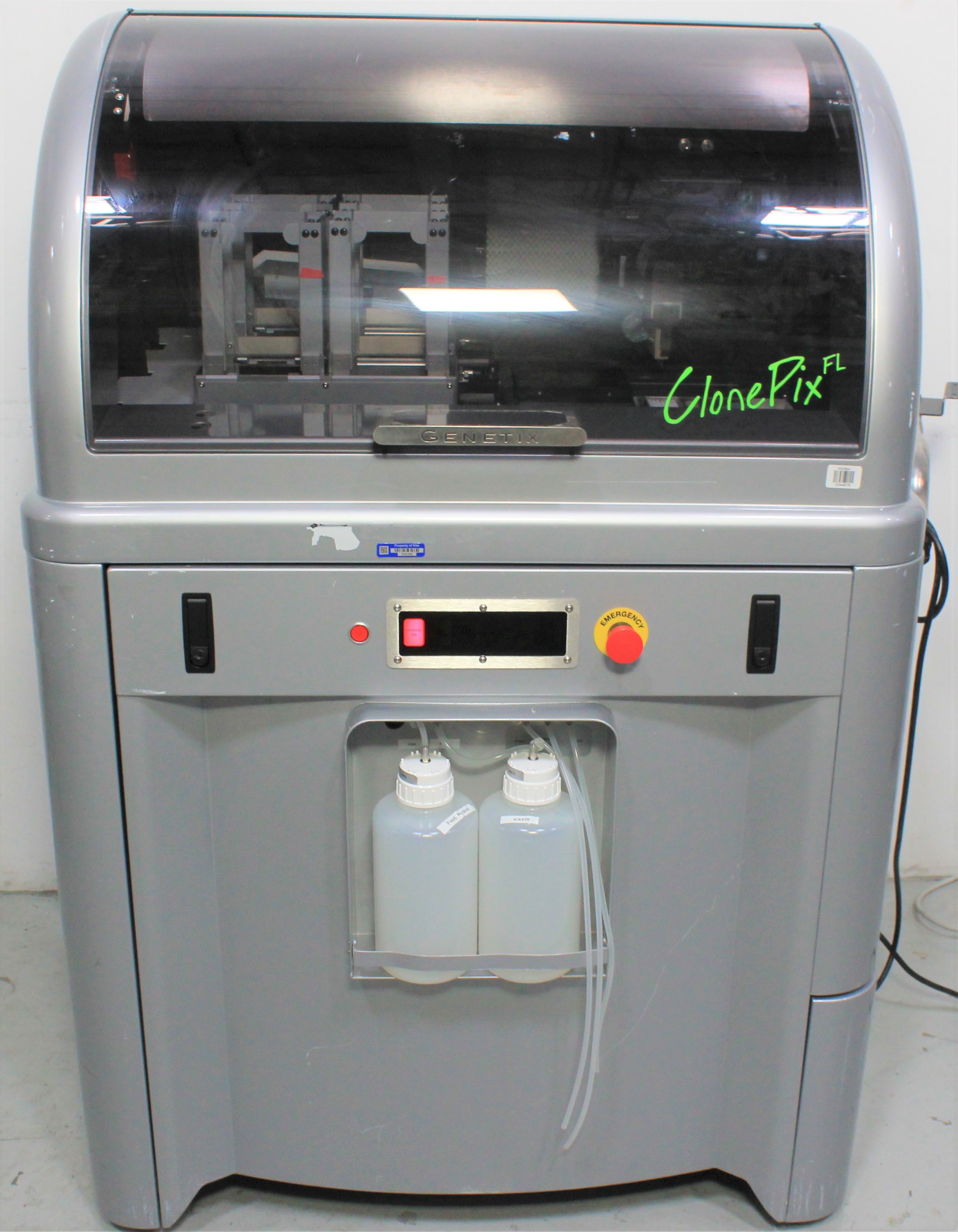

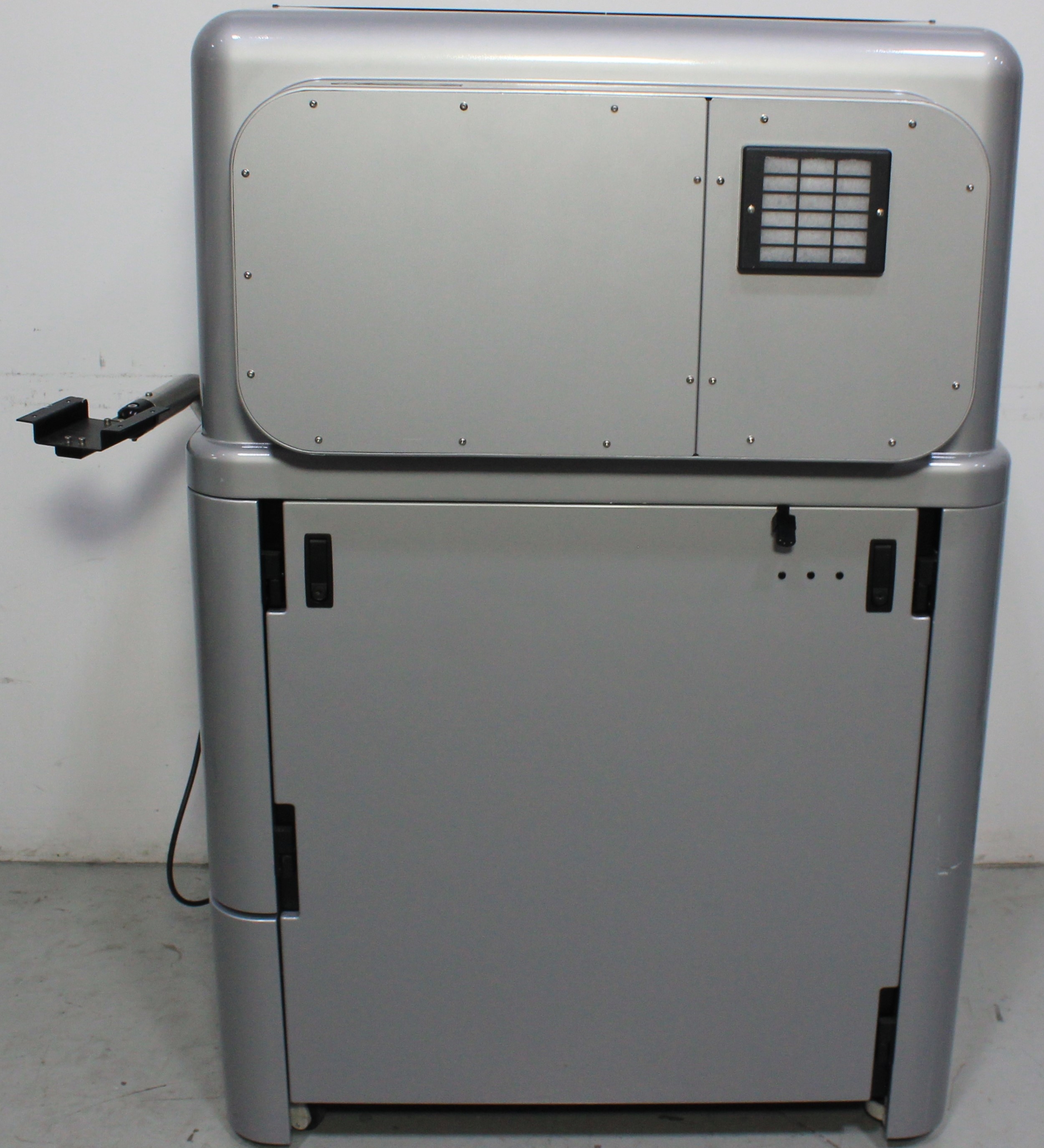

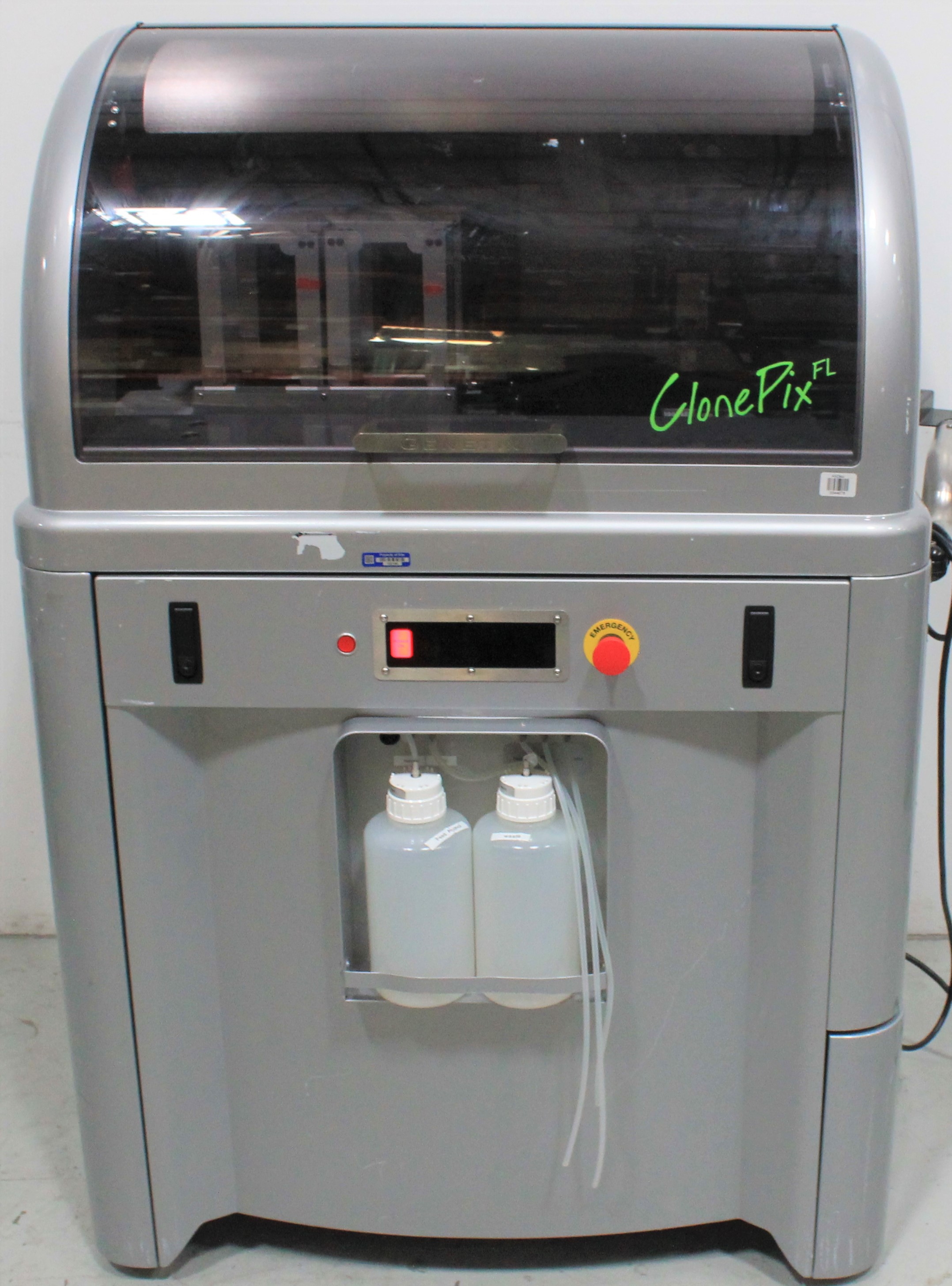

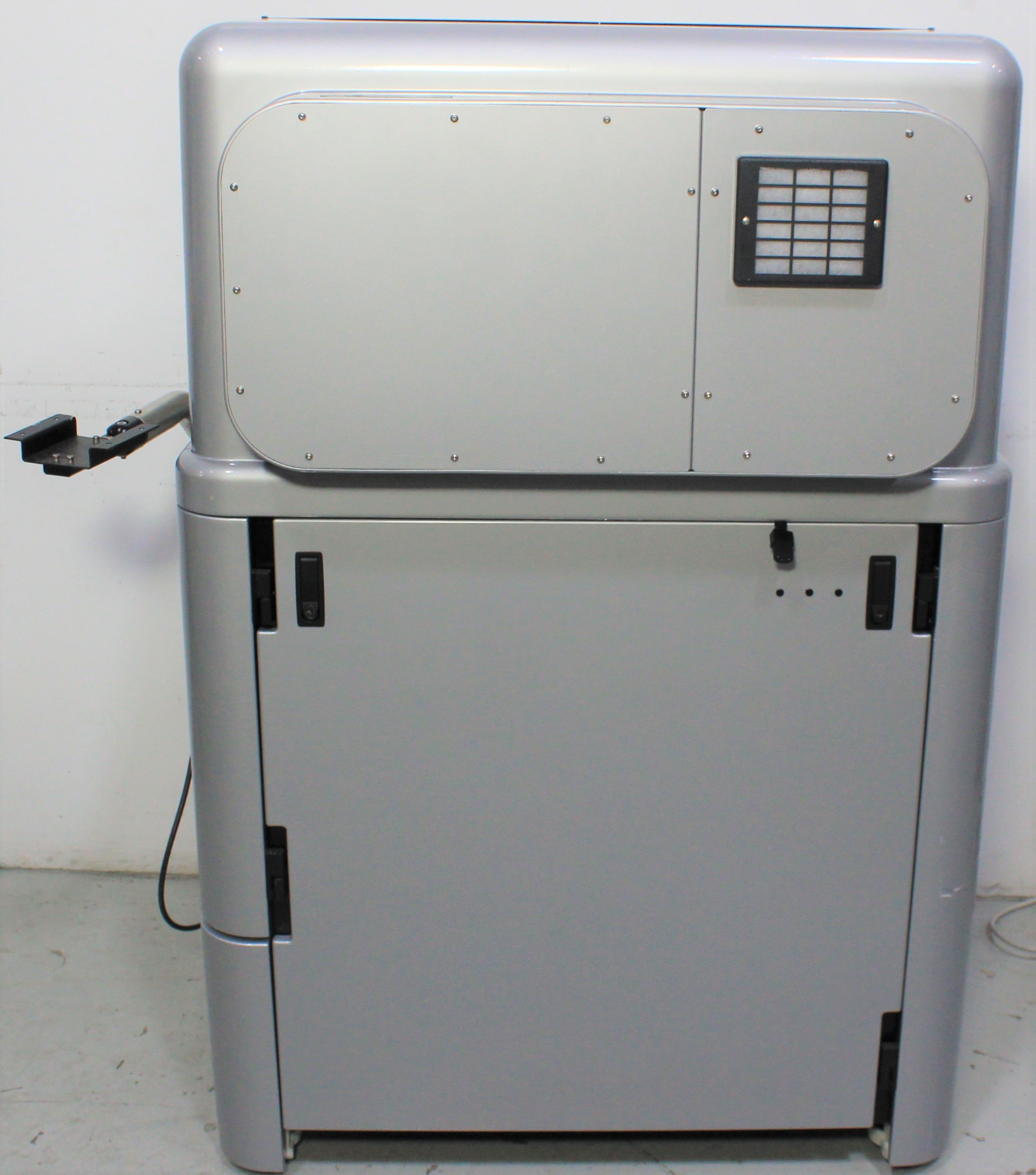

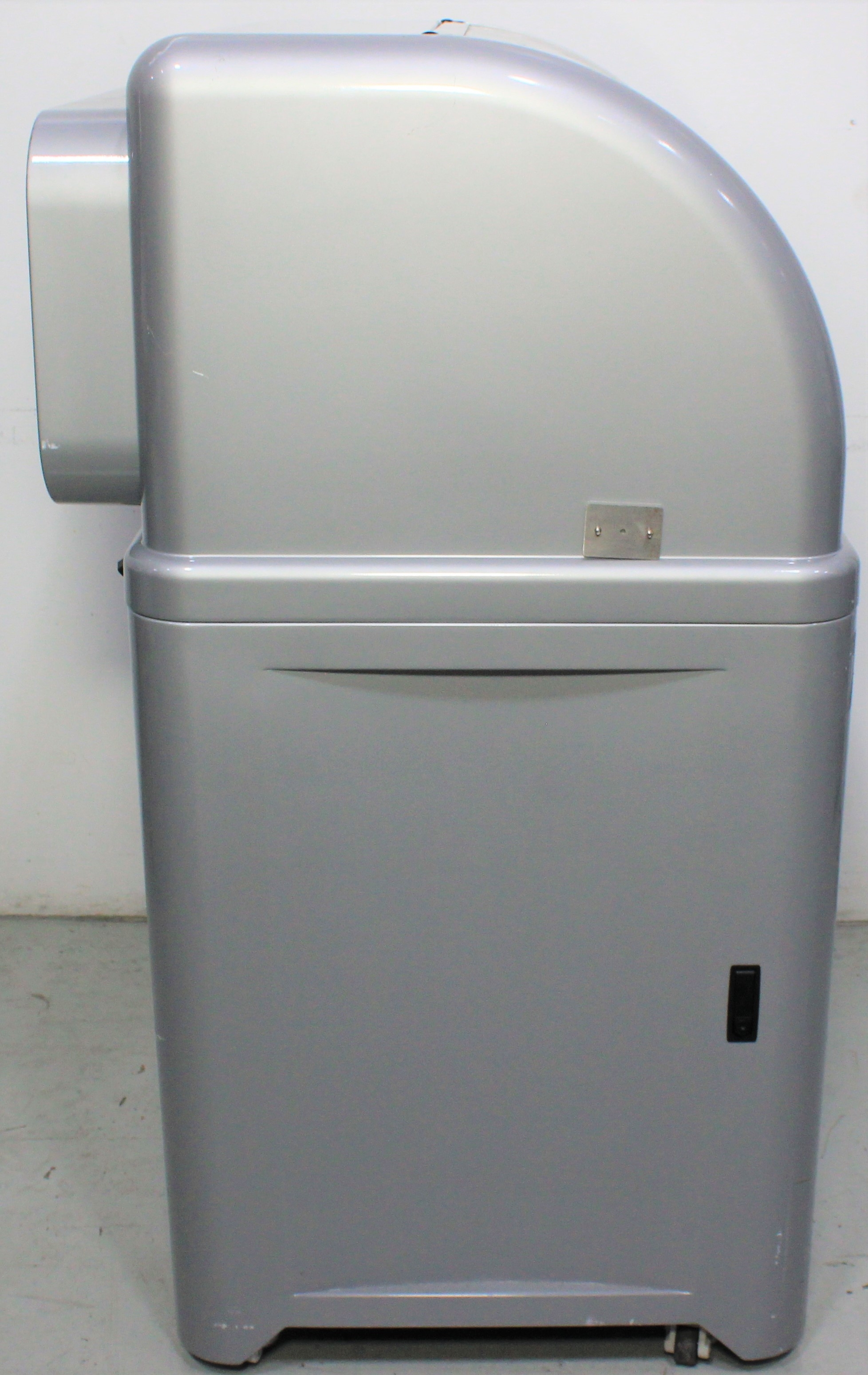

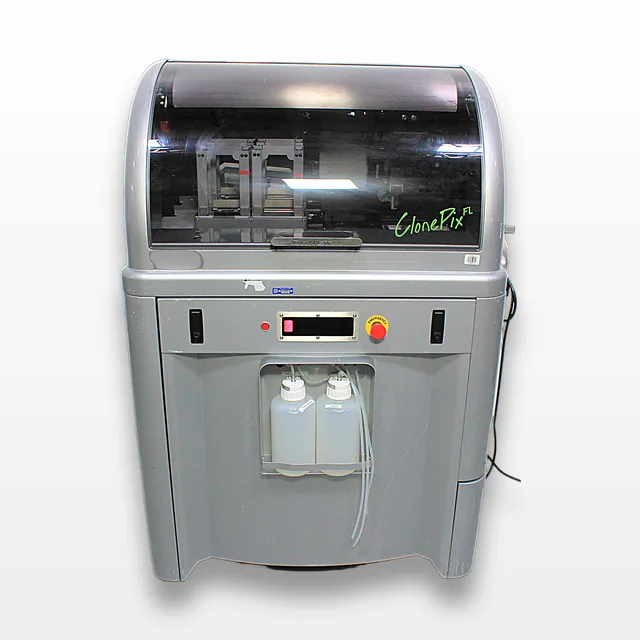

Genetix ClonePix FL Cell Selection Colony Picker Turnkey Imaging System
Genetix
Details
-
CategoryCell Counting / Sorting
-
Dimension35.0in x 41.0in x 60.0in
-

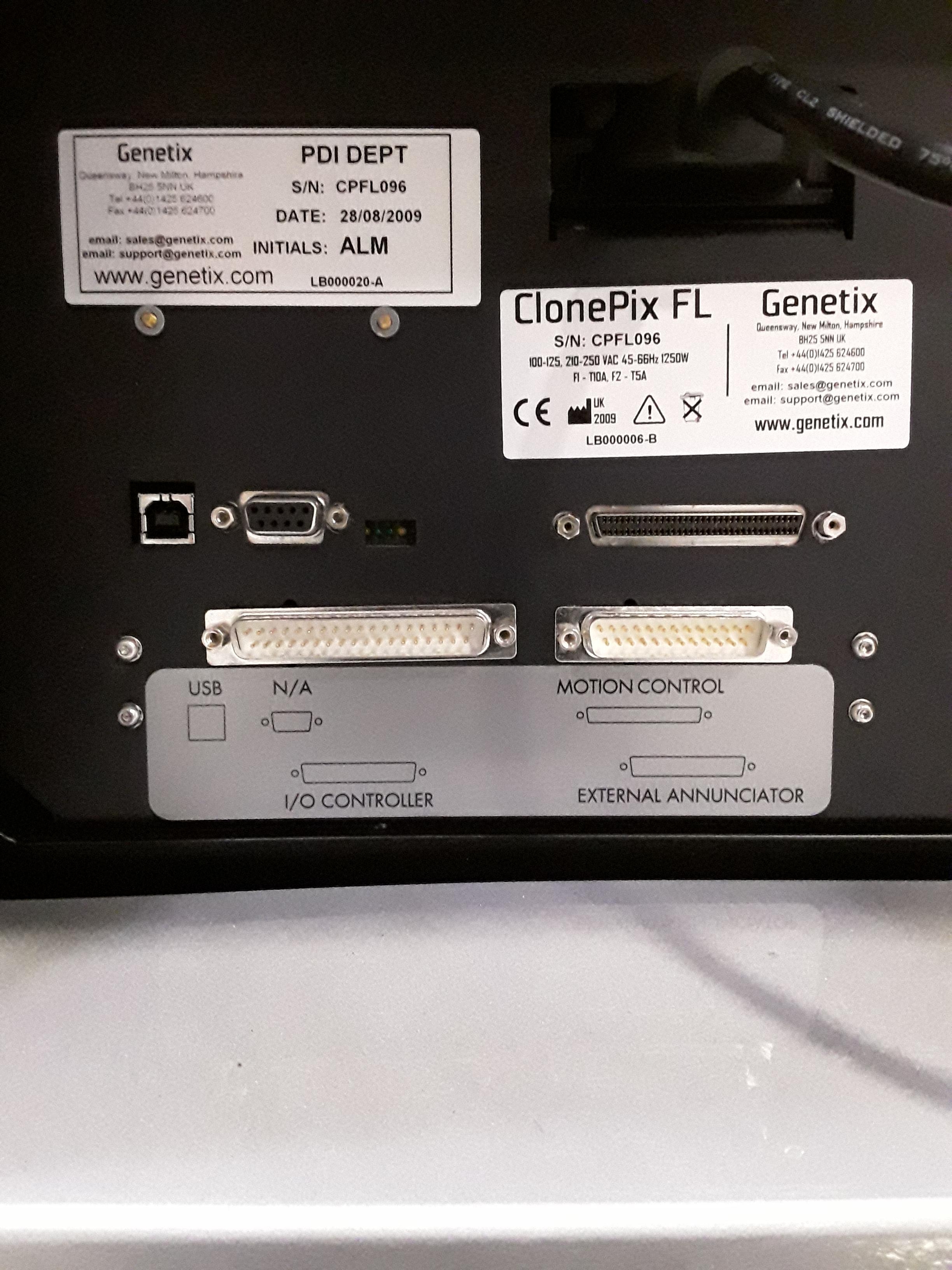

SerialCPFL096
-
Shipping TypeGround
-
ManufacturingDoes Not Apply
-
Voltage / HertzDoes Not Apply / Does Not Apply
Description
The Genetix ClonePix FL, a highly advanced cell selection system, incorporates fluorescent imaging capabilities to optimize cell line development processes in the life science industry. This used turnkey system is fully functional without needing software licenses. It expedites biopharmaceutical research by substantially reducing development time and costs compared to traditional methods such as limited dilution or cell sorting. The system's integrated 16-bit cooled CCD camera ensures high-resolution imaging, bolstered by white light and fluorescence imaging options through controlled filter switching. In addition, its fully enclosed working environment with HEPA filtration and ethanol wash bath maintains laboratory safety and sterility. Adept at processing various source and destination plates, it increases efficiency with a picking speed of over 200 clones per hour using its 8 x independently controlled picking pins. Especially suitable for rapidly generating biologic products, ClonePix FL ensures precision with internal barcode tracking and quick 5-minute imaging on standard 6-well microplates.
Key Features
- Fluorescent imaging capabilities for intelligent cell selection
- Reduces time and costs for biopharmaceutical development
- Integrated 16-bit cooled CCD camera for high-resolution imaging
- White light and fluorescence imaging with up to 5 filter pairs
- Internal barcode reader for data tracking
- Handles multiple plate types for flexibility
- Picking speed over 200 clones per hour
- Automatic ethanol wash bath
- Proprietary halogen pin drying station for maintenance ease
Specifications
- Imaging: White light (Trans-illumination, Epi-illumination) and Fluorescence
- Camera: Integrated 16-bit cooled CCD
- Resolution: Standard - 28 micron; Maximum - 1.5 micron
- Imaging Speed: 6-well microplate (5 min for 2 wavelengths)
- Environment: Class 100-type, HEPA filtration

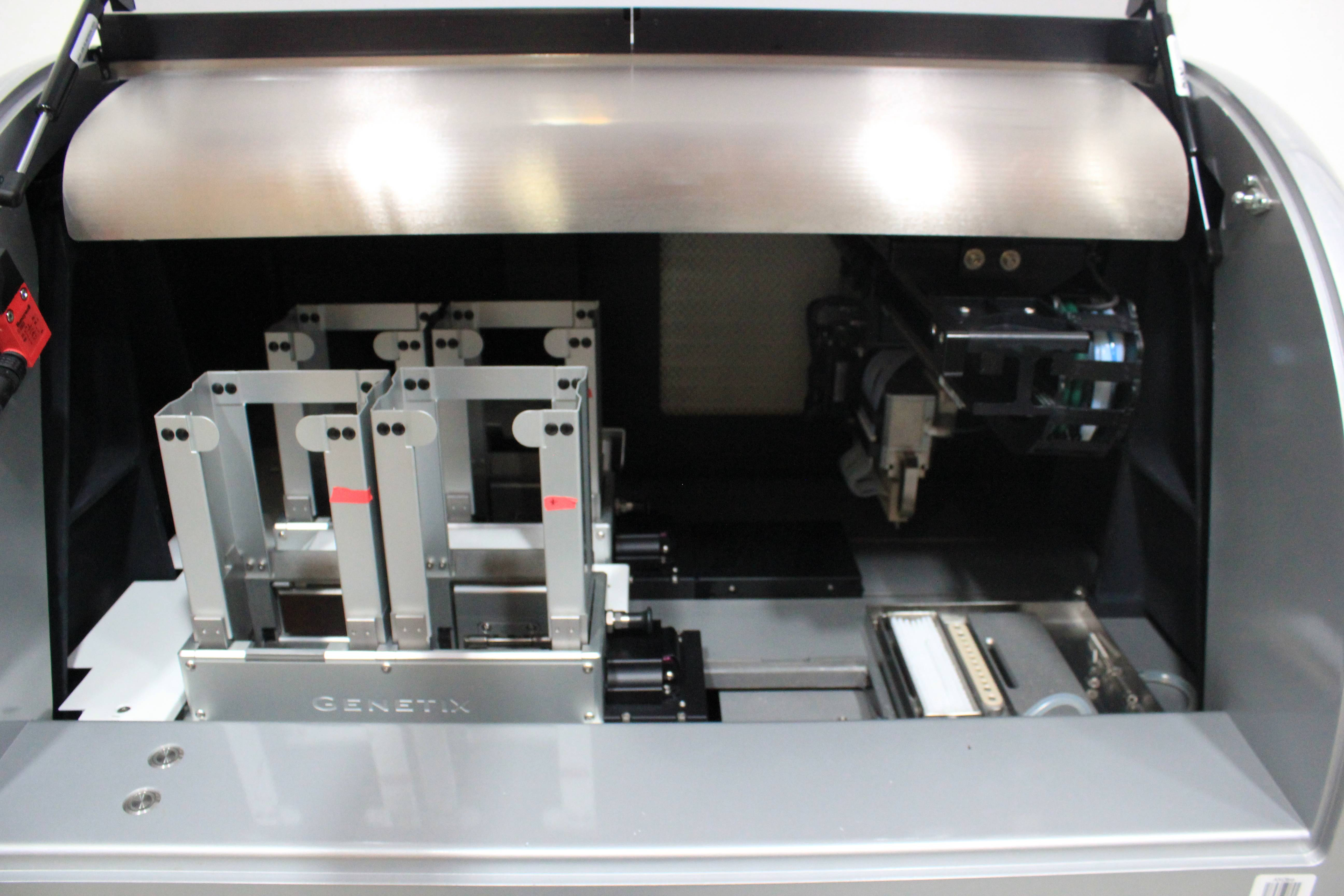

- Picking Head: 8 independently controlled picking pins
- Picking Speed: >200 clones per hour
- Source Plate Capacity: 10 plates
- Destination Plate Capacity: 10 plates
- Fluids: 5 L sterile water supply, 5L waste bottle
Weight
Imperial: 925.2 Pounds
Metric: 419.66 Kilograms
Shipping Dimensions
Imperial: 42.0 lb x 49.2 lb x 72.0 lb
Metric: 106.68 cm x 124.97 cm x 182.88 cm
Harmonized Code
902750
Harmonized Code Details
902750 - Instruments and apparatus for physical or chemical analysis by electrical means; using optical radiations (ultraviolet, visible, infrared). Selected due to its advanced capabilities in cellular imaging and analysis.
