Coherent I90C-4 Laser Module Salvaged High-Performance System Components
COHERENT
Details
-
CategoryLaser
-
Dimension22.0in x 72.0in x 8.0in
-

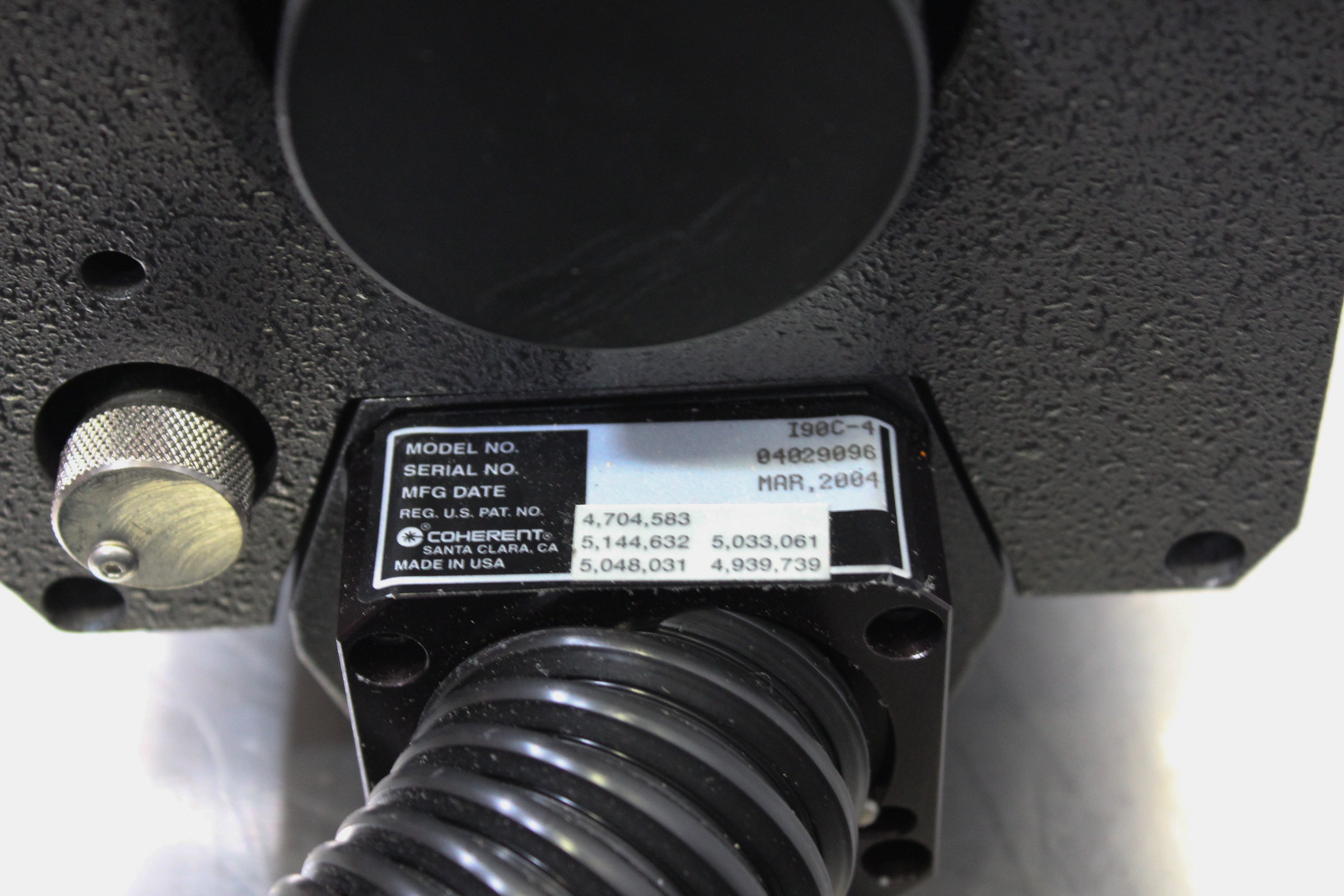

Serial04029096/ 0401112503
-
Shipping TypeFreight
-
ManufacturingDoes Not Apply
-
Voltage / Hertz220V / 50Hz/60Hz
Description
The Coherent Innova I90C-4 Laser Module offers superior performance and reliability, equipped with a SuperInvar resonator for enhanced passive stability. It includes a single-frequency option for long coherence length, an intracavity aperture for precise mode control, and a low-noise linear passbank power supply. The Innova 90C model represents an advanced iteration of the famed Innova 90, known for its dependable performance across multiple configurations. Ideal for laboratories needing reliable laser technology, this salvaged unit includes valuable internal components in high demand. Current operating conditions are used and the sale is AS-IS. Note that the computer is not included. Key characteristics include a beam diameter of 1.5mm, divergences of 0.5/0.8 mrad, and highly stable operation for sophisticated applications.
Key Features
- SuperInvar resonator for passive stability
- Single-frequency option for narrow linewidth
- Intracavity aperture for mode control
- Low-noise linear passbank power supply

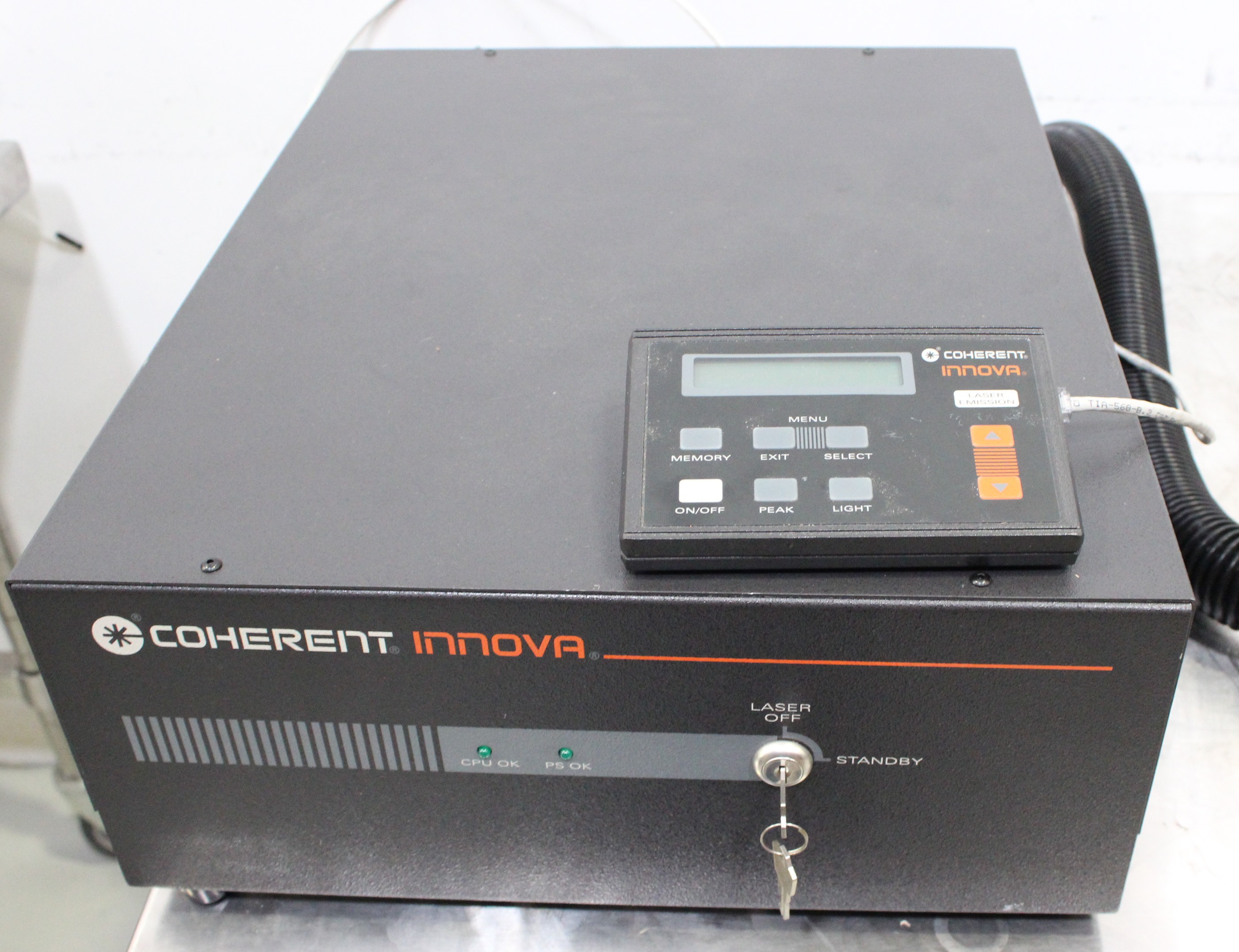

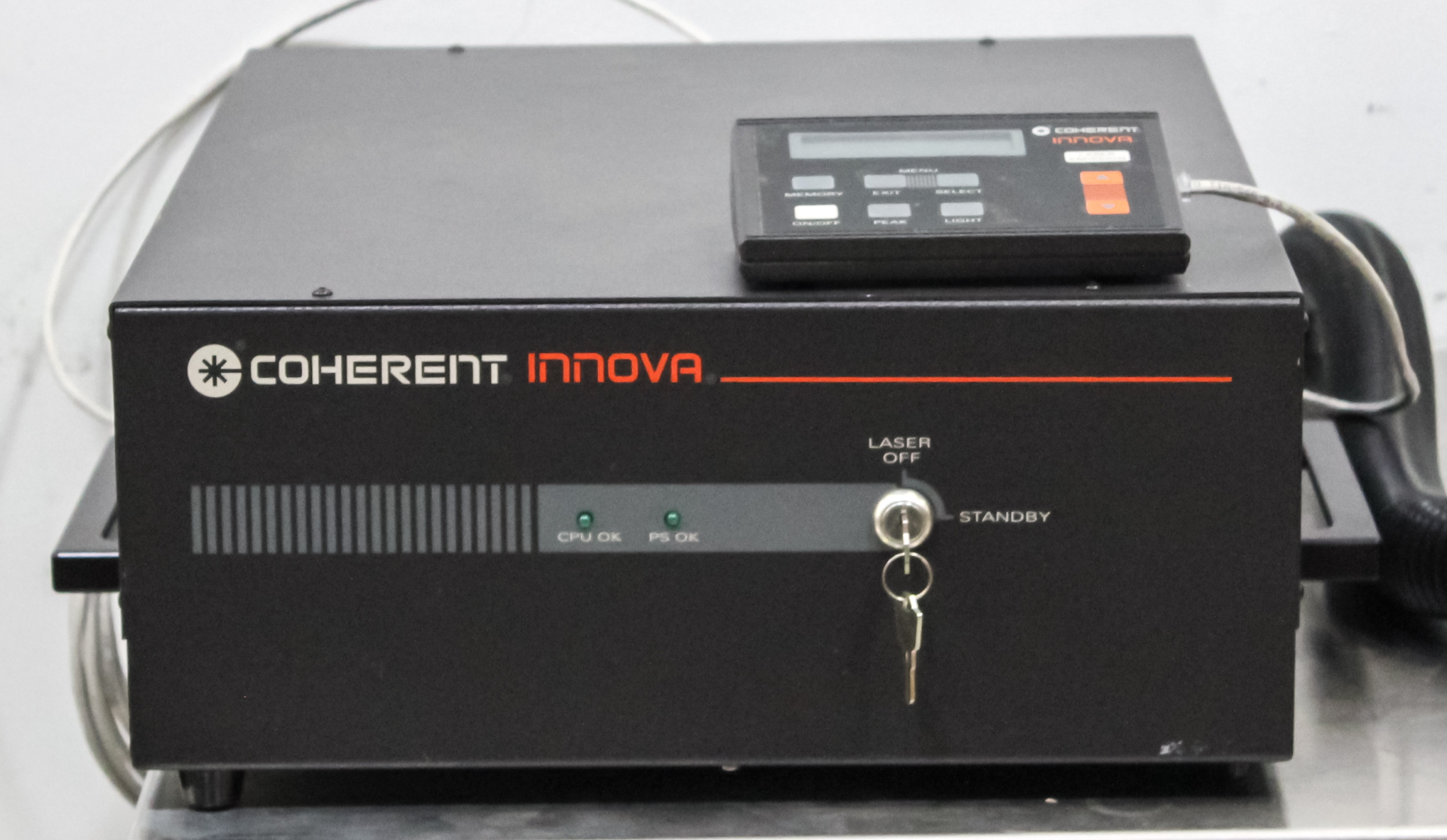

- Compact digital remote control
Specifications
- Beam Diameter: 1.5 mm
- Beam Divergence (full angle): 0.5 mrad (Argon), 0.8 mrad (Krypton)
- Beam Waist Diameter: 1.4 mm (Argon), 1.1 mm (Krypton)
- Beam Waist Location: 1.50 m (Argon), 1.27 m (Krypton)
- Single Cavity Length: 1.16 m
- Multiline Cavity Length: 1.14 m
- Long Term Power Stability: +/- 0.5% light regulation
- Current Regulation: +/- 3.0%
Weight
Imperial: 214.8 Pounds
Metric: 97.43 Kilograms
Shipping Dimensions
Imperial: 26.4 lb x 86.4 lb x 9.6 lb
Metric: 67.06 cm x 219.46 cm x 24.38 cm
Harmonized Code
90132000
Harmonized Code Details
Harmonized code 90132000 is designated for lasers, other than laser diodes. This code suits the Coherent I90C-4 as it pertains primarily to laser systems intended for laboratory and industrial applications.
