Waters Column Heater Cooler Ultra-Performance Temperature 10-90C HPLC System
Waters
Details
-
CategoryChiller / Heater
-
Dimension24.0in x 14.0in x 7.0in
-

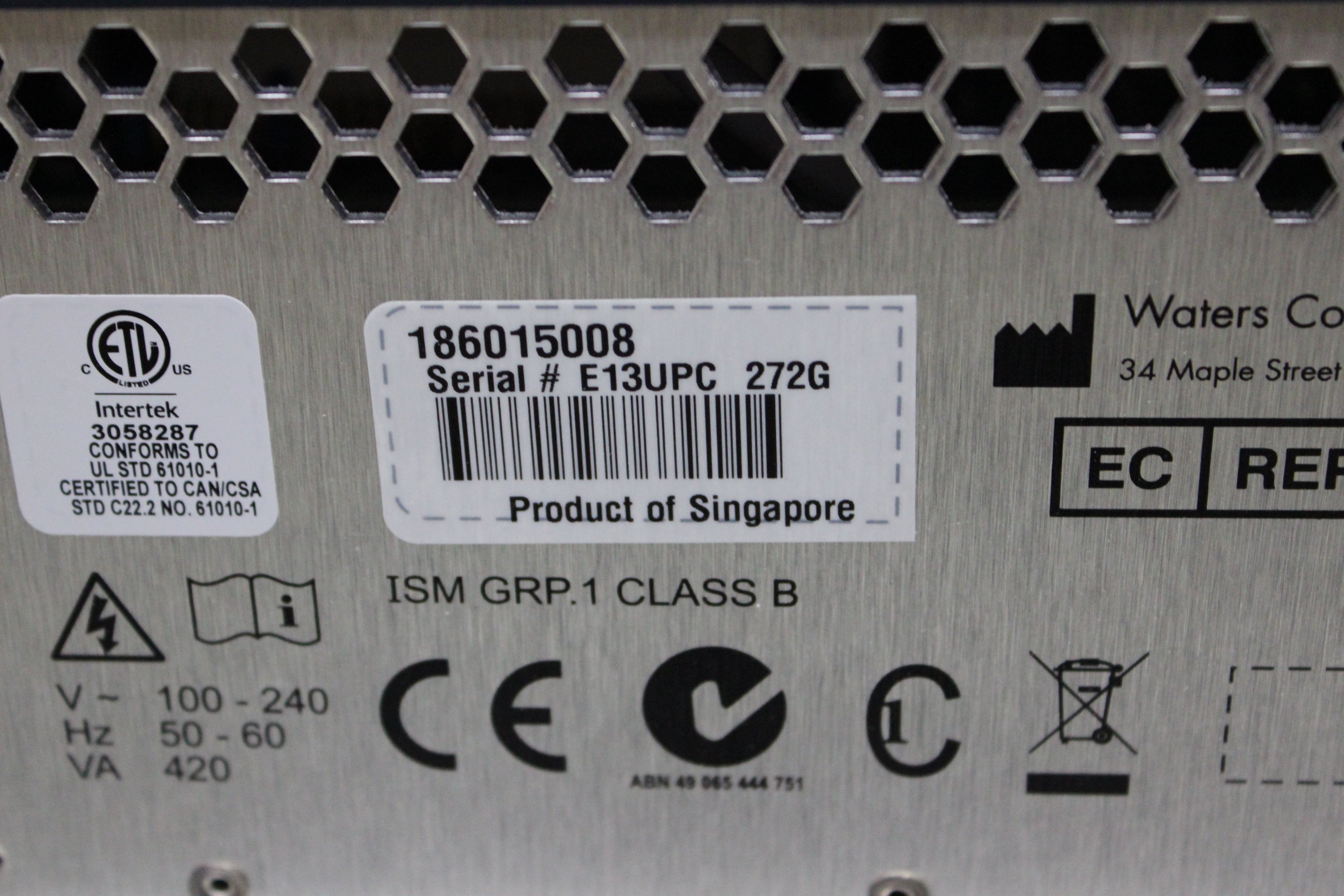

SerialE13UPC 272G
-
Shipping TypeFreight
-
ManufacturingDoes Not Apply
-
Voltage / Hertz120V/220V / 50Hz/60Hz
Description
The Waters ACQUITY UPLC Column Heater/Cooler is a reliable system specifically designed for ultra-performance high-resolution separations where temperature serves as a crucial method parameter. With the ability to heat and cool columns from 10°C to 90°C, this refurbished system is meticulously built to handle columns with dimensions ranging from 1.0 to 2.1 mm internal diameter and 20 to 150 mm in length, either singly or serially connected. Its advanced design includes pre-column solvent heating and passive post-column cooling, enhancing separation performance. Additionally, it tracks lifetime usage information for each column assembly, offering comprehensive monitoring capabilities. The unit operates on 120V/220V voltage with 50Hz/60Hz frequencies and is fully functional in its current used condition, categorized as turnkey-ready. This equipment is essential in laboratories where precise control of column temperature is necessary.
Key Features
- Heating and cooling range from 10°C to 90°C
- Accepts columns up to 4.6 mm I.D. and 150 mm length
- Advanced pre-column solvent heating and passive post-column cooling
- Tracks lifetime usage of columns
- Compatible with 120V/220V, 50Hz/60Hz power
Specifications
- Temperature range: 5°C above ambient to 65°C (9°F above ambient to 194°F)
- Wavelength range: 190-500 nm
- Compatible flow cell options: Analytical Cell 500 nanoliters, 10 mm path length
- High Sensitivity Cell 2.4 microliters, 25 mm path length
- Voltage: 120V/220V
- Hertz: 50Hz/60Hz
Weight
Imperial: 37.2 Pounds
Metric: 16.87 Kilograms
Shipping Dimensions
Imperial: 28.8 lb x 16.8 lb x 8.4 lb
Metric: 73.15 cm x 42.67 cm x 21.34 cm
Harmonized Code
902780
Harmonized Code Details
902780 - Instruments and apparatus for physical or chemical analysis, using optical radiations (UV, visible, IR). This code is appropriate for the Waters UPLC Column Heater/Cooler due to its use in high-precision analytical processes involving temperature and wavelength control.
