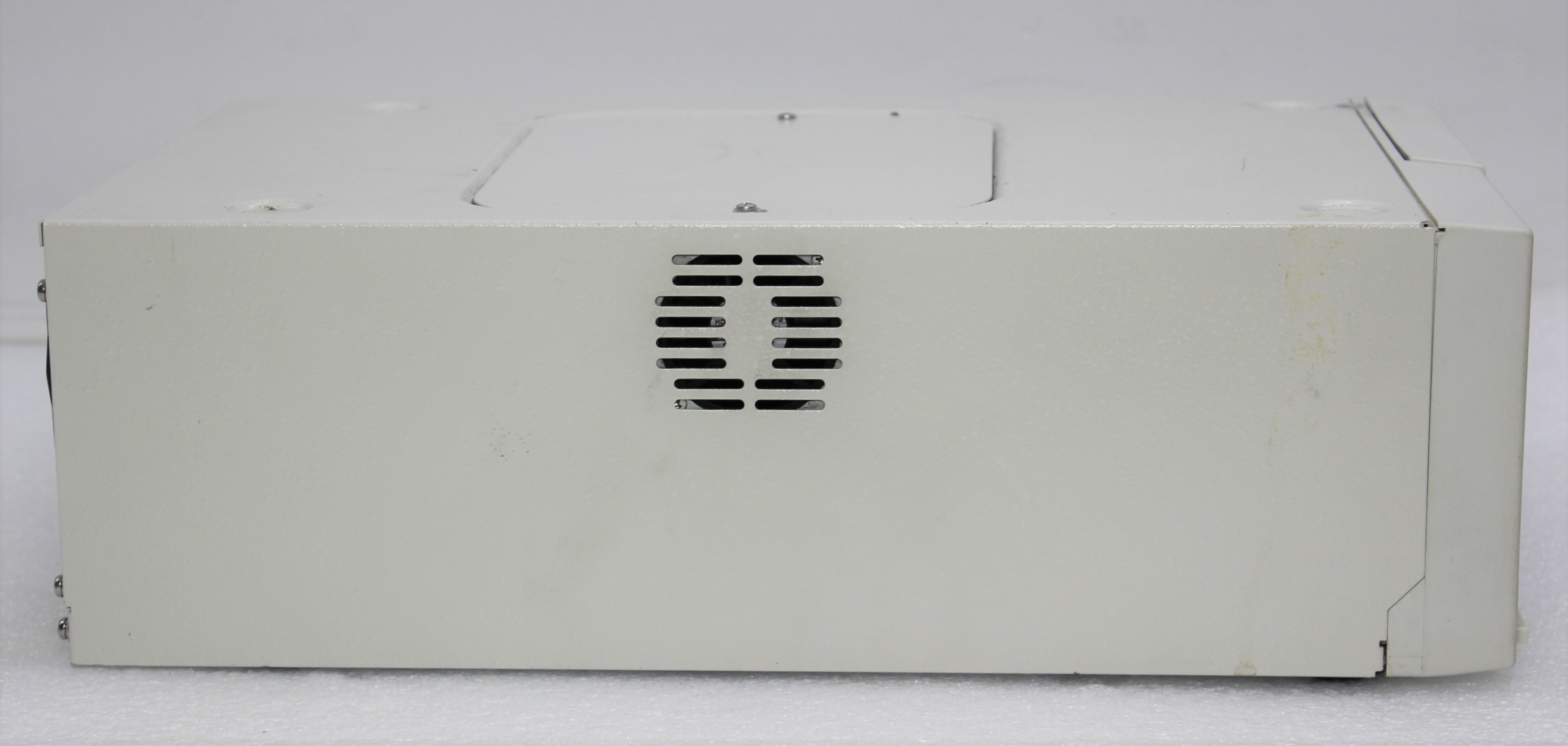

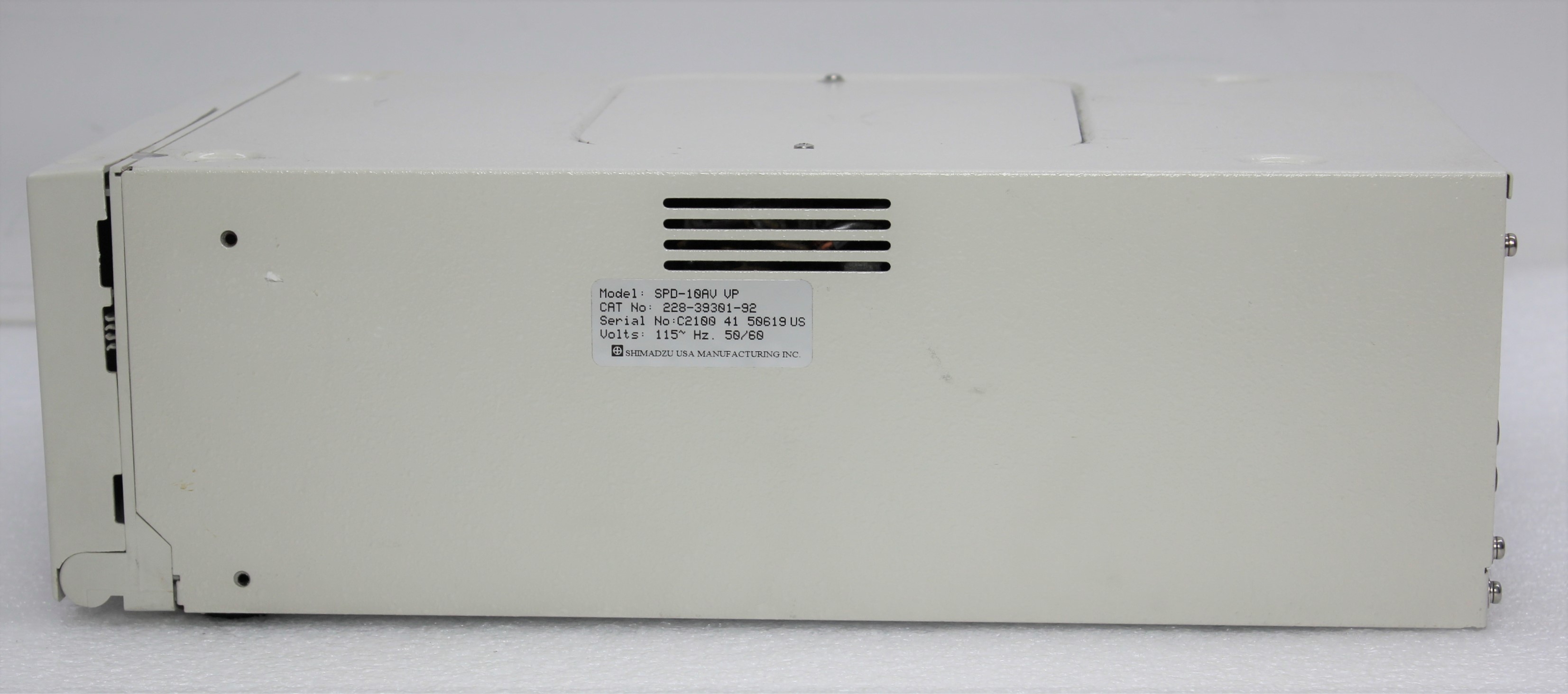

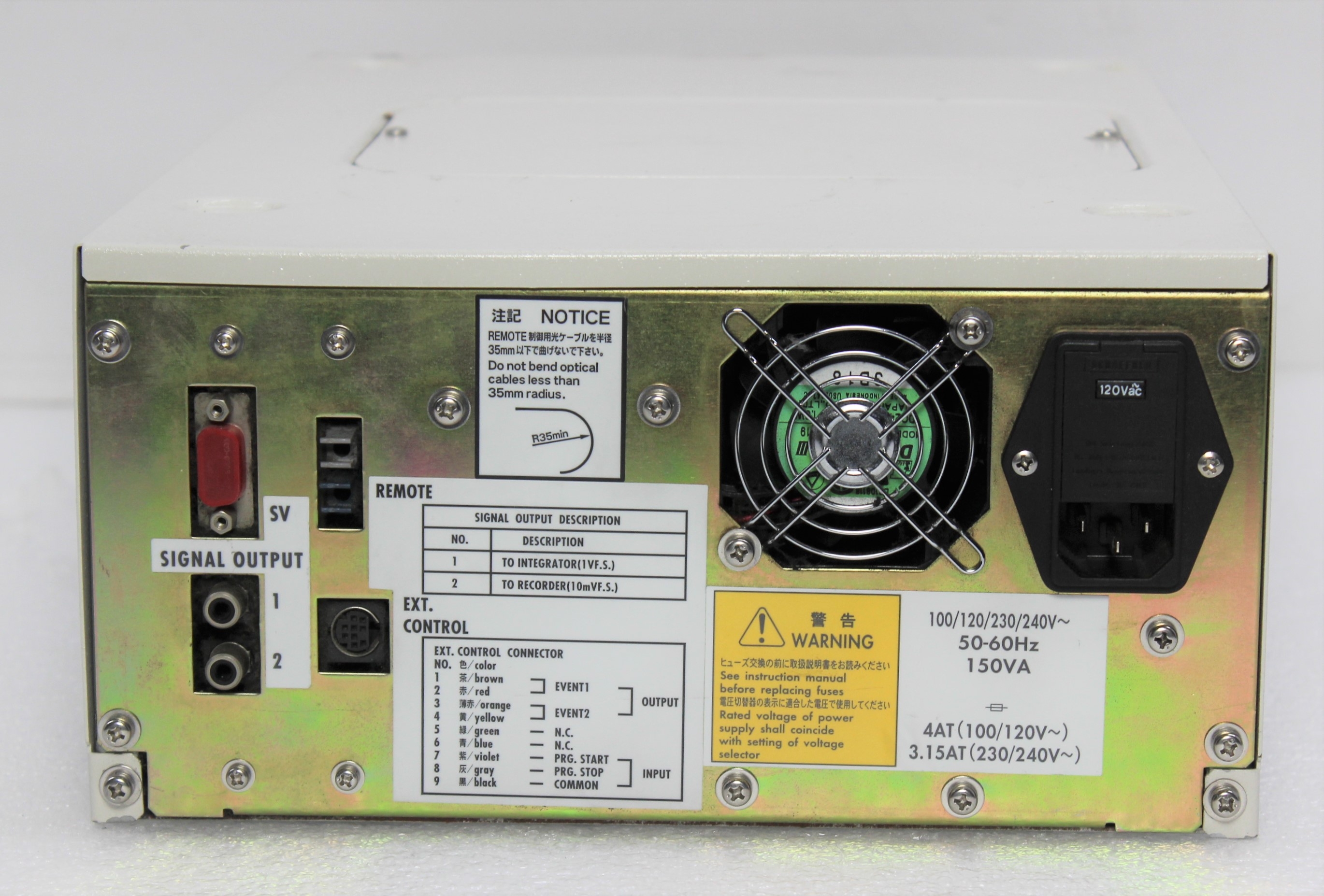

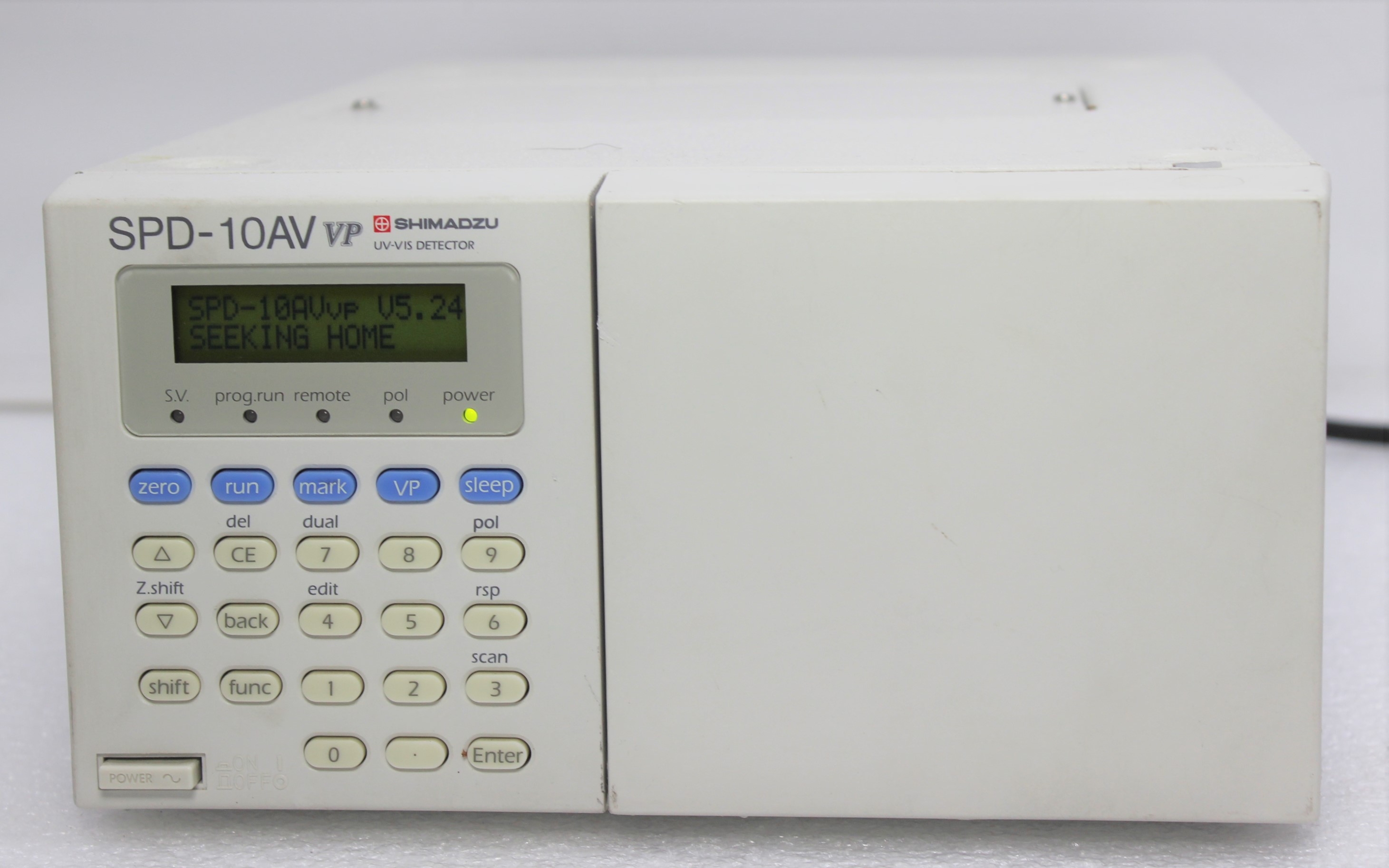

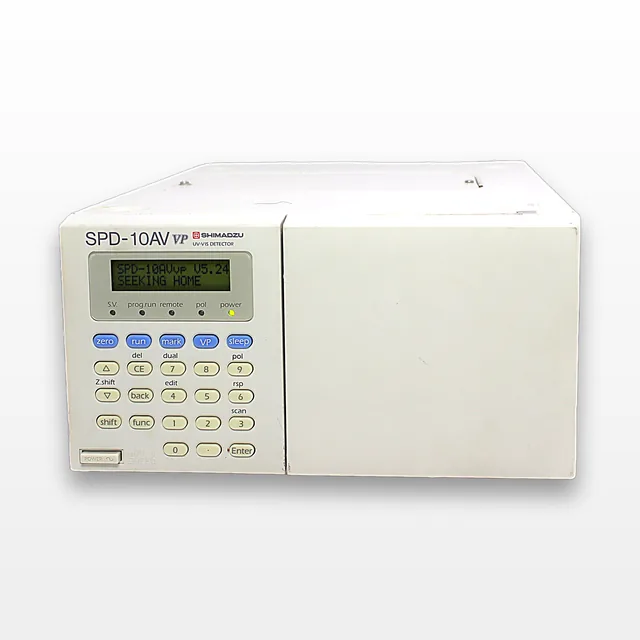

Shimadzu SPD-10A UV-Vis Detector Optical Range 190-600nm 120V Used
Shimadzu
Details
-
CategorySpectrometer - Single Well
-
Dimension17.0in x 10.0in x 7.0in
-

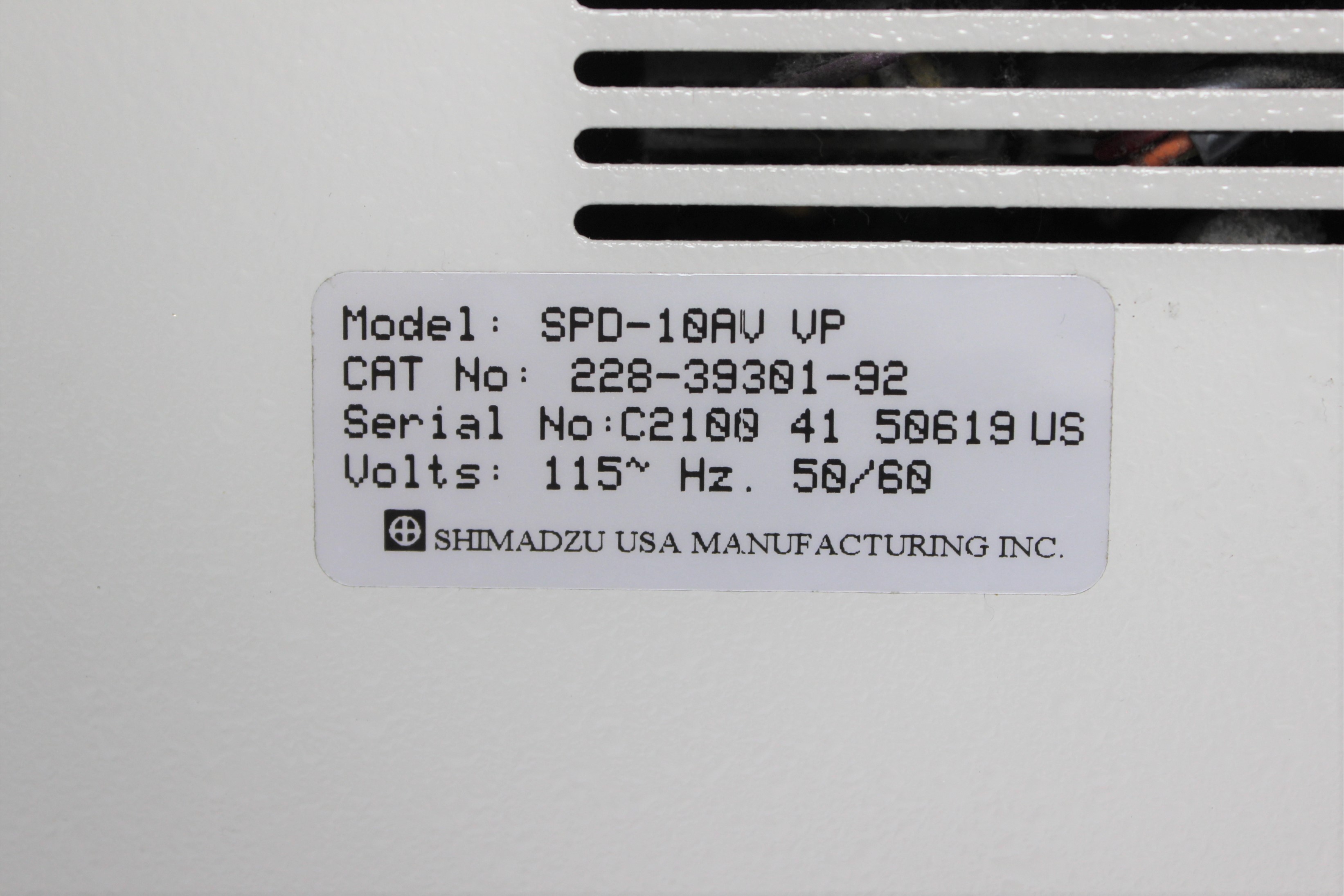

SerialC2100 41 50619 US
-
Shipping TypeFedEx Ground
-
ManufacturingDoes Not Apply
-
Voltage / Hertz120V/220V / 50Hz/60Hz
Description
The Shimadzu SPD-10A UV-Vis Detector, manufactured in the United States, is ideal for analytical chemistry applications, including the quantitative determination of transition metal ions, highly conjugated organic compounds, and biological macromolecules. It functions in solutions, as well as solids, and gases. Key features include a wavelength range of 190 to 600 nm, deuterium lamp light source, 8 nm spectral bandwidth, and accuracy within +/- 1 nm. It offers nine levels of response, arbitrary two wavelengths in measuring, and samples at 1.2 seconds per wavelength. With a cell volume of 8 uL and pressure tolerance of 12 MPa, this very good condition, used unit ensures reliable performance. This unit supports 120V/220V and functions confidently as either a standalone device or within a system setup. Computer is not included.
Key Features
- Light source: Deuterium lamp
- Wavelength range: 190 ~ 600 nm
- Spectral bandwidth: 8 nm
- Wavelength accuracy: +/- 1 nm
- Cell volume: 8uL
- Pressure tolerance: 12MPa
- Response: 9 selectable time constants
- Voltage: 120/220V, Hertz: 50/60Hz
Specifications
- Deuterium lamp light source for robust performance.
- Wavelength range from 190 to 600 nm suitable for various analyses.
- 8 nm spectral bandwidth ensuring fine wavelength separation.
- Wavelength accuracy of +/- 1 nm for precise results.
- Reproducibility of wavelength accurate to +/- 0.1 nm.
- Cell volume is 8 microliters, compatible with minute sample sizes.
- Capable of handling up to 12 MPa of pressure, ensuring sample integrity.
- Flexible wavelength measurement; choose two wavelengths between 190-370 nm or 371-600 nm.
- Programmable response settings with nine time constants from 0.05 to 10 seconds.
- Fine increments in absorbance units, adjustable from 0.0001 to 2.56 AUFS.
Weight
Imperial: 34.8 Pounds
Metric: 15.79 Kilograms
Shipping Dimensions
Imperial: 20.4 lb x 12.0 lb x 8.4 lb
Metric: 51.82 cm x 30.48 cm x 21.34 cm
Harmonized Code
90273000
Harmonized Code Details
90273000 - Spectrometers used in physics, chemistry, biology, geology, etc., suitable for measuring or checking quantities of heat, sound, or light. This code is used because the Shimadzu SPD-10A measures UV-Vis spectra, a key light-related property, applicable in scientific analysis.
