Thermo F01350 Robotic Automation Plate Handling Turn-Key Ready System
Thermo Scientific
Details
-
CategoryRobotic / Automation
-
Dimension19.0in x 12.0in x 22.0in
-
SerialRS10949366
-
Shipping TypeFreight
-
ManufacturingDoes Not Apply
-
Voltage / HertzDoes Not Apply / Does Not Apply
Description

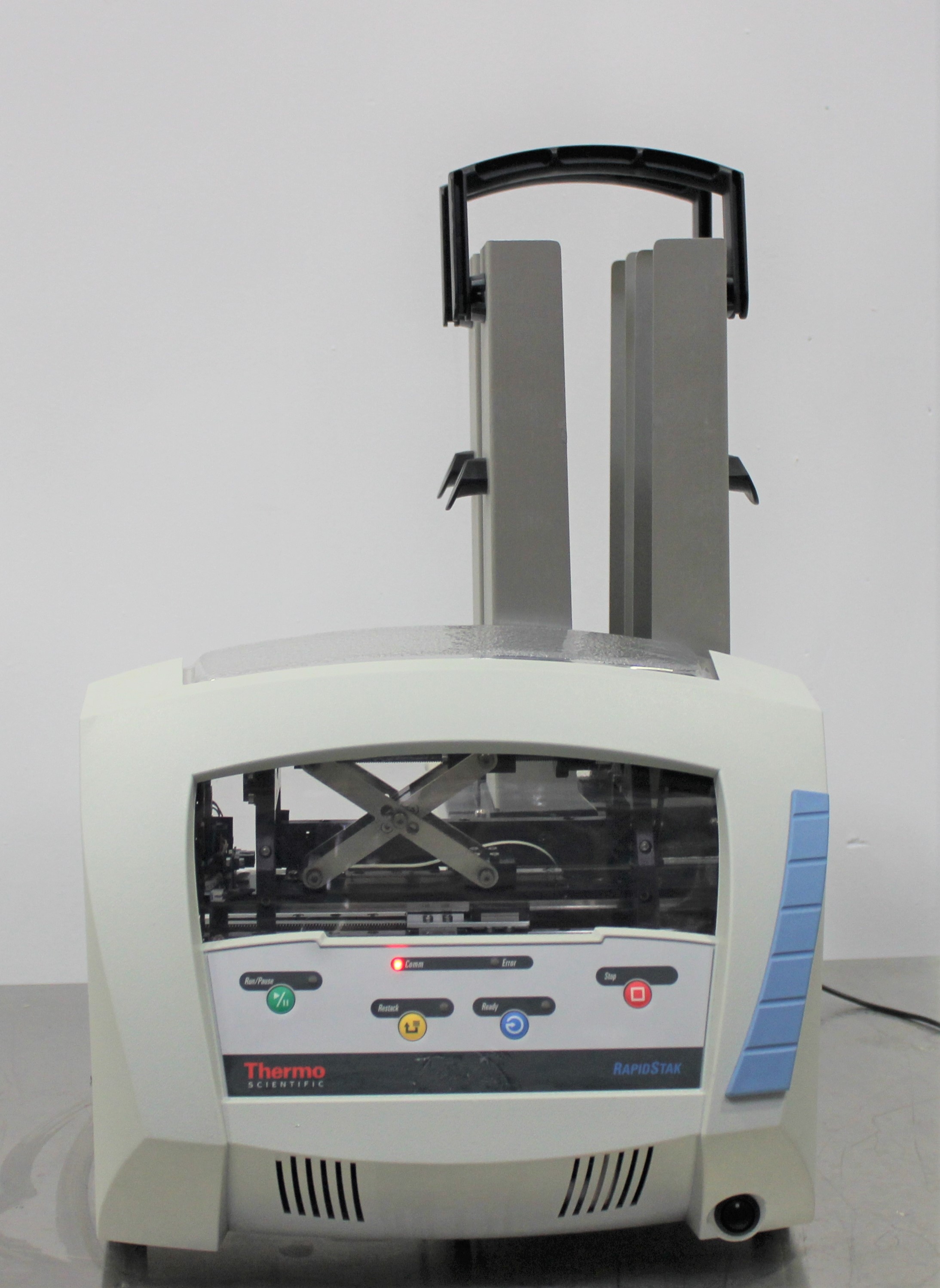

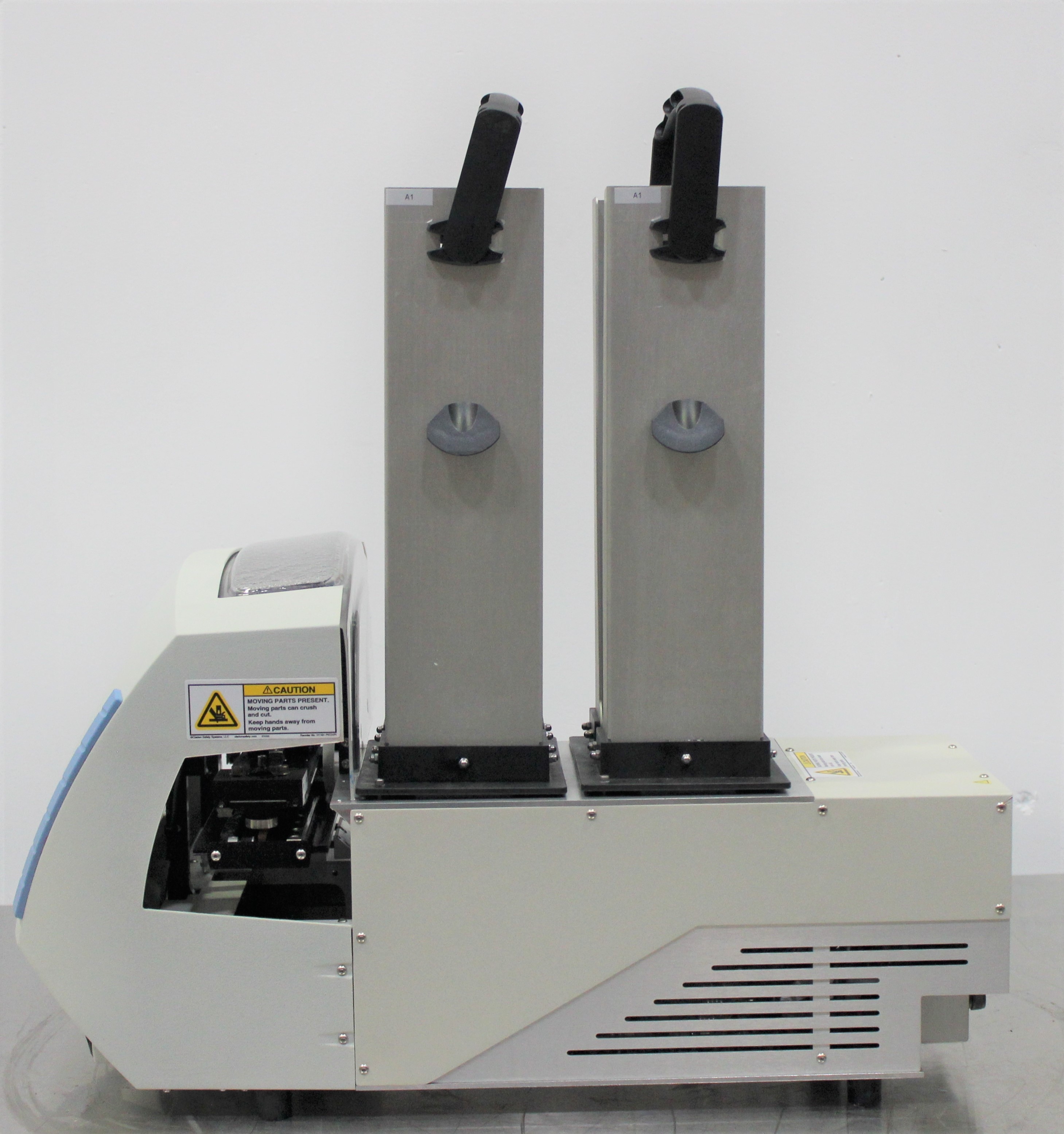

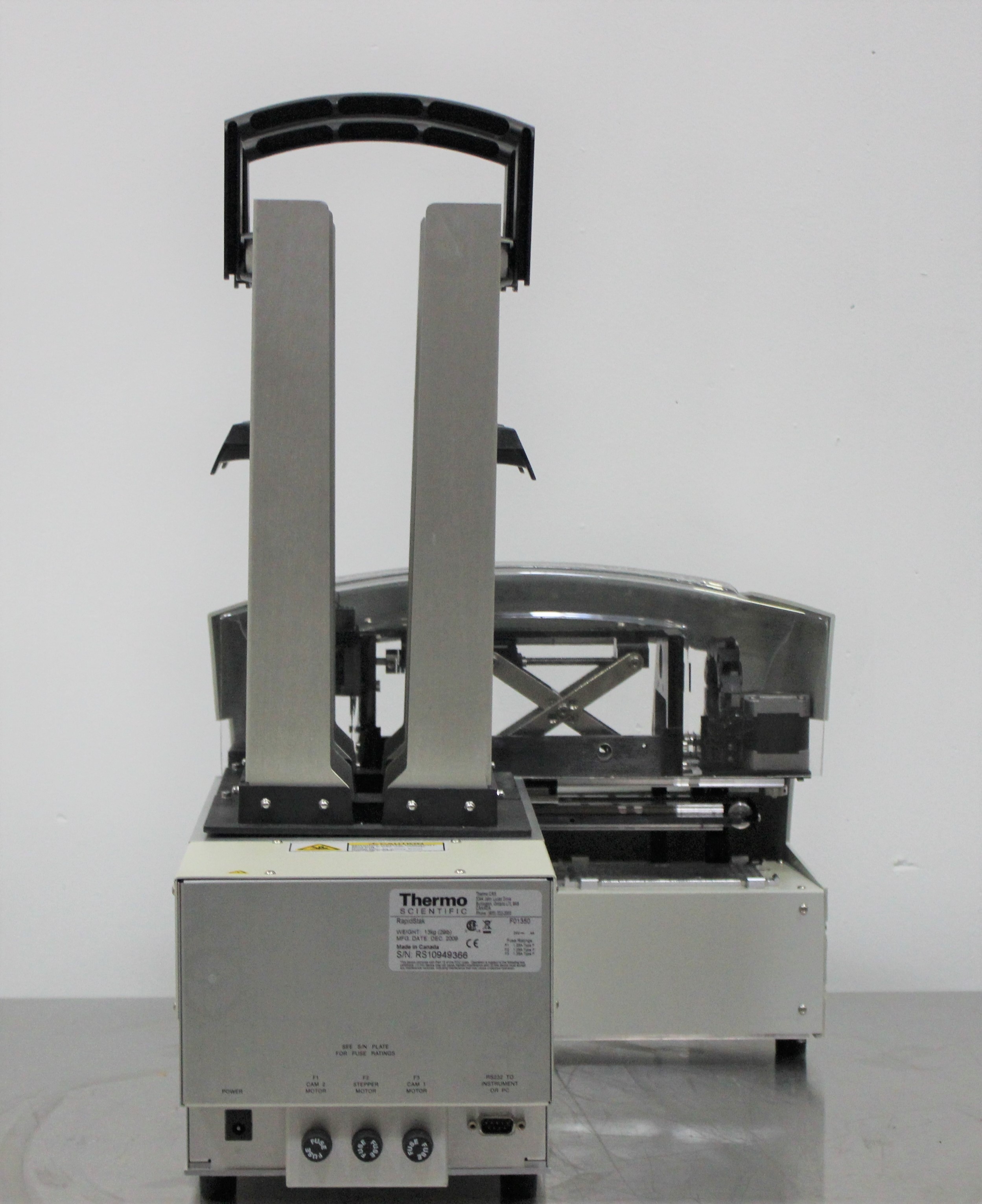

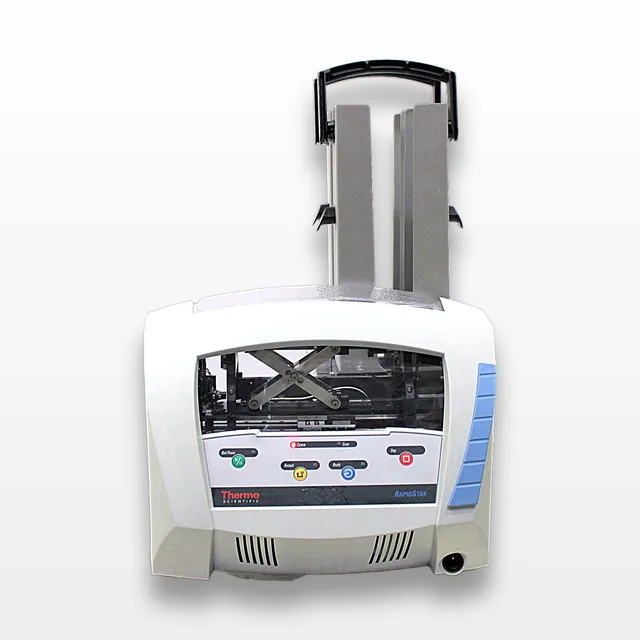

The Thermo RapidStak Model F01350 is a turn-key robotic automation system designed for seamless plate handling. Offering rapid processing with its buffer nest technology, it allows for parallel stacking and loading, achieving a load/unload time of less than six seconds. Ideal for automating tasks with Thermo instruments, it features a choreography and telescoping arm design, suitable for biological safety cabinets or tight laboratory spaces. The system is operationally efficient, supporting an ambient temperature range of +10 to +40 C and a storage range of -20 to +75 C, making it versatile for various laboratory environments.
Key Features
- Turn-key ready system
- High-speed buffer nest technology
- Parallel stacking/loading
- Less than 6 seconds load/unload time
- Designed for biological safety cabinets
Specifications
- Maximum operating temperature: +10 to +40 C (50 to 104 F)
- Storage temperature: -20 to +75 C (-4 to 167 F)
- Ambient humidity: 10 to 80% RH non-condensing
- Ventilation clearance: 10 cm (4 in.) around sides
- Maximum operating altitude: 2000 m (6,562 ft)
- Environment: Clean, low dust, dry office/laboratory, indoor use only
Weight
Imperial: 34.8 Pounds
Metric: 15.79 Kilograms
Shipping Dimensions
Imperial: 22.8 lb x 14.4 lb x 26.4 lb
Metric: 57.91 cm x 36.58 cm x 67.06 cm
Harmonized Code
847989
Harmonized Code Details
847989 - Machines and mechanical appliances having individual functions, not specified or included elsewhere in this chapter; other. This code applies as the system is an automated robotic apparatus for specific laboratory use.
