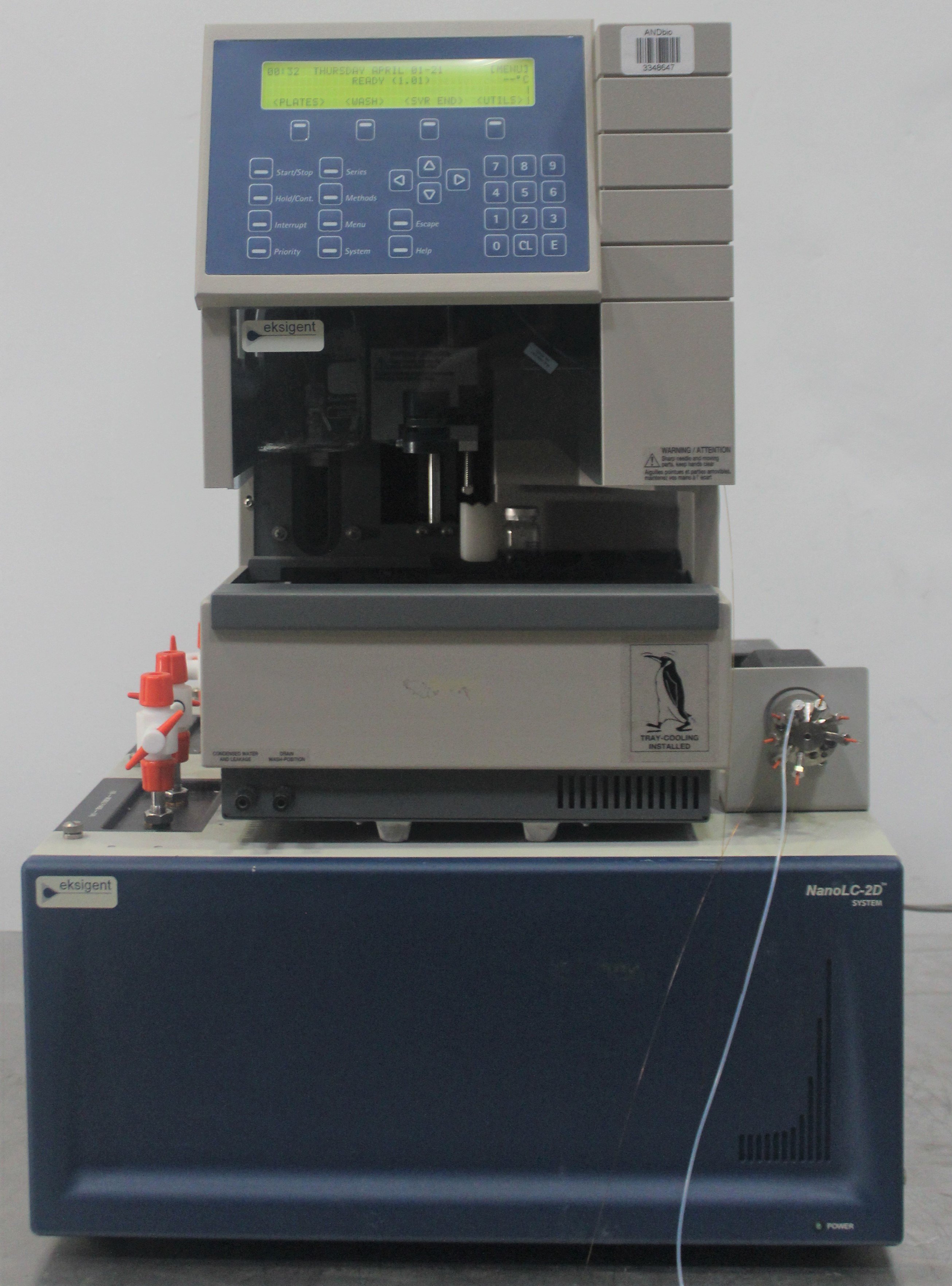

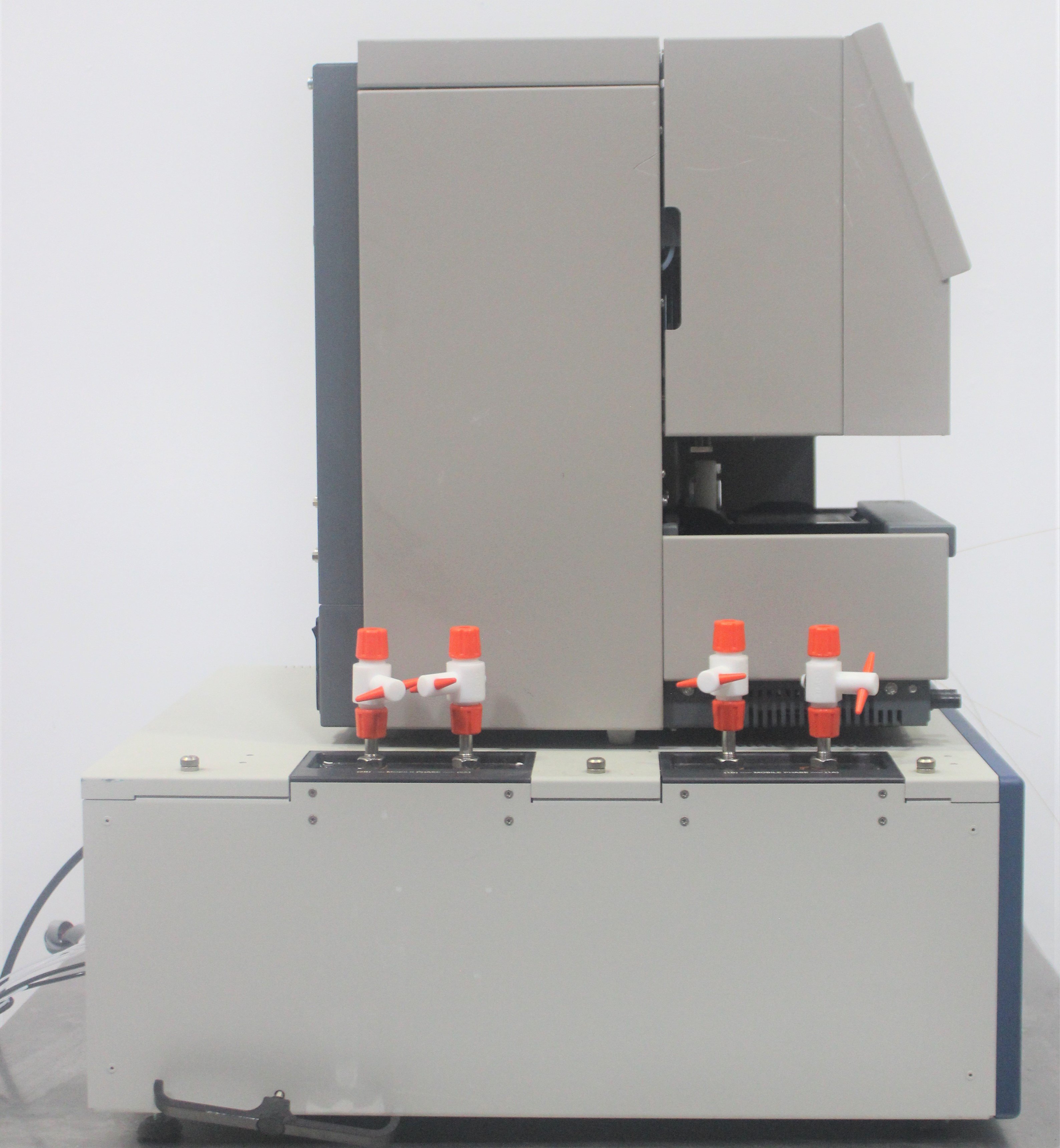

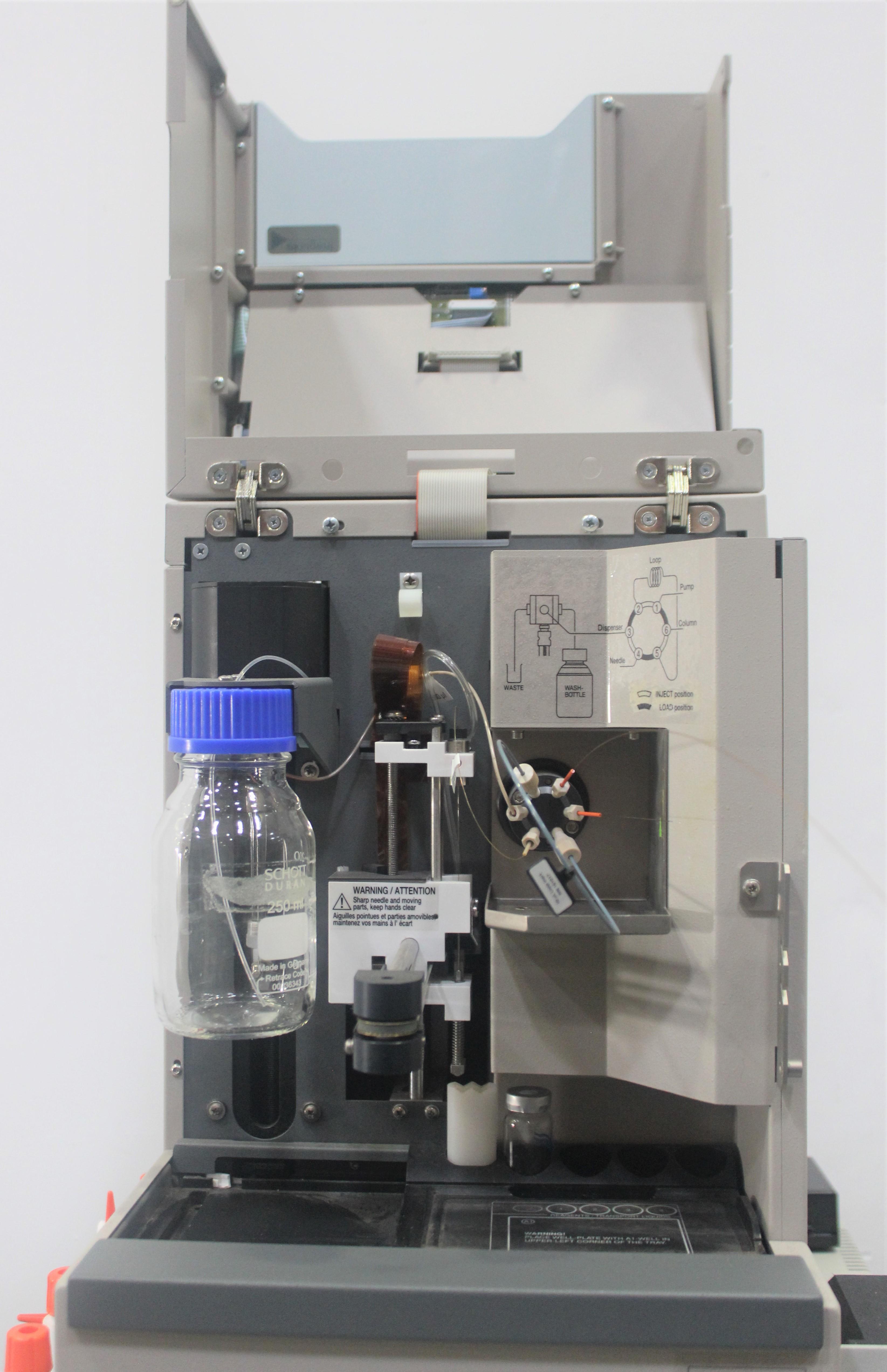

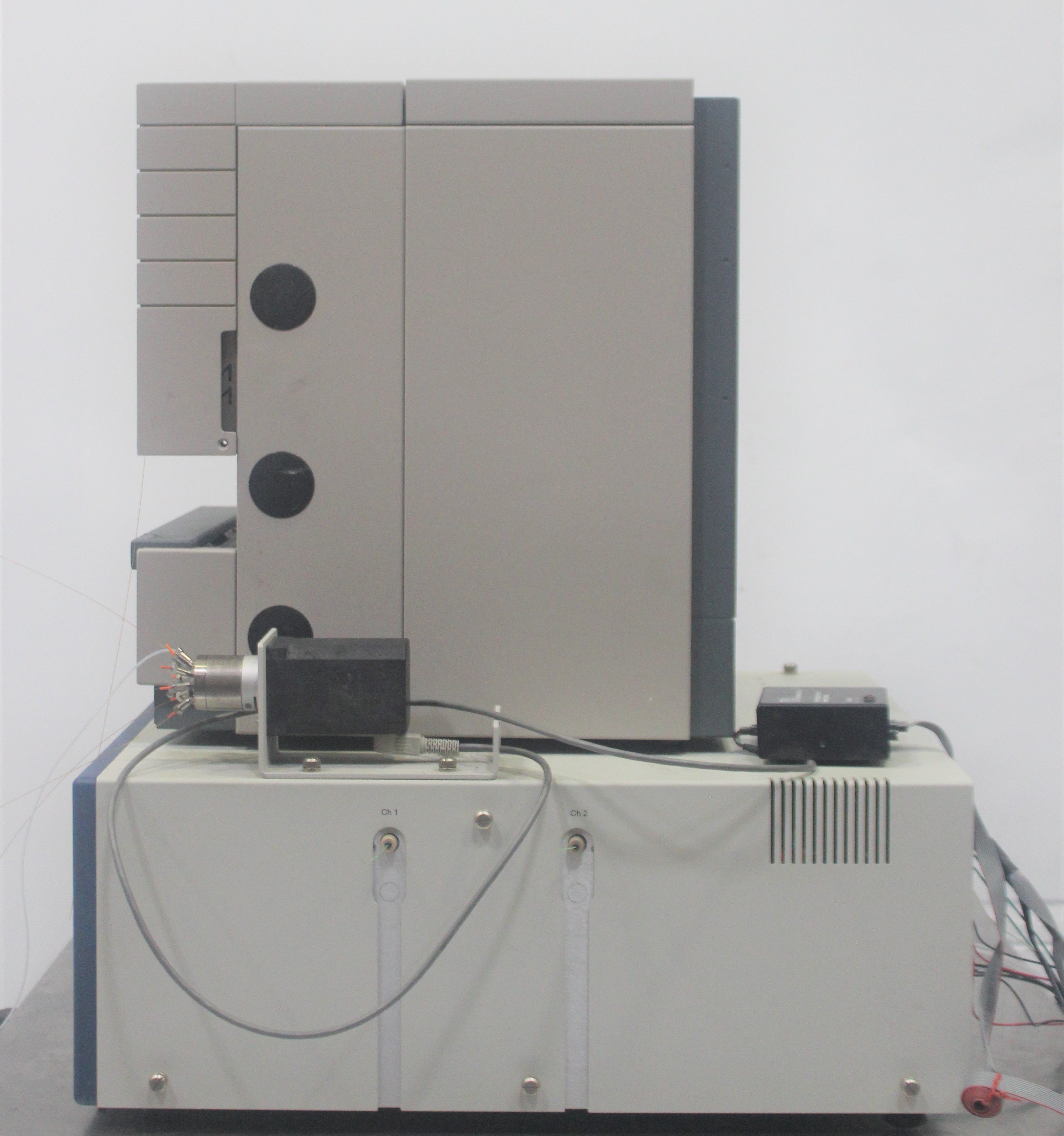

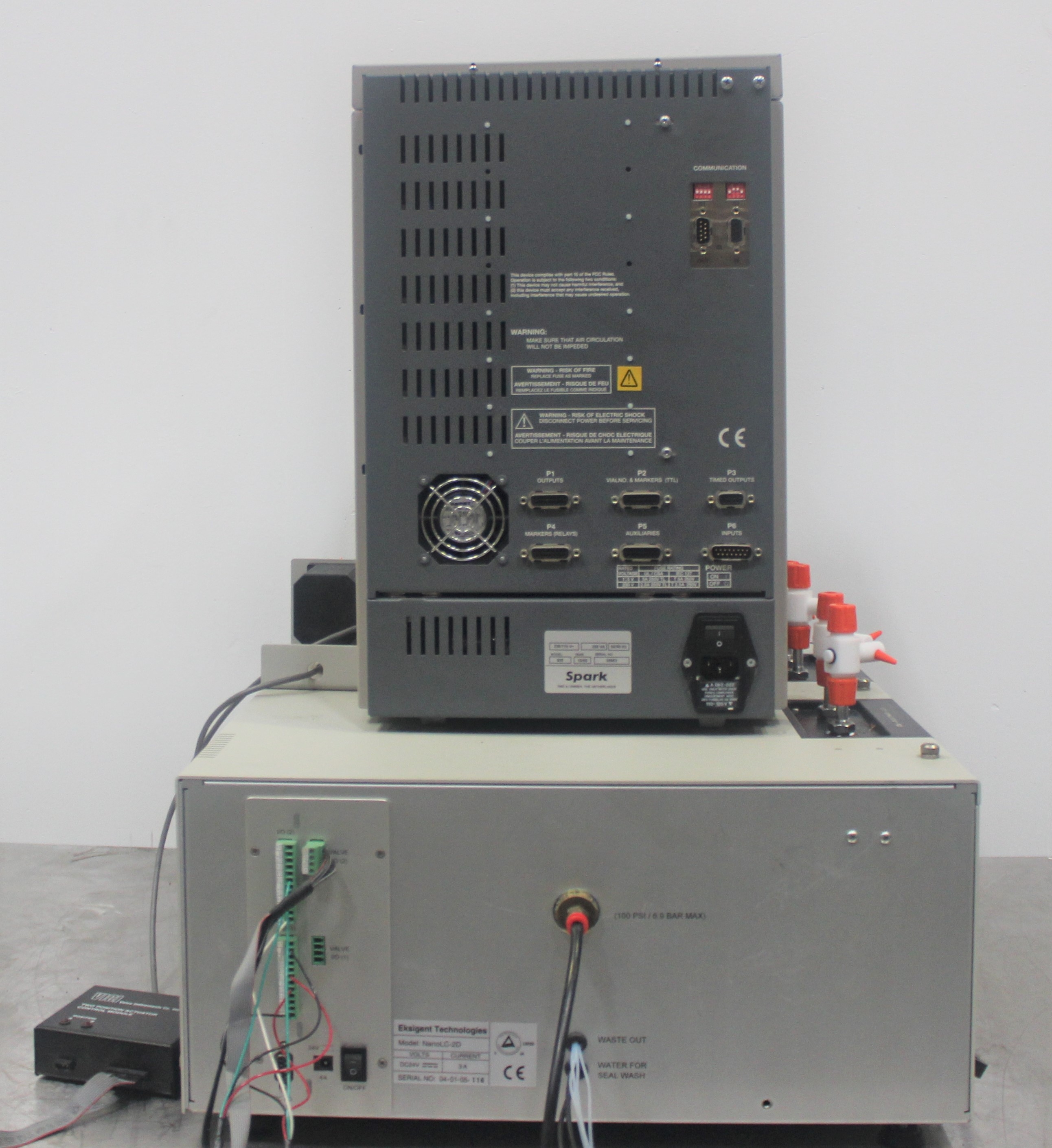

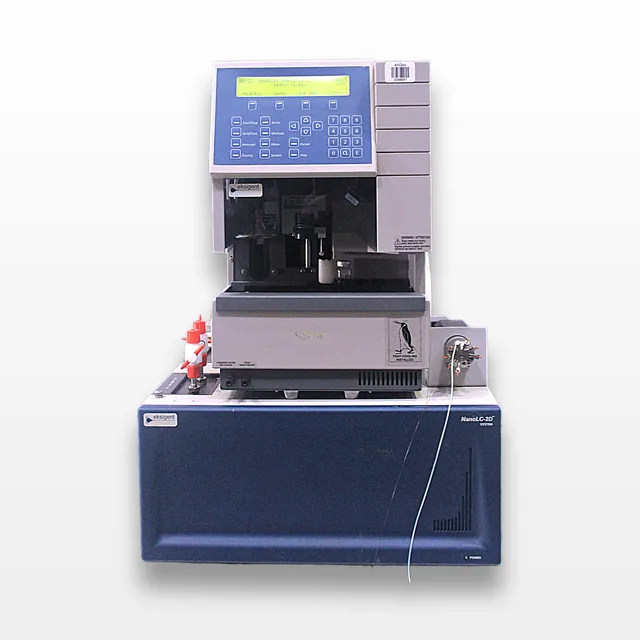

Eksigent NanoLC-2D 920 HPLC System for Automated 2D Peptide Separations
Eksigent
Details
-
CategoryHPLC / FPLC / GC / CE
-
Dimension21.0in x 18.0in x 26.0in
-

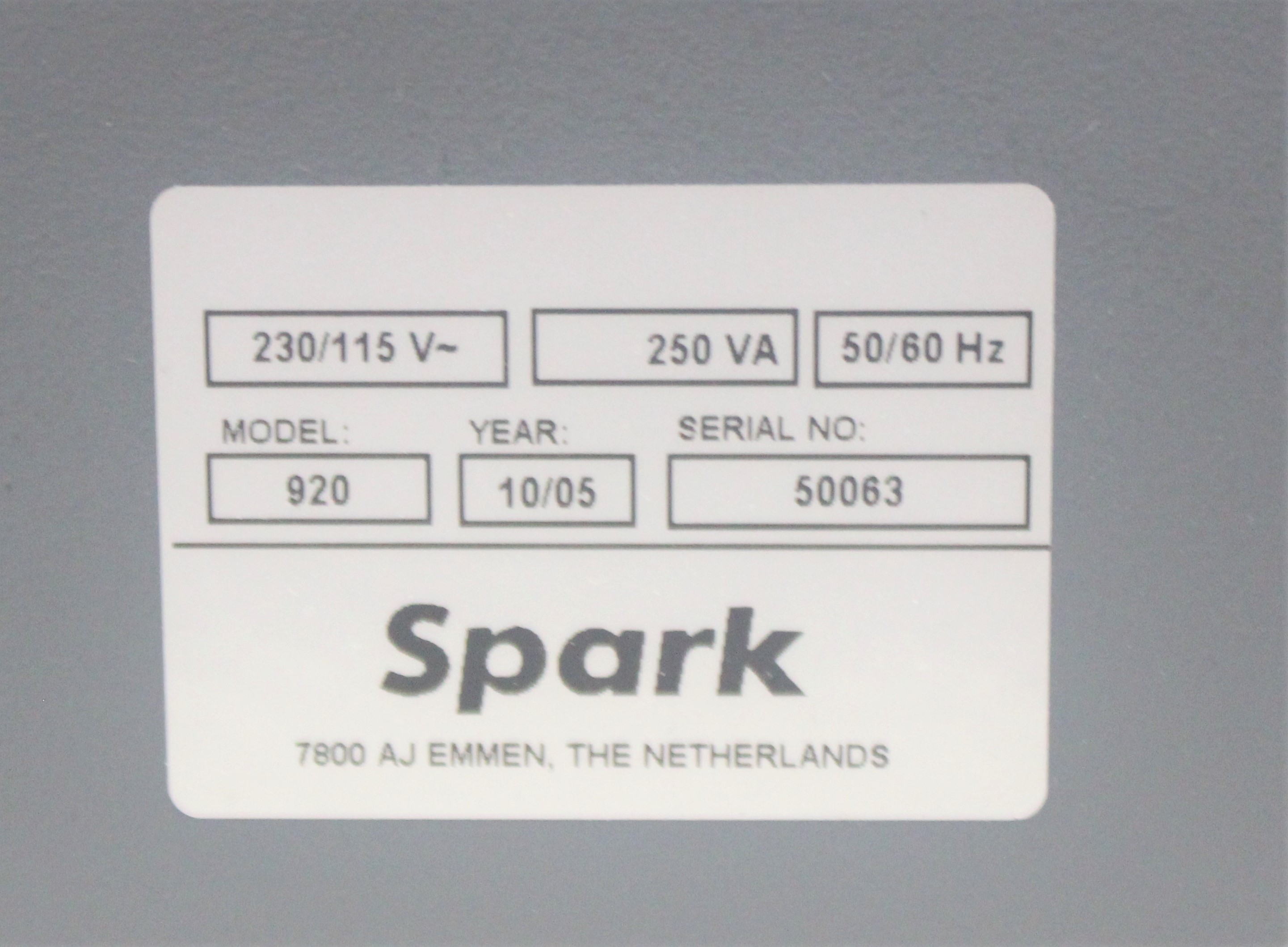

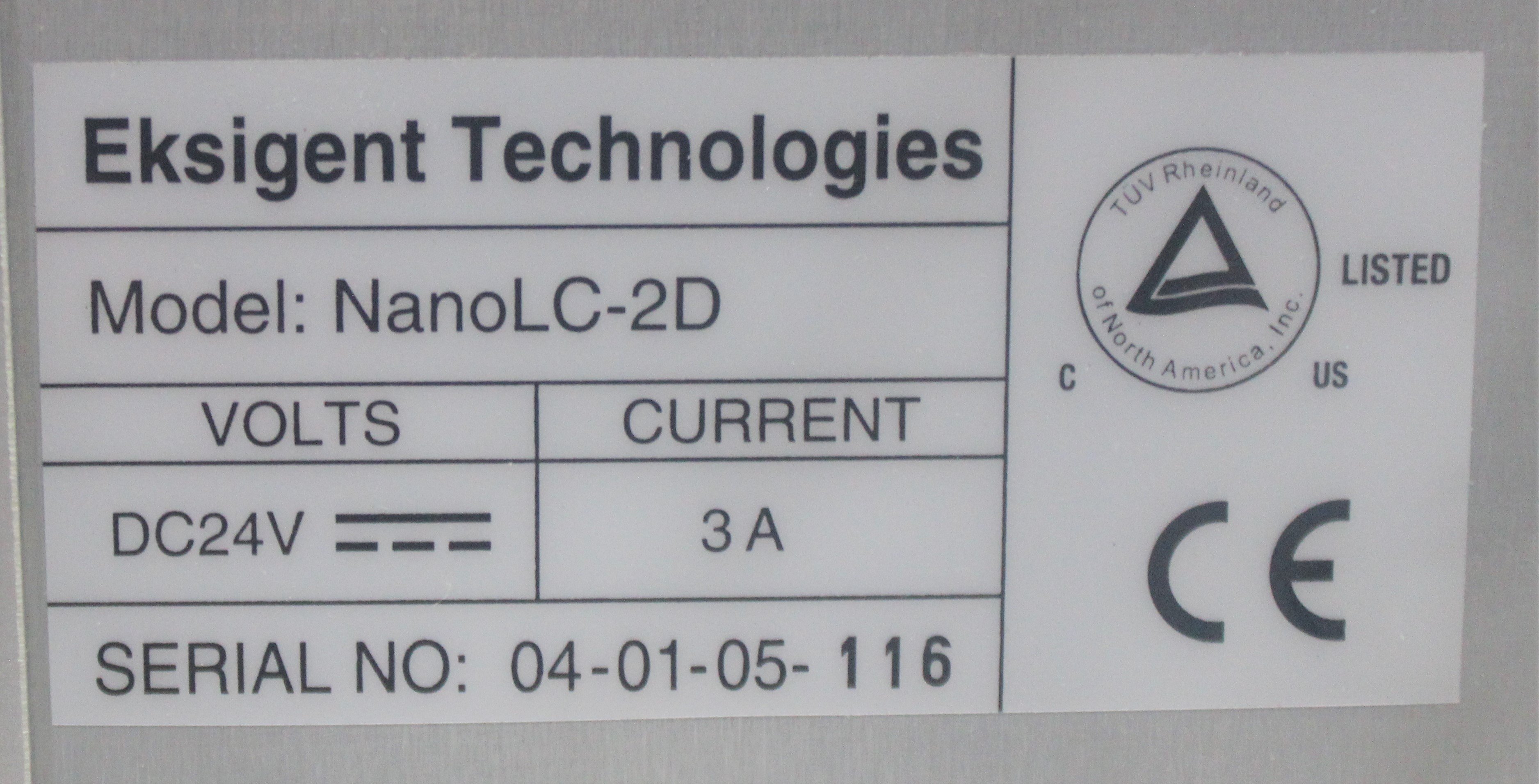

Serial04-01-05-116,50063
-
Shipping TypeFreight
-
ManufacturingDoes Not Apply
-
Voltage / Hertz250V / 50Hz/60Hz
Description
The Eksigent NanoLC-2D System 920 is a sophisticated High Performance Liquid Chromatography (HPLC) System that incorporates fully automated 2-dimensional HPLC separations complemented by a direct pumping nanoscale HPLC system. Designed for LC/MS proteomics studies, this system enhances detection sensitivity and reproducibility while offering the convenience of automated 2-dimensional peptide separations, including the MudPIT method. Key specifications include a microfluidic direct pumping system, flow rate ranges of 1-20 L/min for the first dimension, and 20-1000 nL/min for the second dimension, and high-pressure gradient mixing without flow splitting. Delay volumes are optimized for minimal sample dispersion, with mobile phase compatibility for 316 stainless steel, PEEK, and silica materials. Injection modes offer flexibility, catering to standard, metered, and rapid sample injections. A robust system that supports a dynamic range of columns for different analytical needs.
Key Features
- Fully automated 2-dimensional HPLC separations
- Microfluidic direct pumping nanoscale system
- Enhanced detection sensitivity and reproducibility
- Flow rate range: 1-20 L/min (first dimension), 20-1000 nL/min (second dimension)
- High-pressure gradient mixing; no flow splitting
- Mobile phase compatibility with 316 stainless steel, PEEK, and silica
Specifications
- Microfluidic direct pumping system
- First dimension flow rate: 1-20 L/min
- Second dimension flow rate: 20-1000 nL/min
- Gradient formation: High-pressure gradient mixing
- Delay volume: First dimension 300 nL, Low-flow 65 nL
- Retention time RSD < 0.5% at 500 nL/min
- Injection modes: Standard, metered and rapid
- Injection volume: 200-50 L, with options for larger sample volumes
- Columns: 300-500 m i.d. traps (first dimension), 50-150 m i.d. columns (second dimension)
Weight
Imperial: 180.0 Pounds
Metric: 81.65 Kilograms
Shipping Dimensions
Imperial: 25.2 lb x 21.6 lb x 31.2 lb
Metric: 64.01 cm x 54.86 cm x 79.25 cm
Harmonized Code
9027.20.40
Harmonized Code Details
The harmonized code 9027.20.40 refers to gas or liquid chromatographs, which suits the Eksigent NanoLC-2D system as it is an HPLC chromatographic unit designed for precise liquid separation processes in laboratory settings.
