Shimadzu LC-10AD VP Pump with Stable Solvent Delivery 10L Flow
Shimadzu
Details
-
CategoryHPLC / FPLC / GC / CE
-
Dimension18.0in x 11.0in x 6.0in
-

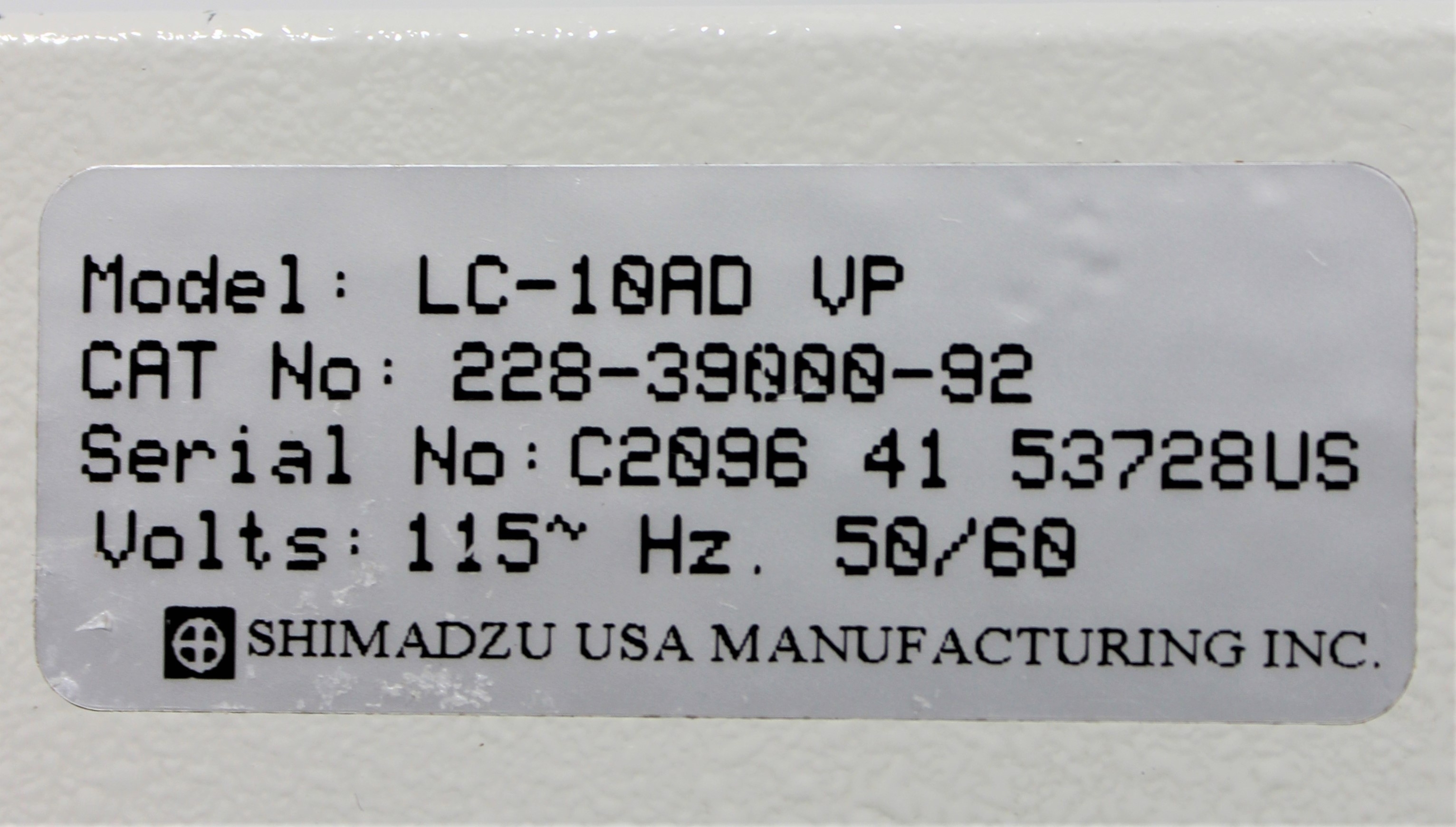

SerialC20964153728
-
Shipping TypeFedEx Ground
-
ManufacturingDoes Not Apply
-

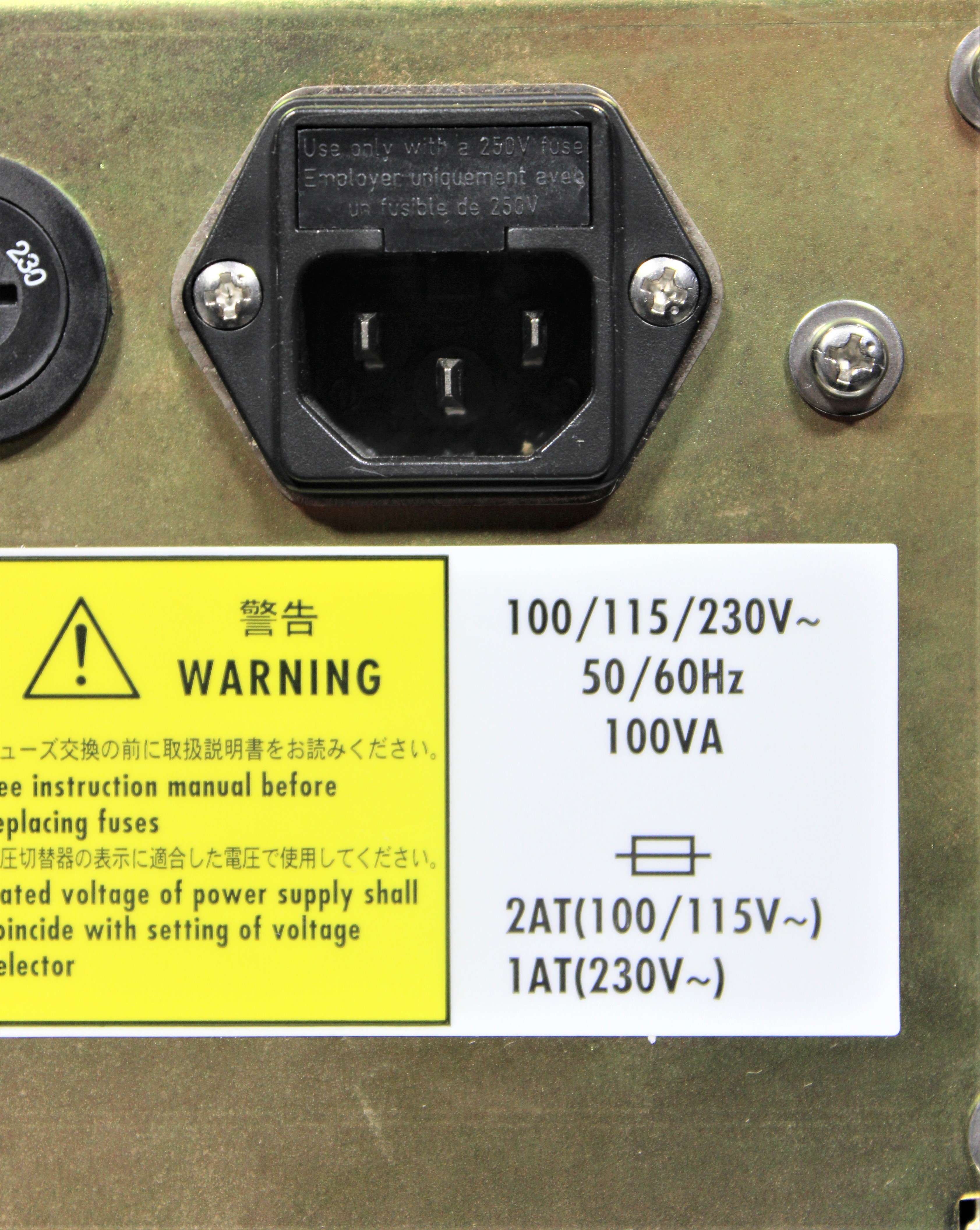

Voltage / Hertz120V/220V / 50Hz/60Hz
Description

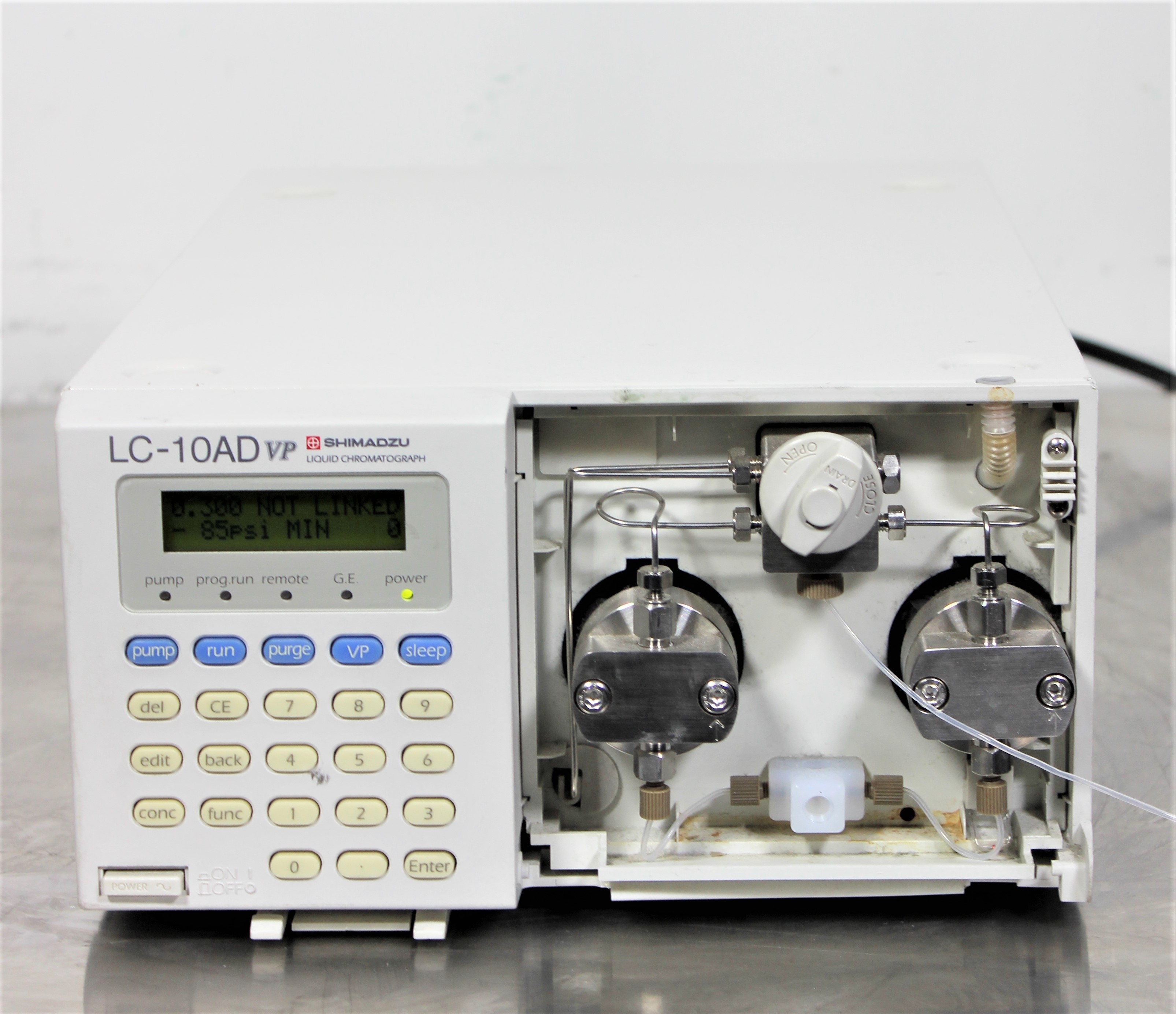

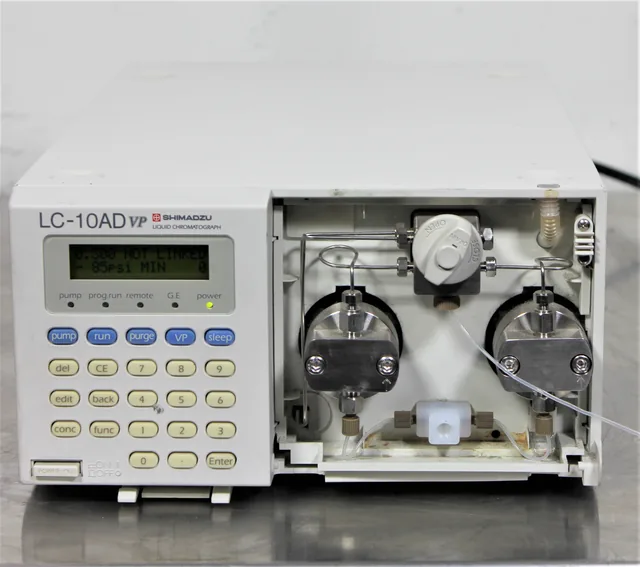

The Shimadzu LC-10AD VP Solvent Delivery Pump is recognized for its stable and pulse-free solvent delivery. Fitted with dual reciprocating 10L plungers, it ensures superior stability of the detector baseline and minimizes baseline noise, making it optimal for high sensitivity applications such as refractive index, conductivity, electrochemical, and mass spectrometer detection. This unit supports both constant flow and constant pressure delivery pumping methods, with a flow rate setting range from 0.001 to 5 mL/min for up to 392 Bar and from 5.001 to 9.999 mL/min for up to 196 Bar. It offers a flow accuracy of ±2% or 2 µL/min, whichever is greater, and maintains flow rate pressure within 0.3%. Despite missing a face plate, the device is functional and has been verified to pass function tests.
Key Features
- Stable and pulse-free solvent delivery

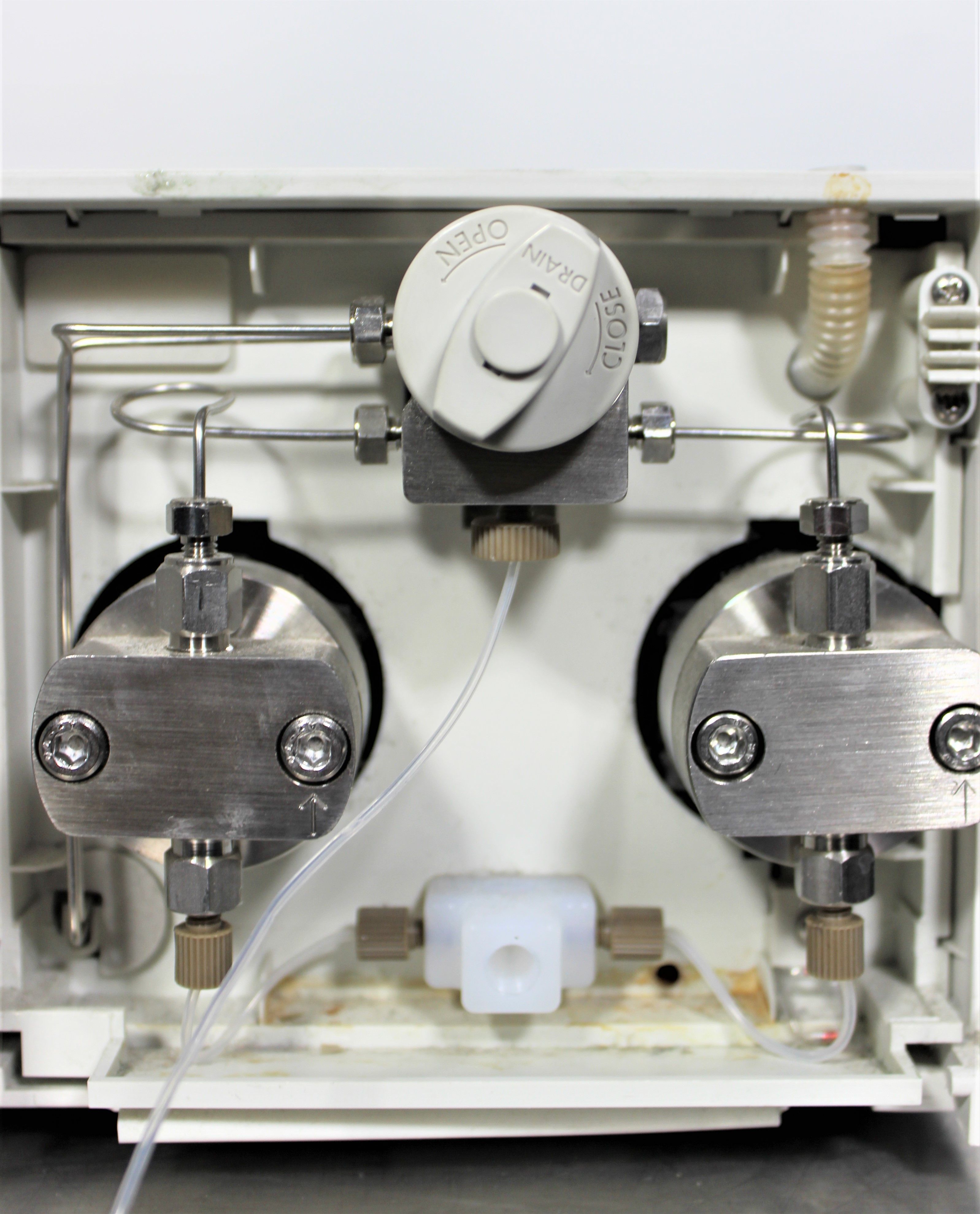

- Dual reciprocating 10L plungers
- Optimized for refractive index, conductivity, and mass spectrometer detection
- Constant flow and constant pressure delivery methods
- Flow rate setting from 0.001 to 9.999 mL/min
Specifications
- Pumping Methods: Constant flow delivery and constant pressure delivery
- Flow rate setting range: 1 to 392 Bar (0.001-5 mL/min) or 1 to 196 Bar (5.001-9.999 mL/min)
- Flow accuracy: ±2% or 2 µL/min, whichever is greater
- Flow rate pressure: Within 0.3%
- Pressure setting range: 1 to 392 Bar
Weight
Imperial: 60.0 Pounds
Metric: 27.22 Kilograms
Shipping Dimensions
Imperial: 21.6 lb x 13.2 lb x 7.2 lb
Metric: 54.86 cm x 33.53 cm x 18.29 cm
Harmonized Code
902710
Harmonized Code Details
The harmonized code 902710 pertains to gas or liquid chromatographs and apparatus for physical or chemical analysis, which is appropriate considering the Shimadzu LC-10AD VP is utilized for high precision solvent delivery in analytical applications.
