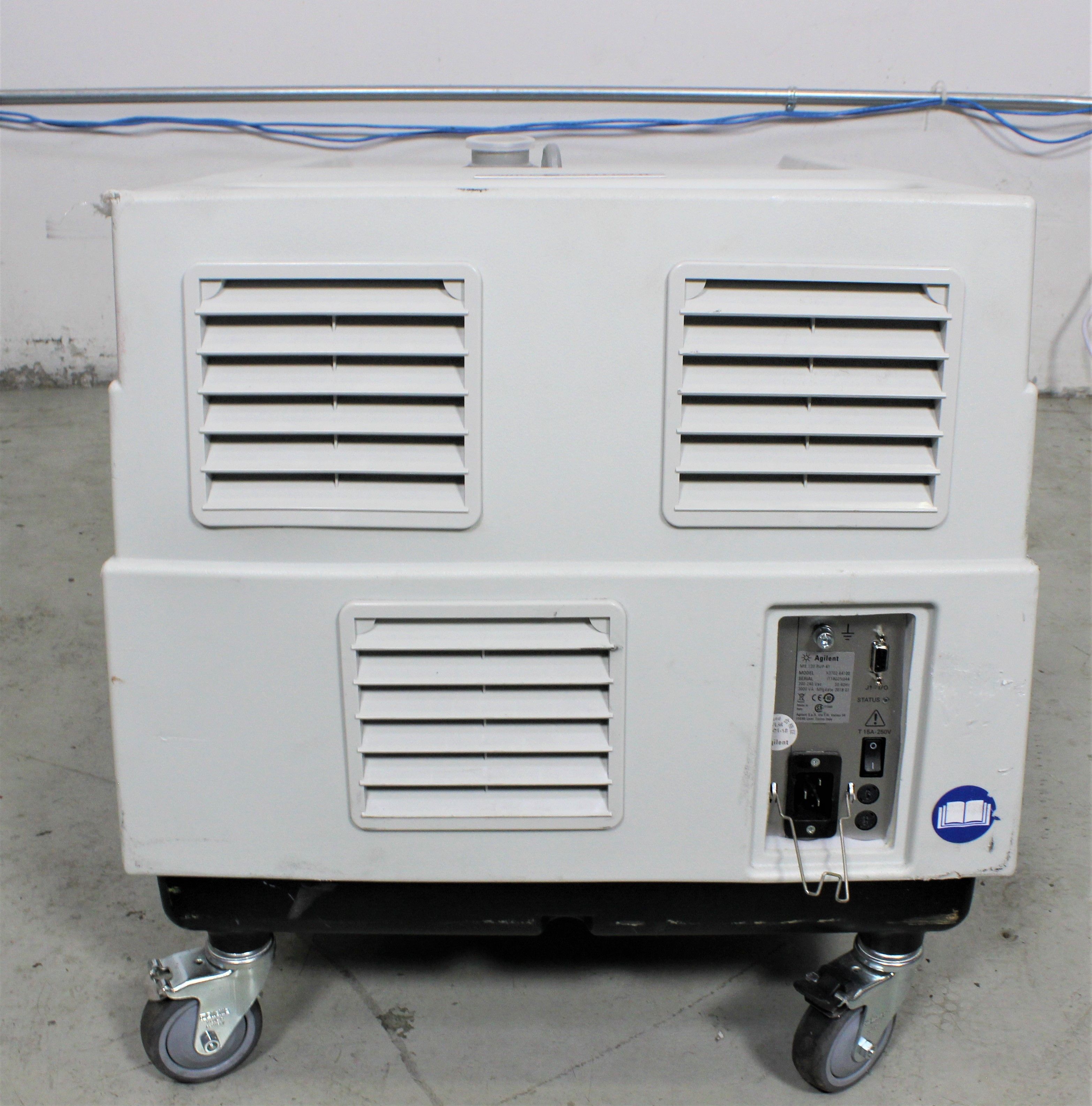

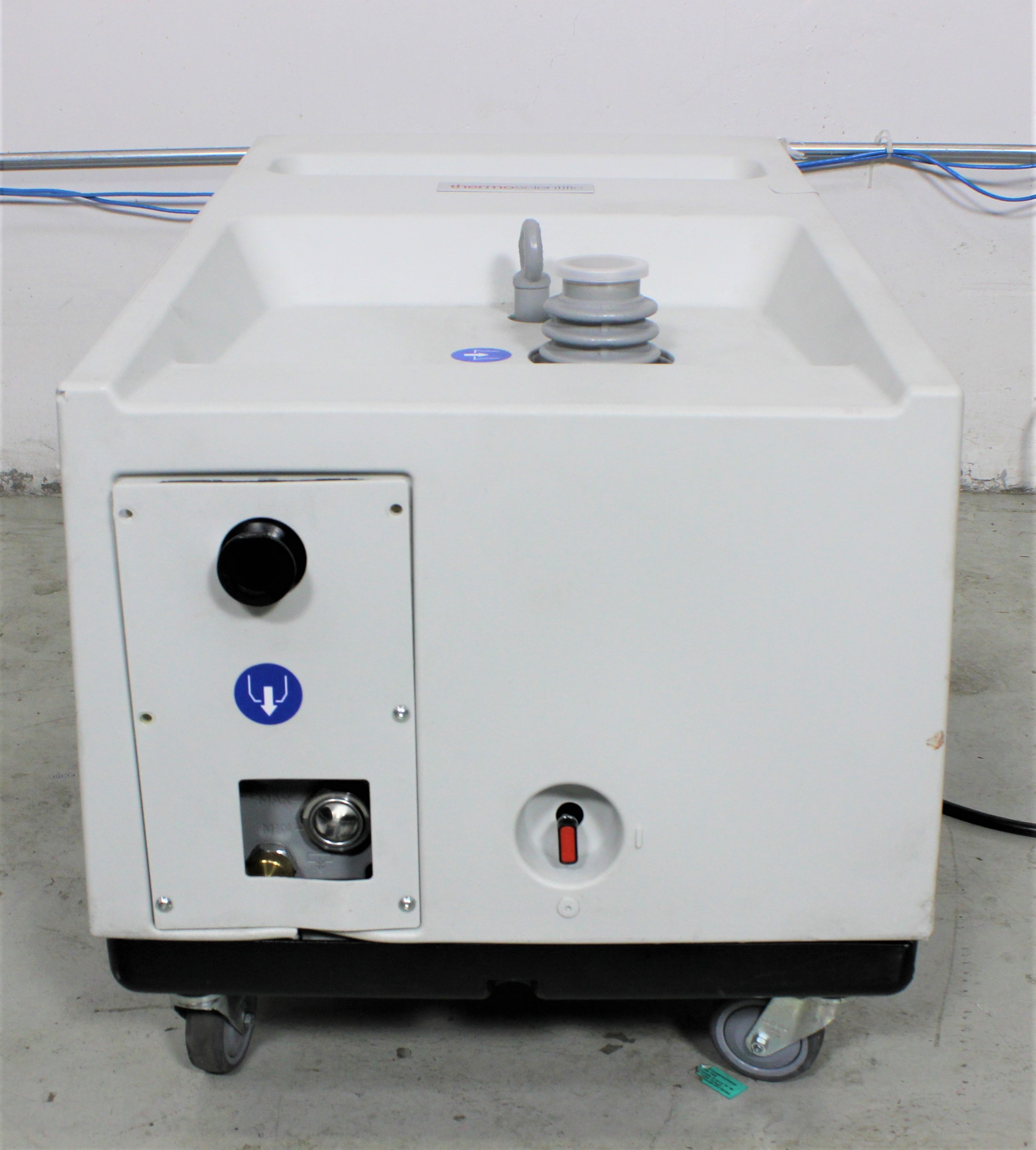

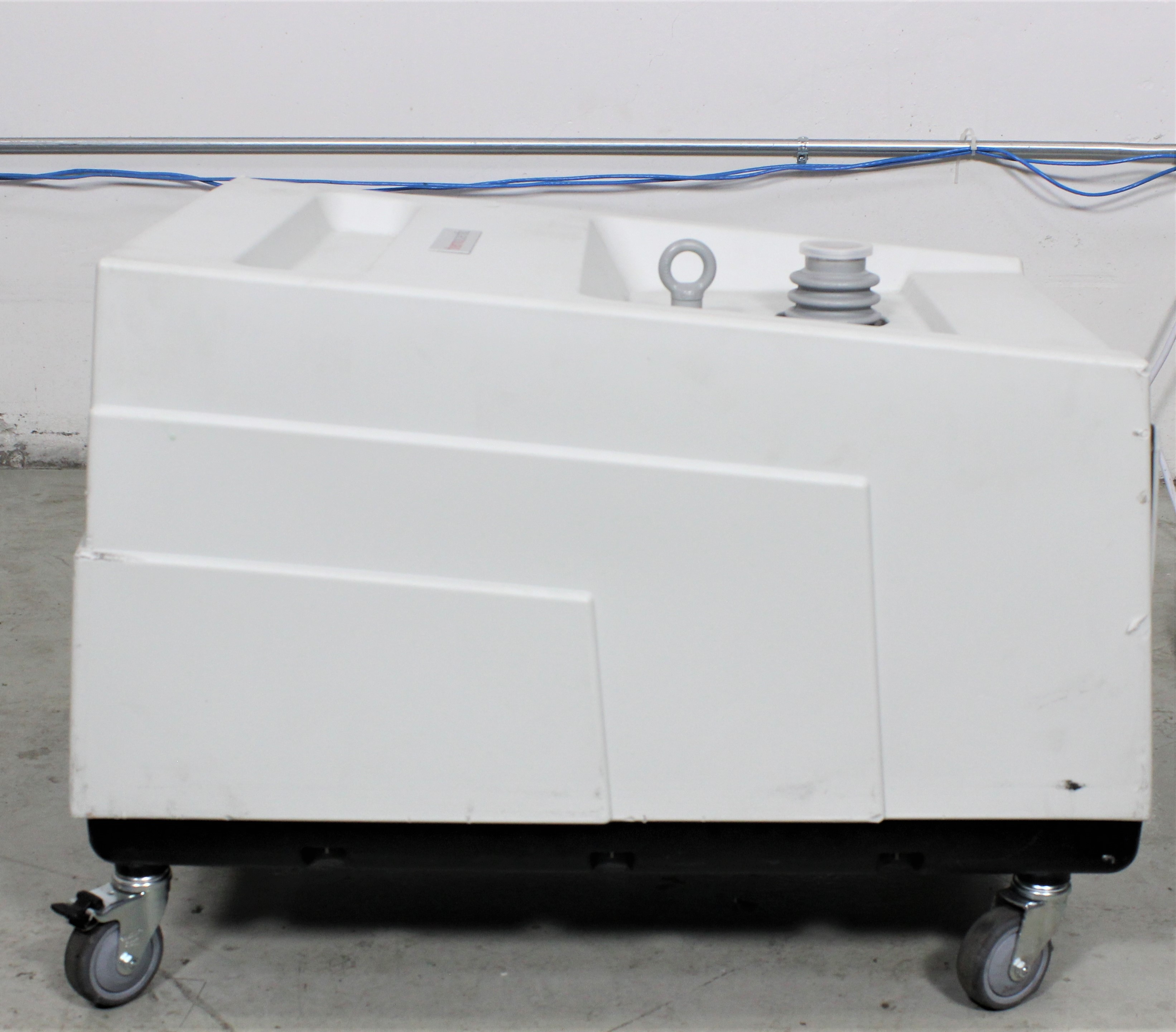

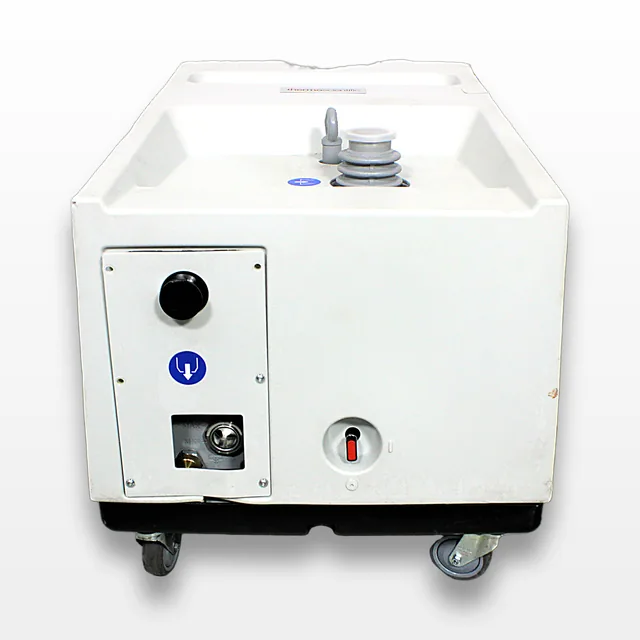

Agilent X3702 64100 Vacuum Pump - Rotary Vane, Single Stage, 120/220V
Agilent
Details
-
CategoryPump
-
Dimension34.0in x 21.0in x 21.0in
-

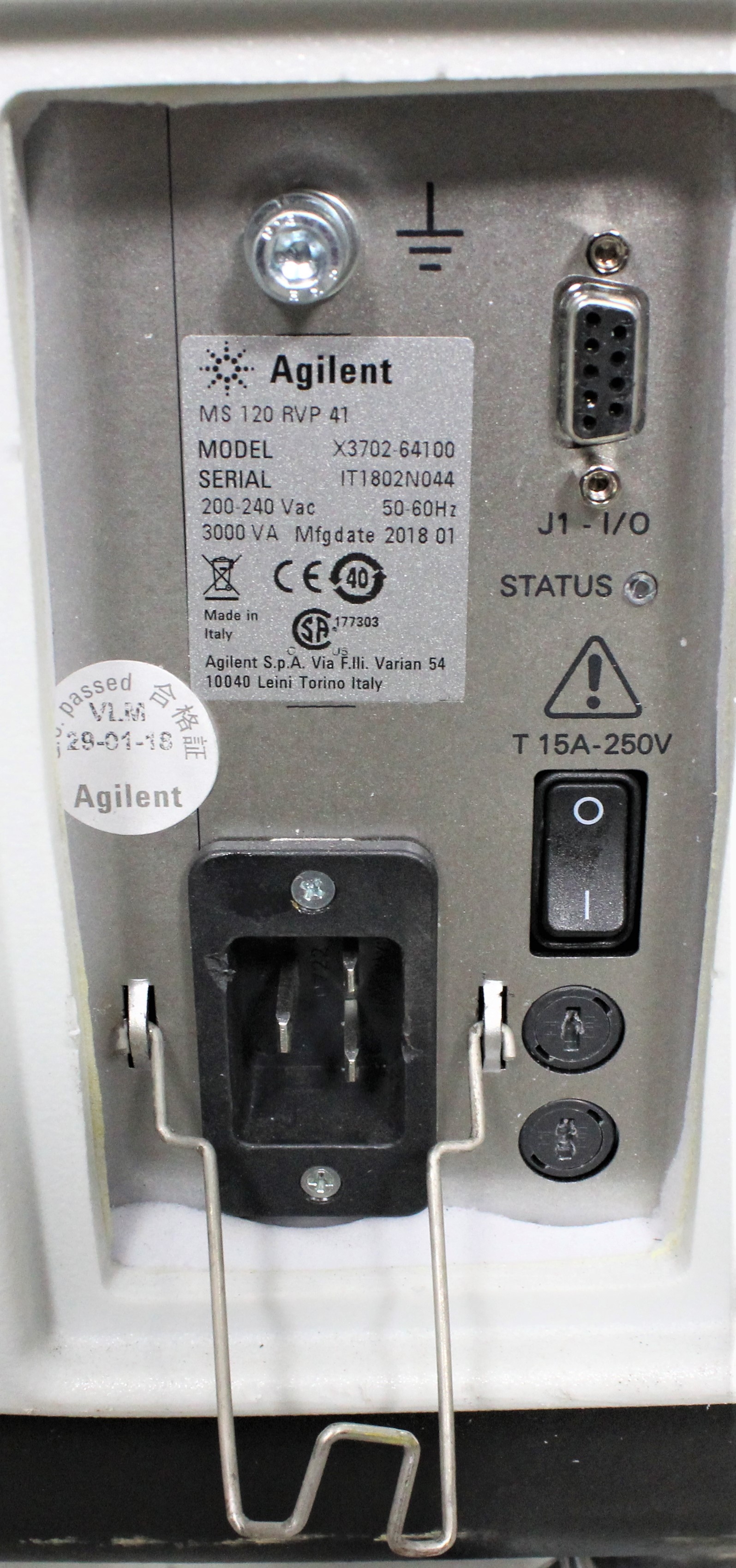

SerialIT1802N044
-
Shipping TypeFedEx Ground
-
ManufacturingDoes Not Apply
-
Voltage / Hertz120V/220V / 50Hz/60Hz
Description
The Agilent X3702 64100 is a reliable vacuum pump designed for laboratory settings. As a single-stage, rotary vane pump, it efficiently pumps air and small quantities of water vapour. It features an oil-sealed operation with an inverter-controlled electric motor. The cooling is enhanced by a centrifugal fan to maximize performance. An integrated non-return valve and mesh filter protect the pump mechanism, while the gas ballast valves minimize internal condensation. Although the pump was not completely tested, it powers on and successfully passes basic functionality checks. With nominal speed reaching 156 m3/h, it is designed for utmost efficiency and performance.
Key Features
- Single-stage rotary vane design
- Oil-sealed and inverter-controlled motor
- Nominal speed of 156 m3/h
- Effective capacity of 120 m3/h at 5 mbar
- Mesh filter and non-return valve
- Automatic oil recovery
- Gas ballast valves to prevent condensation
- Cooling by centrifugal fan
Specifications
- Nominal speed: 156 m3/h (92 cfm) at 1500 rpm
- Effective capacity: 120 m3/h (71 cfm) at 5 mbar abs.
- Ultimate pressure with gas ballast valve open: 0.2 mbar (0.150 torr)
- Ultimate pressure with gas ballast valve closed: 0.07 mbar (0.0525 torr)
- Oil capacity: 1.8 L (0.47 gal US)
- Motor power: 1.8 kW (2.4 Hp)
- Voltage: 200-240 V, Frequency: 50-60 Hz
- Operating temperature: 12 to 35°C (54 to 95°F)
- Sound level: 60 dB(A) at 50Hz
- Water vapour tolerance: 15 mbar (11.25 torr)
- Water vapour pumping capacity: 1 kg/h (2.2 lbs/h)
Weight
Imperial: 264.0 Pounds
Metric: 119.75 Kilograms
Shipping Dimensions
Imperial: 40.8 lb x 25.2 lb x 25.2 lb
Metric: 103.63 cm x 64.01 cm x 64.01 cm
Harmonized Code
84141000
Harmonized Code Details
Code 84141000 refers to vacuum pumps. Selected as it best represents Agilent X3702 64100 rotary vane vacuum pump machinery.
