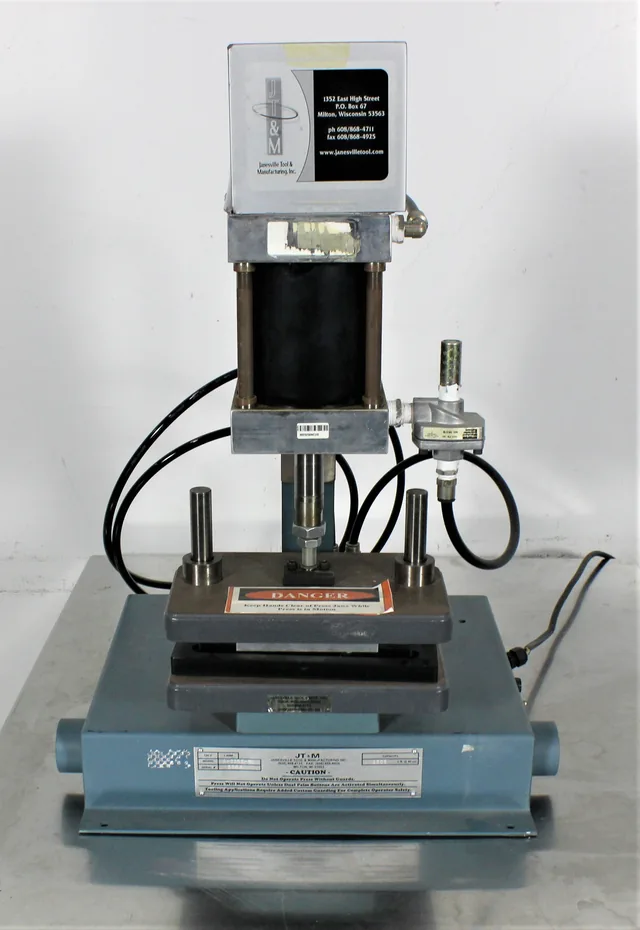

JT A-3151-A Arbor Air Press 3/4 Ton Adjustable Pneumatic
JT
Details
-
CategoryProduction / Manufacturing
-
Dimension19.0in x 21.0in x 26.0in
-
Serial5564
-
Shipping TypeFreight
-
Voltage / Hertz120V/220V / 50Hz/60Hz
Description
The JT A-3151-A Arbor Air Press is a refurbished, fully tested pneumatic press designed for precision tasks such as assembly, punching, shearing, and staking of metal or plastic. This 3/4 ton capacity press features a cylinder height adjustment in 1.875-inch increments, making it adaptable to various applications. It includes dual hand anti-tie-down/anti-repeat controls, a three-inch stroke length, and a T-Slot Table. The press is equipped with an adjustable down stop/anti-rotate mechanism for enhanced operational control. With a force capacity of 3/4 tons and a cylinder diameter of 4.50 inches, it delivers a force of 906 lbs at 60 psi, 1,208 lbs at 80 psi, and 1,510 lbs at 100 psi. The throat depth is 4.81 inches, and the base measures 7 inches in length and 12 inches in width. This press is ready to use and does not include software licenses.
Key Features
- 3/4 ton force capacity
- Cylinder height adjustment in 1.875-inch increments
- Dual hand anti-tie-down/anti-repeat controls
- Three-inch stroke length
- T-Slot Table
- Adjustable down stop/anti-rotate mechanism
Specifications
- Voltage: 120V/220V
- Hertz: 50Hz/60Hz
- Force at 60 psi: 906 lbs
- Force at 80 psi: 1,208 lbs
- Force at 100 psi: 1,510 lbs
- Cylinder diameter: 4.50 inches
- Throat depth: 4.81 inches
- Base length: 7 inches
- Base width: 12 inches
Weight
Imperial: 96.0 Pounds
Metric: 43.54 Kilograms
Shipping Dimensions
Imperial: 22.8 in x 25.2 in x 31.2 in
Metric: 57.91 cm x 64.01 cm x 79.25 cm
Harmonized Code
8462.29
Harmonized Code Details
Machine tools for working metal or cermets, without removing material. This code is applicable due to the equipment's function as a pneumatic press for metalworking tasks.
