3D Systems ProCure 350 UV Chamber Post Processing Final Cure 14.1in Platn
3D Systems
Details
-
CategoryIncubator / Oven / Inc Shaker
-
Dimension27.0in x 38.0in x 38.0in
-
Serial5959-2
-
Shipping TypeFreight
-
ManufacturingDoes Not Apply
-
Voltage / Hertz120V/220V / 50Hz/60Hz
Description

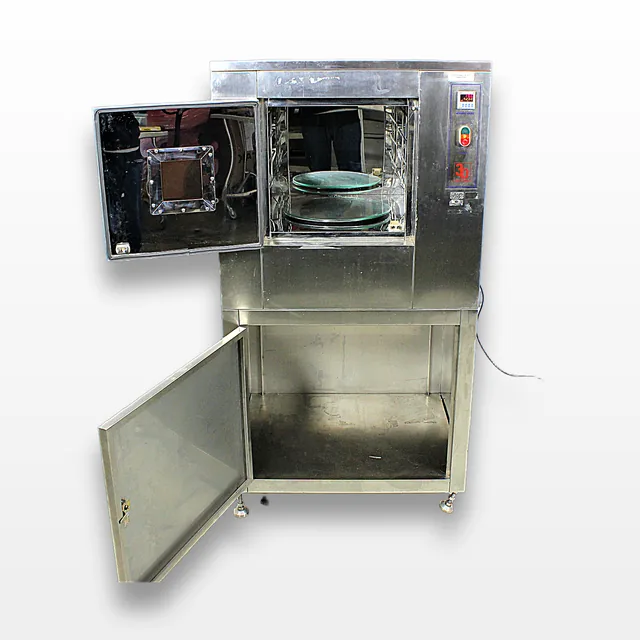

The 3D Systems ProCure 350 UV Chamber is designed for the final step in post-processing SLA parts, ensuring complete ultraviolet (UV) curing. This environmentally controlled chamber, condition rated as 'Very Good' and manufactured in the United States, supports the thorough and uniform exposure of parts to UV light. After the initial SLA part processing—draining excess resin, cleaning, support removal, and drying—components are placed in the ProCure 350. It features a front-loading door with a 15.75 x 14.5 in. aperture and a turntable rotating at 1 RPM for even exposure. This chamber is equipped with TLK 30W super actinic fluorescent bulbs covering wavelengths from 380 to 480 nm, ensuring effective curing.
Key Features
- Final step UV curing chamber
- Front-loading door
- Equipped with UV lamps
- Reflective surfaces inside for uniform curing
- Turntable with 1 RPM speed
- TLK 30W actinic fluorescent bulbs
Specifications
- Front Loading Door: 40 x 36.8 cm (15.75 x 14.5 in.)
- Viewing Window: 10.9 x 10.9 cm (4.31 x 4.31 in.)
- Turntable Speed: 1 RPM
- Turntable Platen Diameter: 35.8 cm (14.1 in.)
- UV Source Type: TLK 30W / 10 actinic fluorescent bulb
- Wavelength: 300 nm to 460 nm, 380 nm to 480 nm
Weight
Imperial: 344.4 Pounds
Metric: 156.22 Kilograms
Shipping Dimensions
Imperial: 32.4 lb x 45.6 lb x 45.6 lb
Metric: 82.3 cm x 115.82 cm x 115.82 cm
Harmonized Code
841989
Harmonized Code Details
The harmonized code 841989 includes industrial machinery such as ovens and furnaces for processing materials. Given the ProCure 350's function in post-processing SLA parts with UV curing, this categorization seems appropriate.
