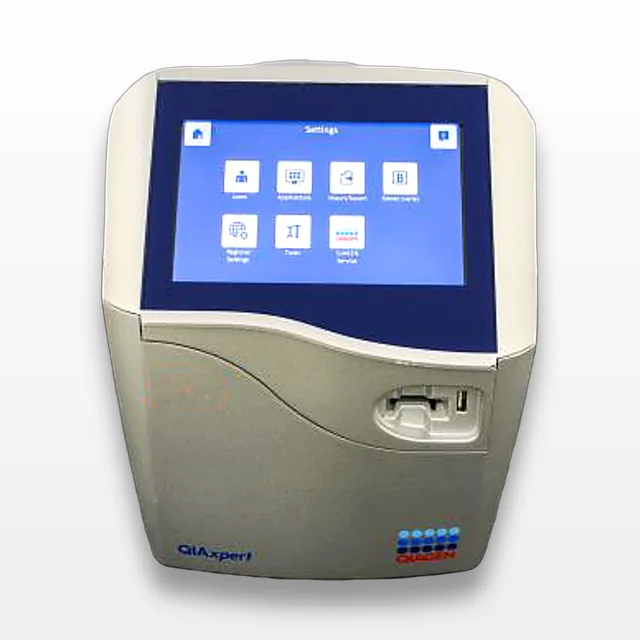

Qiagen QIAxpert Spectrometer UV-Vis Protein DNA RNA Quantification 16 Sample
Qiagen
Details
-
CategorySpectrometer - Multi-Well
-
Dimension13.0in x 10.0in x 12.0in
-
Serial200254
-
Shipping TypeGround
-
ManufacturingDoes Not Apply
-
Voltage / Hertz120V / 50Hz/60Hz
Description
The Qiagen QIAxpert Instrument System is a robust, high-speed microfluidic UV/VIS spectrophotometer designed for efficient DNA, RNA, and protein quantification along with quality control. Manufactured in the USA, this used unit, model QIAxpert, performs accurate sample differentiation and analysis. Despite slight cosmetic wear from prior use, it remains functional, powering on and executing basic tests without detected issues. The system does not include the QIAxpert Slide-40. It analyzes up to 16 samples rapidly, providing comprehensive spectral decomposition to quantify DNA, RNA, or proteins. The integrated touchscreen enhances ease-of-use, making it ideal for labs needing quick, reliable data. Unit features include xenon flash lamp light source, wavelength range of 230-750 nm, and multiple data output options including USB and QR code.
Key Features
- High-speed microfluidic UV/VIS spectrophotometer
- Simultaneously analyze up to 16 samples in less than 2 minutes
- Integrated touchscreen for simple operation
- Xenon flash lamp light source
- Wavelength range: 230-750 nm
- Spectral decomposition for discrete DNA, RNA, protein quantification
- Data outputs available via USB, TCP/IP, QR code
Specifications
- Optical principle: Ultrasensitive photodiode array spectrometer for UV-VIS range
- Light source: Xenon flash lamp
- Wavelength range: 230-750 nm
- Wavelength resolution: <3 nm
- Wavelength accuracy: 0.5 nm
- Wavelength reproducibility: 0.1 nm
- Photometric range: 0.0005-2.0 OD
- Absorbance precision: 0.003 OD
- Sample consumption: 2 µl
- Measurement range (10 mm equivalent): 0.03-40 OD
- Power supply: 110-240 V, 50/60 Hz (operating voltage 24 V DC)
Weight
Imperial: 22.8 Pounds
Metric: 10.34 Kilograms
Shipping Dimensions
Imperial: 15.6 lb x 12.0 lb x 14.4 lb
Metric: 39.62 cm x 30.48 cm x 36.58 cm
Harmonized Code
902730
Harmonized Code Details
Harmonized code 902730 pertains to spectrometers and spectrophotometers using optical radiations (UV, visible, IR). This aligns with the Qiagen QIAxpert's function as a UV-Vis spectrophotometer designed for laboratory sample analysis.
