JORESTECH E-CBS-630D Continuous Band Sealer with Digital Temperature Control
JORESTECH
Details
-
CategoryProduction / Manufacturing
-
Dimension15.0in x 34.0in x 11.0in
-
Serial1111220116443
-
Shipping TypeFreight
-
ManufacturingDoes Not Apply
-
Voltage / Hertz120V / 50Hz/60Hz
Description

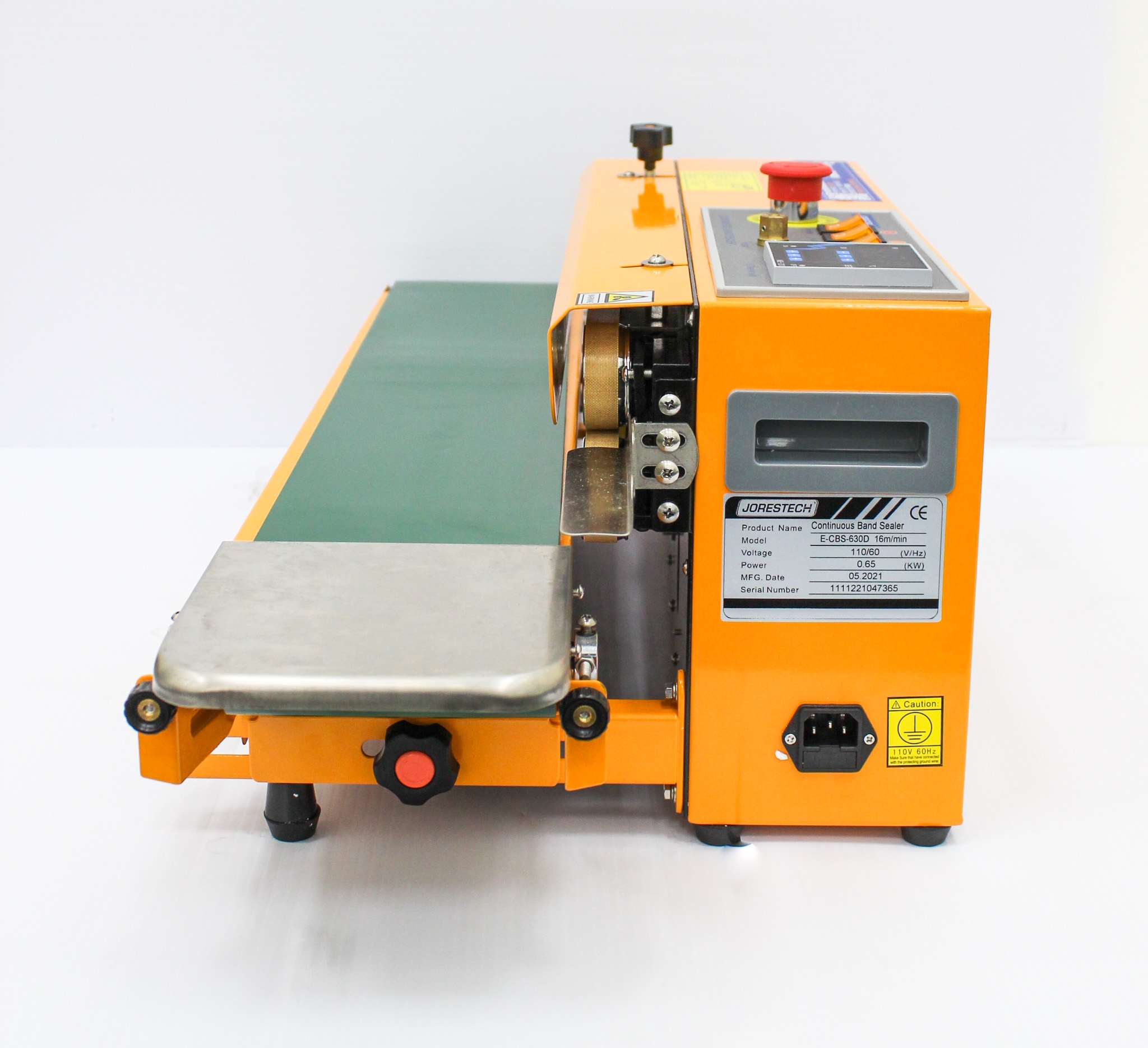

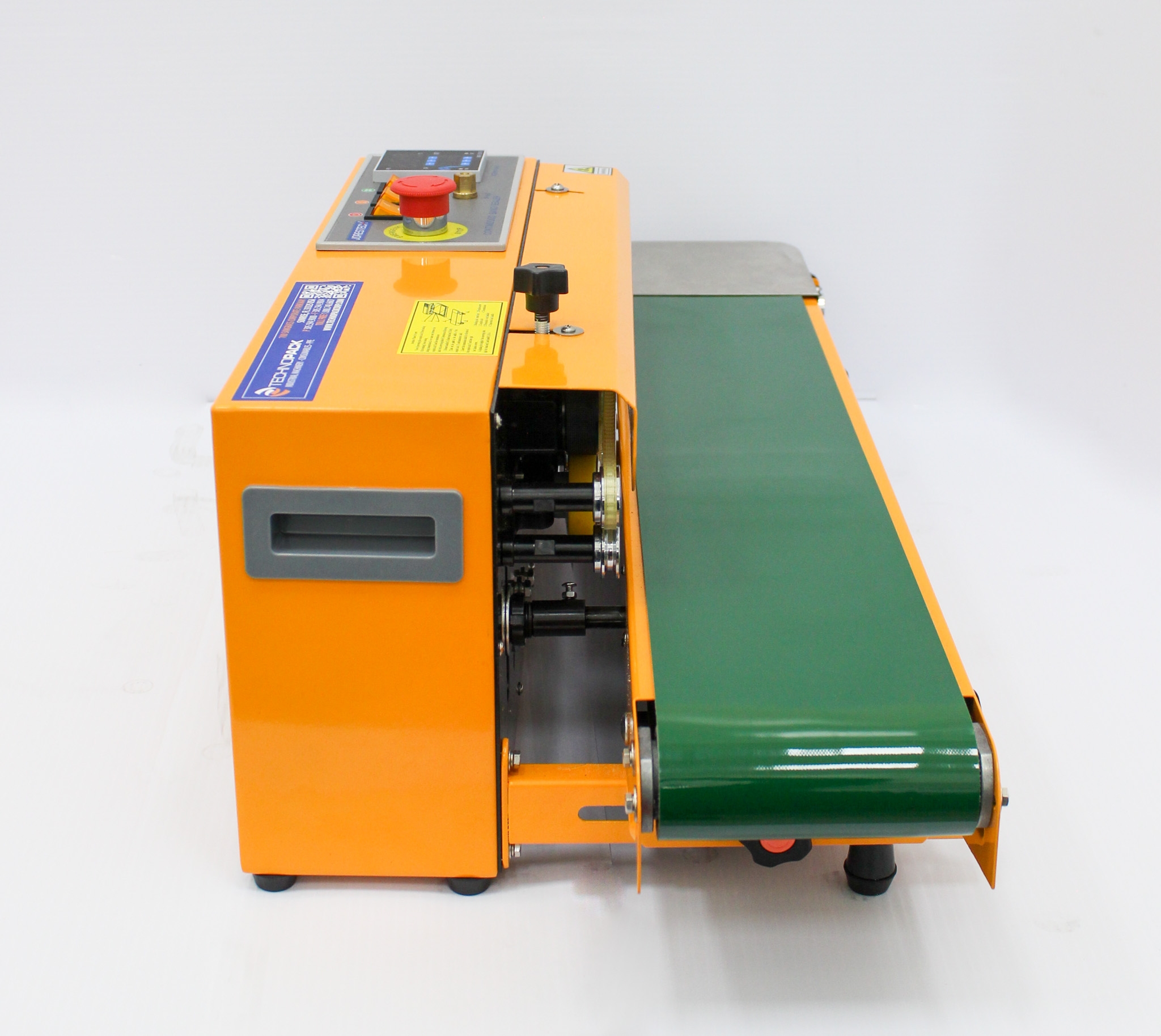

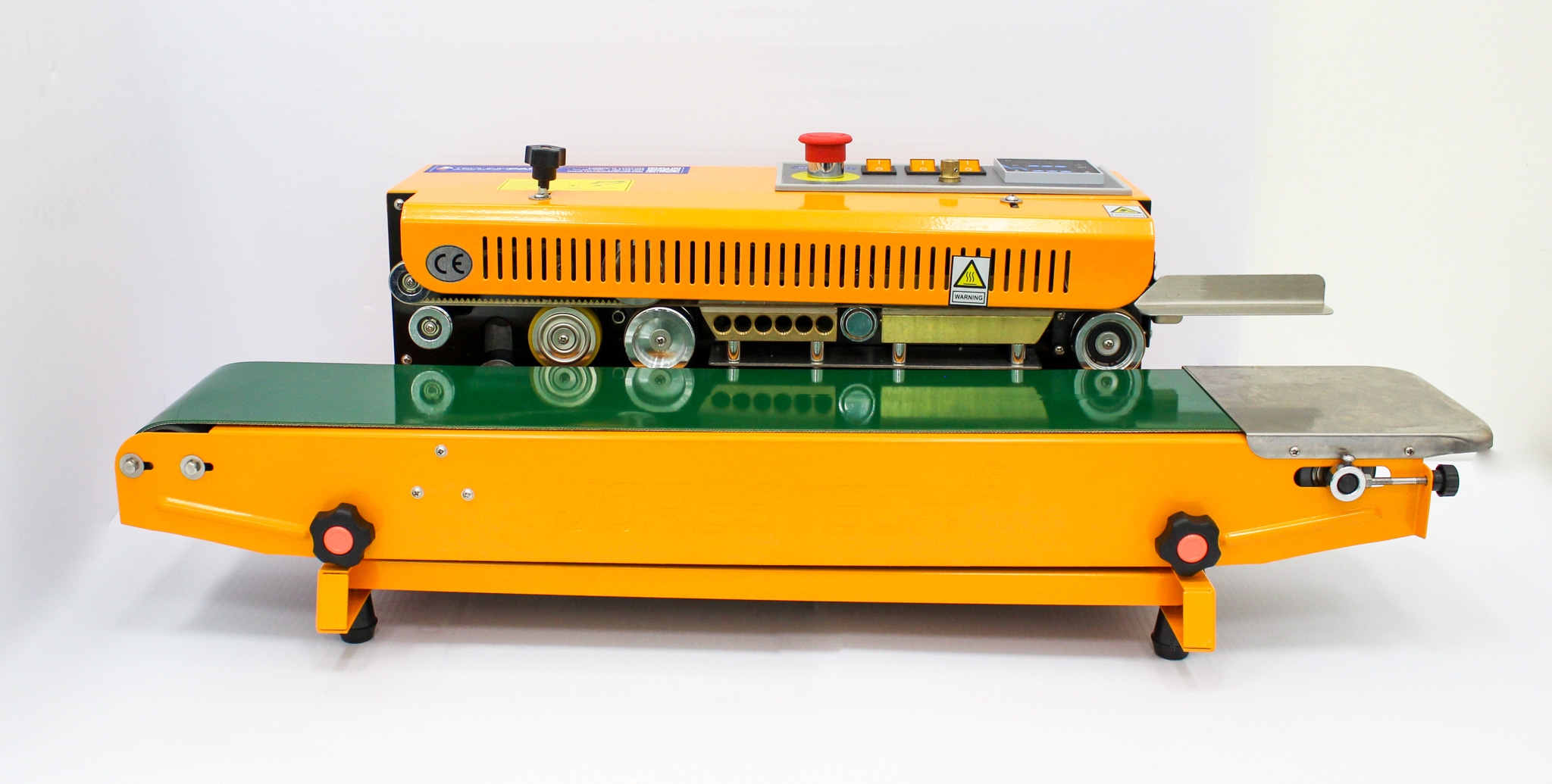

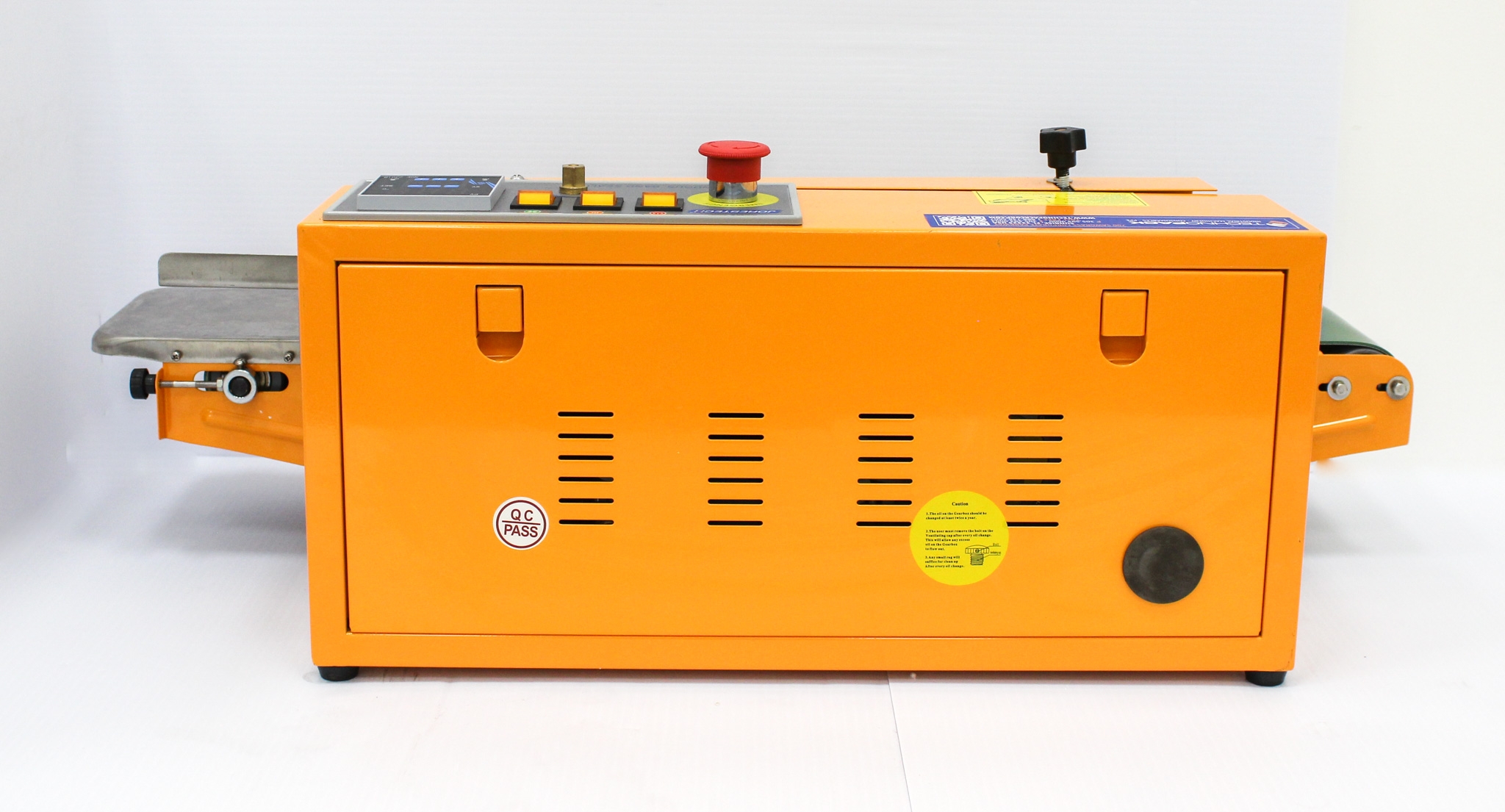

The JORESTECH E-CBS-630D Continuous Band Sealer is a robust, used unit in very good condition that efficiently seals thermoplastic bags, including Polyethylene (PE) and Bo PET, suitable for food, coffee, and medical product packaging. Equipped with a digital PID temperature controller, it ensures precise heat levels from 0 to 300°C for optimal sealing performance. The machine features a dual fit system for both horizontal and vertical sealing operations, making it versatile for different bag formats like stand-up pouches and gusseted bags. With a speed of up to 54 ft/min, this unit includes a motorized belt conveyor for synchronized speed adjustment, allowing a seamless packaging process. Ideal for industries needing reliable and high-speed sealing solutions.
Key Features

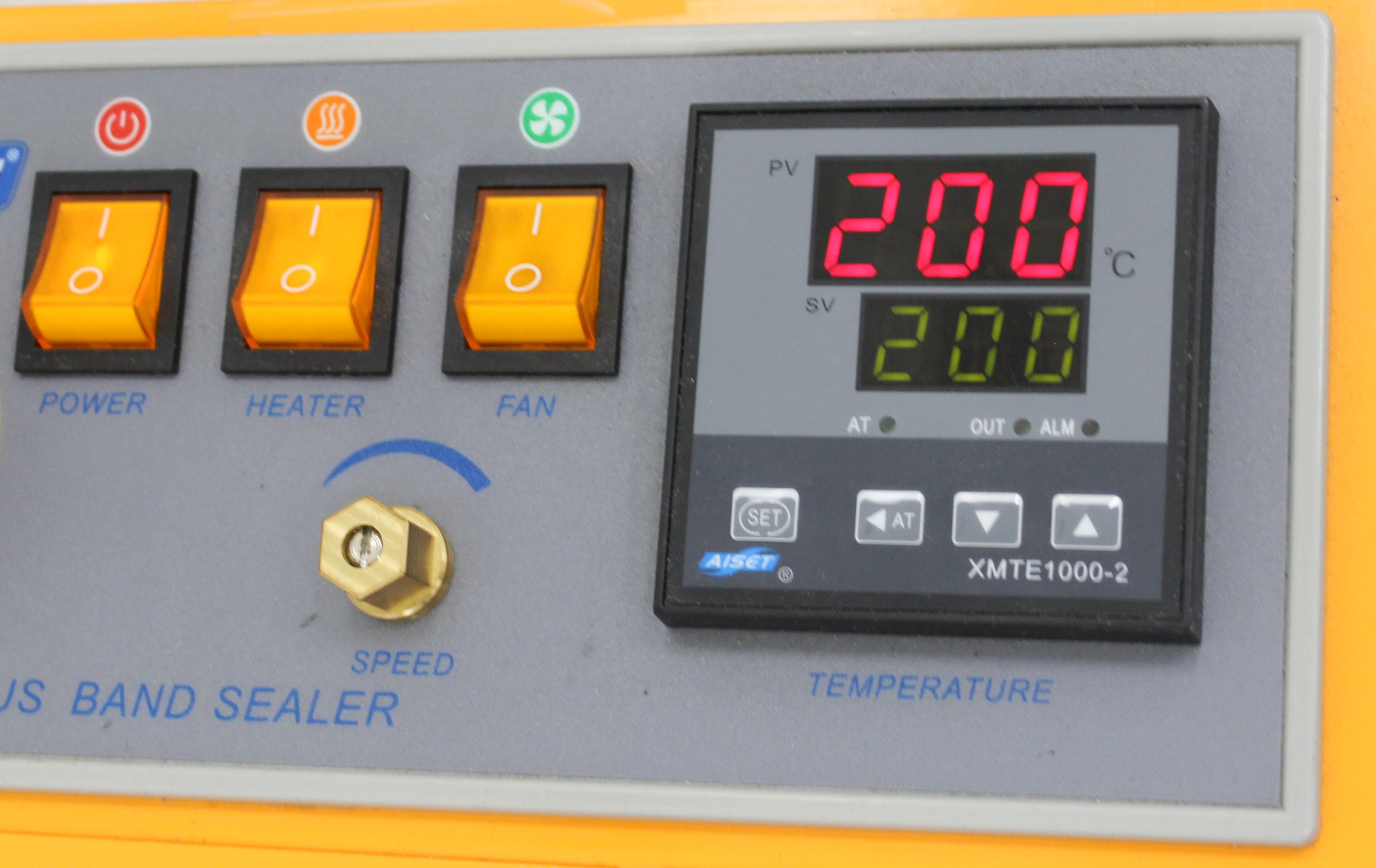

- PID Digital Temperature Controller
- Sealing Speed up to 54 ft/min
- Dual Fit System: Horizontal & Vertical
- Compatible with PE, PP, Bo PET
- 10 mm Seal Width
- Motorized Belt Conveyor
Specifications
- Operation: Semi-Automatic
- Power Type: Constant Heat, 120V, 50/60Hz
- Seal Head Orientation: Dual Fit System
- Seal Width: 10 mm / 3/8 in
- Speed: Up to 54 ft/min (16 mt/min)
- Temperature Range: 0 - 300°C (572°F)
- Compatible Bag Formats: Pillow, Pouch, Sack, Stand-up, Gusseted
- Recommended Bag Height: 125 - 280 mm / 4.9 - 11 in
Weight
Imperial: 58.8 Pounds
Metric: 26.67 Kilograms
Shipping Dimensions
Imperial: 18.0 lb x 40.8 lb x 13.2 lb
Metric: 45.72 cm x 103.63 cm x 33.53 cm
Harmonized Code
8422309095
Harmonized Code Details
This code refers to 'Other machines for filling, closing, sealing or labelling boxes, bags or similar containers.' It was selected based on the sealer's function of closing/sealing bags.
