Deerac Latitude Dispenser Liquid Handling High Throughput Screening 0.05-20ul Range
Deerac Fluidics
Details
-
CategoryLiquid Handling
-
Dimension20.0in x 16.0in x 13.0in
-
Serial18008
-
Shipping TypeFreight
-
ManufacturingDoes Not Apply
-
Voltage / Hertz120V/220V / 50Hz/60Hz
Description

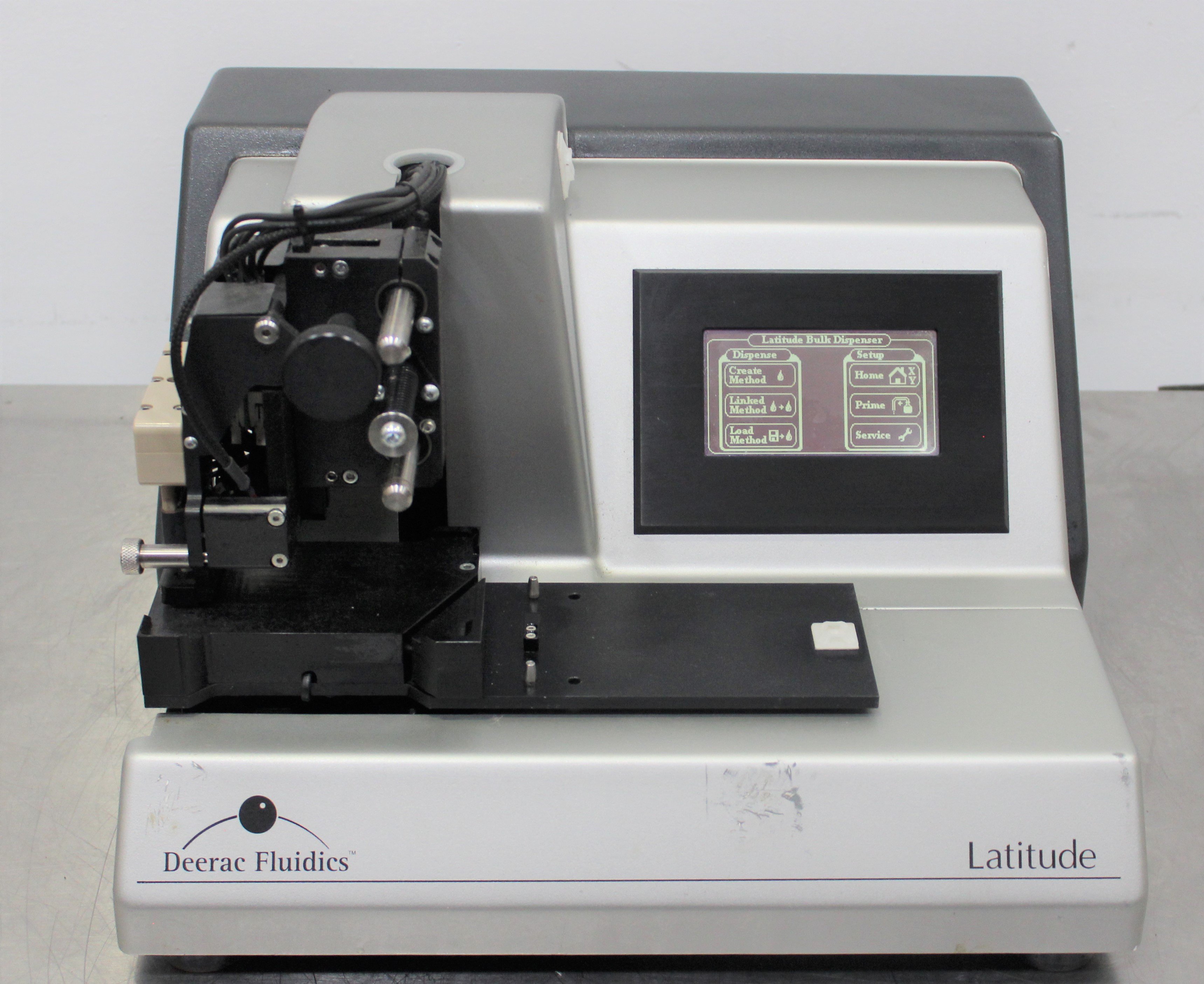

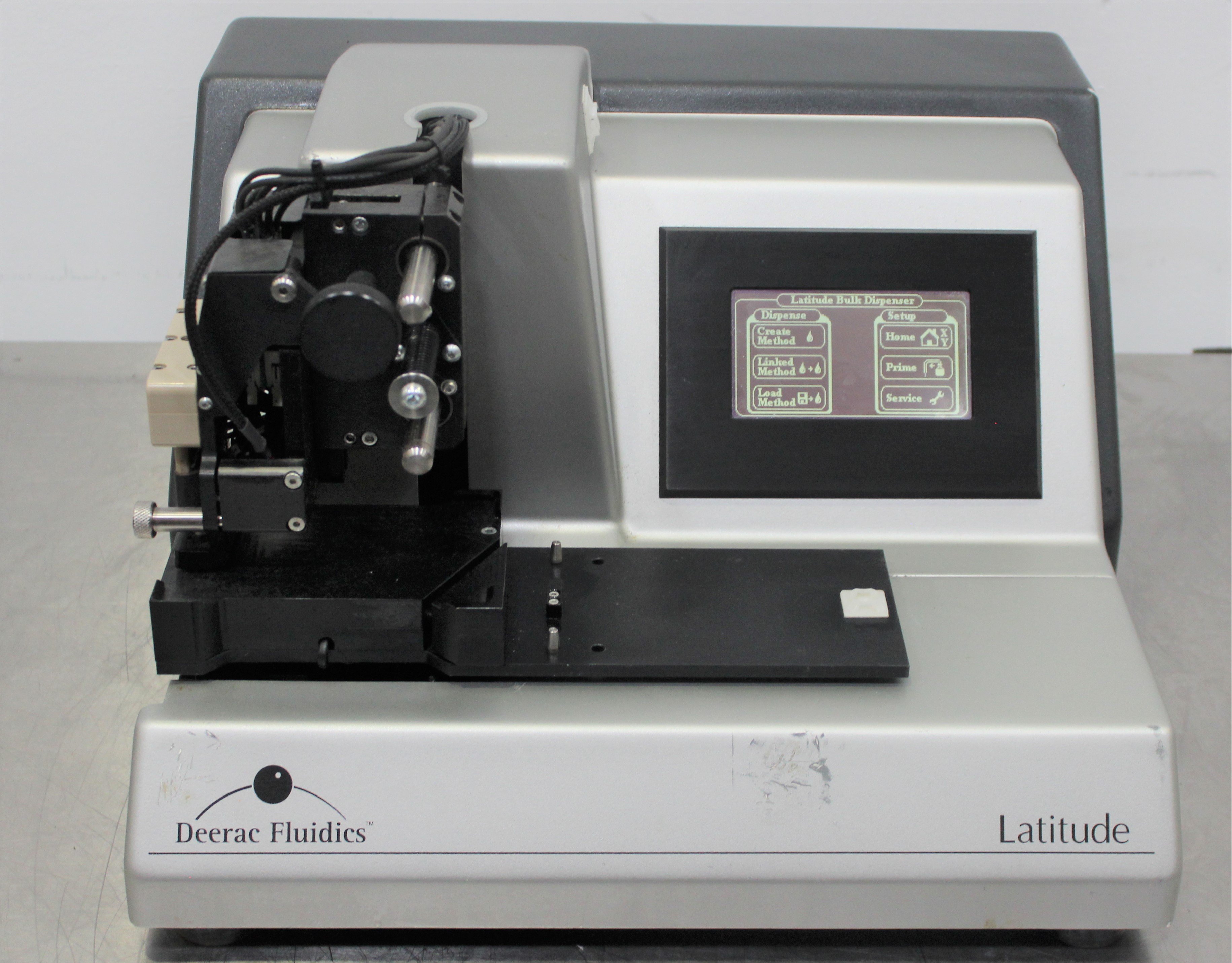

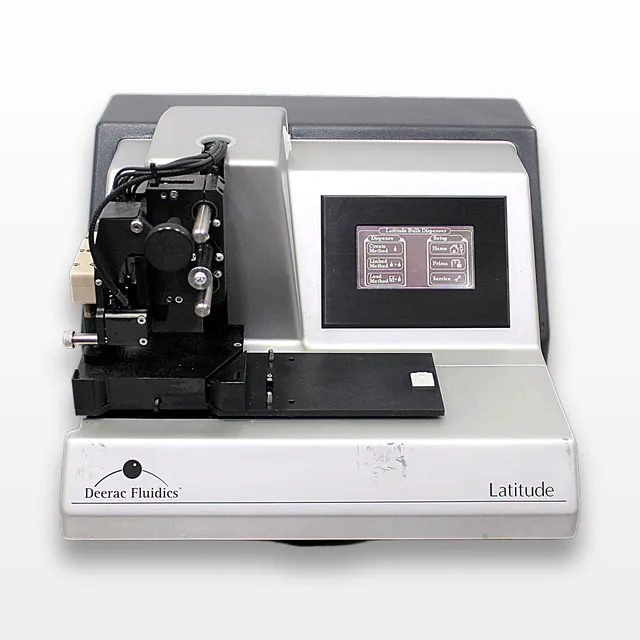

The Deerac Fluidics Latitude dispenser is a high-speed, low-volume solution ideal for high throughput screening applications. Tailored for dispensing one or two reagents, it accurately handles volumes from 0.05 to 20 microliters. Its single, robot-friendly plate position adapts to all well plate formats, including 96, 384, and 1536 wells. Equipped with a user-friendly touch screen, the Latitude ensures easy programming without the need for a PC. It can function as a standalone device or integrate into fully automated robotic systems. Featuring proprietary spot-on technology, the Latitude optimizes non-contact dispensing for efficient low-volume applications, filling a 1536-well plate in under 15 seconds. Its simple valve design supports longevity, performing hundreds of thousands of dispenses with cells and beads. Previously used and in very good condition, this device assures functionality without error messages. Voltage compatibility includes 120V/220V at 50/60Hz. Computer is not included.
Key Features
- High throughput screening
- Low-volume dispensing (0.05 to 20ul)
- Single, robot-friendly plate position
- Handles 96-, 384-, and 1536-well plates
- User-friendly touch screen display
- No PC required for programming
- Integrable into robotic systems
- Proprietary non-contact dispensing technology
Specifications
- Dispense mode: Dispense only
- Minimum dispense volume: 0.05 ul to 50 ul
- Minimum fill volume: < 4 ml per reagent
- Dispense speed: 384-well plate: < 12 sec, 1536-well plate: < 20 sec
- Dispense accuracy: Above 1 ul, At 0.5 ul: 5%
- Dispense precision: Above 1 ul: < 5%, At 0.5 ul: < 7%, At 0.05 ul: < 10%
- Voltage: 120V/220V, Hertz: 50Hz/60Hz
Weight
Imperial: 48.0 Pounds
Metric: 21.77 Kilograms
Shipping Dimensions
Imperial: 24.0 lb x 19.2 lb x 15.6 lb
Metric: 60.96 cm x 48.77 cm x 39.62 cm
Harmonized Code
847982
Harmonized Code Details
The harmonized code 847982 applies to machinery not specified or included elsewhere in subheadings of the product category 8479, particularly suitable for industrial machinery used for liquid dispensing systems. The Deerac Latitude's specific design for reagent dispensing fits this classification.
