Iwaki AP-24OZ Air Pump Diaphragm Type Gas Analysis Suction Transfer
IWAKI
Details
-
CategoryPump
-
Dimension9.0in x 5.0in x 8.0in
-
Serial0990005
-
Shipping TypeFedEx Ground
-
ManufacturingDoes Not Apply
-
Voltage / Hertz120V / 50Hz/60Hz
Description

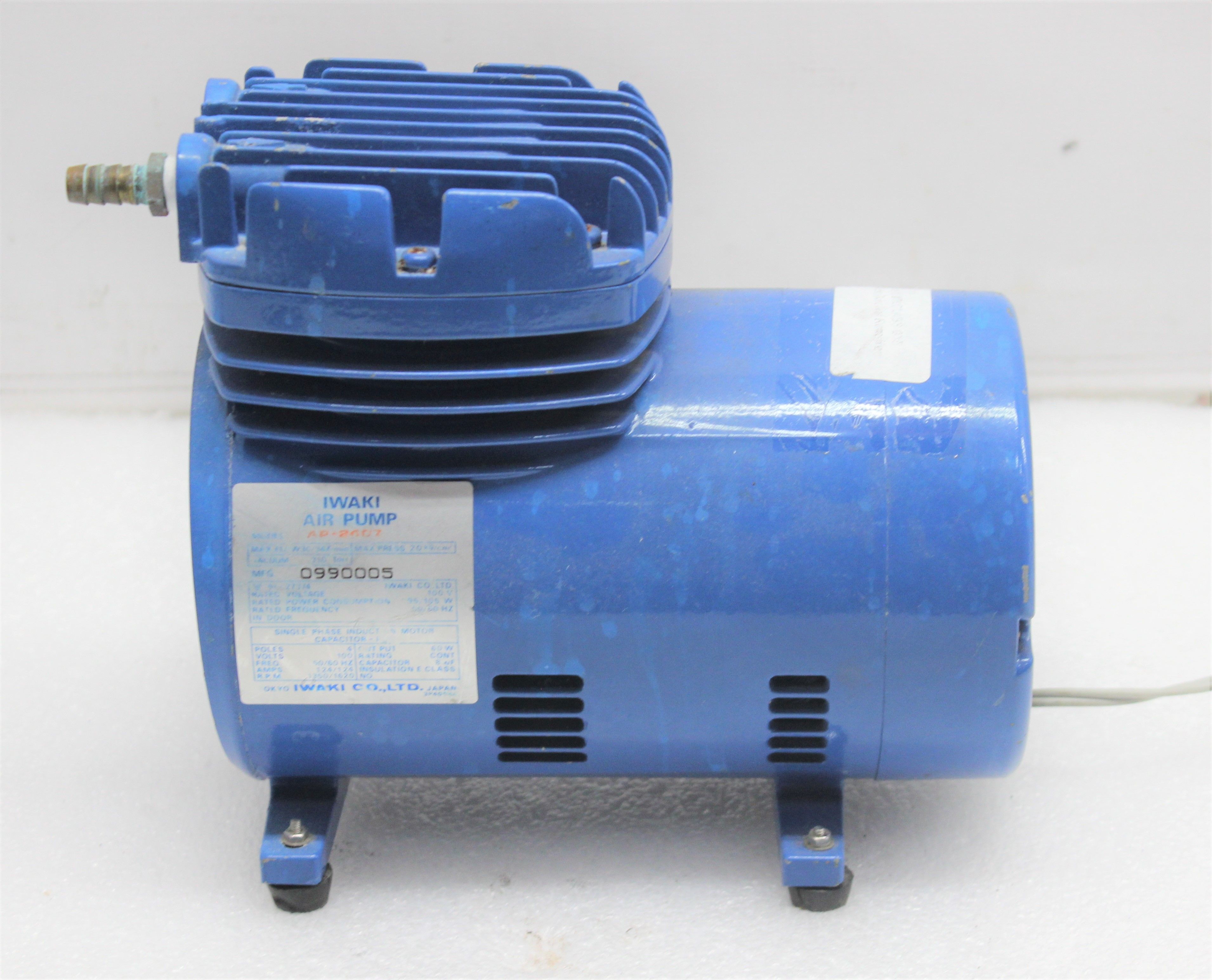

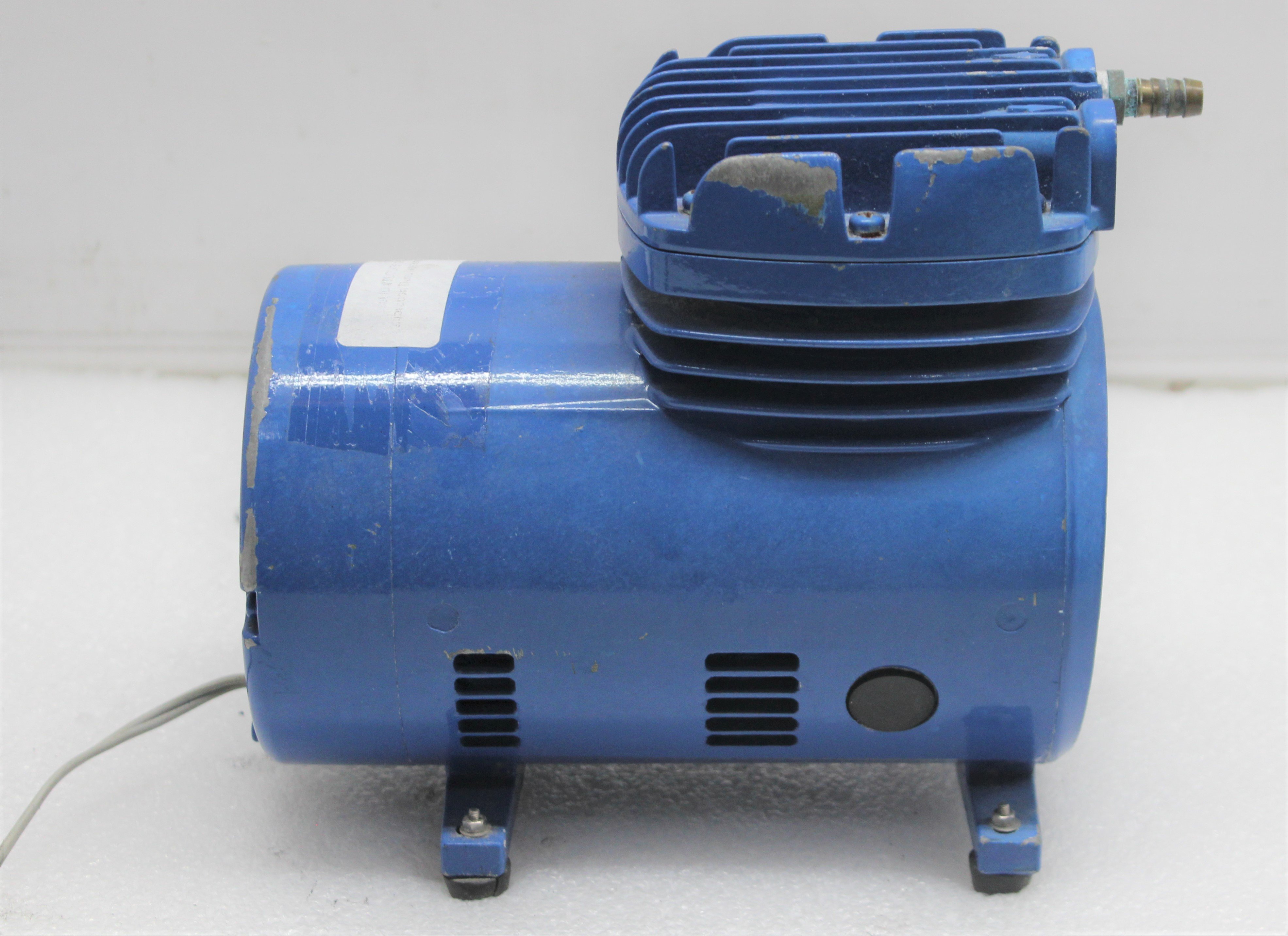

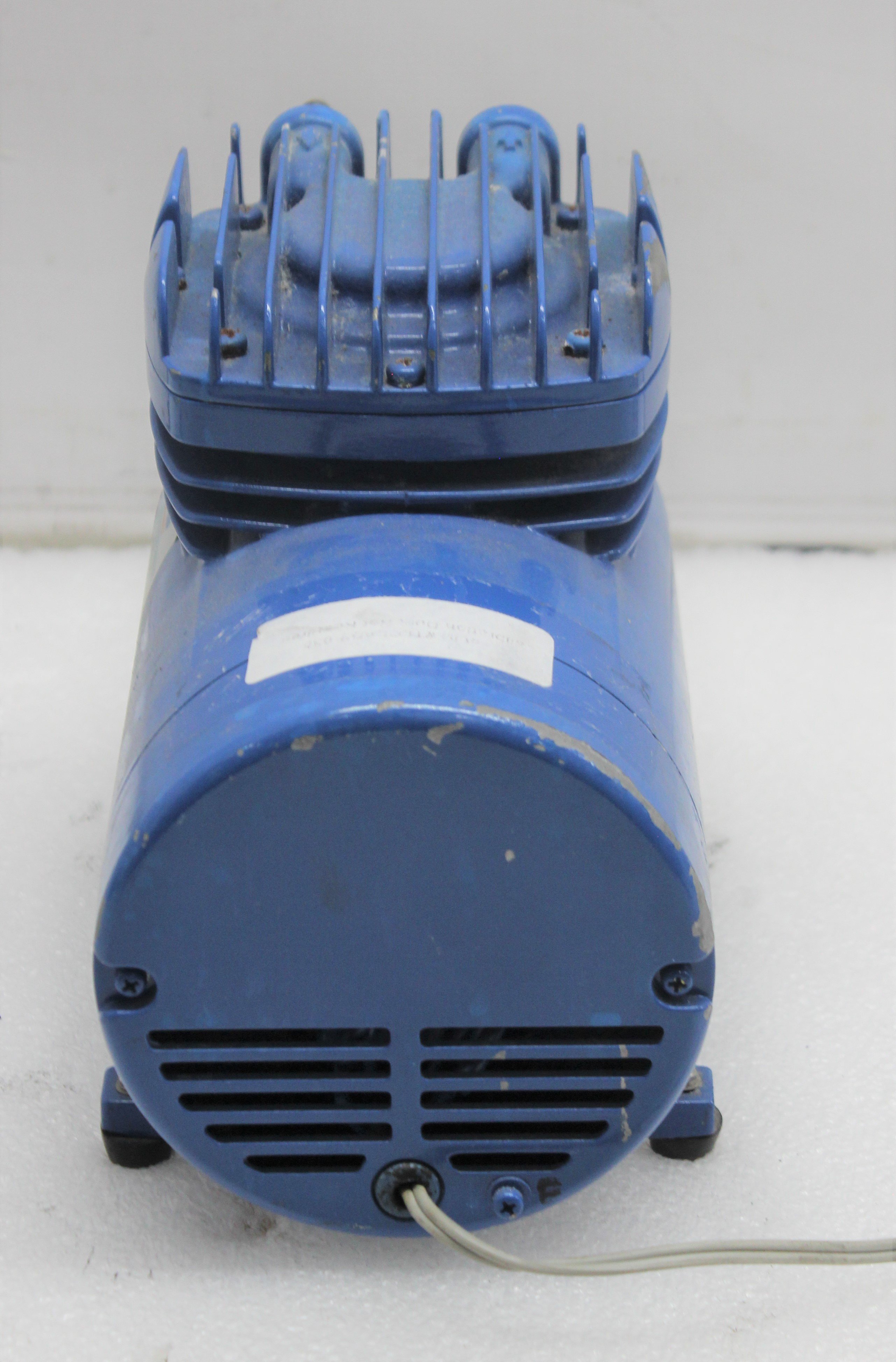

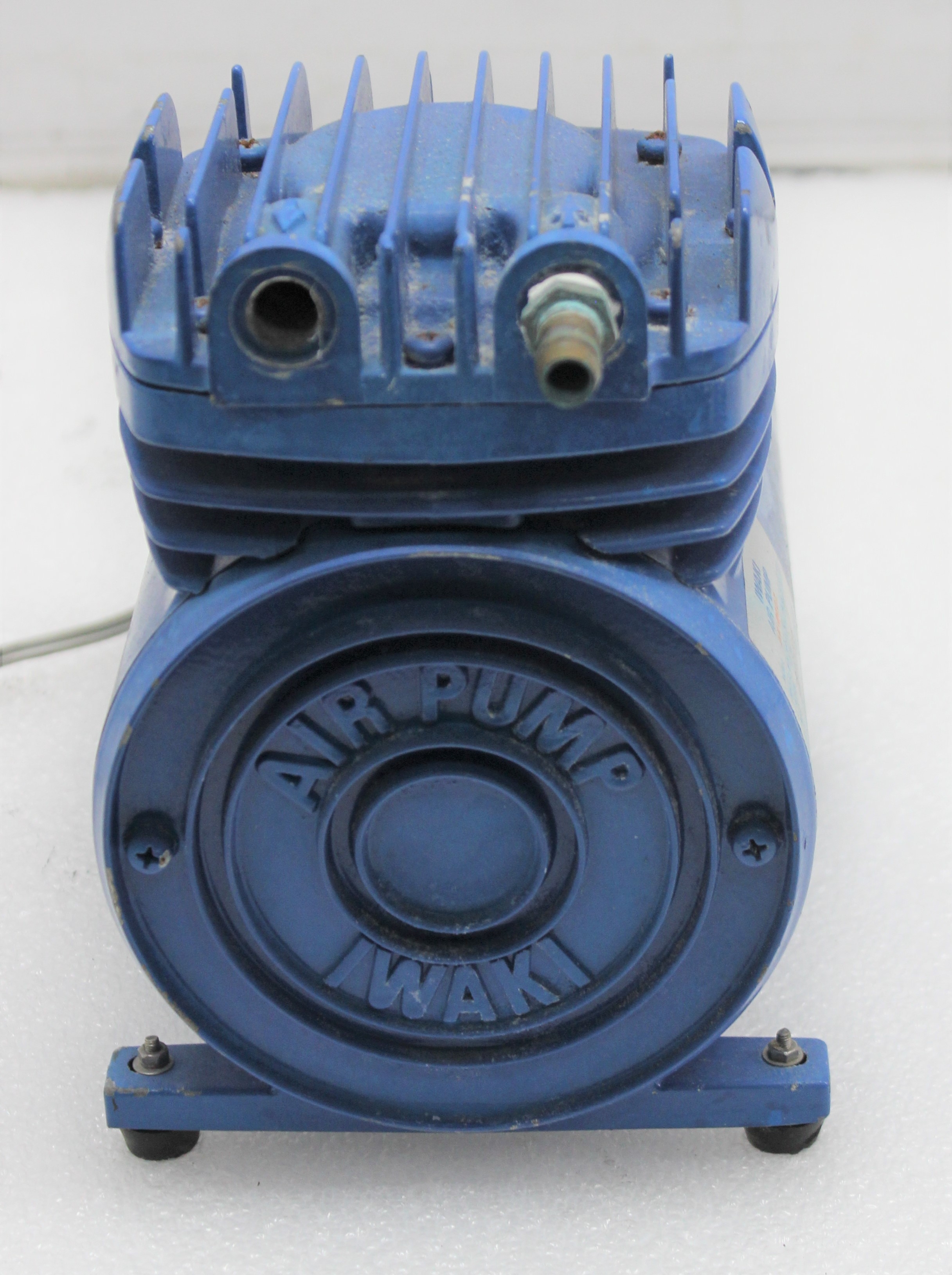

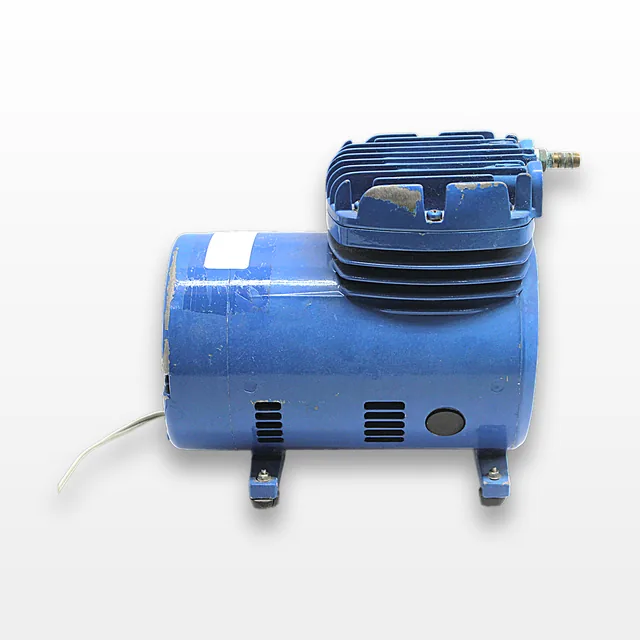

The IWAKI AP-24OZ Air Pump is a high-performance diaphragm pump designed for precise gas analyses and applications requiring reliable suction and transfer of special gases. With 120V operation, the pump ensures exceptional airtightness guaranteeing clean gas handling. Rated in very good condition, this used pump has minimal cosmetic wear yet functions optimally without error messages. It offers a maximum flow rate of 34 liters per minute, a maximum pressure of 2.0 kg/cm2, and reaches up to 310 Torr vacuum, making it suitable for both standalone and integrated systems in laboratory settings. Power cord included; additional accessories not bundled.
Key Features
- Diaphragm type for high airtightness
- Ideal for gas analysis and special gas transfer
- Max flow rate of 30-34 L/min
- Max pressure of 2.0 kg/cm2
- Achieves vacuum of up to 310 Torr

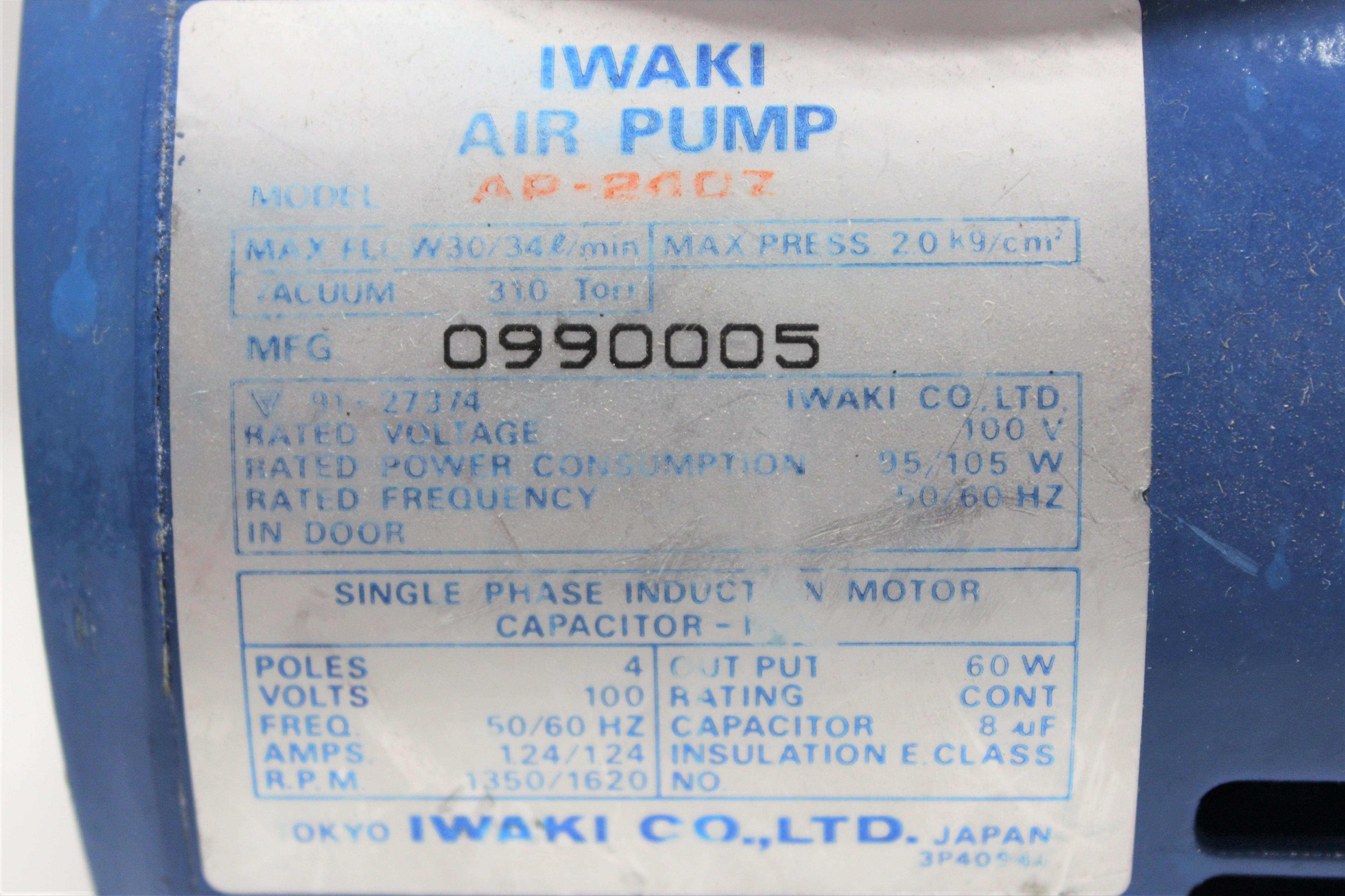

Specifications
- Make: IWAKI
- Model: AP-24OZ
- Condition: VG (Very Good)
- Voltage: 120V
- Frequency: 50/60Hz
- Max Flow: 30/34 L/min
- Max Pressure: 2.0 kg/cm2
- Vacuum: 310 Torr
Weight
Imperial: 18.0 Pounds
Metric: 8.16 Kilograms
Shipping Dimensions
Imperial: 10.8 lb x 6.0 lb x 9.6 lb
Metric: 27.43 cm x 15.24 cm x 24.38 cm
Harmonized Code
841410
Harmonized Code Details
841410 - Vacuum pumps: The IWAKI AP-24OZ air pump matches the characteristics of vacuum pumps, suitable for compressing, suctioning, and transferring gases, typically classified under this HS code.
