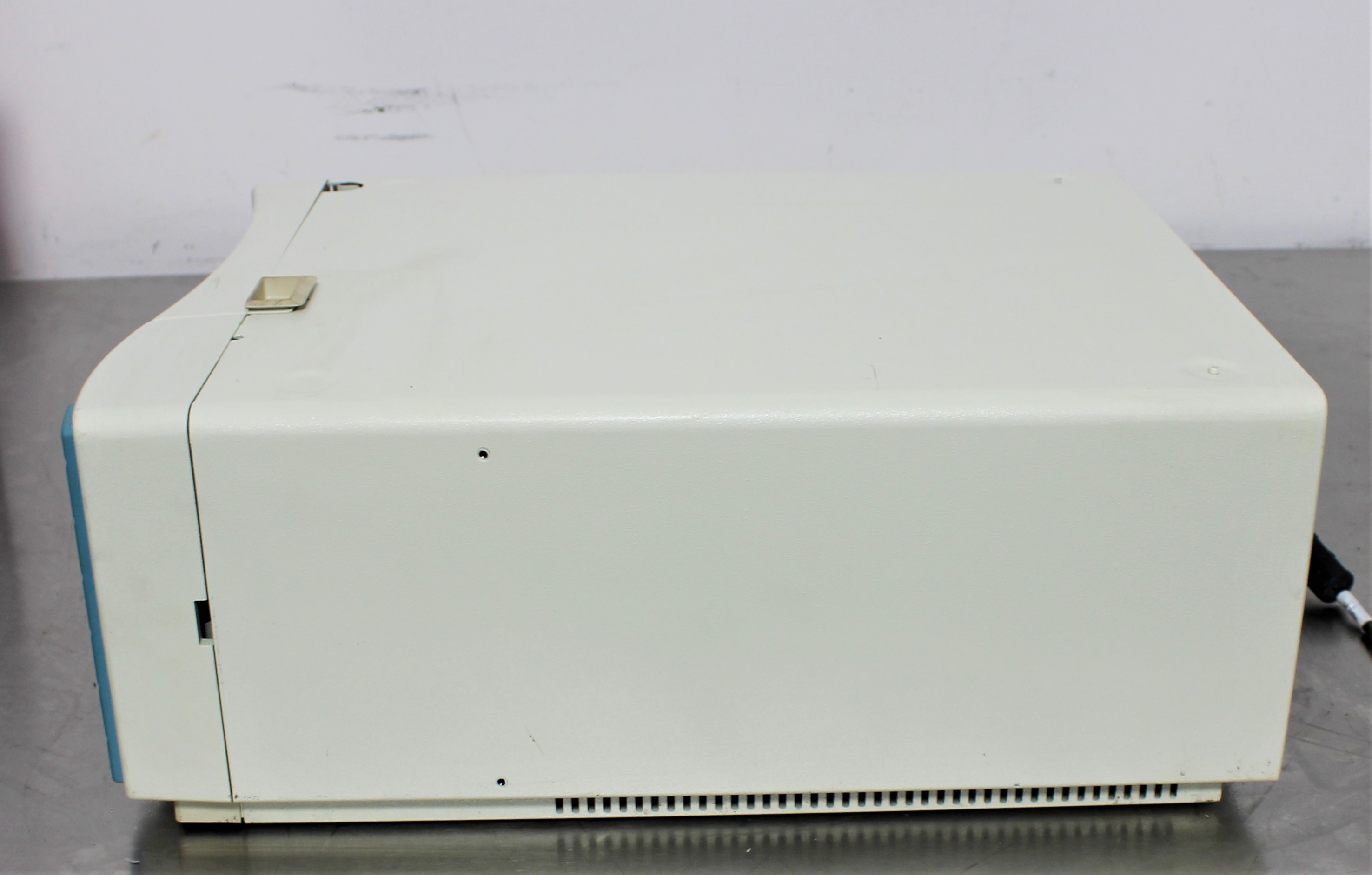

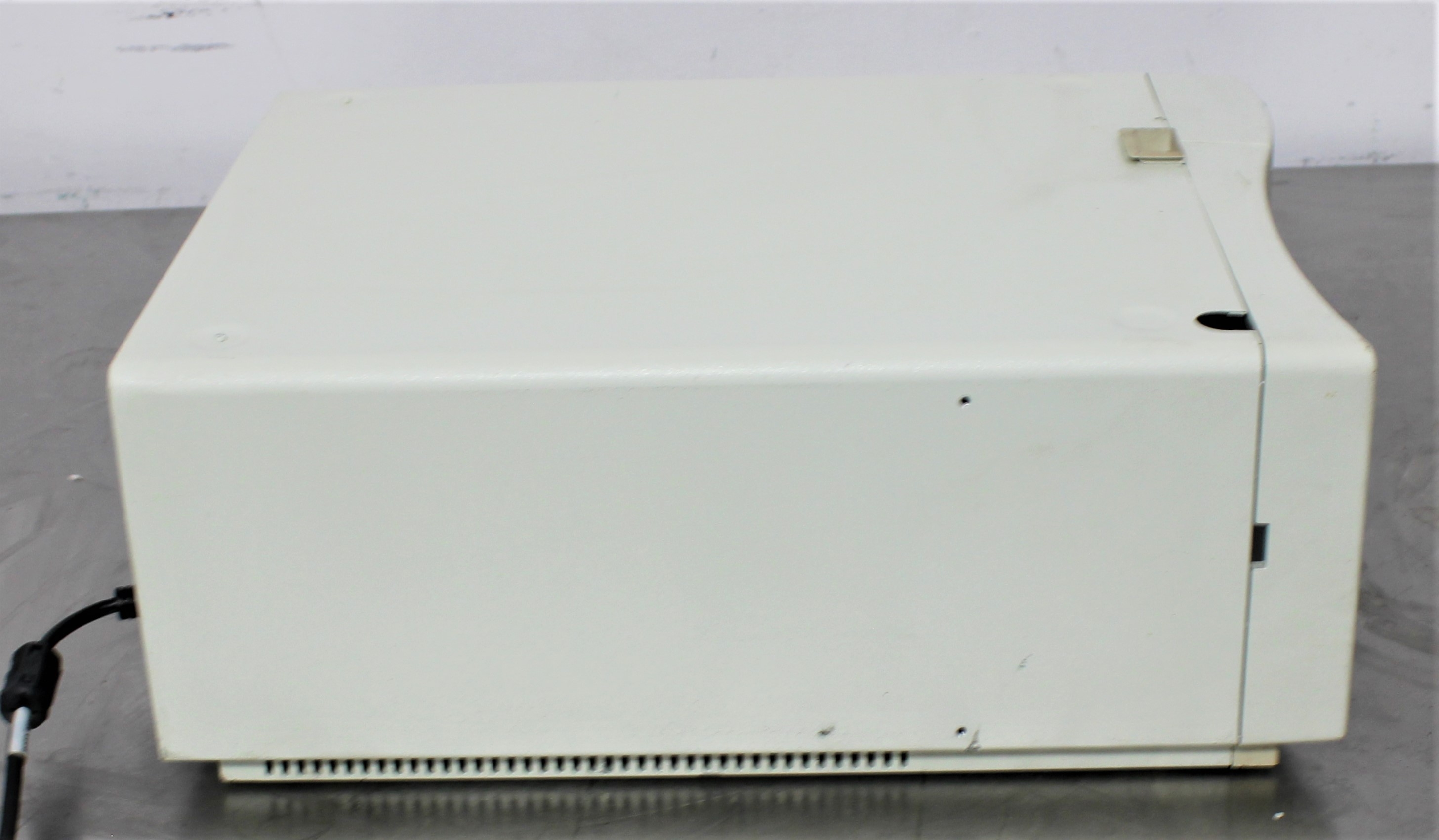

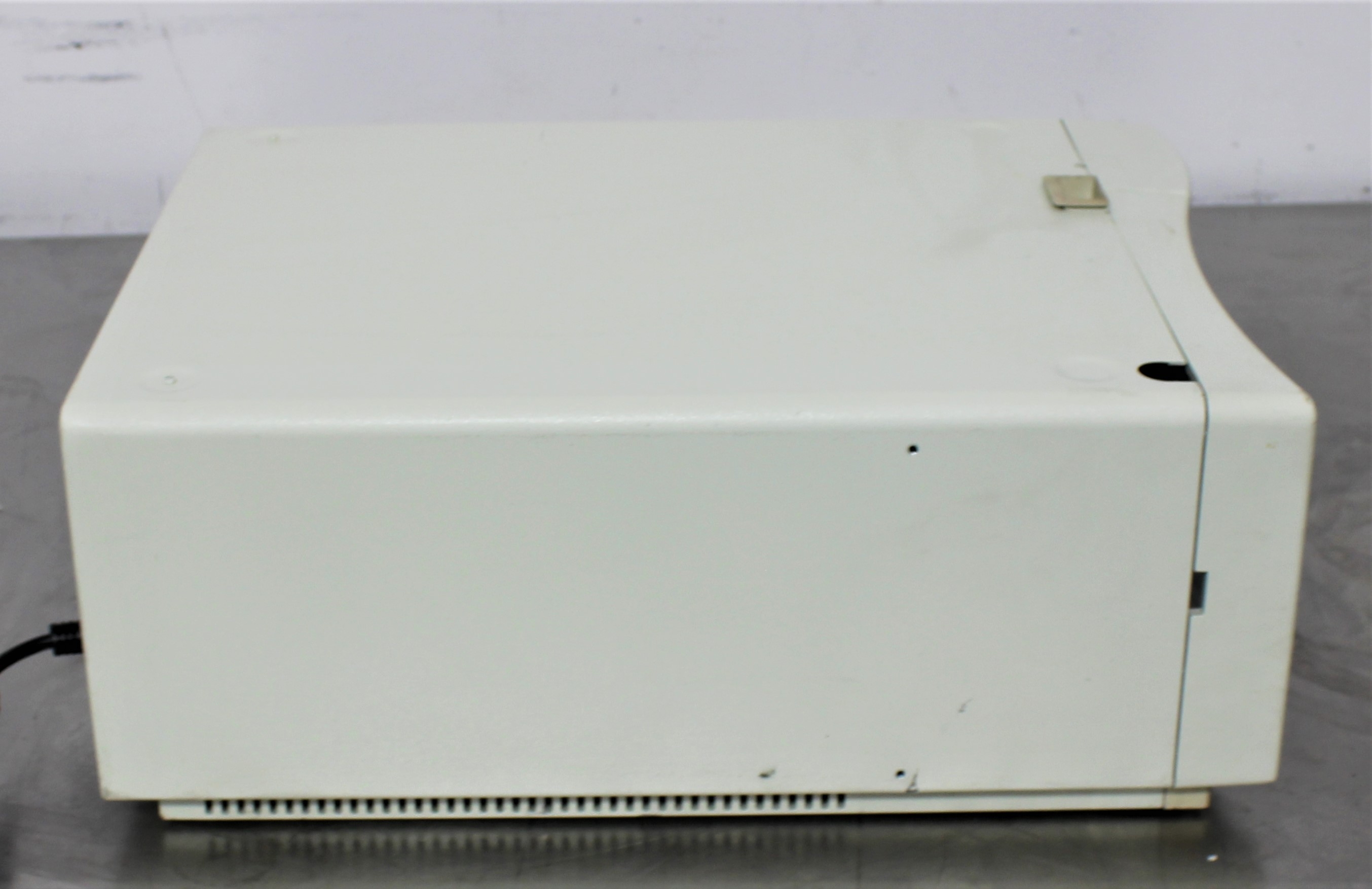

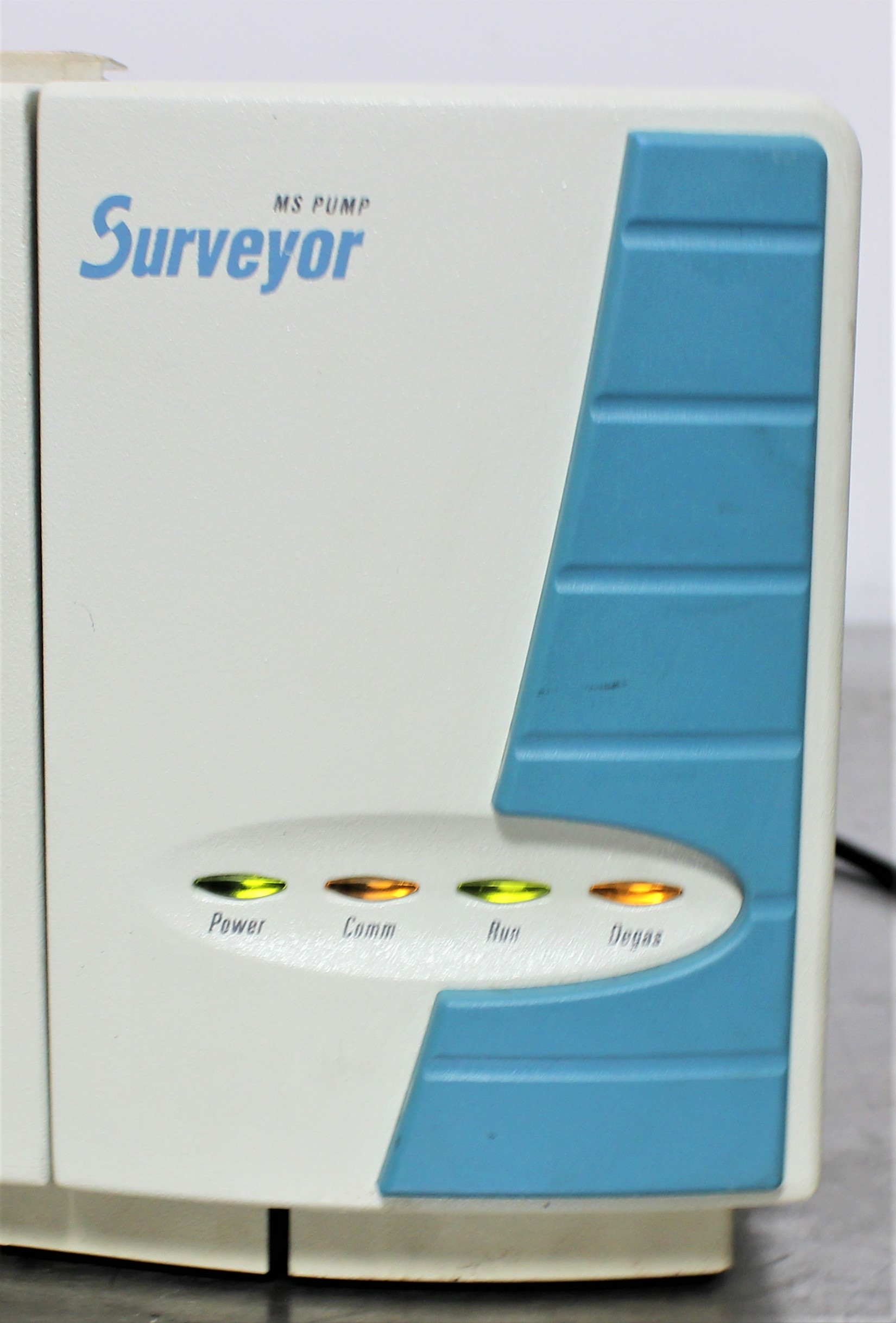

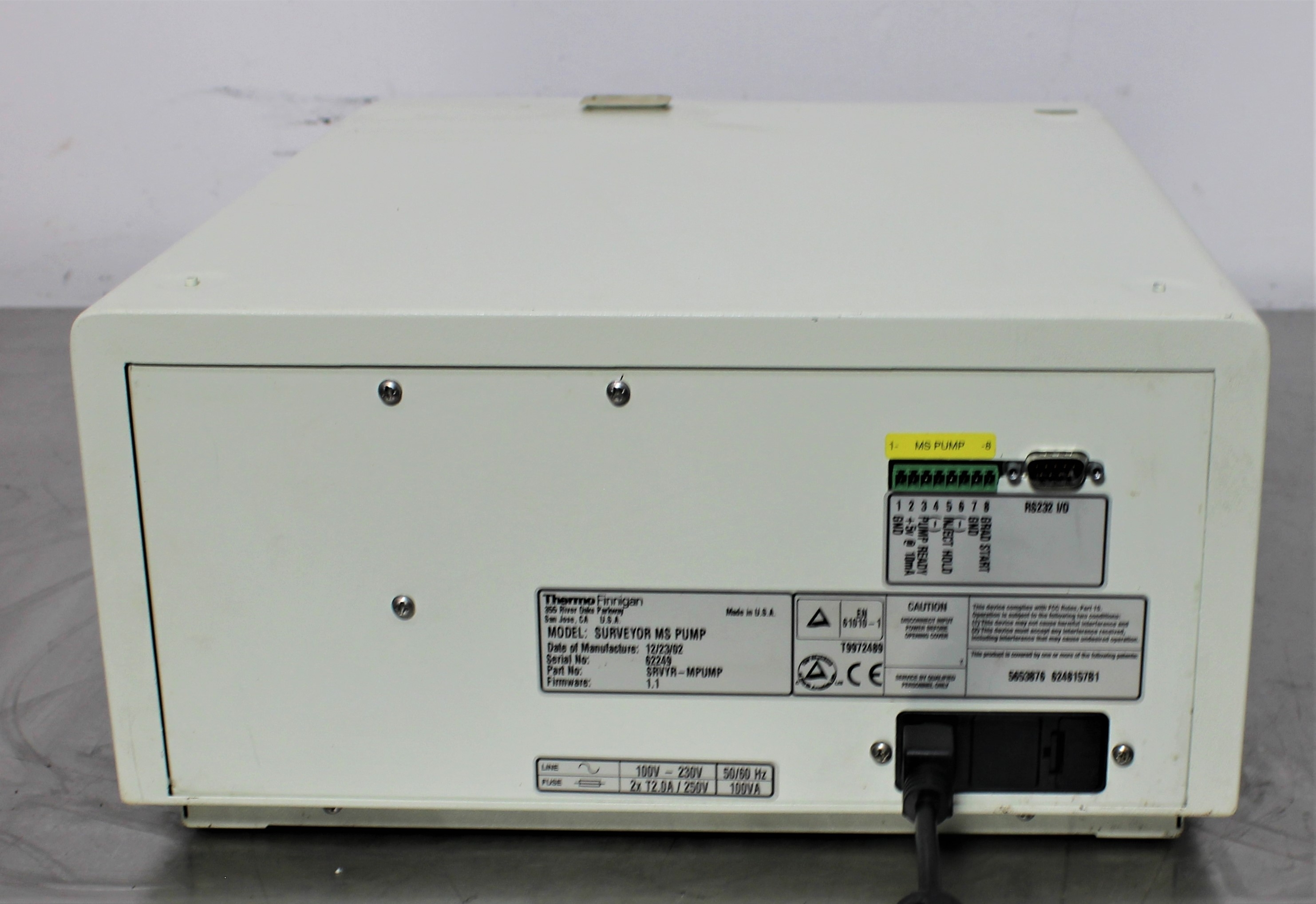

Thermo Surveyor MS Pump Mixing Pump for Low Flow HPLC Systems with 120V 60Hz
Thermo Finnigan
Details
-
CategoryMass Spectrometry
-
Dimension14.0in x 18.0in x 8.0in
-

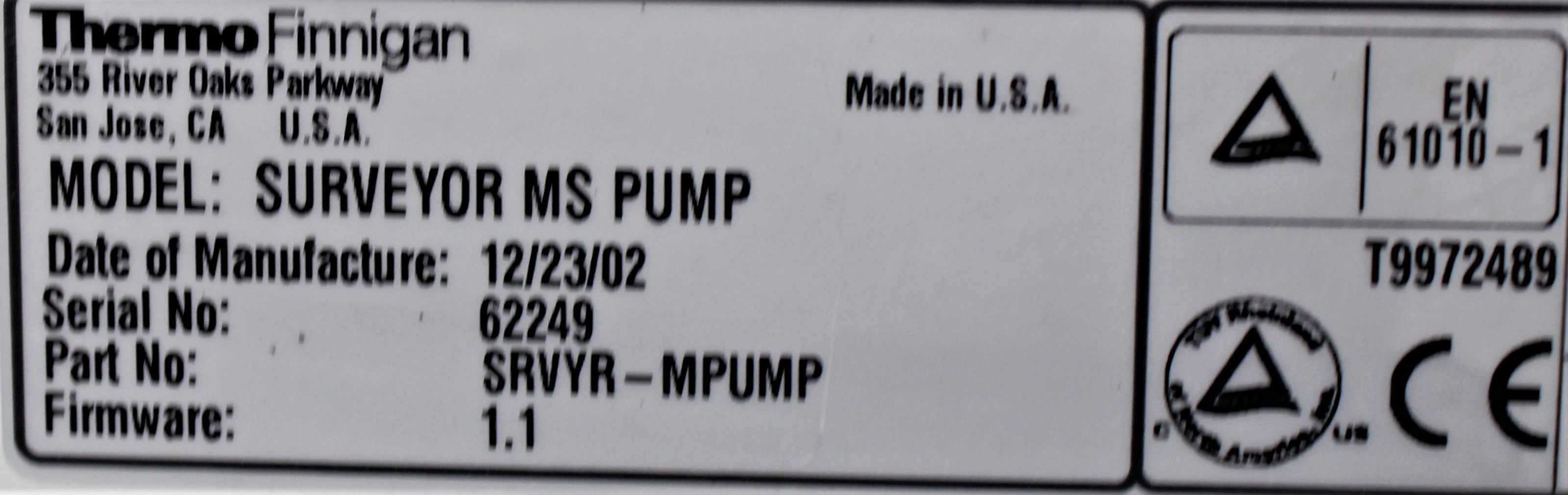

Serial62249
-
Shipping TypeFedEx Ground
-
ManufacturingDoes Not Apply
-

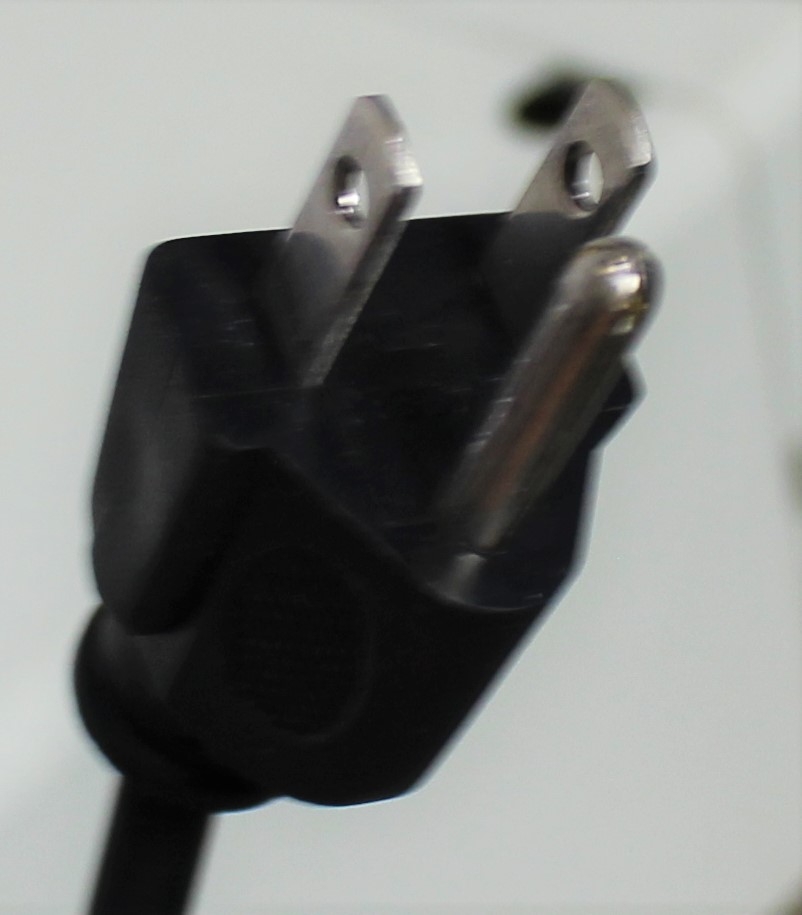

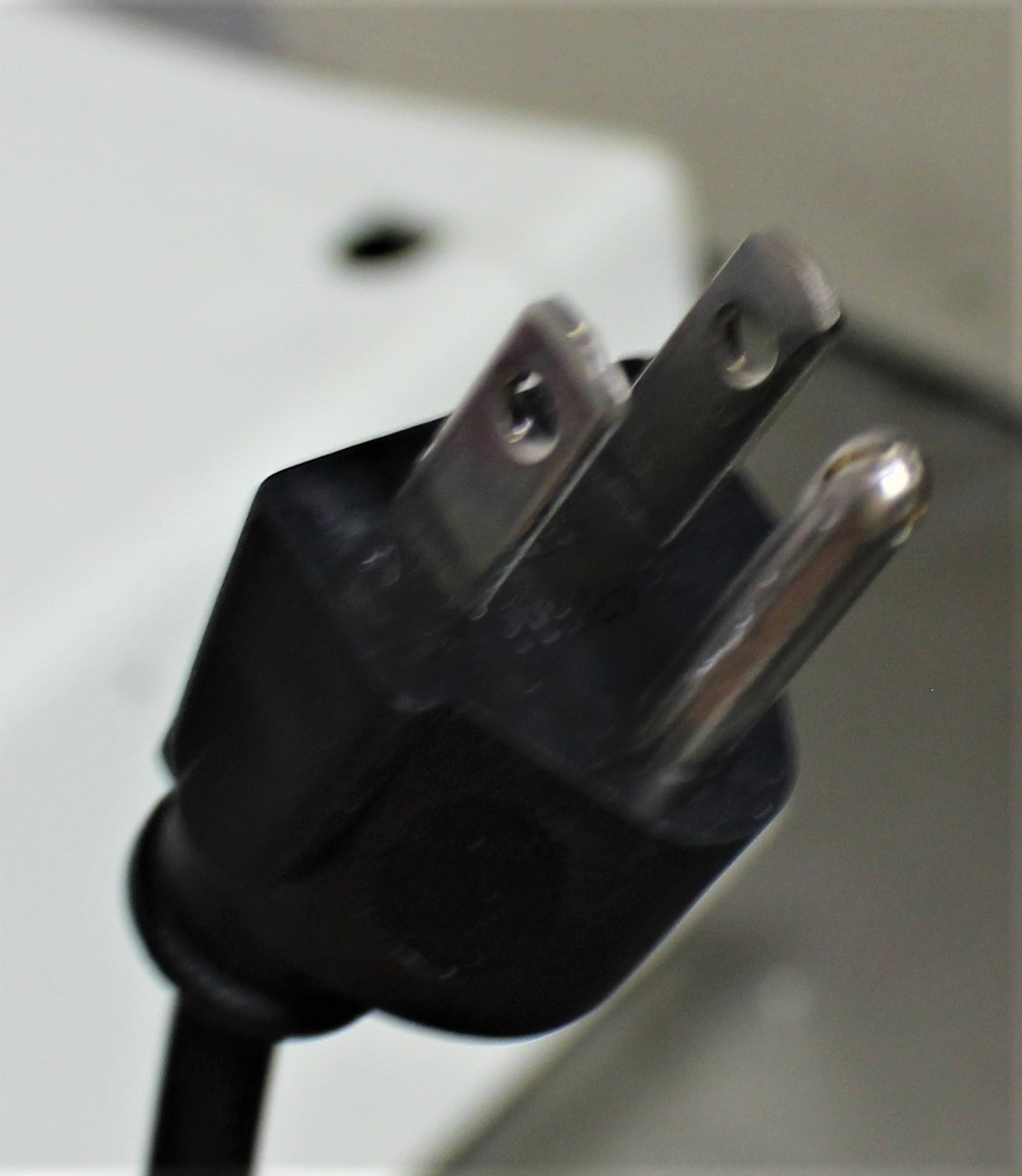

Voltage / Hertz120V / 60Hz US
Description

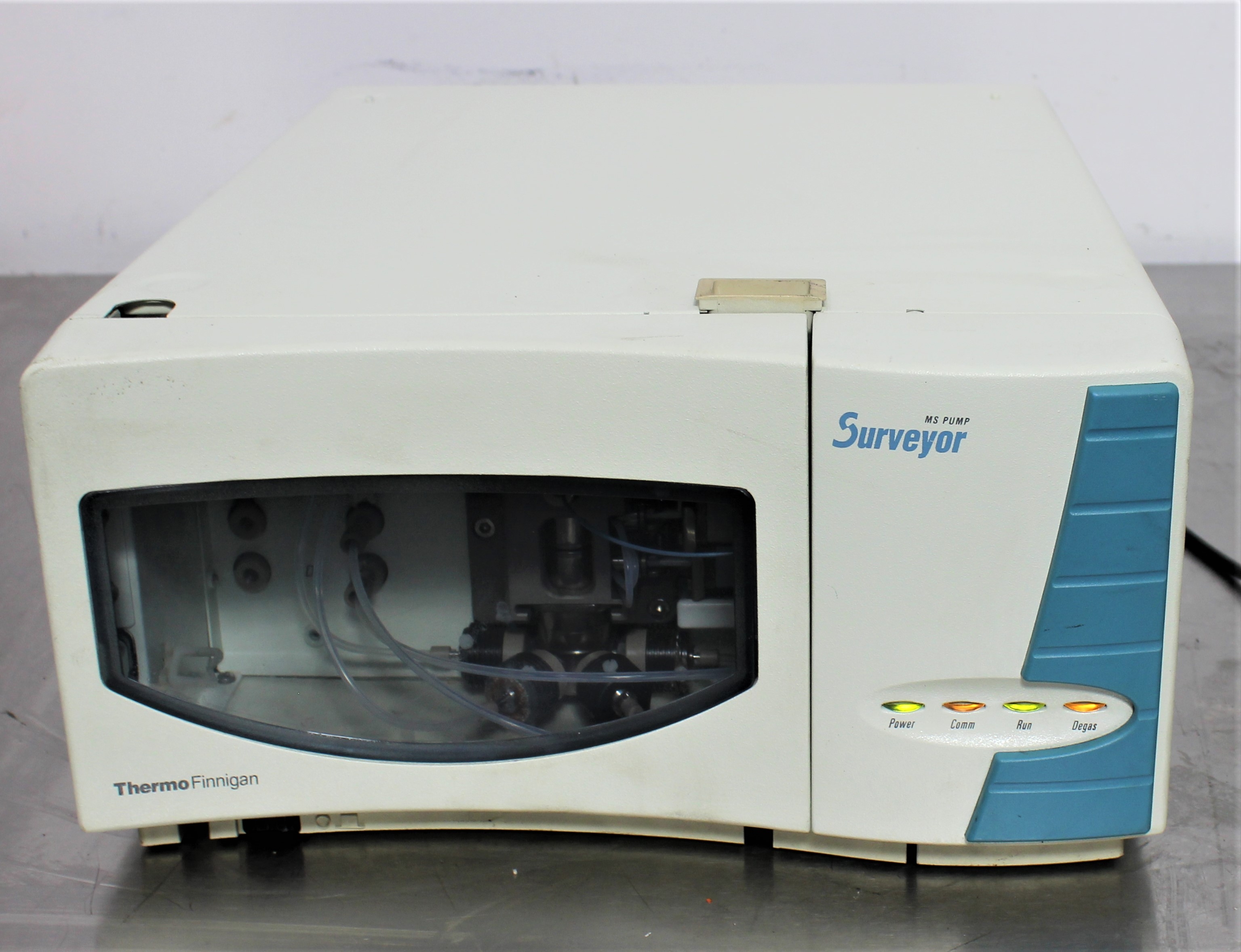

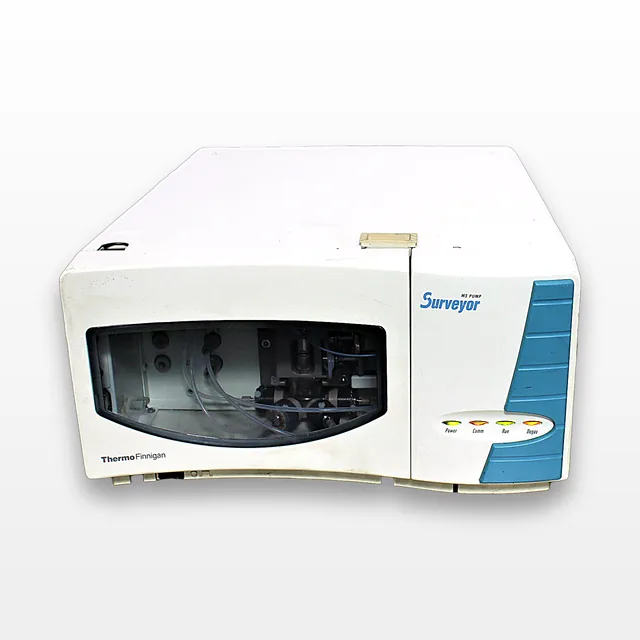

The Thermo Finnigan Surveyor MS Pump is a high-performance mixing pump, designed for optimal performance in the low flow rate ranges required for mass spectrometry. Built with a low-pressure mixing system that incorporates a built-in solvent degassing and pulse dampening technology, it ensures precision in high-performance liquid chromatography (HPLC) systems. The pump boasts a minimum flow rate of 0.2 L/min isocratic and a maximum flow rate of 2000 L/min, with a pressure range of 0 to 400 bar (0 to 5800 psi). Compatibility with the Surveyor HPLC system enhances its versatility. Equipped to handle variabilities in temperature (operating from +10C to +40C) and humidity (5% to 95% relative, non-condensing), the unit is reliable in several lab conditions. Made from 316 stainless steel and other durable materials like titanium and PEEK, the Surveyor MS Pump is esteemed for longevity and reliability in scientific settings. Integrated with RS232 serial interface for software control, it supports dynamic research needs.
Key Features
- Low-pressure mixing pump for HPLC systems
- Built-in solvent degassing and pulse dampening
- Minimum flow rate of 0.2 L/min; maximum 2000 L/min
- Pressure range: 0 to 400 bar (5800 psi)
- Supports RS232 digital serial interface
- Constructed with 316 stainless steel and advanced composites
Specifications
- Minimum Flow Rate: 0.2 L/min isocratic, 25 L/min gradient
- Maximum Flow Rate: 2000 L/min
- Pressure Range: 0 to 400 bar (0 to 5800 psi)
- Solvent Capacity: Quaternary
- Piston Volume: 24 L
- Degasser Type: Vacuum membrane with 4-channel capacity
- Pulse Dampener: 3 L, dynamic
- Wetted Parts: 316 stainless steel, titanium, PEEK, sapphire, TZP-ceramic, FEP, GFP, ruby
- Remote Controls: Start, RS232 serial interface
- Operating Temp: +10 C to +40 C
- Operating Humidity: 5% to 95% relative, non-condensing
Weight
Imperial: 48.0 Pounds
Metric: 21.77 Kilograms
Shipping Dimensions
Imperial: 16.8 lb x 21.6 lb x 9.6 lb
Metric: 42.67 cm x 54.86 cm x 24.38 cm
Harmonized Code
841330
Harmonized Code Details
The chosen harmonized code, 841330, is for fuel, lubricating or cooling medium pumps. This code fits the likely classification of the Thermo Surveyor MS Pump based on its use as a liquid pump in mass spectrometry settings.
