IKA UT TD Dispersing Stirring Homogenizer 6000RPM Speed Control System
IKA
Details
-
CategoryHomogenizer / Stirrer
-
Dimension6.0in x 4.0in x 2.0in
-
SerialN/A
-
Shipping TypeFedEx Ground
-
ManufacturingDoes Not Apply
-
Voltage / HertzDoes Not Apply / Does Not Apply
Description

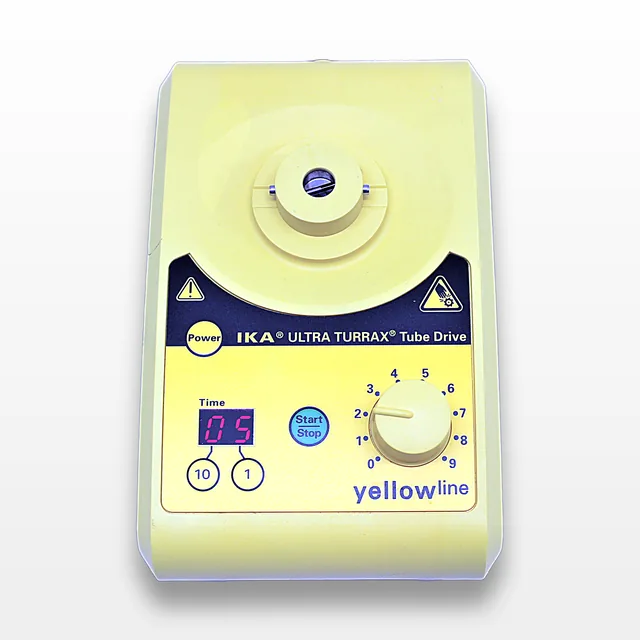

The IKA Ultra Turrax Tube Drive Yellow Line UT TD is a versatile dispersing, stirring, homogenizing, and grinding system designed for research purposes. It ensures protection and security for handling infectious materials, toxic substances, and high-odor samples under defined conditions of time, energy, and volume. Crafted with user-friendly features such as sealable disposable sample tubes, this system operates efficiently within a speed range of 300 to 6000 rpm, powered with a 17W motor rated at 24V DC and consuming 20W of power. Its noise level is kept at a comfortable 50dB(A) without elements, allowing for uninterrupted workflows. Controlled steplessly, it is a reliable choice for research environments requiring precise mixing capabilities for samples with viscosities up to 5000mPas. Used but in very good condition, the system functions as intended, showcasing some cosmetic wear yet offering reliable useability. Note that the unit does not include power cords or additional components such as software or manuals.
Key Features
- Used condition with minor cosmetic wear but fully functional
- Dispersing, stirring, homogenizing, and grinding capabilities
- Sealable disposable sample tubes for safe processing
- Operates at speeds from 300 to 6000 rpm with a deviation of 10%
- Power input of 20W and motor output of 17W at 24V DC
- Low operational noise level at 50dB(A)
- Stepless speed control with scale display
- Handles sample viscosities up to 5000mPas
- Suitable for research with infectious, toxic, and high-odor samples
- Ambient temperature range: 5 to 40°C with 80% relative humidity
Specifications
- Speed Range: 300 - 6000 rpm
- Speed Deviation: 10%
- Motor Rating: 17W output, 20W input
- Current Consumption: 800mA
- Noise Level: 50dB(A) without elements
- Sample Viscosity Capacity: 5000mPas
- Operational Temperature: 5°C to 40°C
- Power Supply: 24V DC, 20W
- Device Size: Length: 6 in, Width: 4 in, Height: 2 in
- Protection Class: IP 20 according to DIN EN 60529
Weight
Imperial: 4.8 Pounds
Metric: 2.18 Kilograms
Shipping Dimensions
Imperial: 7.2 lb x 4.8 lb x 2.4 lb
Metric: 18.29 cm x 12.19 cm x 6.1 cm
Harmonized Code
847982
Harmonized Code Details
Harmonized code 847982 refers to machinery for mixing, kneading, crushing, grinding, screening, sifting, homogenizing, emulsifying or stirring. This code is suitable due to the IKA Ultra Turrax's core functions such as dispersing, stirring, and homogenizing.
