BAE SciMOS 2051 F2 Camera sCMOS Low Noise High Speed with Peltier
BAE Systems
Details
-
CategoryMicroscope / Imager
-
Dimension7.0in x 4.0in x 4.0in
-

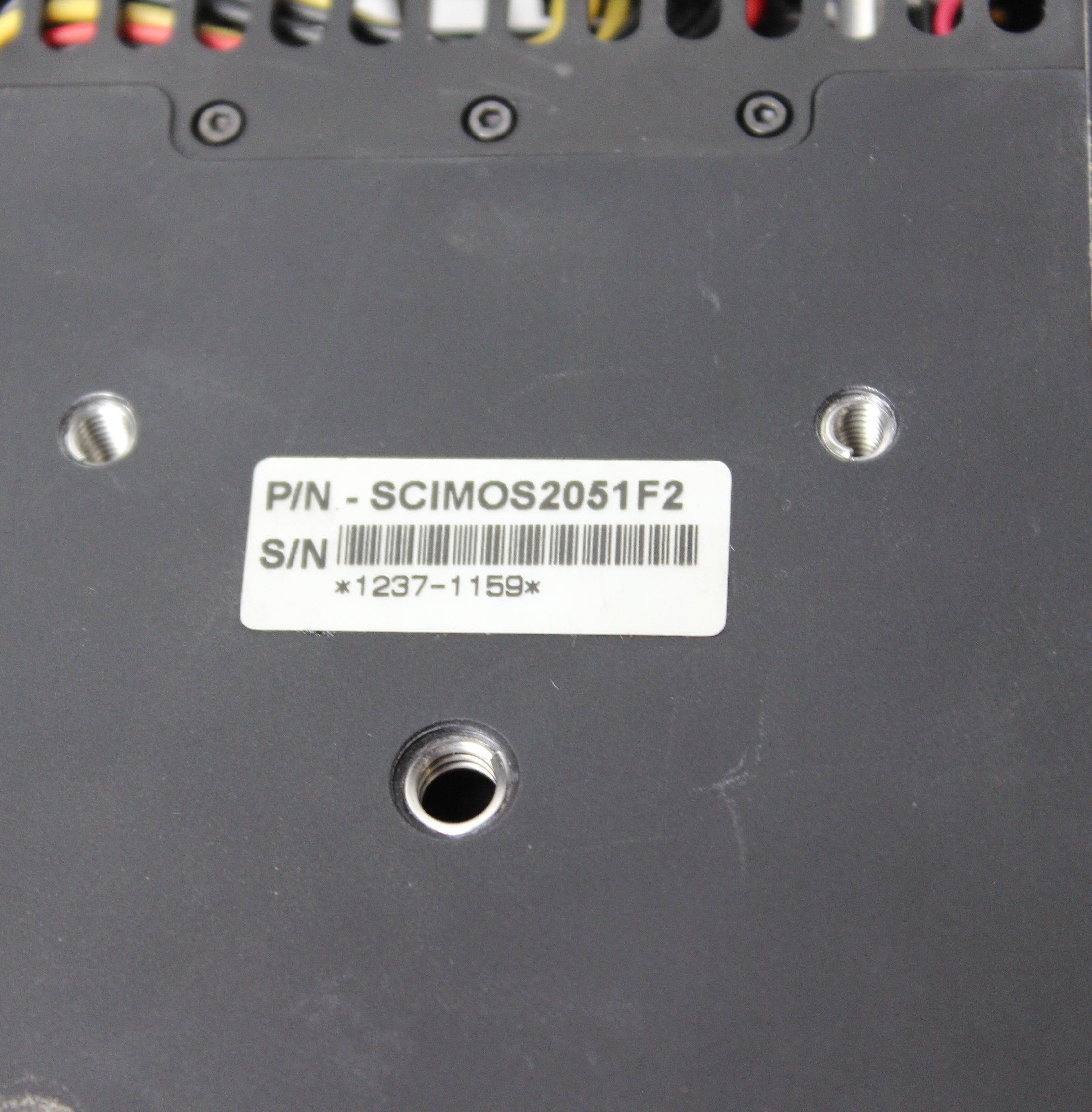

Serial1237-1159
-
Shipping TypeFedEx Ground
-
ManufacturingDoes Not Apply
-
Voltage / HertzDoes Not Apply / Does Not Apply
Description

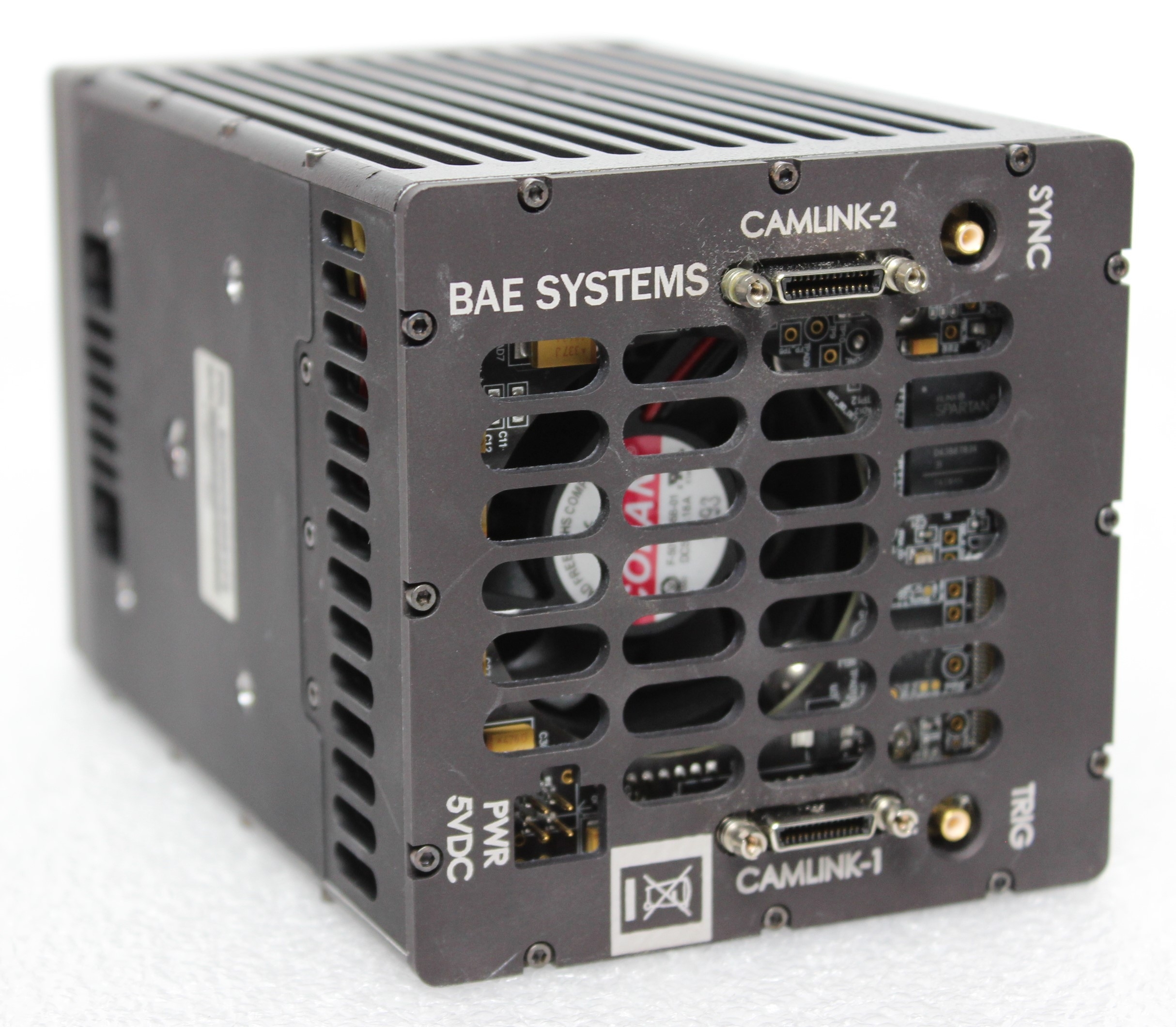

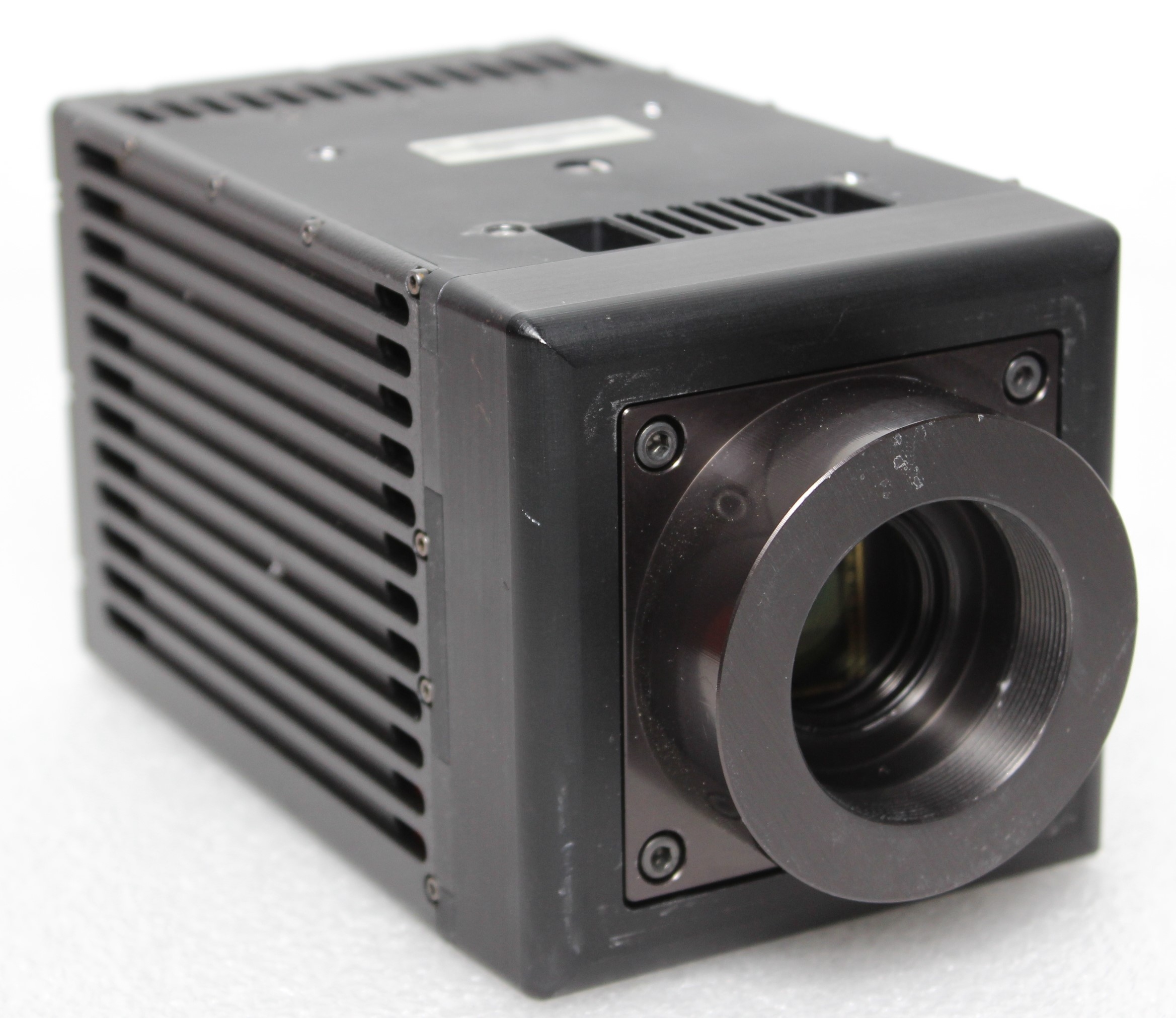

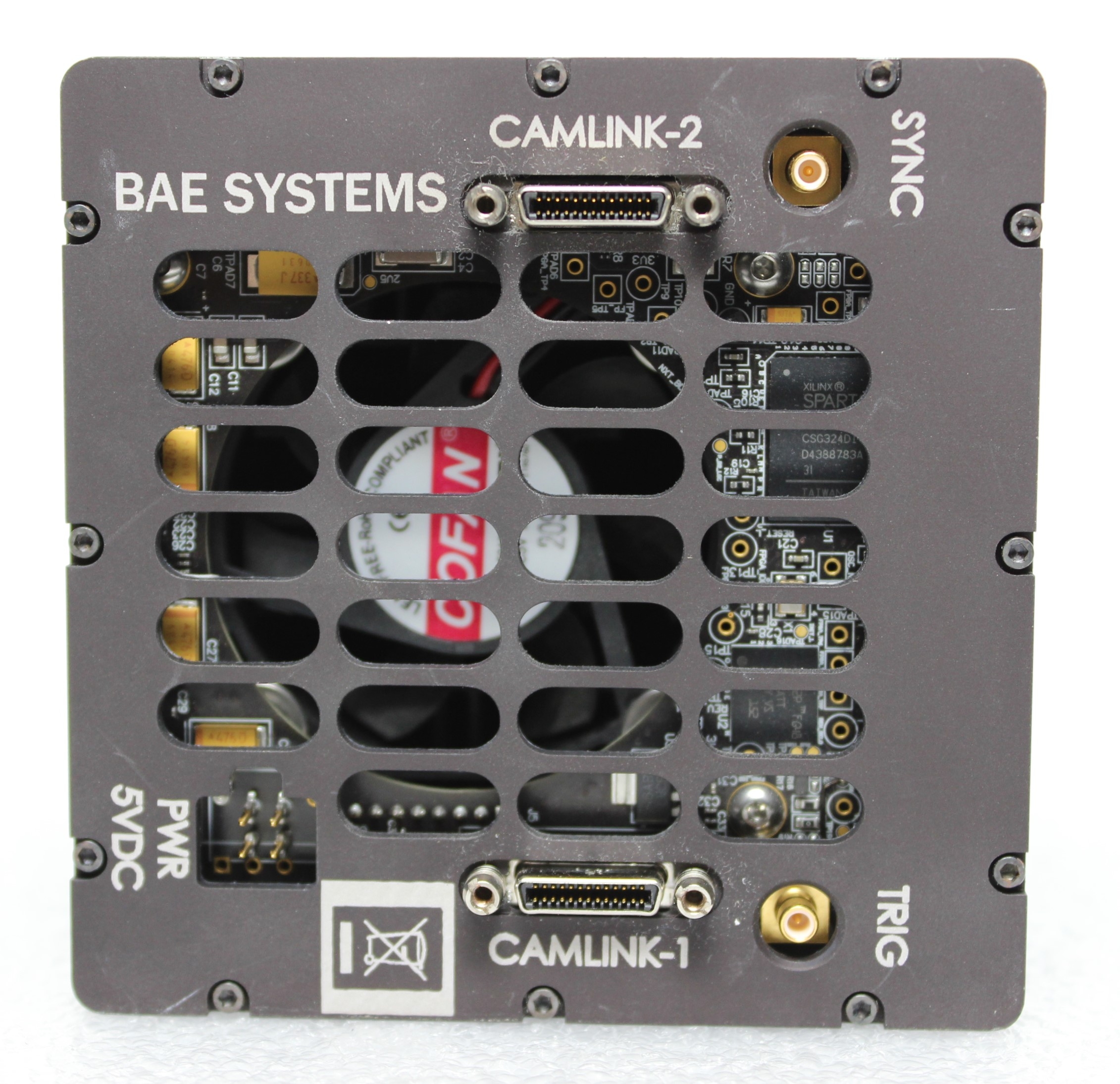

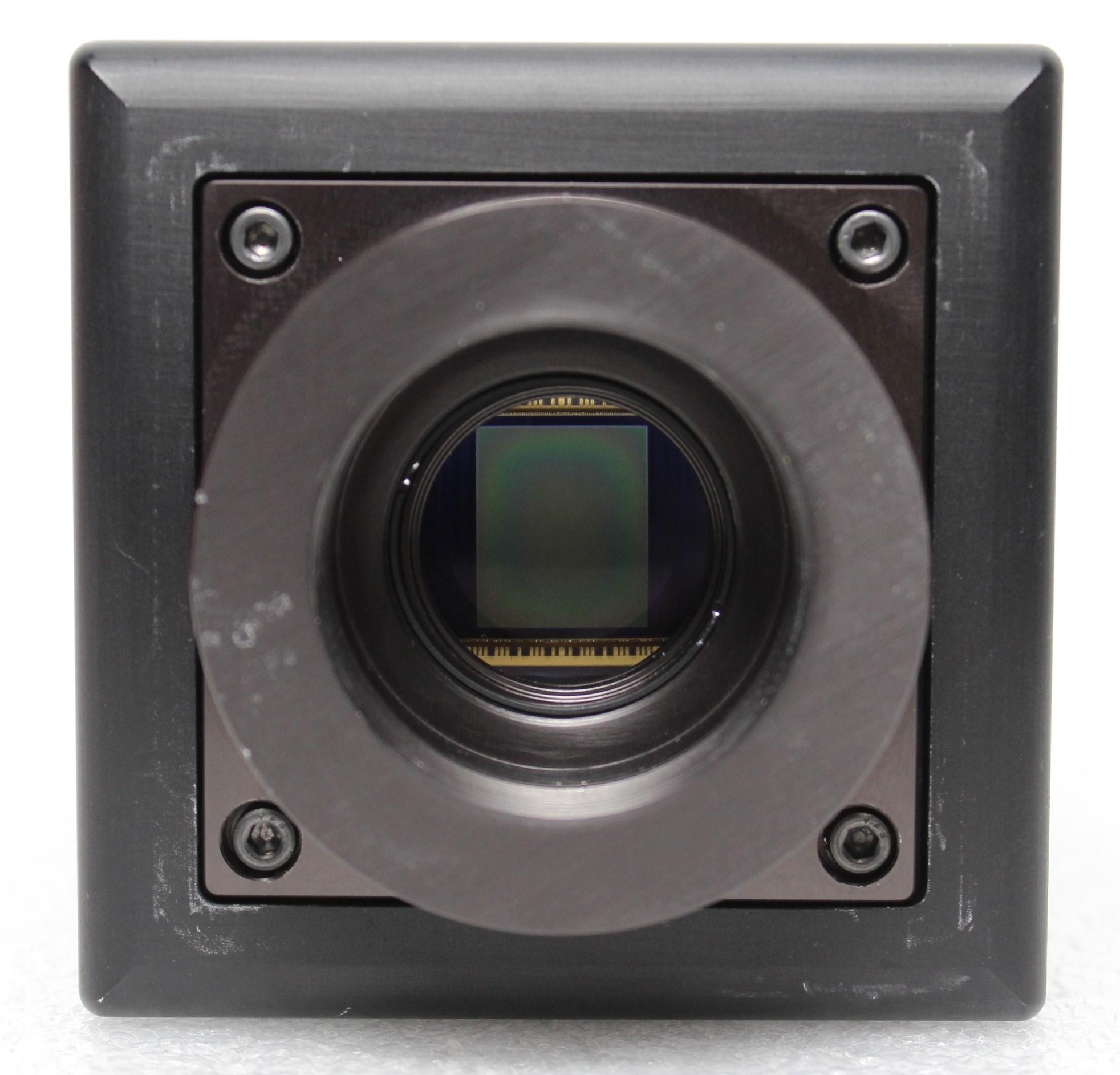

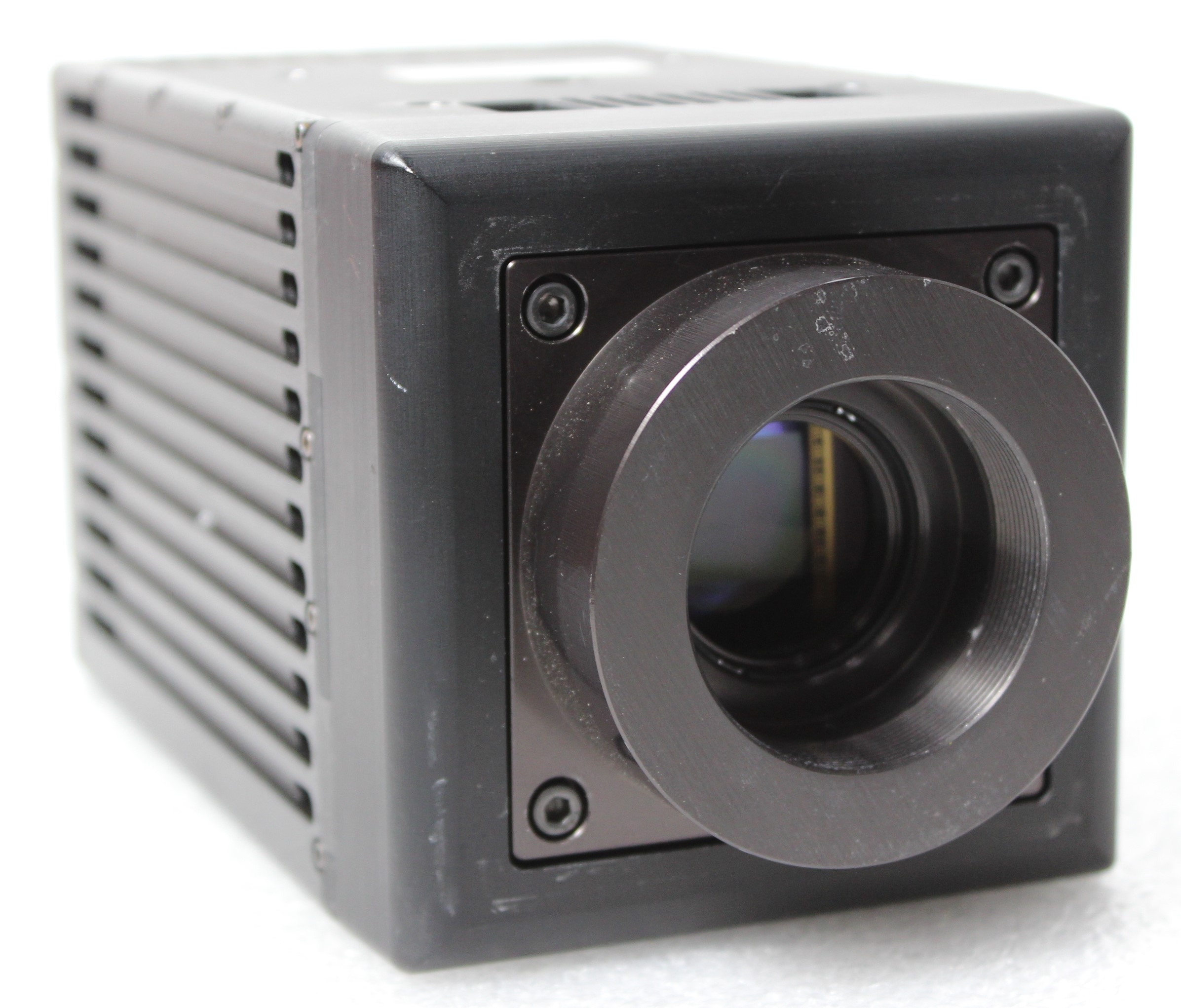

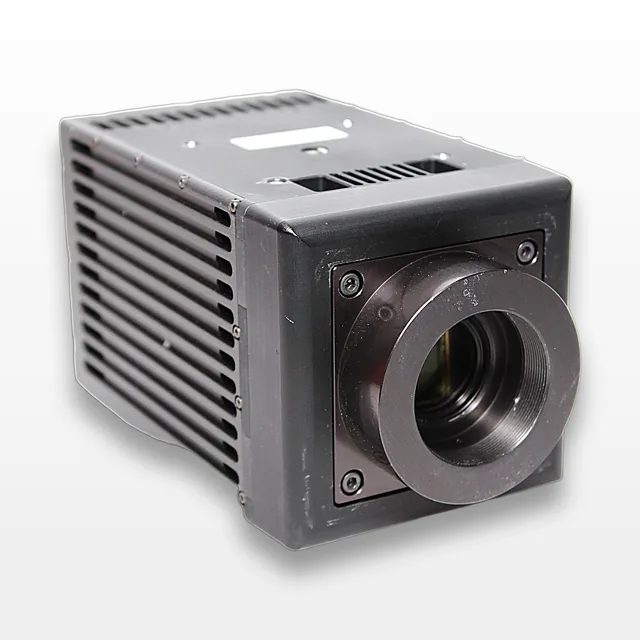

The BAE Systems SciMOS 2051 F2 is a high-performance scientific CMOS (sCMOS) camera, designed for OEM imaging systems necessitating high resolution, speed, sensitivity, and dynamic range. Manufactured in the United States, this unit offers a 5.5 megapixel, 4/3 inch sCMOS sensor capable of real-time full-resolution data at 100 fps, with speed enhancements through pre-defined region-of-interest readout modes. Featuring an ultra-low noise sensor and built-in Peltier cooler, the unit ensures negligible noise, ideal for low-light imaging applications such as Next Generation Sequencing and FRET Imaging. The compact design supports both C-mount and F-mount lenses, providing flexibility in integration. Please note that the camera is in fair used condition and does not include a mount, cable, or power supply, but it is functional according to specifications provided.
Key Features
- 5.5 megapixel resolution
- sCMOS sensor with real-time data at 100 fps
- Ultra-low noise with Peltier cooling
- High quantum efficiency above 55%
- Compact design with C-mount or F-mount options
Specifications
- Resolution: 5.5 megapixels
- sCMOS sensor size: 4/3 inch
- Frame rate: 100 fps
- Quantum Efficiency: >55%
- Cooling: Peltier cooler
- Readout Noise: <2 electrons
- Features: Region-of-interest mode for increased speed
Weight
Imperial: 3.6 Pounds
Metric: 1.63 Kilograms
Shipping Dimensions
Imperial: 8.4 lb x 4.8 lb x 4.8 lb
Metric: 21.34 cm x 12.19 cm x 12.19 cm
Harmonized Code
901180
Harmonized Code Details
901180: Other compound optical microscopes. This code is appropriate as the SciMOS 2051 functions as a high-resolution camera in scientific imaging systems, which falls under this microscope category.
