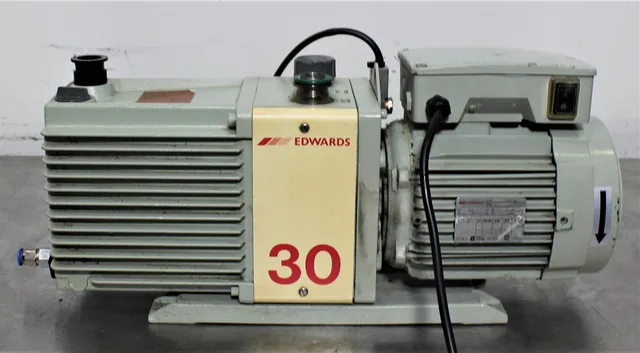

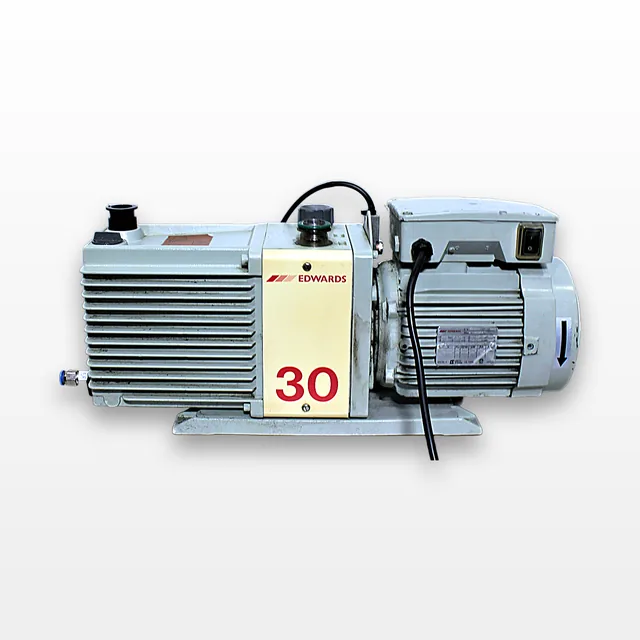

Edwards E2M30 Vacuum Pump Dual Stage 21 CFM 7.5 X 10-4 Torr
Edwards
Details
-
CategoryPump
-
Dimension23.0in x 7.0in x 9.0in
-
Serial006420274
-
Shipping TypeFedEx Ground
-
Voltage / Hertz120V / 60Hz US
Description
The Edwards E2M30 is a robust dual-stage rotary vane mechanical vacuum pump in excellent condition, designed to deliver an impressive pumping speed of 21 CFM at 60Hz. Known for its superior vapor handling capabilities and quiet operation, this pump is a reliable asset for various applications including refrigeration dehydration, epoxy degassing, sterilization, mass spectrometry, thin film coating, vacuum distillation, and space research. It features a thermal overload device to prevent overheating, operates as a free-standing unit, and is driven through a single-phase motor with a cooling fan ensuring long-term functionality. The pressure die cast oil box and integral oil seals effectively prevent leaks, ensuring efficient operations. This unit is ideal for labs requiring dependable and efficient vacuum processes.
Key Features
- Dual stage rotary vane design
- Ultimate pressure of 7.5 X 10-4 Torr
- Pumping speed of 21 CFM at 60Hz
- Quiet operation with high vapor handling capacity
- Thermal overload protection
Specifications
- Pumping Speed Displacement: 21 CFM @ 60Hz
- Ultimate Pressure: 7.5 X 10-4 Torr
- Power Requirements: 120V, 60Hz US
- Thermal Overload Device: Prevents overheating
- Free-standing unit with a flexible coupling drive
- Pressure die cast oil box with integral oil seals
- Gas ballast valve for large water vapor handling capacity
- Cooling: Motor-cooled by a dedicated fan
Weight
Imperial: 116.4 Pounds
Metric: 52.8 Kilograms
Shipping Dimensions
Imperial: 27.6 lb x 8.4 lb x 10.8 lb
Metric: 70.1 cm x 21.34 cm x 27.43 cm
Harmonized Code
84141000
Harmonized Code Details
84141000 - Vacuum pumps: Used for various vacuum applications offering reliability and efficient performance in laboratories and industrial settings due to its design and features.
