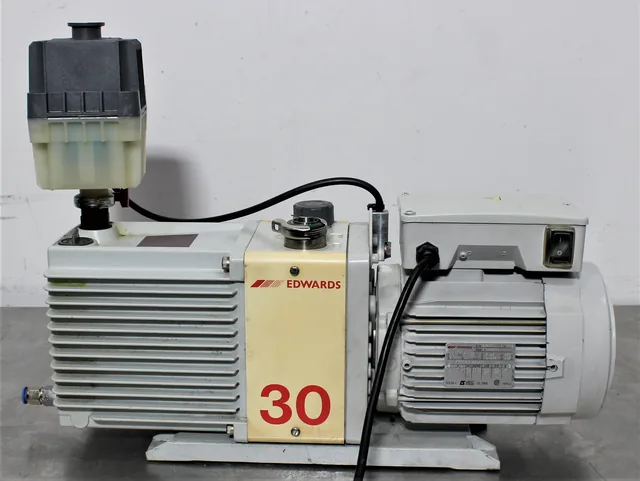

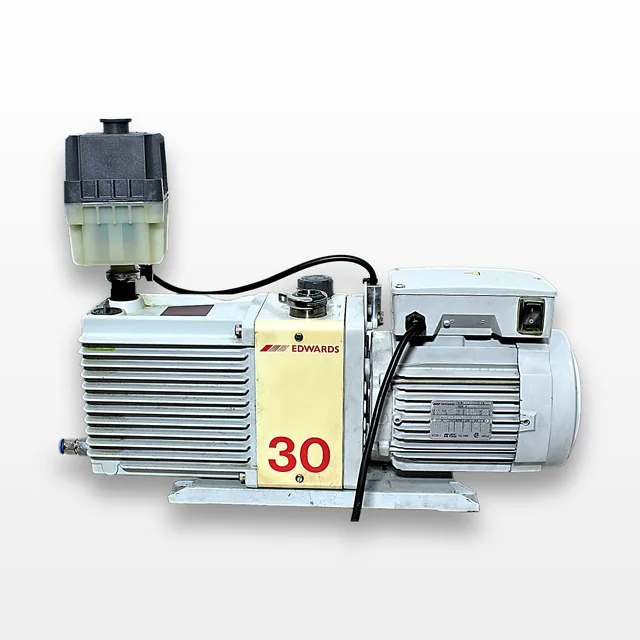

Edwards E2M30 Dual Stage Rotary Vane Vacuum Pump 21 CFM 240V 60Hz
Edwards
Details
-
CategoryPump
-
Dimension23.0in x 7.0in x 9.0in
-
Serial046053563
-
Shipping TypeFedEx Ground
-
Voltage / Hertz240V / 60Hz US
Description
The Edwards E2M30 dual stage rotary vane mechanical vacuum pump, in excellent condition, is a versatile and reliable choice for various applications. Manufactured in the United States, this used vacuum pump showcases outstanding performance with a displacement speed of 21 CFM at 60Hz and an ultimate pressure of 7.5 X 10⁻⁴ Torr. It is designed for consistent, long-term operation with superior vapor handling capabilities while maintaining a quiet operation. Ideal for refrigeration dehydration, brake line evacuation, epoxy degassing, sterilization, mass spectrometry, vacuum ovens, lasers, backing combinations, thin film coating, vacuum distillation, freeze drying, space research, and other vacuum processes. Featuring a pressure die cast oil box with integral oil seals to prevent leaks, a gas ballast valve for large water vapor handling, and total motor enclosure with cooling fans, it ensures durability and efficiency.
Key Features
- Dual stage rotary vane design
- Displacement speed of 21 CFM
- Ultimate pressure: 7.5 X 10⁻⁴ Torr
- Quiet operation
- Gas ballast valve for water vapor handling
- Thermal overload device
- Durable pressure die cast oil box
Specifications
- Brand: Edwards
- Model: E2M30
- Voltage: 240V
- Frequency: 60Hz
- Ultimate Pressure: 7.5 X 10⁻⁴ Torr
- Pumping Speed: 21 CFM
- Free-standing unit
- Motor: single-phase, fully enclosed, cooled by fan
- Pressure die cast oil box with integral oil seals
Weight
Imperial: 116.4 Pounds
Metric: 52.8 Kilograms
Shipping Dimensions
Imperial: 27.6 lb x 8.4 lb x 10.8 lb
Metric: 70.1 cm x 21.34 cm x 27.43 cm
Harmonized Code
841410
Harmonized Code Details
841410 - Vacuum pumps; used for evacuating air or gases from enclosures. This code is suitable considering the E2M30's function as a vacuum pump for various applications.
