IKA RV 10 D S99 Rotary Evaporator, Motorized Lift, 20-280 RPM, 3L Capacity
IKA
Details
-
CategoryEvaporator
-
Dimension16.0in x 19.0in x 22.0in
-
SerialN/A
-
Shipping TypeFedEx Ground
-
ManufacturingDoes Not Apply
-
Voltage / Hertz120V / 60Hz US
Description

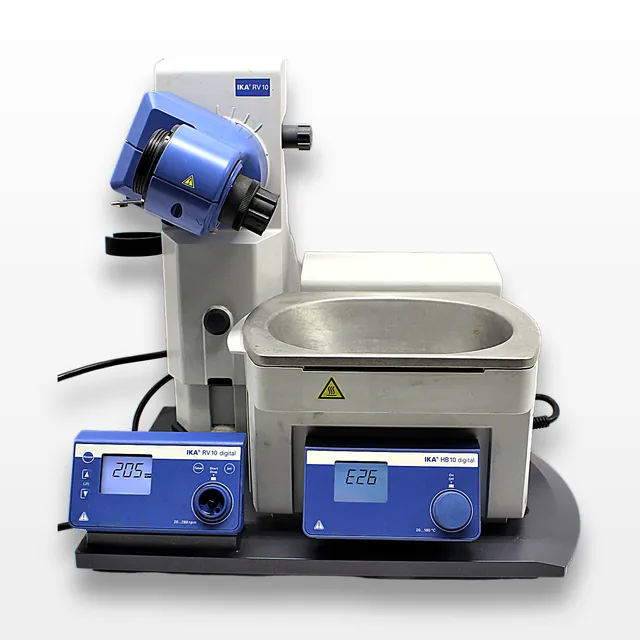

The IKA RV 10 D S99 Rotary Evaporator, manufactured by IKA, is a reliable tool for evaporative processes in laboratories. With its integrated heating baths and motorized lift mechanism, this apparatus is designed to withdraw the evaporator piston anytime there's a power outage. The inbuilt water/oil bath is powered by a robust 1300 Watt heater with a temperature range up to 180°C. This unit supports interval operation for safety, end-position recognition for the evaporator piston, along with a timer function, making it versatile for scientific and industrial applications. Despite being in fair condition with minor cosmetic imperfections and a heating function error, the equipment maintains its functionality to deliver seamless laboratory processes. Notably, this model offers precision control, digital speed display, and right-left interval operation capability. Please note, glassware is not included and the stirrer control knob is missing a piece but remains operational.
Technician comment
**Glassware is not included. Stirrer control knob has missing piece but still functional. Bowl heat controller displaying Error E26 indicating a issue with the heating function or a problem with the main control board. See attached pictures for more details**
Key Features
- Integrated heating baths
- Motorized lift mechanism
- 20-280 RPM speed range
- 3L water/oil bath capacity
- 1300 Watt heater
- Temperature range up to 180°C
- Digital speed and temperature display
- RS 232 interface for remote PC operation
- Infrared interface for data transfer
Specifications
- Speed: 20-280 RPM
- Bath Capacity: 3L
- Heater Power: 1300 Watt
- Temperature Range: Room temperature to 180°C
- Digital Display: Yes
- Motorized Lift: Yes
- Dimension: Height 22.0 in, Width 19.0 in, Length 16.0 in
- Weight: 44 lbs
- *Glassware is not included
- Voltage: 120V
- Frequency: 60Hz
Weight
Imperial: 52.8 Pounds
Metric: 23.95 Kilograms
Shipping Dimensions
Imperial: 19.2 lb x 22.8 lb x 26.4 lb
Metric: 48.77 cm x 57.91 cm x 67.06 cm
Harmonized Code
841989
Harmonized Code Details
HS Code 841989 - Apparatus for chemical vapour deposition. Selected as it covers evaporation equipment with integrated heating systems.
