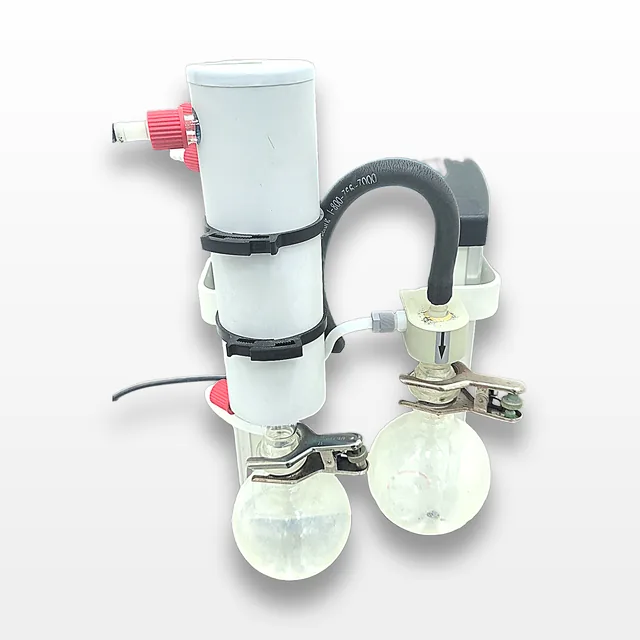

ILMVAC GmbH Am Vogelherd 20 Solvent Distillation System - Diaphragm Pump
Operated and passed basic function checks at intake, with no error codes. Light to moderate cosmetic wear from prior use. Not reconditioned.
ILMVAC
Details
-
CategoryEvaporator
-
Dimension10.0in x 9.0in x 18.0in
-
Serial063998
-
Shipping TypeFedEx Ground
-
Voltage / Hertz120V/220V / 50Hz/60Hz
Description
The ILMVAC GmbH Am Vogelherd 20 System is a versatile and reliable solution designed for solvent distillation and evaporation applications. Manufactured in the United States, this system features an oil-free, chemical duty diaphragm pump that ensures optimal solvent recovery. The system includes a liquid containment and exhaust vapor condenser, and is capable of functioning as a single or standalone unit, though it may require additional components for comprehensive operations. It operates effectively with a maximum pressure of less than 2 mbar and a flow rate of 33 L/min. The system is in very good used condition, with minor cosmetic wear, and fully functional without error messages.
Key Features
- Oil-free chemical duty diaphragm pump
- Liquid containment system
- Exhaust vapor condenser for solvent recovery
- Maximum pressure <2 mbar
- Flow rate 33 L/min
- 120V/220V voltage compatibility
- 50Hz/60Hz frequency range
Specifications
- Maximum Pressure: <2 mbar
- Flow Rate: 33 L/min
- Voltage: 120V/220V
- Frequency: 50Hz/60Hz
- Includes power cord
- Country of Origin: United States
Weight
Imperial: 24.0 Pounds
Metric: 10.89 Kilograms
Shipping Dimensions
Imperial: 12.0 lb x 10.8 lb x 21.6 lb
Metric: 30.48 cm x 27.43 cm x 54.86 cm
Harmonized Code
841410
Harmonized Code Details
841410 - Vacuum pumps. This code is justified as it corresponds to vacuum pumps used for distillation and evaporation in laboratory settings.
