Matrix PlateMate 2X2 Automated Pipetting Workstation for Protein Assays
Matrix
Details
-
CategoryLiquid Handling
-
Dimension26.0in x 21.0in x 27.0in
-
Serial301-9-257
-
Shipping TypeFreight
-
ManufacturingDoes Not Apply
-
Voltage / Hertz120V/220V / 50Hz/60Hz
Description

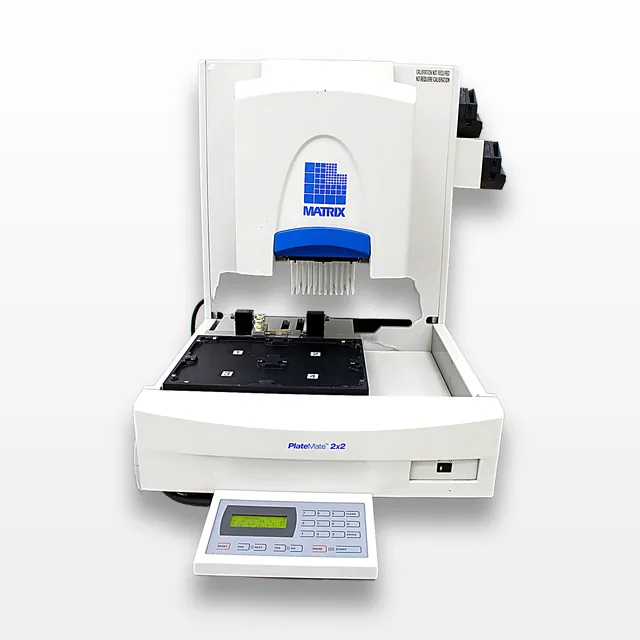

The Matrix PlateMate 2X2, a used but functional automated liquid handling system, offers efficiency and precision in laboratory workflows. This compact workstation is equipped with a pipetting head capable of dispensing 30ul across 96 channels, effectively handling protein assays such as the Bicinchoninic Acid (BCA) protein assay with a wide concentration range of 20-2000 ug/ml. The PlateMate minimizes variability across runs by ensuring repeatable dispensing and supports various plate accesses from shallow to deep wells. Operated through a liquid crystal touch-panel, it does not include a software package but integrates seamlessly into existing laboratory systems. Built with quality measurements such as +/-2.0% air displacement accuracy, it stands as a reliable choice for medium to low throughput applications in protein concentration assessment without the added bulk. This unit shows slight cosmetic wear typical from prior use but maintains its operational integrity.
Key Features
- Automated pipetting with 96-channel head
- Handles protein assays including BCA with precision
- Accommodates various plate formats
- Compact design for laboratory space efficiency
- Operated via liquid crystal touch-panel
Specifications
- Pipetting Volume Range: Tip 1 (0.5-30.0 ul), Tip 2 (5.0-300.0 ul)
- Plate Access: 96, 384, 864, 1536 shallow wells; 96 deep wells
- Air Displacement Accuracy: +/-2.0% or 1.0 ul
- Precision: 1.5% or 0.75 ul
- Voltage: 120V/220V; Hertz: 50Hz/60Hz
- Power Requirements: AC 100~240 V 10%, 50/60Hz, 100VA
- Dimensions without packing (LxWxH): 26 x 21 x 27 in
Weight
Imperial: 144.0 Pounds
Metric: 65.32 Kilograms
Shipping Dimensions
Imperial: 31.2 lb x 25.2 lb x 32.4 lb
Metric: 79.25 cm x 64.01 cm x 82.3 cm
Harmonized Code
84798997
Harmonized Code Details
84798997: Machines and mechanical appliances having individual functions, not specified elsewhere. Suitable for lab liquid handling applications like automated pipetting systems.
