Analytik Jena qTOWER3G Real-Time PCR Thermal Cycler, 96-Well, 2017
Analytik Jena
Details
-
CategoryMolecular Biology
-
Dimension11.0in x 11.0in x 23.0in
-
Serial3107B-0246
-
Shipping TypeFreight
-
Manufacturing2017-01-01
-
Voltage / Hertz120V / 60Hz US
Description
The Analytik Jena qTOWER3G, manufactured in 2017, is a sophisticated real-time PCR thermal cycler, ideal for advanced research labs. This used model, in good condition, powers on and performs basic tests with no known issues. Designed to accommodate evolving research needs, it features a 96-well block, expandable with 12 color, FRET, and protein modules. Its patented fiber-optic shuttle system ensures precise fluorescent dye excitation, while a unique four-LED light source enhances detection. Maintaining precise control with its proven silver block technology, the qTOWER3G offers exceptional gradient capabilities from 0.1C to 40C. Key specifications include 8C/s heating, 6C/s cooling, and a temperature setting range of 4-99C. This efficient device supports future innovations with easy module integration and comes equipped with a USB interface and automated contact pressure. Note: computer and additional modules not included.
Key Features

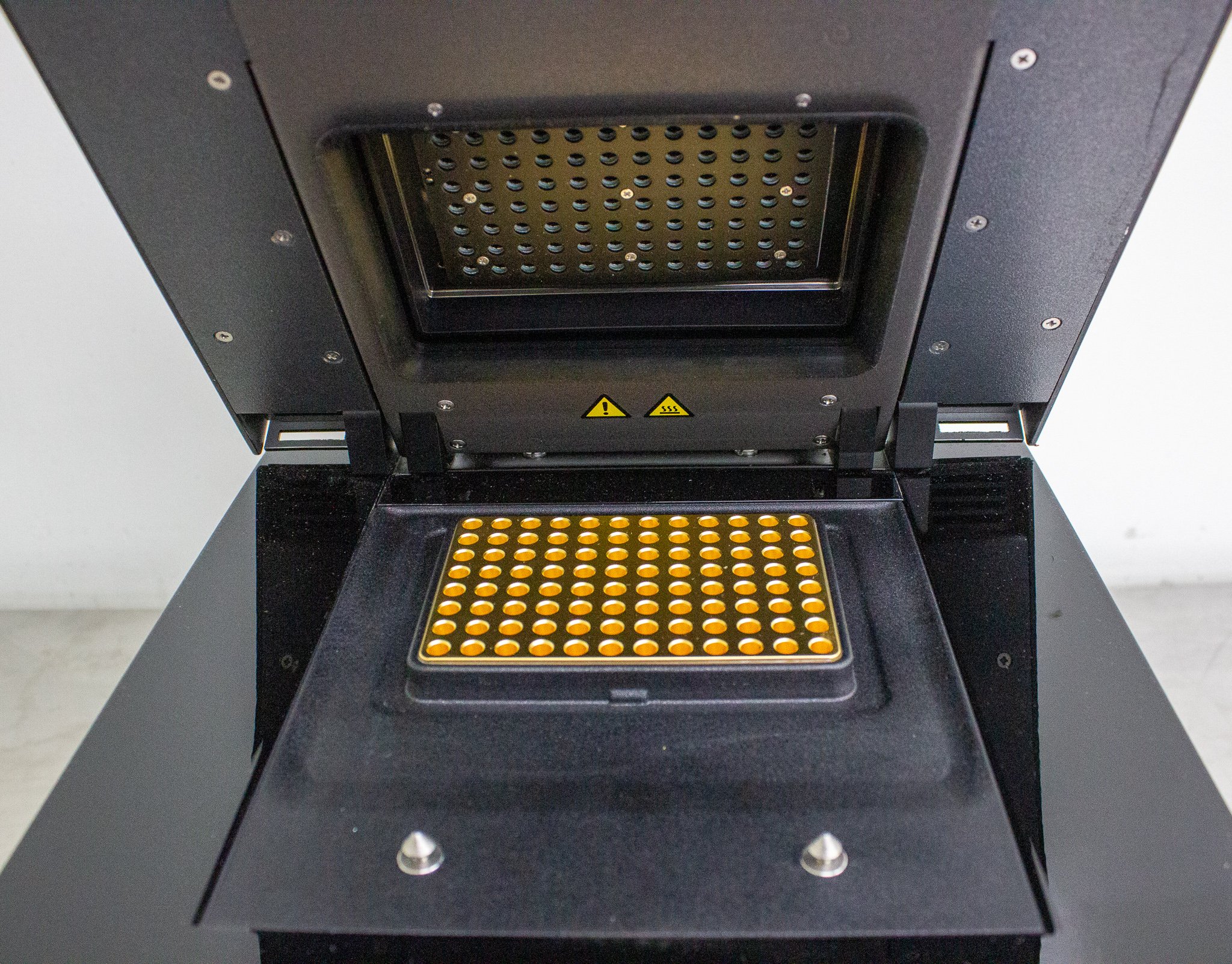

- 96-well block capacity
- Patented fiber-optic shuttle system
- Exceptional gradient control (0.1C to 40C)
- Low maintenance with no periodic calibration needed
- Silver block technology offering 0.1C precision
- Expandable with 12 color, FRET, and protein modules
- High-performance LED light source
- Automated lid contact pressure (30 kg)
Specifications
- Thermal Block: Silver sample block with gold coating
- Block Capacity: 96 wells in 0.2 mL format
- Sample Volume: 5-100 µL
- Heating Rate: 8C/s
- Cooling Rate: 6C/s
- Temperature Setting Range: 4-99C
- Temperature Control Precision: 0.1C
- Max. / Min. Gradient: 40C/0.1C
- Lid Temperature: 30C to 110C
- Sensitivity: 1 copy of the target sequence
- Dynamic Range: 10 log levels
- Light Source: 4 long-life, high-performance LEDs (RGBW)
- Read-out Time: 6 seconds for 96 wells
- PC Interface: USB
- Noise Emission: Max. 45 dB
Weight
Imperial: 72.0 Pounds
Metric: 32.66 Kilograms
Shipping Dimensions
Imperial: 13.2 lb x 13.2 lb x 27.6 lb
Metric: 33.53 cm x 33.53 cm x 70.1 cm
Harmonized Code
9027.80.4090
Harmonized Code Details
Harmonized code 9027.80.4090 used for instruments and apparatus for physical or chemical analysis, which is appropriate for scientific instruments like PCR thermal cyclers that are crucial for real-time DNA amplification and analysis.
