Dwyer A3000 Photohelic NPT Thread Pressure Switch 25 Max psi

sku: 3367539
1 In Stock
Ask a question
Condition : S (Salvage)
Warranty : AS-IS
Region : US
$250.00
Apply For Finance
Make Offer
Enquiry Here
ADD TO CART
  • Make Dwyer
  • Hertz 50Hz/60Hz
  • Model A3000
  • Serial N/A
  • Weight 1.0 Lb
  • Voltage 120V
  • Warranty AS-IS
  • Dimensions 1.0in x 1.0in x 1.0in
  • Shipping Type FedEx Ground
  • Item Condition S (Salvage)
  • Manufacturing Date Does Not Apply

Product Information

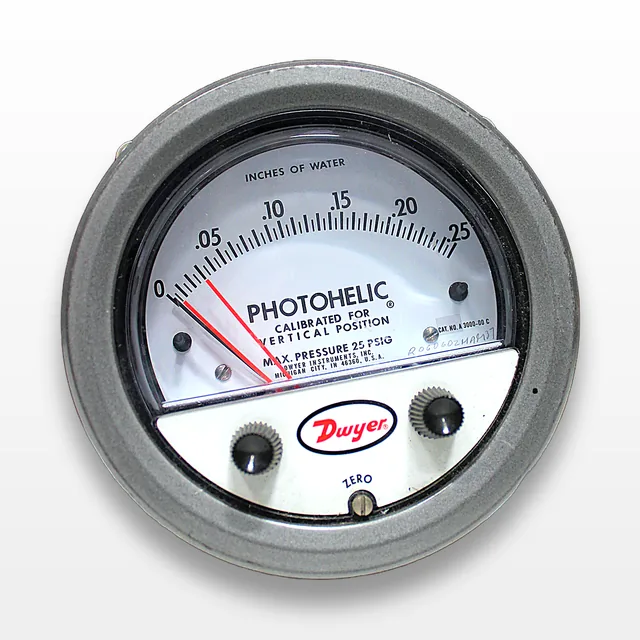

The Dwyer A3000 Photohelic NPT Thread Pressure Switch is a pre-owned equipment with a maximum pressure of 25 psi and 4% accuracy. It is designed with a 1/8 inch NPT thread and a 1/4 inch water column capacity with a maximum temperature of 120F. The pressure switch is a Photohelic type with various specifications including connection type, dial size, body material, and operating pressure. This equipment is commonly used for monitoring and controlling pressure levels in laboratory and industrial settings. Its features make it suitable for applications such as HVAC systems, clean rooms, and pharmaceutical manufacturing. The model's high accuracy and durable construction ensures reliable performance even in demanding environments.

Key Features

  • Maximum Pressure: 25 psi
  • Accuracy: 4%
  • Thread Type: NPT 1/8 inch
  • Water Column Size: 1/4 inch
  • Photohelic Type
  • Durable Polycarbonate Plastic Body Material
  • Operating Pressure: 25 psi
  • Maximum Temperature: 120F
Specifications

  • Type: Photohelic Pressure Switch
  • Maximum Pressure (psi): 25.00
  • Accuracy (Percentage): 4%
  • Connection Type: FNPT
  • Dial Size: 101.6 mm (4 in)
  • Connection Size: 0.13 in
  • Mount Type: Screw
  • Body Material: Polycarbonate Plastic
  • Maximum Operating Pressure: 25 WC, 25 psi, 25 mm, 25 in, 25 bar
  • Maximum Water Column: 0.25 in
  • Overall Width: 193.68 mm (7.63 in)
  • Minimum Water Column: 0.00 in
  • Includes: Low/High Limit Control
  • Standards: CSA, CE, UL
  • Temperature Range: 0 - 0.25" WC
  • Maximum Temperature (F): 120.0 ?C, 120.0 ?F, 120
  • Thread Style: NPT
  • Container Size: 4-1/2
  • Thread Size (Inch): 1/8
Weight

Metric: 0.45 kg
Imperial: 1.0 lb

Dimensions

Metric: 20.32 cm x 20.32 cm x 7.62 cm
Imperial: 8.0 in x 8.0 in x 3.0 in

Harmonized Code

902680

Harmonized Code Details

Instruments and apparatus for measuring or checking pressure; gages and manometers
