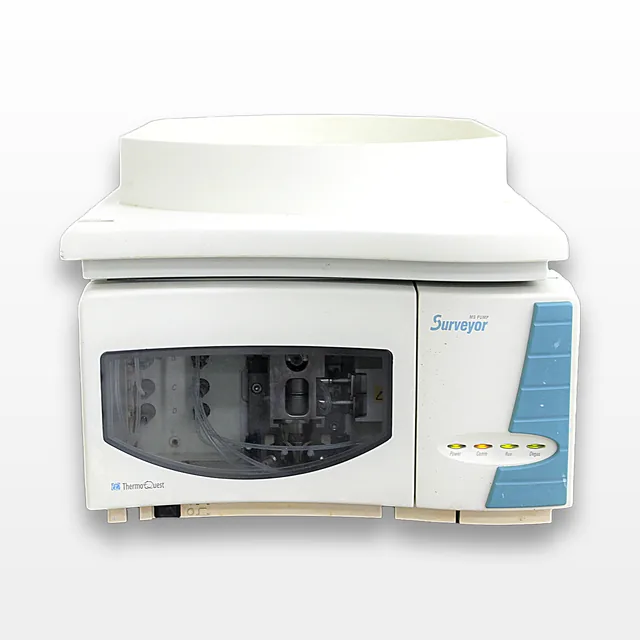

Thermo Quest Surveyor MS Pump HPLC Low-Pressure Mixing System
Thermo Quest
Details
-
CategoryHPLC / FPLC / GC / CE
-
Dimension19.0in x 14.0in x 11.0in
-
Serial52769
-
Shipping TypeFedEx Ground
-
ManufacturingDoes Not Apply
-
Voltage / Hertz120V/220V / 50Hz/60Hz
Description
The Thermo Quest Surveyor MS Pump, Model SRVYR-MPUMP, is a versatile, low-pressure mixing pump designed to enhance performance in mass spectrometry applications, compatible with the Surveyor high-performance liquid chromatograph (HPLC) system. In very good used condition, it offers optimum functionality, including built-in solvent degassing and pulse dampening systems. This unit supports variable flow rates ranging from 0.2 L/min isocratic to 2000 L/min, with precise control and resolution. Utilizing a quaternary solvent system, it offers superior composition accuracy and operates effectively within a pressure range of 0 to 400 bar (0 to 5800 psi). Constructed with robust materials, it ensures reliable use, being suitable under diverse environmental conditions. Power options include 120V/220V compatibility, and while no additional accessories are included, it features necessary power cord connections for user convenience.
Key Features
- Low-pressure mixing pump
- Built-in solvent degassing
- Pulse dampening systems
- Optimum lower flow rate performance
- Compatible with Surveyor HPLC system
Specifications
- Minimum Flow Rate: 0.2 L/min isocratic, 25 L/min gradient
- Maximum Flow Rate: 2000 L/min
- Flow Rate Resolution: 0.1 L/min
- Pressure Range: 0 to 400 bar (0 to 5800 psi)
- Operating Range: 40 to 400 bar (588 to 5800 psi)
- Pressure Resolution: 0.01 bar (0.15 psi)
- Solvent Capacity: Quaternary
- Composition Accuracy: 1% at 200 L/min
- Piston Volume: 24 L
- Degasser Type: Vacuum membrane with 4 channels
- Pulse Dampener: 3 L, dynamic
- Wetted Parts: 316 stainless steel, titanium, PEEK, sapphire, TZP-ceramic, FEP, GFP, ruby
- Remote Controls: Start, RS232 serial interface for Xcalibur software
- Operating Temperature: +10°C to +40°C
- Storage Temperature: -40°C to +70°C
- Operating Humidity: 5 to 95% relative, non-condensing
Weight
Imperial: 61.2 Pounds
Metric: 27.76 Kilograms
Shipping Dimensions
Imperial: 22.8 lb x 16.8 lb x 13.2 lb
Metric: 57.91 cm x 42.67 cm x 33.53 cm
Harmonized Code
9027.20
Harmonized Code Details
9027.20 - Chromatographs, electrophoresis instruments. Selected due to its design for use with HPLC systems and its functionality in analytical applications.
