Beckman System Gold HPLC 125 Solvent Module Autosampler Diode Array
Beckman
Details
-
CategoryHPLC / FPLC / GC / CE
-
Dimension20.0in x 41.0in x 20.0in
-

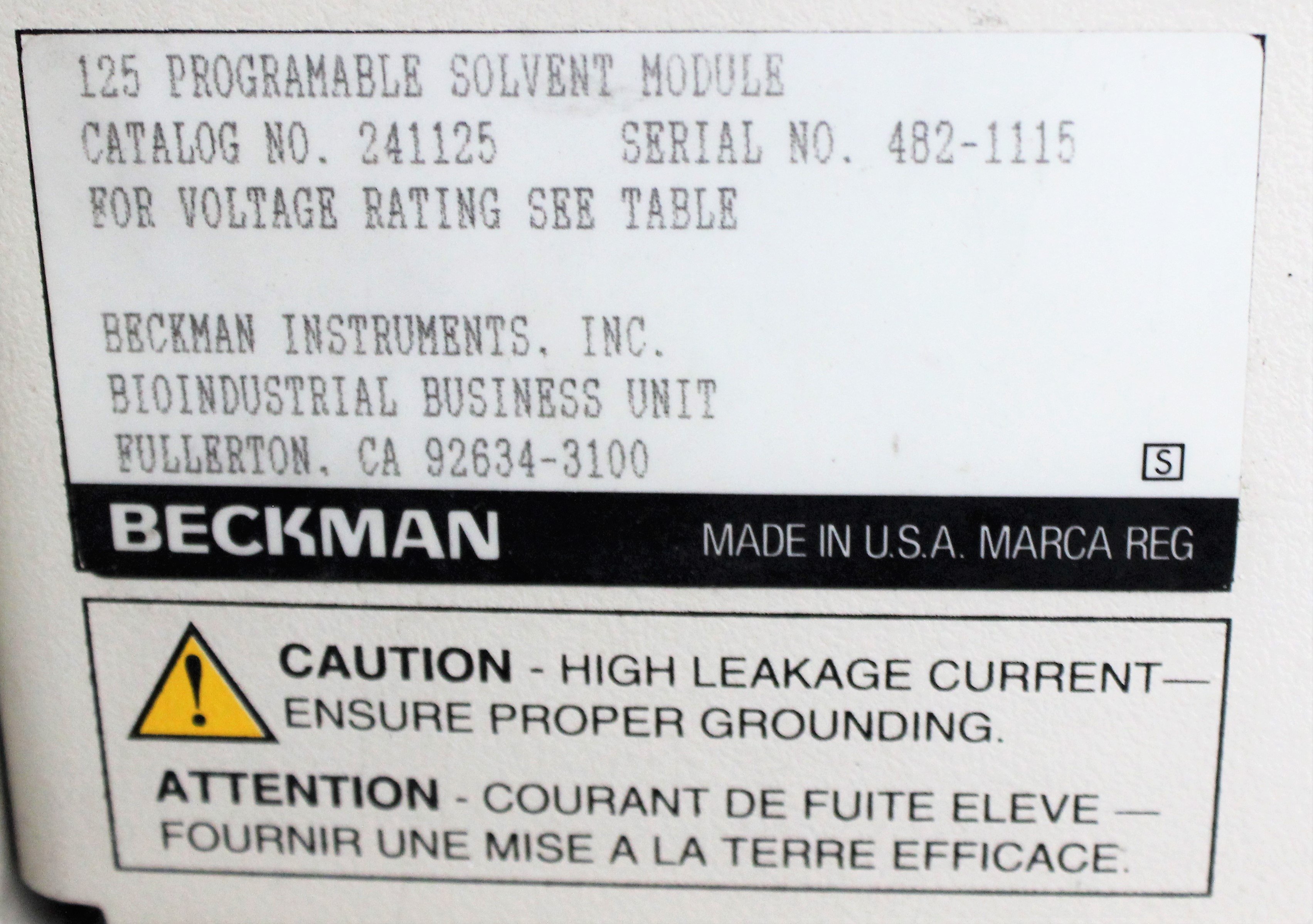

Serial482-1115
-
Shipping TypeFreight
-
ManufacturingDoes Not Apply
-
Voltage / Hertz120V/220V / 50Hz/60Hz
Description
The Beckman System Gold HPLC system, in very good condition, is an essential tool for life sciences laboratories, specifically tailored for applications such as drug metabolism assays. This versatile system includes several instrument modules: the Beckman System Gold 125 Solvent Module with a flow range of 0.01 to 10.0 ml/min, capable of preparative flow rates up to 30.0 ml/min and operating pressures between 0-6000 psi; the 507 Autosampler which handles sample vial sizes of 12 x 32mm and offers Needle Wash Volumes between 30-999 microliters; and the 168 Diode Array Detector with a wavelength range from 190 to 600 nm and equipped with 512 diodes. Other notable features include audible alarms, high precision with +/- 1% reproducibility, and a digital dispenser. Operates on 120/220V and 50/60Hz. Power cord is included, but computer and software are not.
Key Features

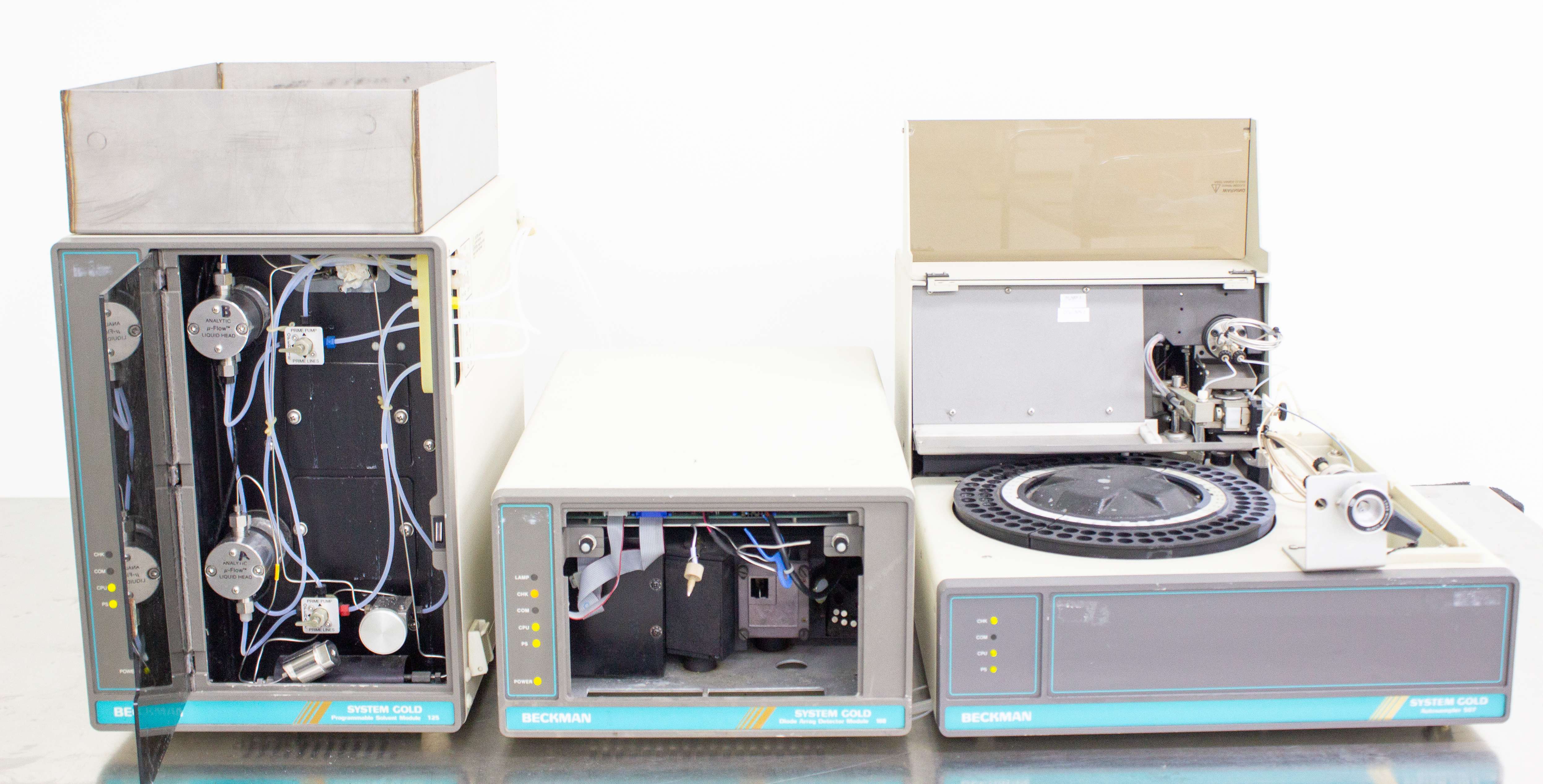

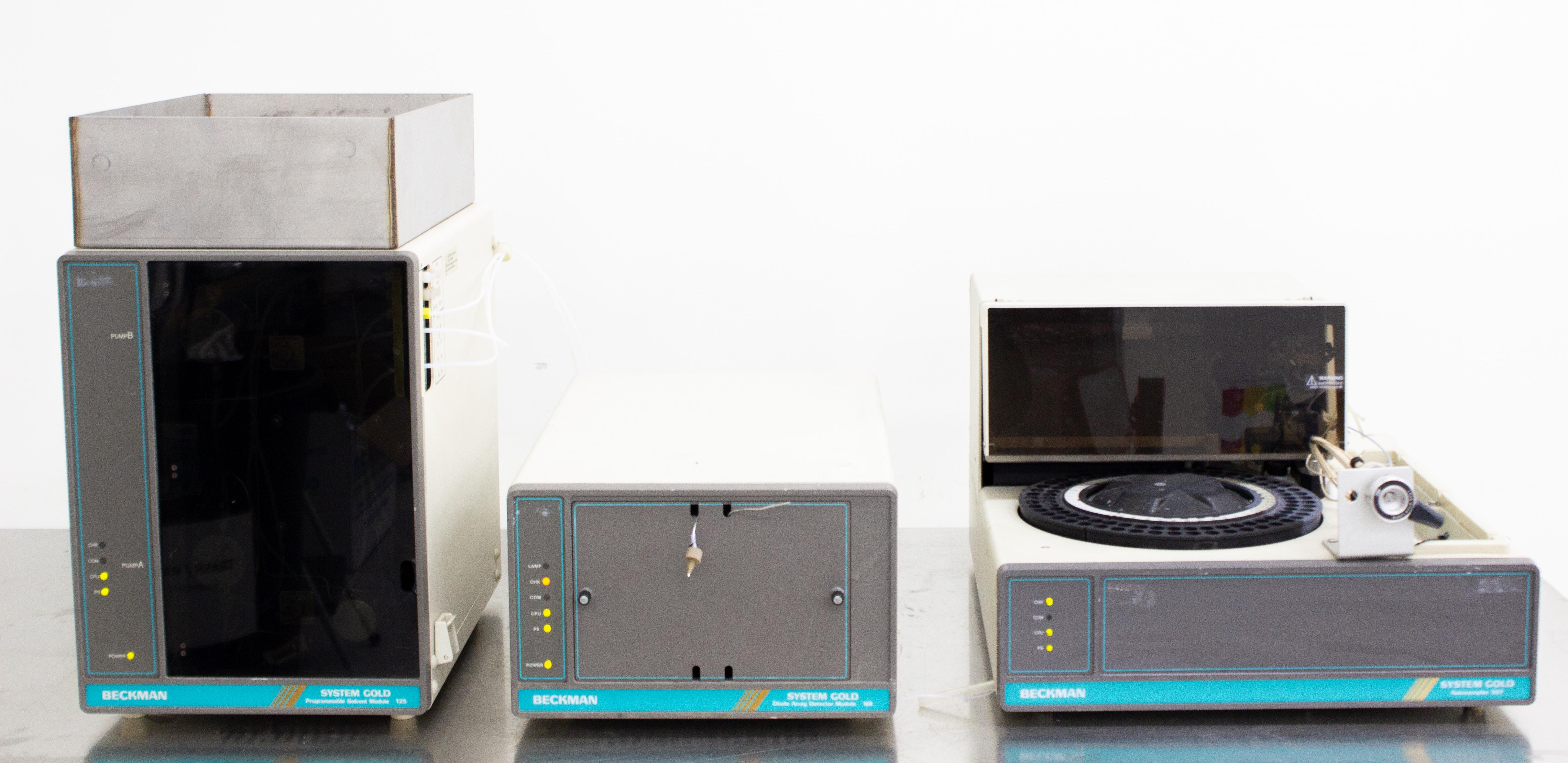

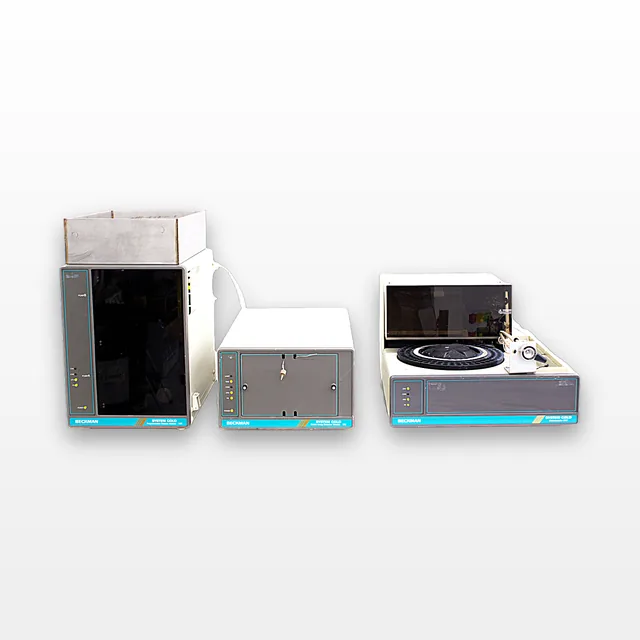

- Includes Beckman System Gold 125 Solvent Module, 507 Autosampler, and 168 Diode Array Detector
- Flow rate: 0.01 to 10.0 mL/min, up to 30.0 mL/min preparative
- Operating pressure: 0-6000 psi
- Wavelength range: 190 to 600 nm with 512 diodes
- Power requirements: 120V/220V, 50Hz/60Hz
Specifications

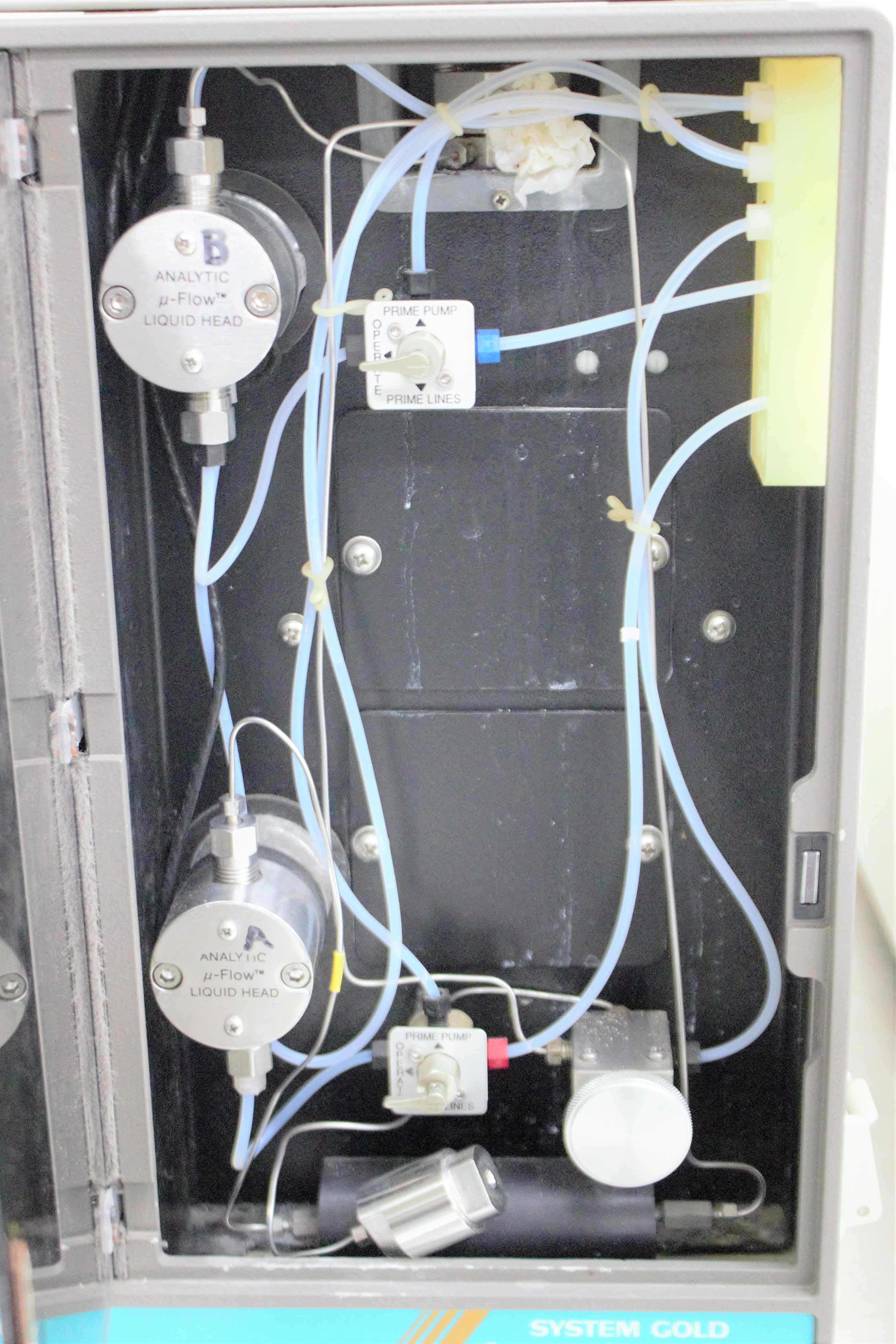

- 125 Solvent Module: Flow rate 0.01-10mL/min, Preparative flow rate 0.03-30mL/min
- Reproducibility: +/- 1% or 0.003 mL/min
- Pressure range: 0-6000 psi, Temp range: 4-40°C, Max solvent temp: 75°C

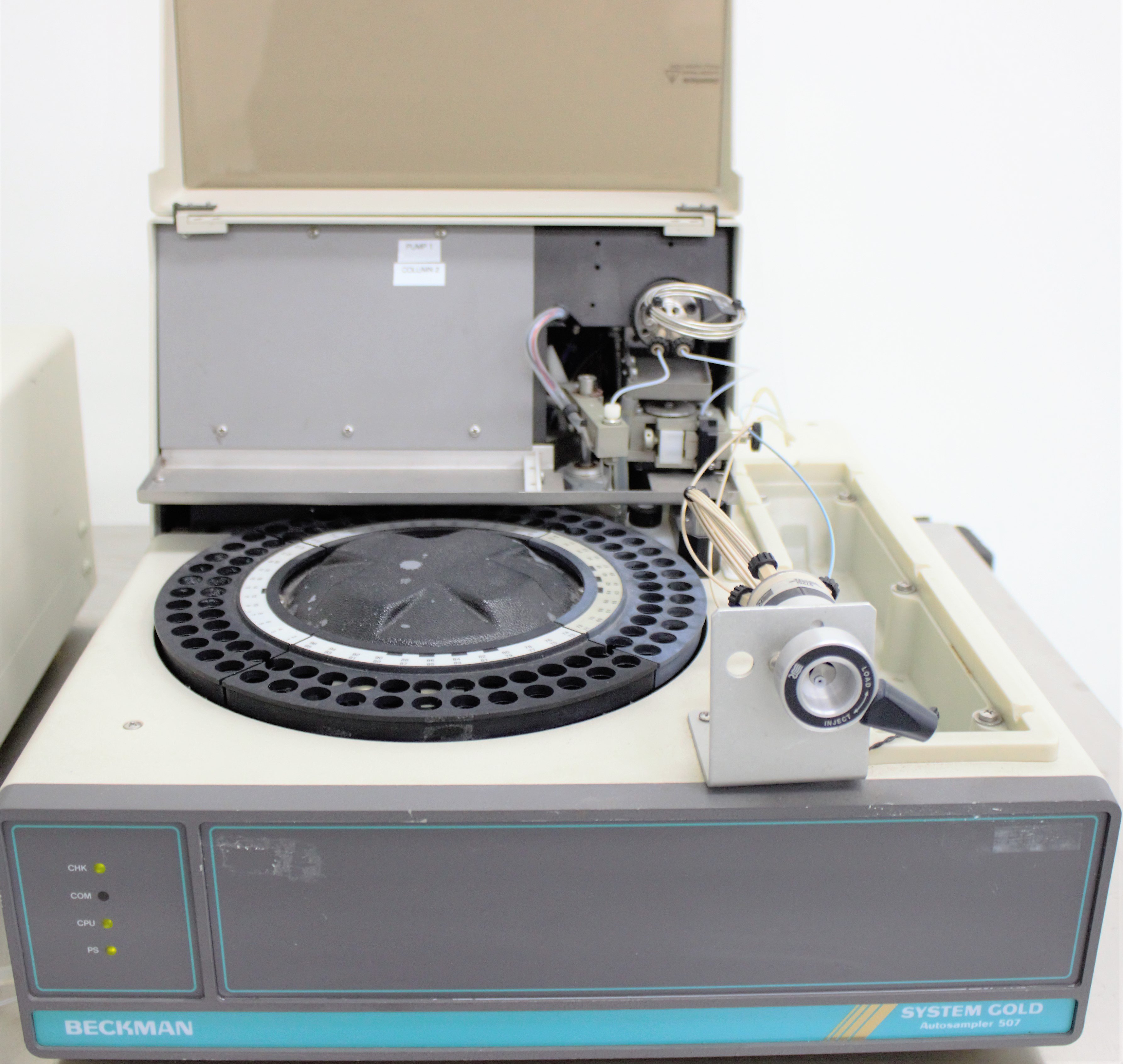

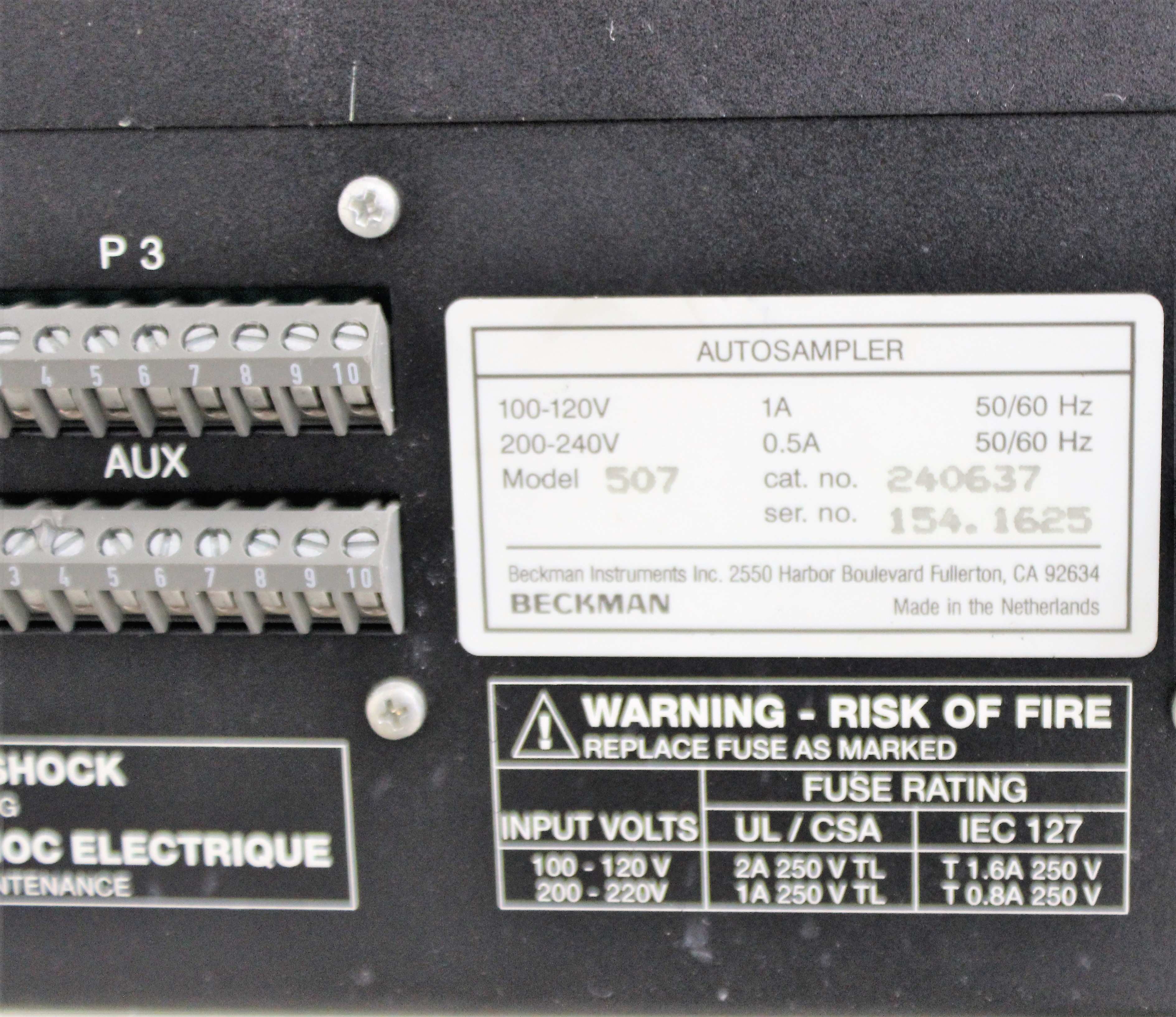

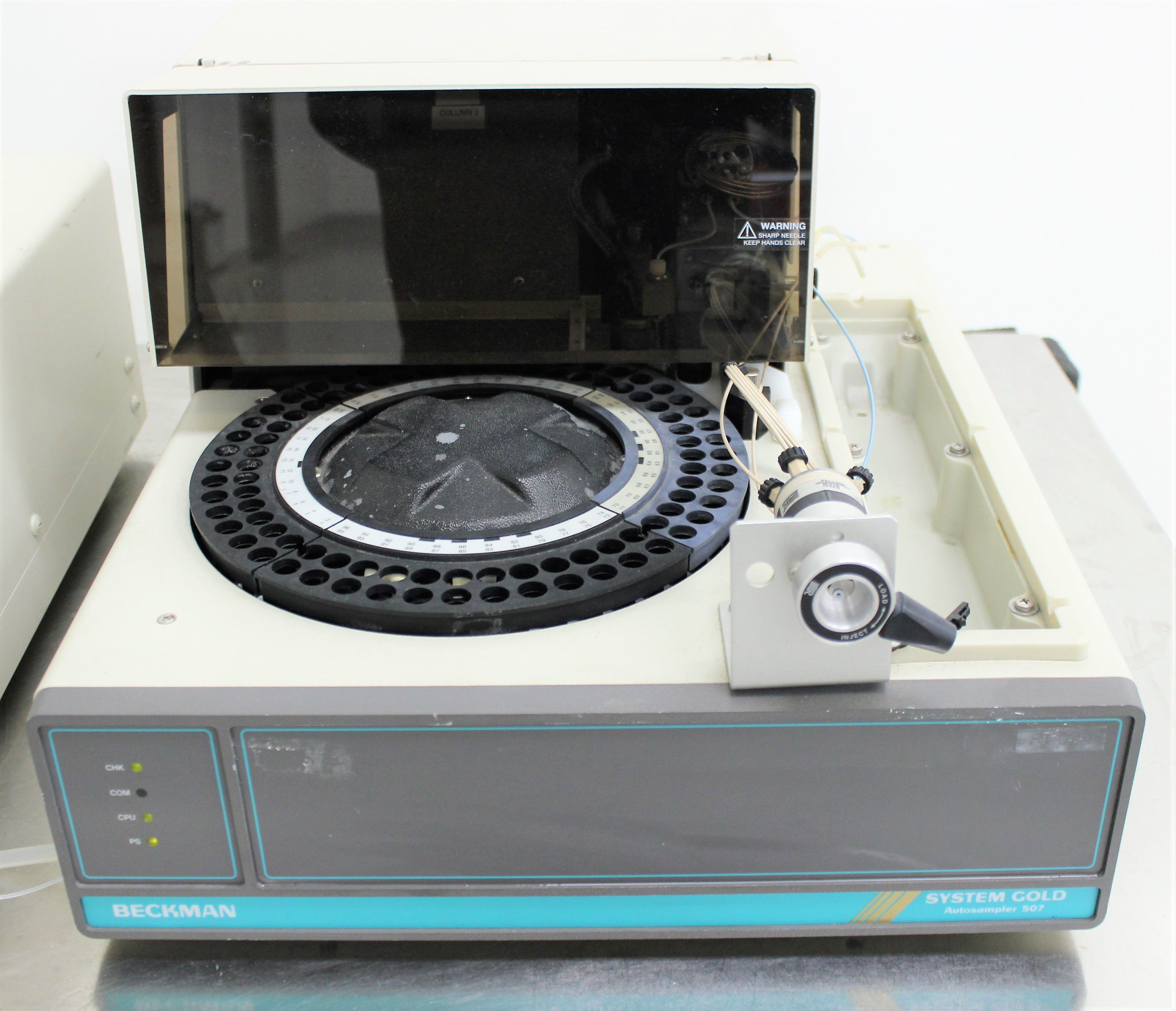

- 507 Autosampler: Vial size 12x32mm, Needle wash 30-999 microliters

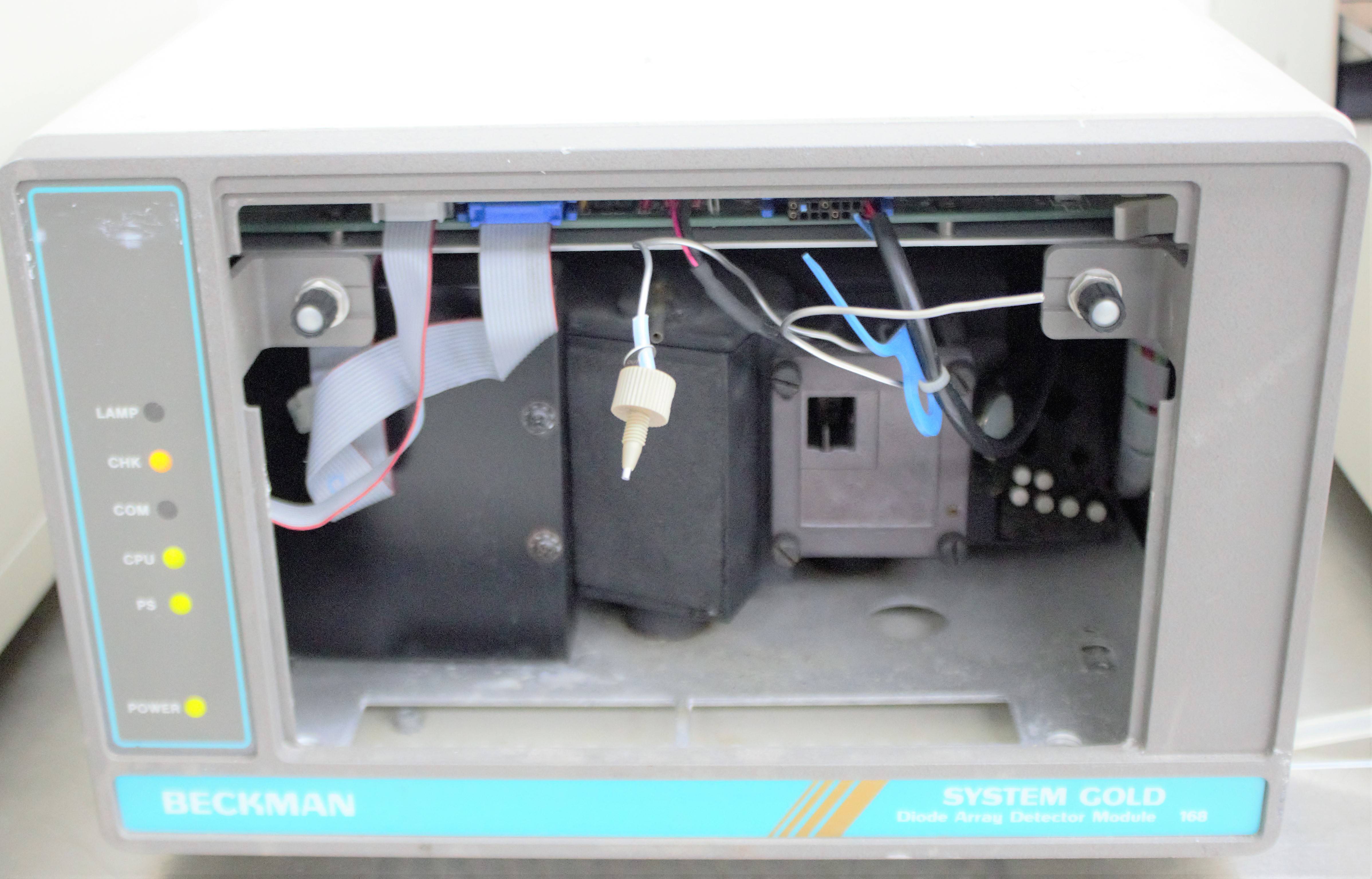

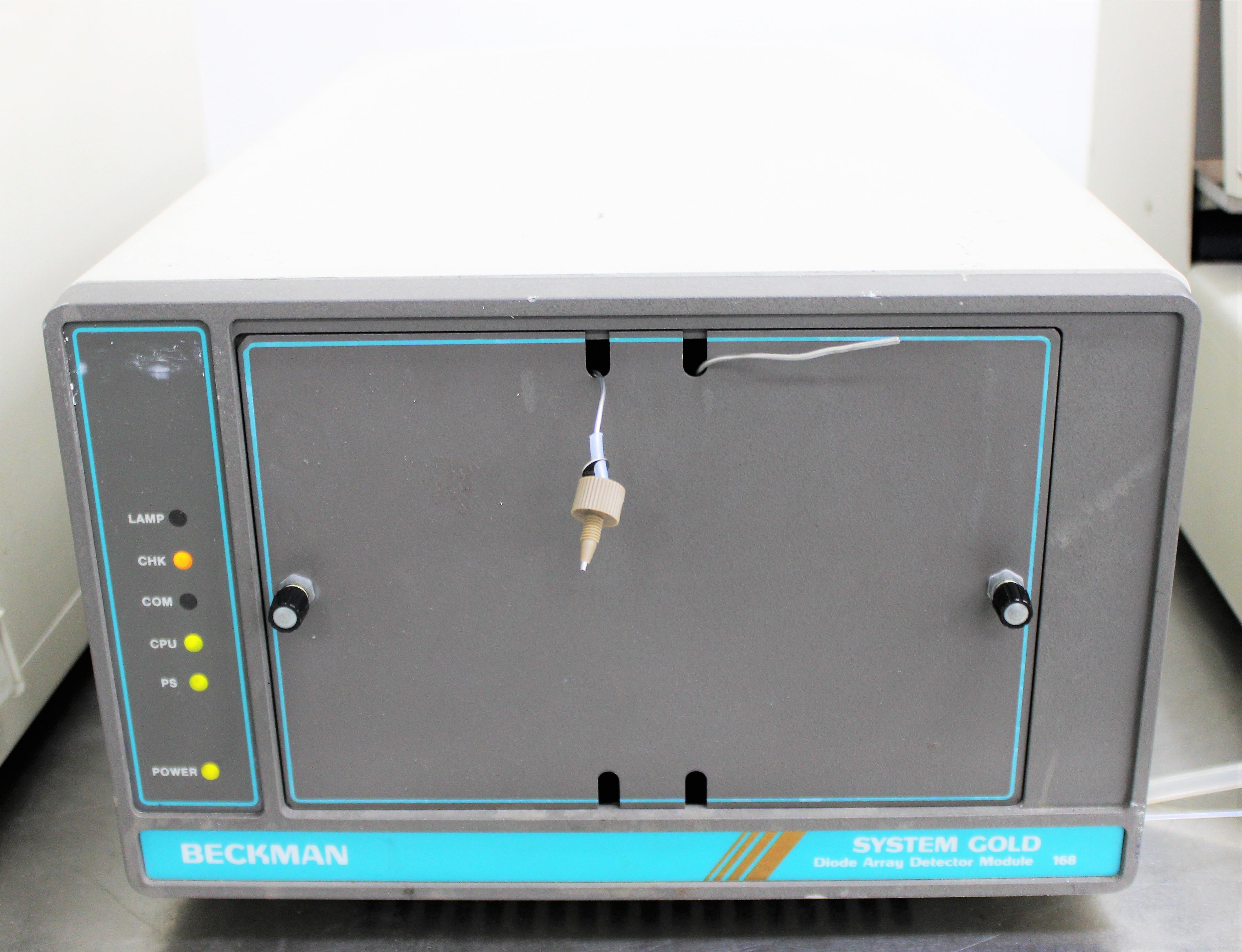

- 168 Diode Array Detector: 190-600 nm range, 512 diodes, 4-410 nm bandwidth
Weight
Imperial: 164.4 Pounds
Metric: 74.57 Kilograms
Shipping Dimensions
Imperial: 24.0 lb x 49.2 lb x 24.0 lb
Metric: 60.96 cm x 124.97 cm x 60.96 cm
Harmonized Code
9027.20.40
Harmonized Code Details
Harmonized code 9027.20.40 is classified under 'Chromatographs'. This code is applicable because the Beckman System Gold is a chromatographic instrument used for analytical purposes in labs.
