Hamamatsu Lightningcure UV Spot Lightsource LC4 FA UV Curing System
Hamamastu
Details
-
CategoryMiscellaneous
-
Dimension18.0in x 14.0in x 14.0in
-
SerialHA0013
-
Shipping TypeFedEx Ground
-
ManufacturingDoes Not Apply
-
Voltage / HertzDoes Not Apply / Does Not Apply
Description

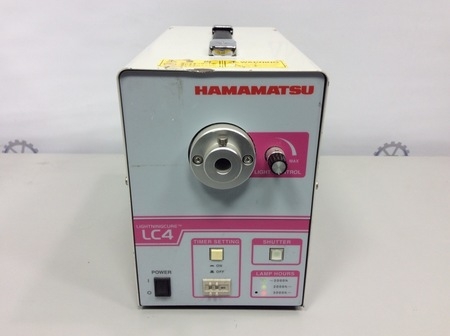

The Hamamatsu Lightningcure UV Spot Lightsource LC4 is a used but functional high-intensity light source. It is designed for use in factory automation to minimize light loss through its mercury-xenon lamps and optical systems. Particularly efficient for UV curing processes, the LC4's long-life design and powerful performance are ideal for micro and optical component bonding that are sensitive to heat. With an output of 3,500 mW/cm at 365 nm and adjustable intensity, it is suitable for various industrial applications. Delivered AS-IS, this equipment includes no additional components such as power cables or manuals.
Key Features
- High-intensity mercury-xenon lamps
- UV output at 3,500 mW/cm
- 365 nm wavelength focus
- Efficient for micro-component bonding
- Long-life lamps with 3,000-hour lifecycle
- Adjustable output intensity and timer
Specifications
- UV output: 3,500 mW/cm at 365 nm
- Power consumption: 280 VA
- Lamp life: 3,000 hours
- Adjustable intensity: 0 to 100%
- Timer setting: 2s to 60s
- Dimensions: 311 mm x 13.7 mm x 226 mm
Weight
Imperial: 18.0 Pounds
Metric: 8.16 Kilograms
Shipping Dimensions
Imperial: 21.6 lb x 16.8 lb x 16.8 lb
Metric: 54.86 cm x 42.67 cm x 42.67 cm
Harmonized Code
85394900
Harmonized Code Details
85394900 - Ultra-violet or Infra-red Lamps; these classifications are chosen due to the UV light emitting nature of the Hamamatsu LC4, tailored for industrial UV curing applications.
