ERIEZ HD66B Vibratory Feeder 14,000 lb/hr w/ 38 in Trough Length, 5 in Height
ERIEZ
Details
-
CategoryMiscellaneous
-
Dimension24.0in x 47.0in x 65.0in
-
Serial336599-2
-
Shipping TypeFreight
-
ManufacturingDoes Not Apply
-
Voltage / Hertz120V/220V / 50Hz/60Hz
Description

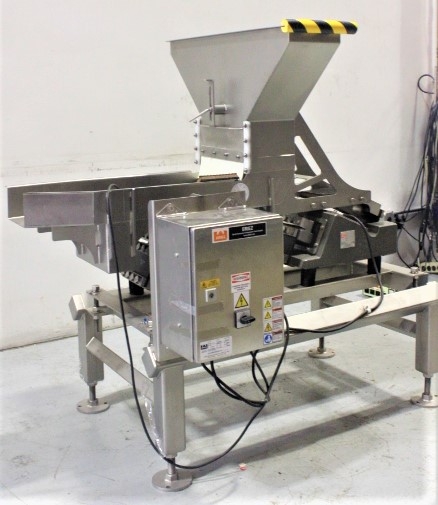

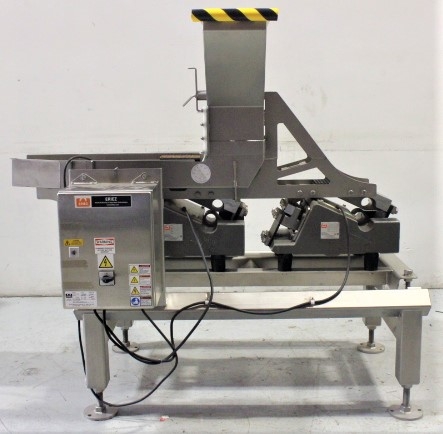

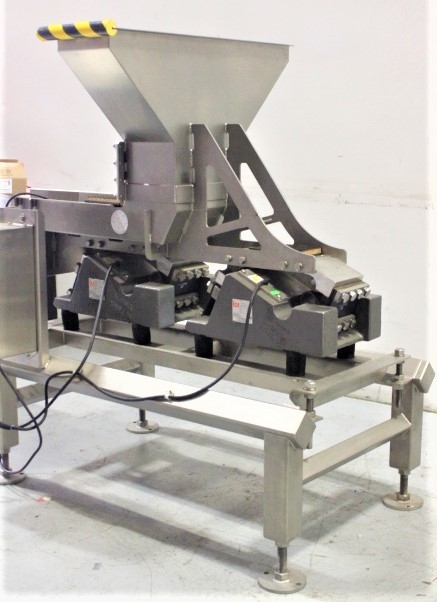

The ERIEZ HD66B Vibratory Feeder is a robust solution designed for efficient material handling with a feed rate of 14,000 lb/hr. Ideal for precise bulk dispensing, this used unit is in very good condition, showing minor cosmetic wear but fully functional. Featuring a discharge height of 9 7/8 inches and a trough length of 38 inches, it operates at 3,600 vibrations per minute for optimized performance. This feeder is constructed with a flat tray made from 304 stainless steel, ensuring durability and longevity even in rigorous industrial environments. Its power source is electromagnetic, with voltage flexibilities of 120V/220V and frequency capabilities of 50/60 Hz, making it adaptable to various settings. Originally from the United States, this ERIEZ model is coated with epoxy for enhanced resistance and emits a noise level of 70 dB. Note: No computer, software, or user manuals are included.
Key Features
- Feed rate of 14,000 lb/hr
- 304 stainless steel tray material
- Flat tray design with bead blast finish
- Operates at 3,600 vibrations per minute
- Trough dimensions: 38 in length, 10 in width, 5 in height
- Epoxy-coated ductile iron base
- Noise Level: 70 dB
Specifications
- Tray Shape: Flat
- Feed Rate: 14,000 lb/hr for 100 lb/cu. ft.
- Amps: 1.1
- Discharge Height: 9 7/8 in
- Trough Length: 38 in
- Trough Width: 10 in
- Trough Height: 5 in
- Tray Material: 304 Stainless Steel
- Tray Width: 10 in
- Tray Depth: 5 in
- Base Finish: Epoxy Coating
- Vibrations per Minute: 3,600
- Base Material: Ductile Iron
- Power Source: Electromagnetic
- Voltage: 120V/220V
- Frequency: 50Hz/60Hz
- Ambient Temp Range: 0°F to 130°F
Weight
Imperial: 760.8 Pounds
Metric: 345.09 Kilograms
Shipping Dimensions
Imperial: 28.8 lb x 56.4 lb x 78.0 lb
Metric: 73.15 cm x 143.26 cm x 198.12 cm
Harmonized Code
847982
Harmonized Code Details
Harmonized code 847982 is for 'Machines and mechanical appliances with individual functions, not specified elsewhere'. This code is used as the ERIEZ HD66B is a mechanical appliance with a specialized function for feeding materials.
