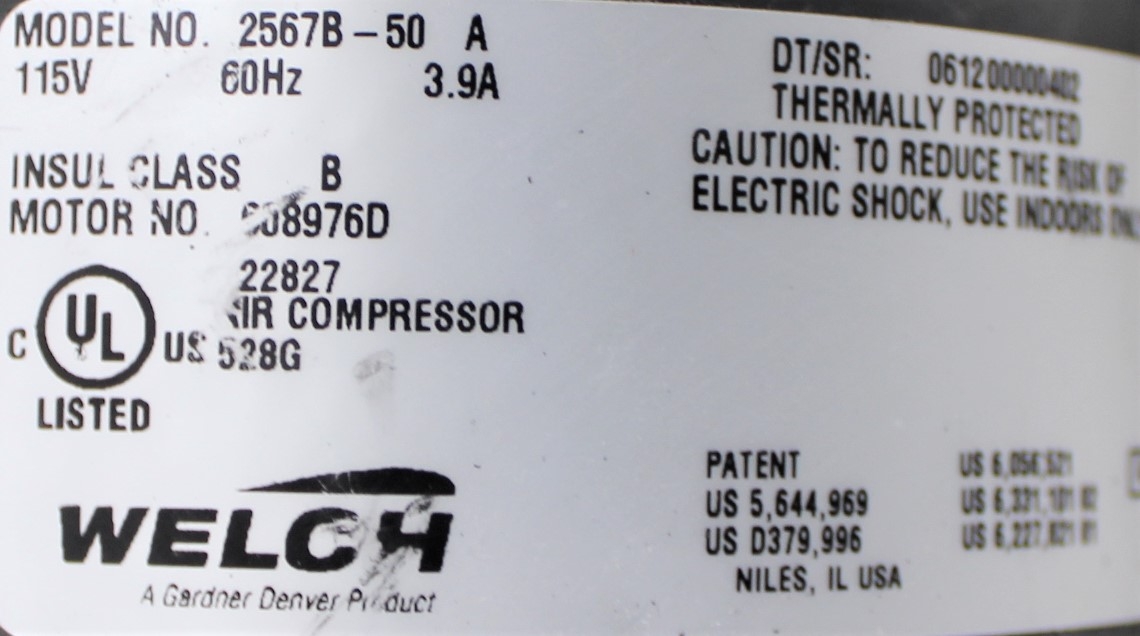

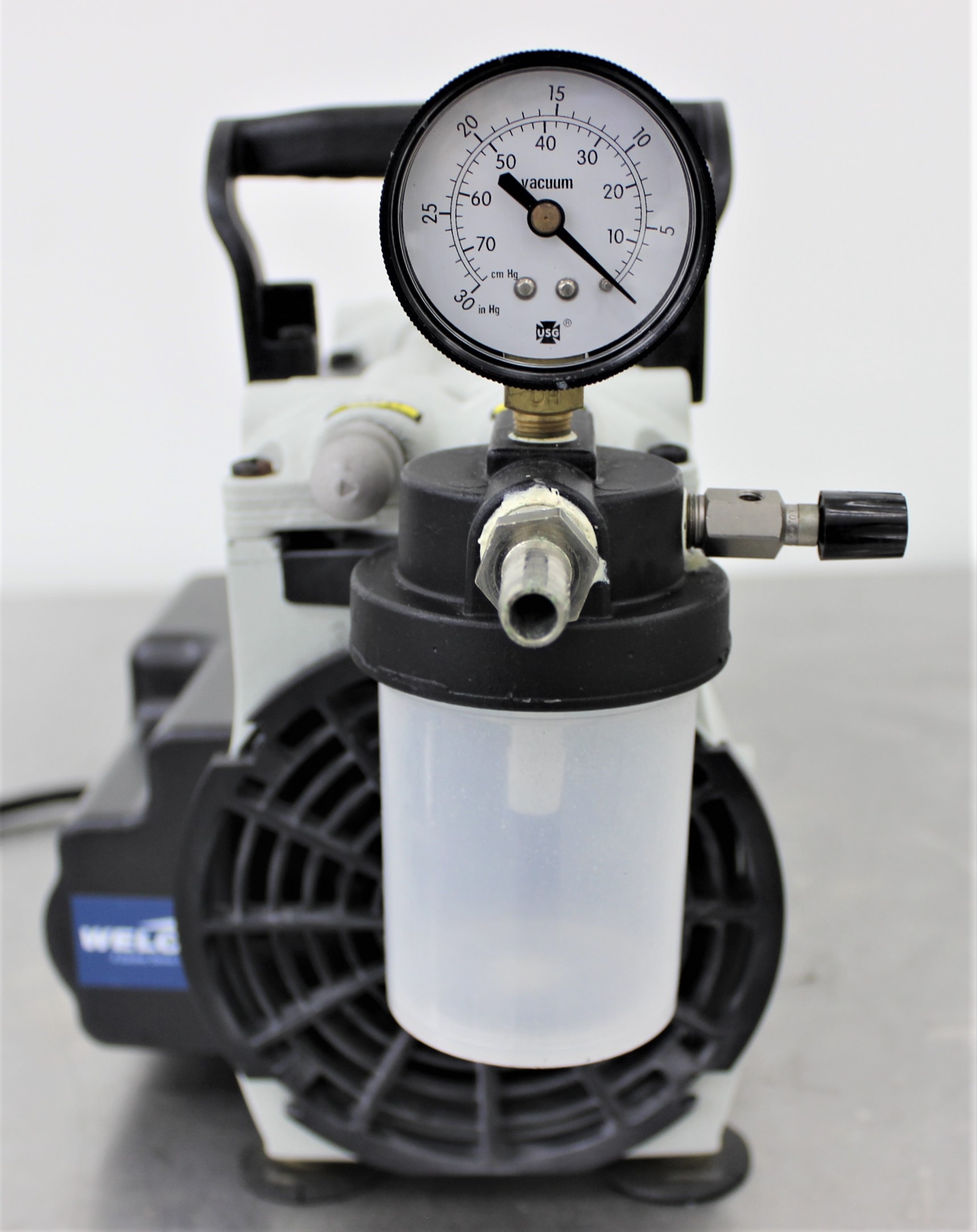

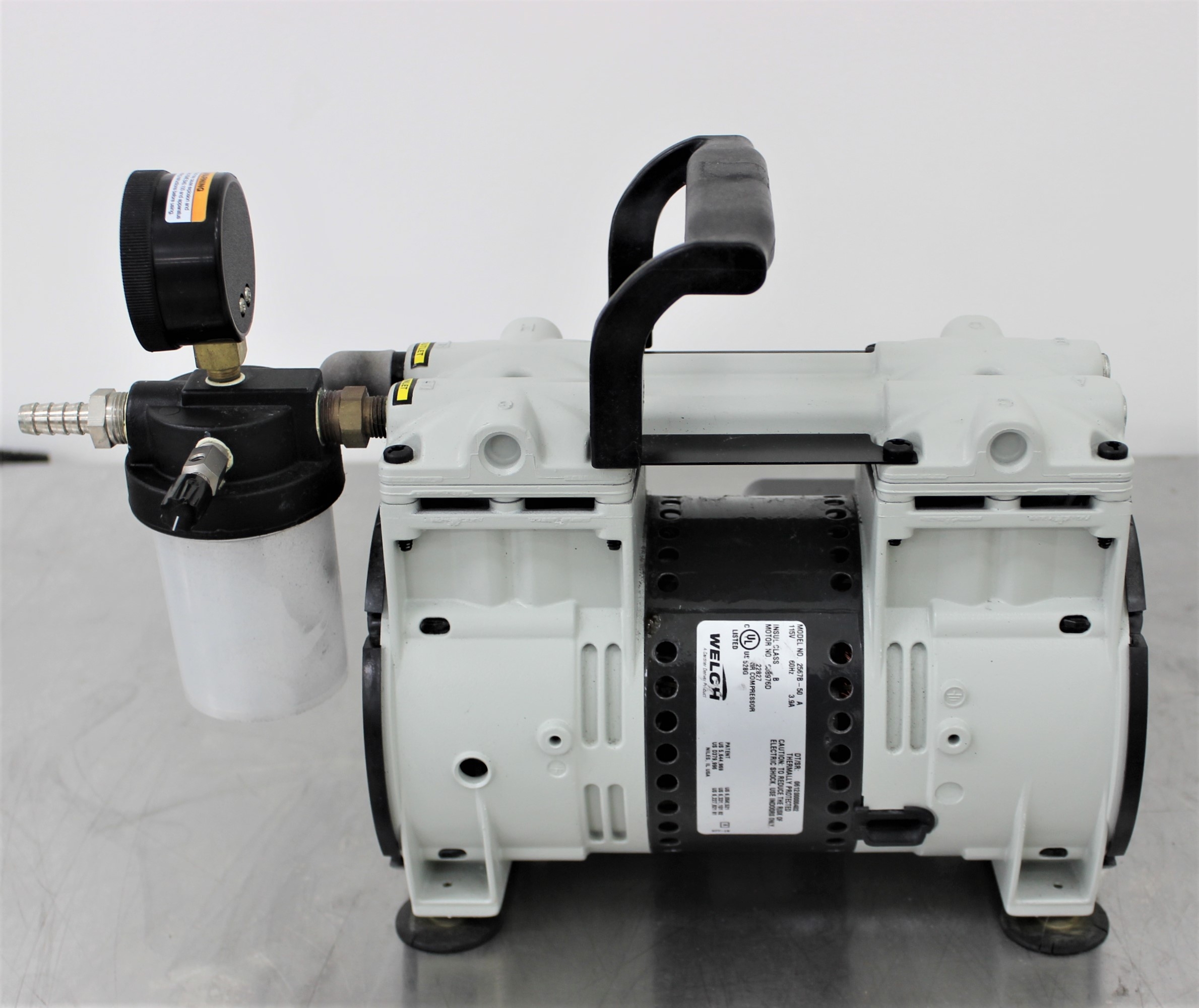

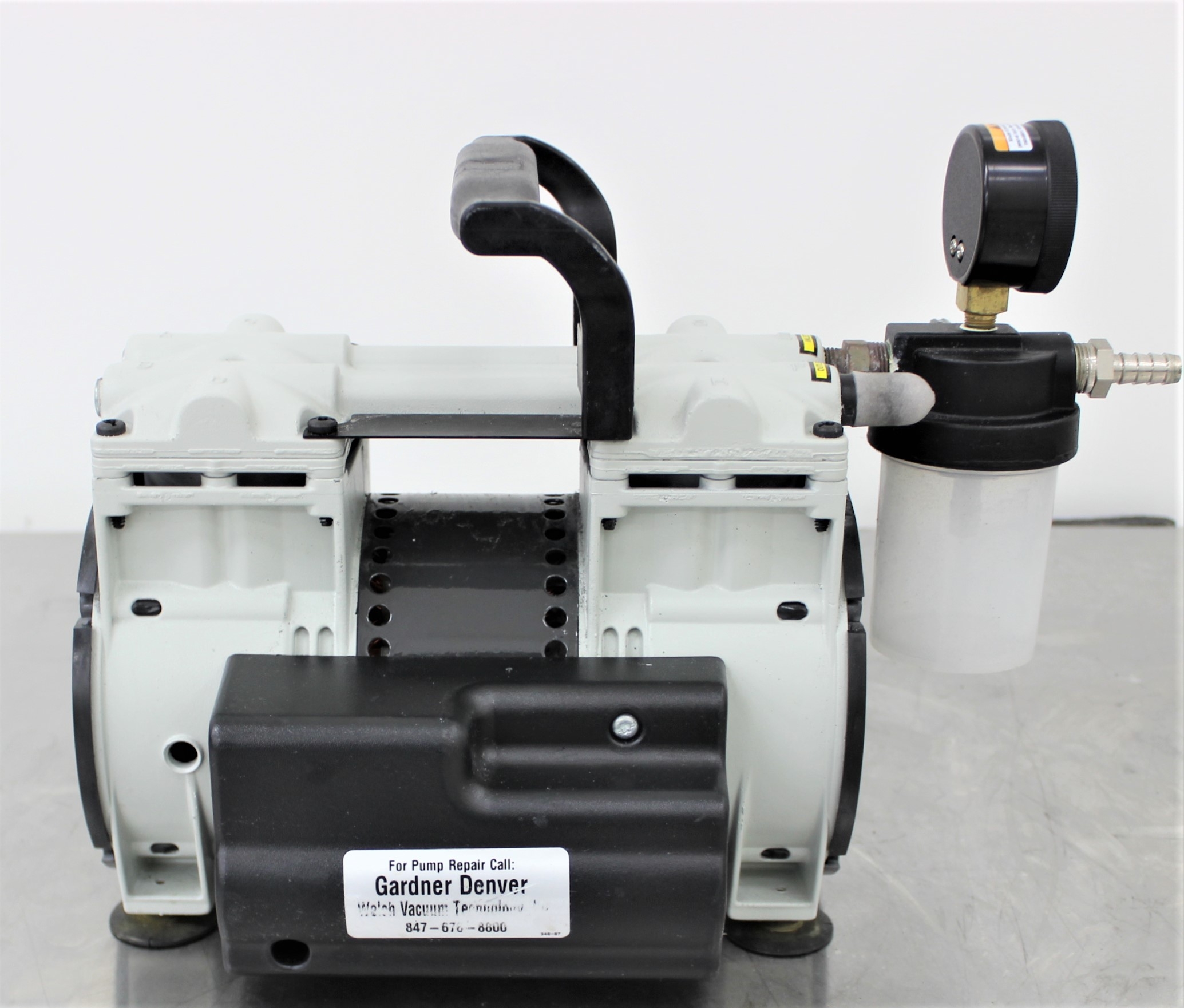

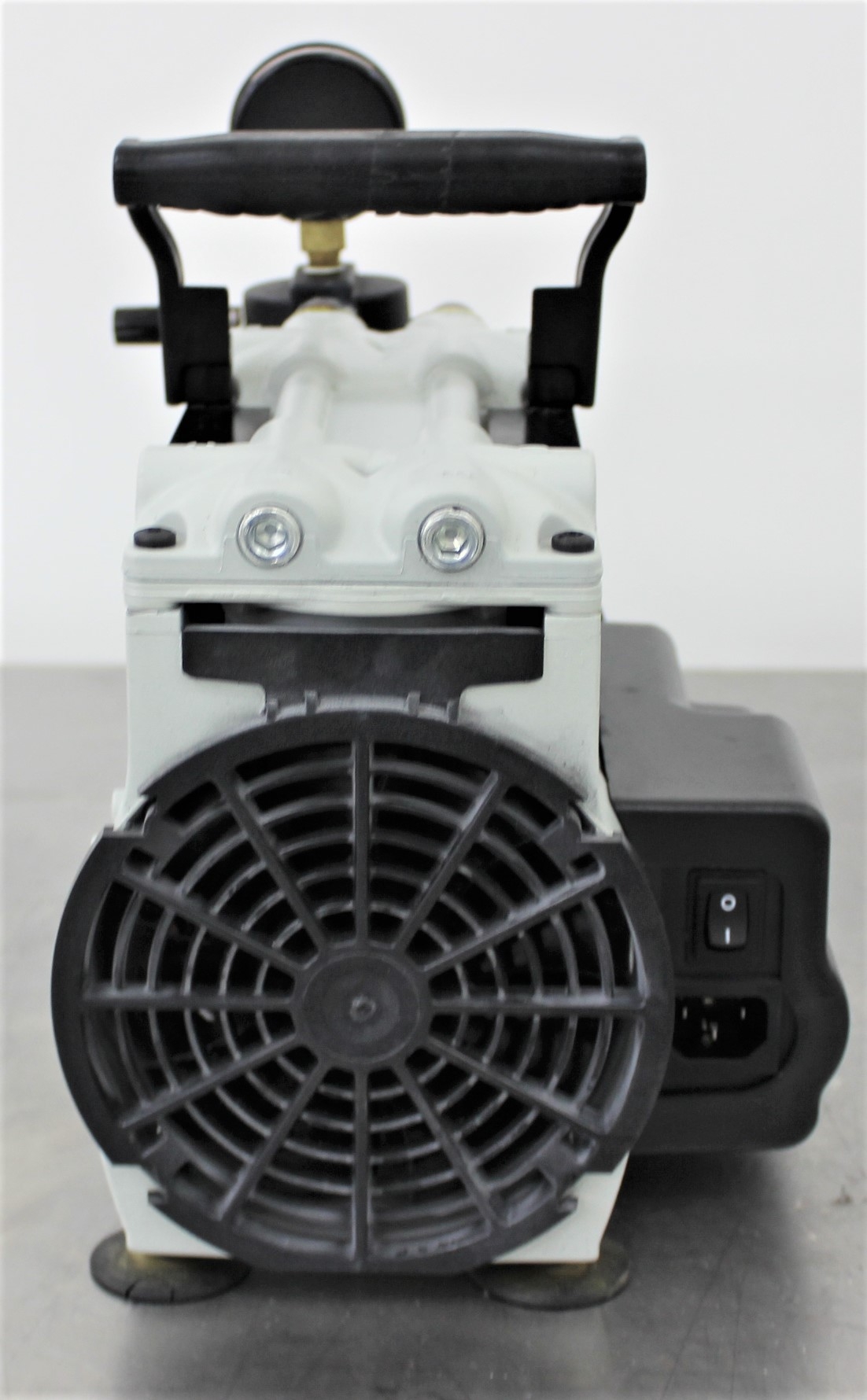

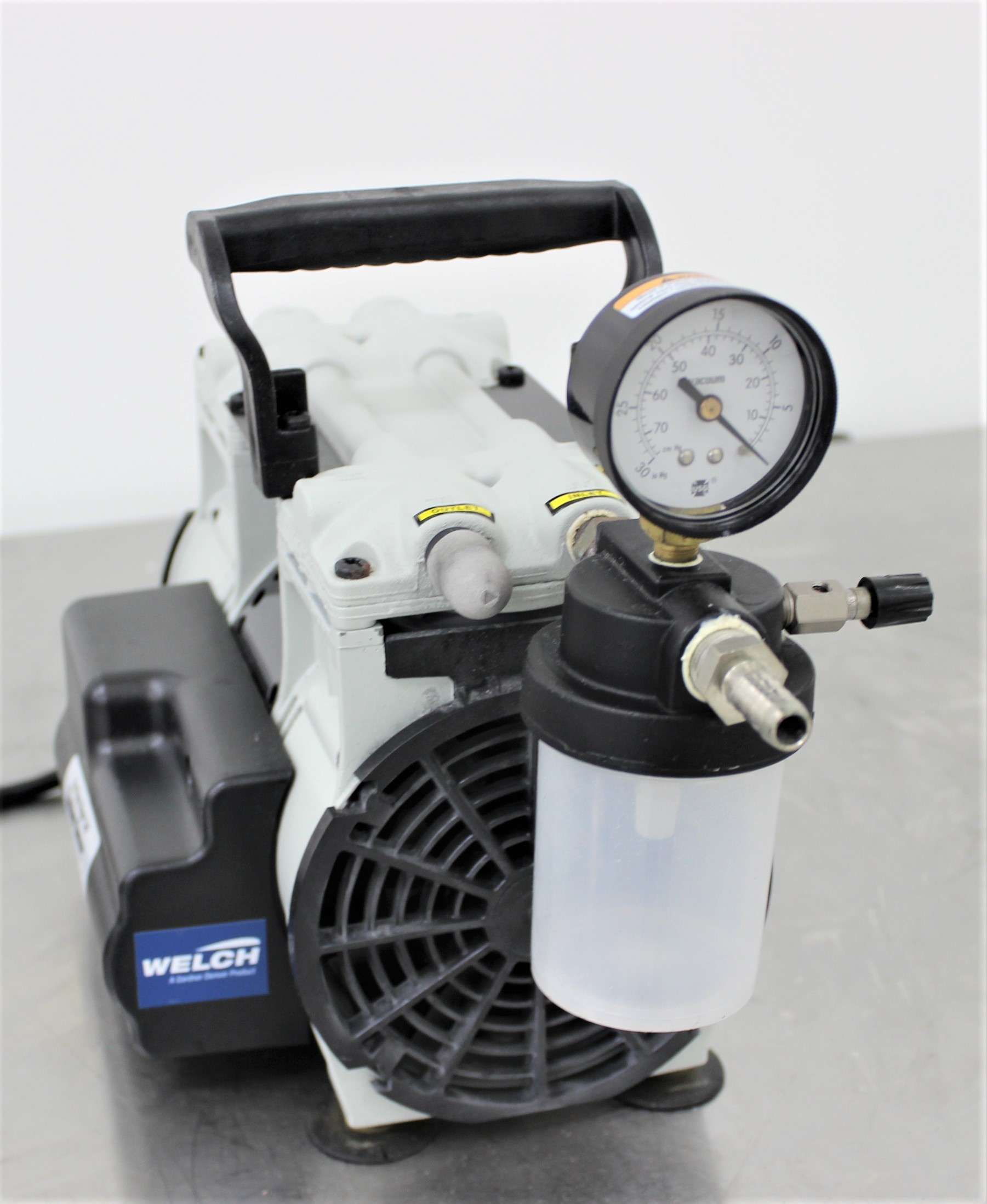

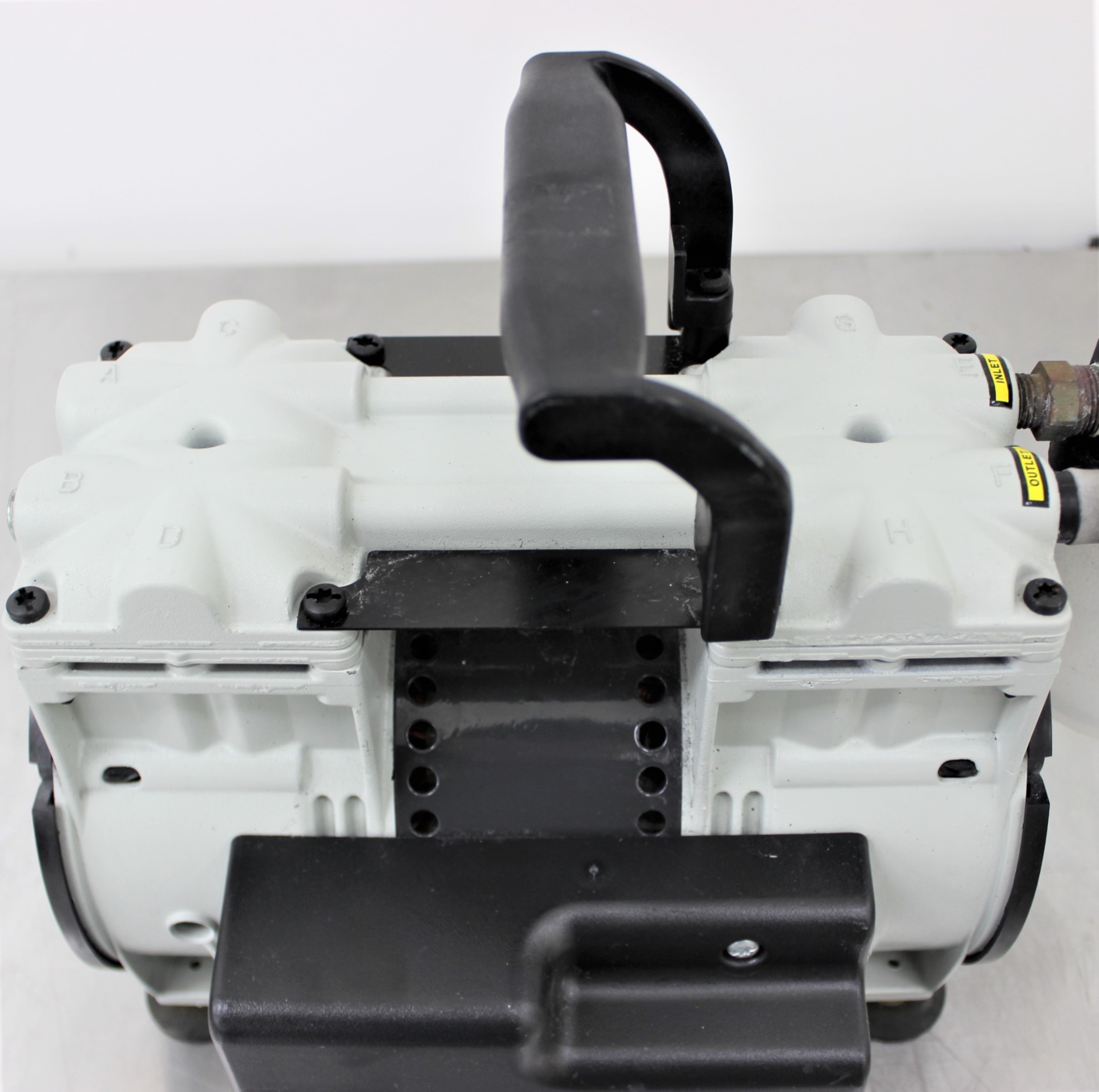

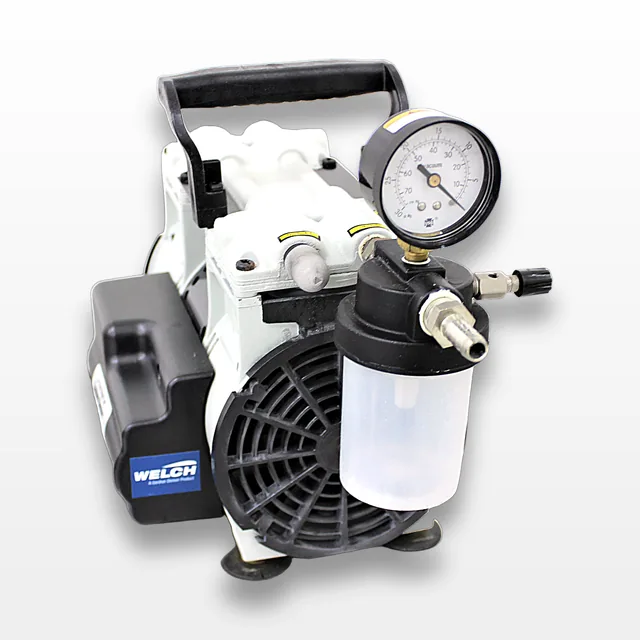

Welch 2567B-50 Vacuum Pump WOB-L Style, 100 LPM, 60 Torr, Used, VG Condition
Welch
Details
-
CategoryPump
-
Dimension15.0in x 7.0in x 11.0in
-
SerialN/A
-
Shipping TypeFedEx Ground
-
ManufacturingDoes Not Apply
-
Voltage / HertzDoes Not Apply / 60Hz US
Description
The Welch 2567B-50 is a highly efficient two-head WOB-L-style piston vacuum pump designed for medical and laboratory applications such as gel dryers, concentrators, and rotary evaporators in non-corrosive environments. This used vacuum pump, in very good condition, features a 100 LPM free air displacement and achieves a vacuum pressure of 60 Torr. Equipped with an intake catch jar, a gauge, and a manually adjustable vacuum level, it is suitable for diverse applications requiring precise vacuum control. The pump operates at 50/60 Hz and has a motor power of 250 Watts, with intake threads and tubing requirements of 1/4 inch NPT.
Key Features
- Two-head WOB-L-style piston pump
- 100 LPM free air displacement
- Vacuum to 60 Torr
- Suitable for gel dryers and concentrators
- Manually adjustable vacuum
- Include intake catch jar and gauge
Specifications
- Free Air Displacement: 100 LPM
- Max Vacuum Pressure: 60 Torr
- Motor Power: 250 Watts
- Frequency: 50/60 Hz
- Intake Thread: 1/4 inch NPT
- Tubing Needed: 1/4 inch
Weight
Imperial: 31.2 Pounds
Metric: 14.15 Kilograms
Shipping Dimensions
Imperial: 18.0 lb x 8.4 lb x 13.2 lb
Metric: 45.72 cm x 21.34 cm x 33.53 cm
Harmonized Code
841410
Harmonized Code Details
Harmonized Code 841410 applies to vacuum pumps, suitable for the Welch 2567B-50 due to its functionality in displacing air for vacuum creation in laboratory settings.
