Mesa Labs 15000 Automation Test Kit Inspection QC Conveyor 120V 60Hz IV2-G500CA
Mesa Labs
Details
-
CategoryRobotic / Automation
-
Dimension35.0in x 33.0in x 31.0in
-
SerialMT11437
-
Shipping TypeFreight
-
ManufacturingDoes Not Apply
-
Voltage / Hertz120V / 60Hz US
Description

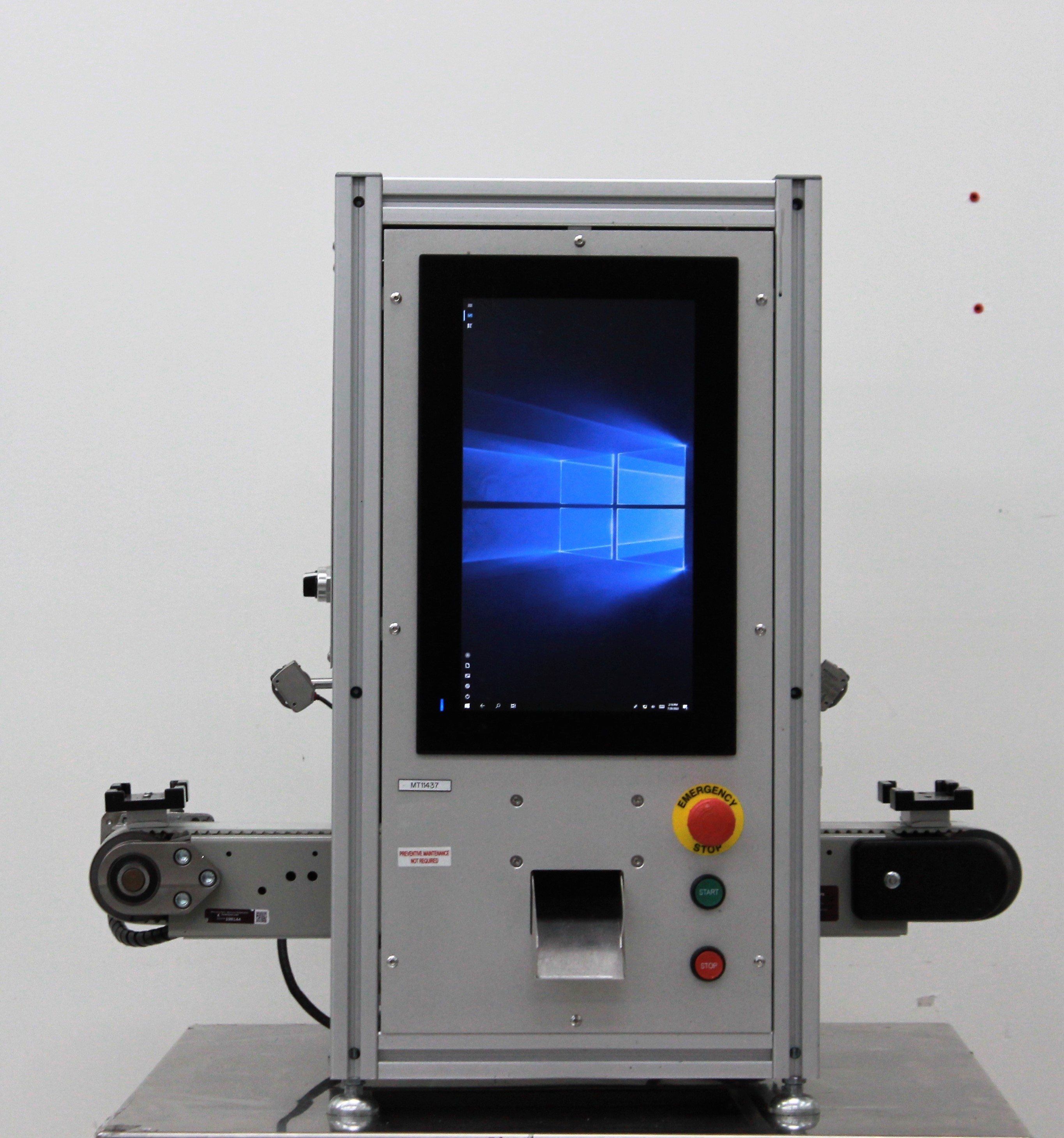

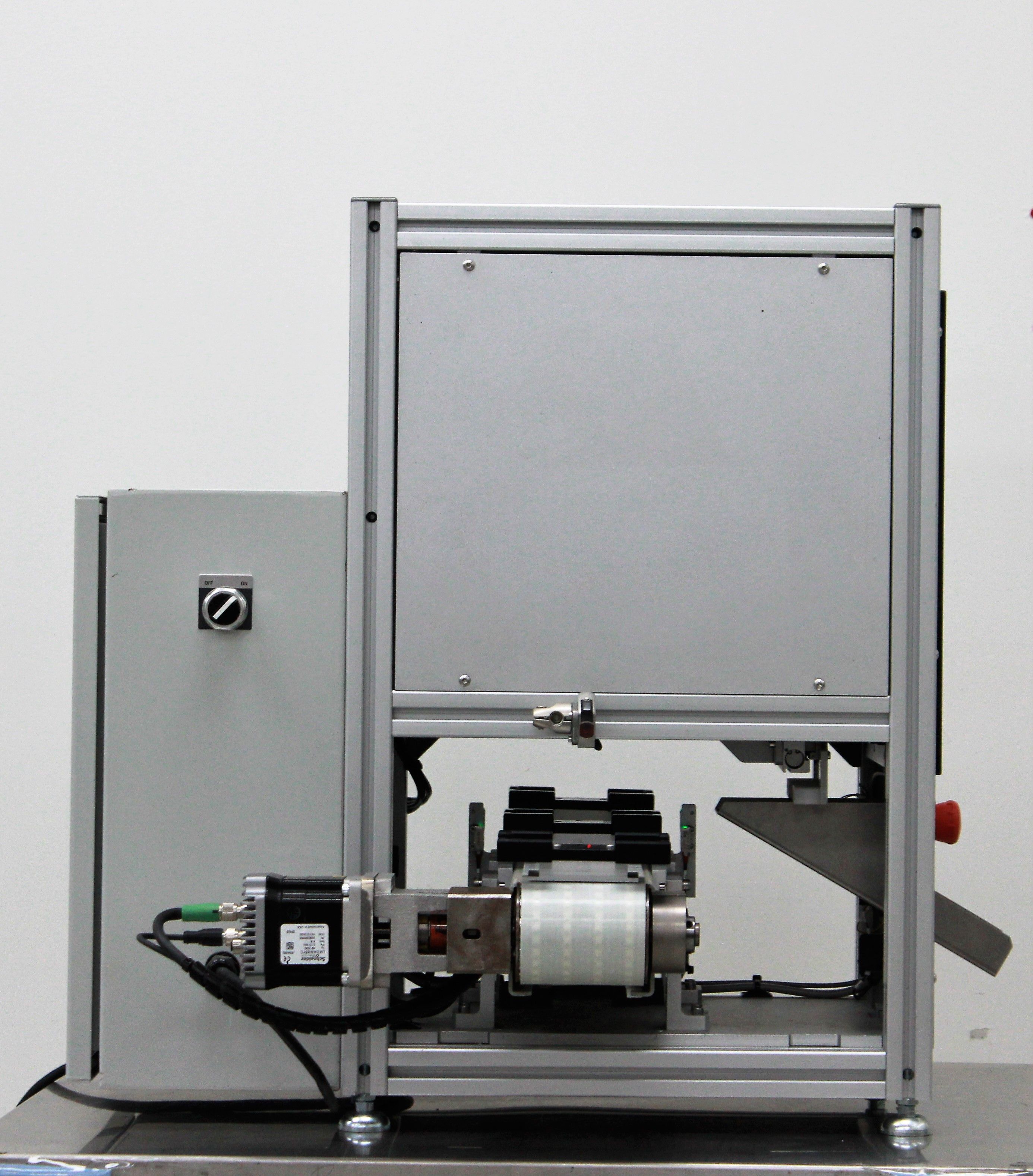

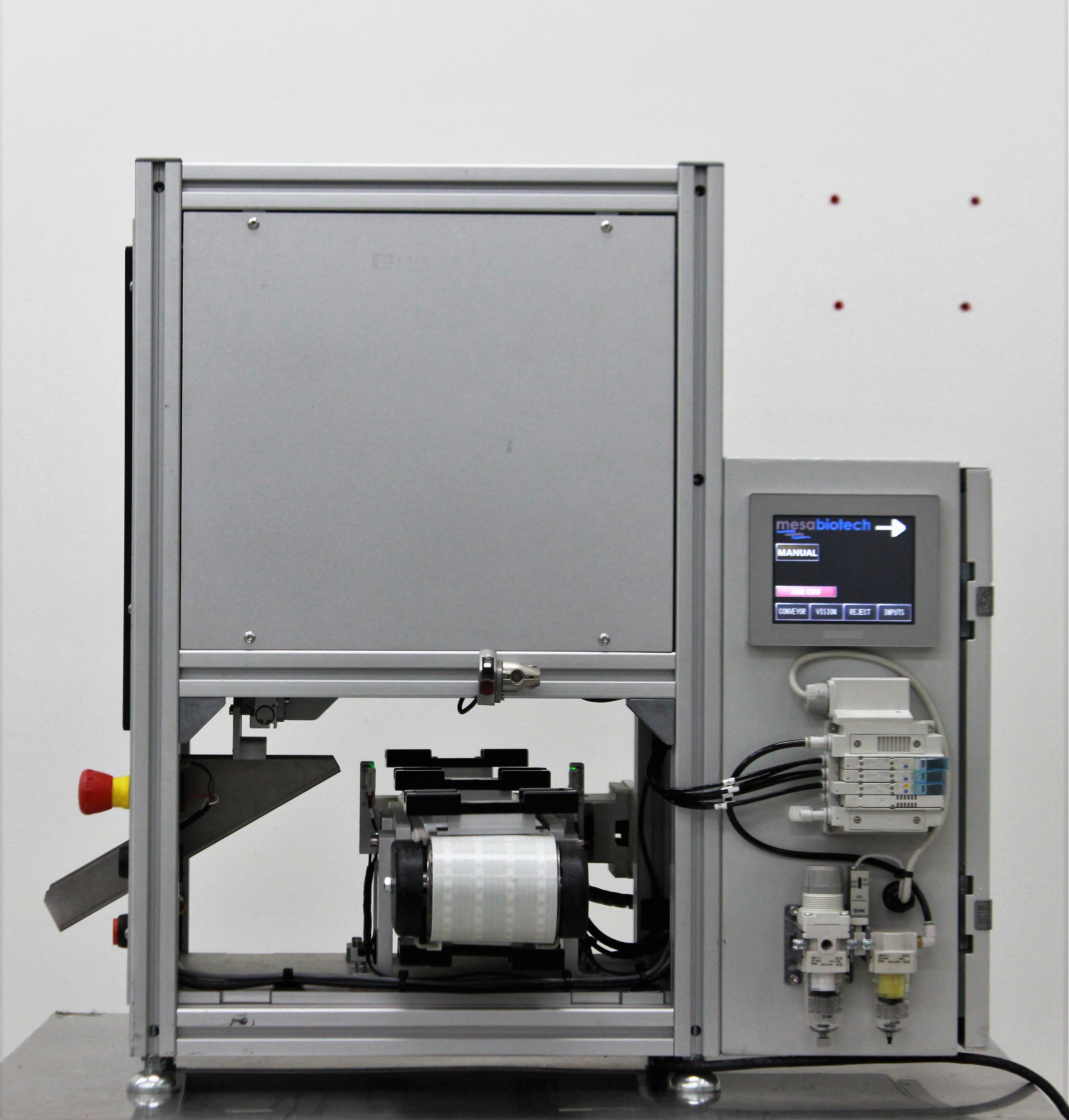

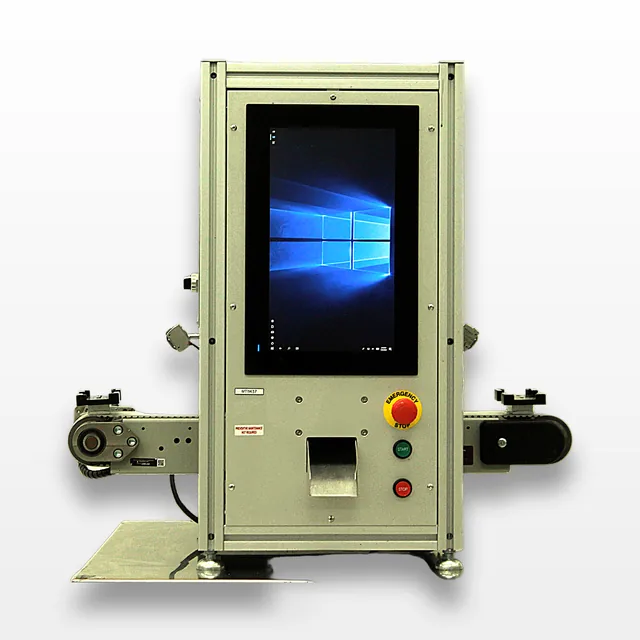

The Mesa Labs Model 15000-000-000, produced in the United States, is a sophisticated automation test kit inspection system designed for precision and reliability in Vision Inspection tasks. Featuring the IV2 Web Monitor, this custom unit seamlessly integrates with QC Conveyors' renowned Automation Series, known for their user-friendliness and long-term reliability. With features such as pivot rotatable drives, tension release for tool-less belt changes, and a moveable center drive, this equipment is engineered to streamline operations. Boasting a sensor head type of IV2-G500CA, a sensor amp version of R1.30.00, and equipped with a Schneider LMDAM851C with an Un of 48VDC and IP65 rating, this test kit ensures robust performance in industrial applications. Its streamlined design incorporates a single-piece frame, crowned pulleys, and separate tension and tracking mechanisms, aiming to enhance efficiency in quality control processes. This unit has undergone testing and is reported to be functional, yet without a cover plate on the back panel. Ideal for laboratory and industrial environments that demand precise automation.
Key Features
- Custom Vision Inspection System
- IV2 Web Monitor Integration
- Built-in QC Conveyor Mechanism
- Pivot Rotatable Drives
- Tension Release for Tool-less Belt Changes
- Moveable Center Drive
- IV2-G500CA Sensor Head
Specifications
- Device Name: IV2-G500CA_G30F
- Sensor Head Type: IV2-G500CA
- Sensor Amp Version: R1.30.00
- Mac Address: 00:01:FC:B9:3A:AD
- IP Address: 192.168.100.12
- Schneider: LMDAM851C: Un: 48VDC, Mn: 2.13 Nm, Imax: 4A, IP65
- Voltage: 120V
- Frequency: 60Hz
Weight
Imperial: 228.0 Pounds
Metric: 103.42 Kilograms
Shipping Dimensions
Imperial: 42.0 lb x 39.6 lb x 37.2 lb
Metric: 106.68 cm x 100.58 cm x 94.49 cm
Harmonized Code
9031.49
Harmonized Code Details
The harmonized code 9031.49 corresponds to 'Other measuring or checking instruments, appliances, and machines not elsewhere specified,' which is fitting for this test kit inspection system given its function in quality control and automation within laboratory settings.
