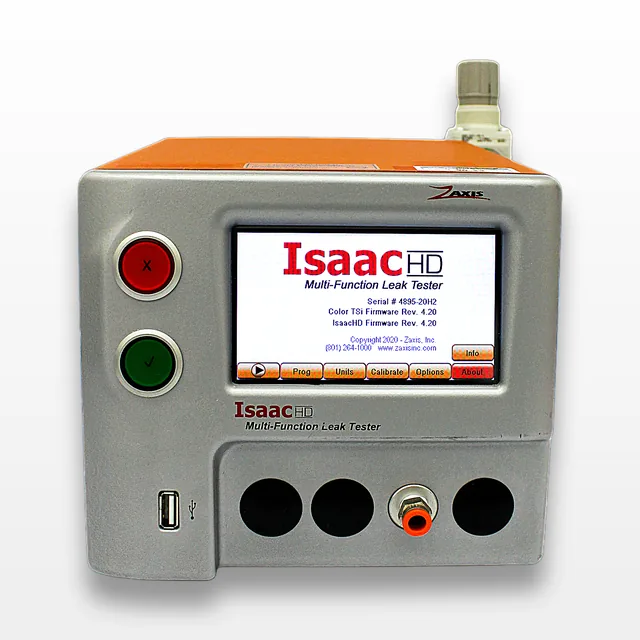

Zaxis Issac-HD-PD Leak Tester VG Multi-Function Air Leak Testing Used
Zaxis
Details
-
CategoryTesting Equipment
-
Dimension11.0in x 9.0in x 9.0in
-
Serial4895-20H2
-
Shipping TypeFedEx Ground
-
Voltage / Hertz120V/220V / 50Hz/60Hz
Description
The Zaxis Issac-HD-PD is a versatile multi-function leak tester expertly engineered for precise air leak testing applications. This unit, manufactured in the United States, is in very good condition, indicating minimal cosmetic blemishes due to normal use, and has passed rigorous functional testing. Designed to support a variety of tests such as pressure decay, vacuum decay, mass flow, and more, the Issac-HD-PD features a 4.3-inch color touchscreen for efficient setup and execution. Its compact design allows for easy integration into various laboratory environments, while advanced communication interfaces like USB and Ethernet enhance connectivity. With a pressure range of up to 1000 PSIG and calibration accuracy of 0.25% of full scale, this tester ensures high-performance standards for industrial and medical applications.
Key Features
- Multi-function air leak testing
- 4.3-inch color touchscreen
- Pressure ranges up to 1000 PSIG
- Calibration accuracy 0.25% of full scale
- Supports pressure decay, mass flow tests
- Compact and modular design
- Connectivity through USB, Ethernet
Specifications
- Internal volume: 0.8 cm3
- Resolution: 0.00001 PSI
- Test Port Fitting: 1/8 FNPT female bulkhead
- Available Interfaces: USB, RS232, Ethernet, PLC
- Pressure Range: 0-1000 PSIG positive, 0-14.5 PSI vacuum
- Power: 115/230 VAC, 50/60 Hz, 60 Watts
- Material Compatibility: Clean, dry, non-corrosive gasses
- 24 Bit A/D with high sensitivity
- Available two-axis fixture control
- Stored Programs: Up to 100
Weight
Imperial: 8.4 Pounds
Metric: 3.81 Kilograms
Shipping Dimensions
Imperial: 13.2 lb x 10.8 lb x 10.8 lb
Metric: 33.53 cm x 27.43 cm x 27.43 cm
Harmonized Code
9026.80.2000
Harmonized Code Details
9026.80.2000 - Instruments and apparatus for measuring or checking the flow or level of liquids; this code is likely appropriate as the Zaxis Issac-HD-PD is primarily used for measuring pressure decay and flow in testing applications.
