Maxitrol RV61 Gas Pressure Regulator for Fuel & Noncorrosive Gases
Maxitrol
Details
-
CategoryOther
-
Dimension6.0in x 6.0in x 7.0in
-
SerialN/A
-
Shipping TypeFedEx Ground
-
ManufacturingDoes Not Apply
-
Voltage / HertzDoes Not Apply / Does Not Apply
Description

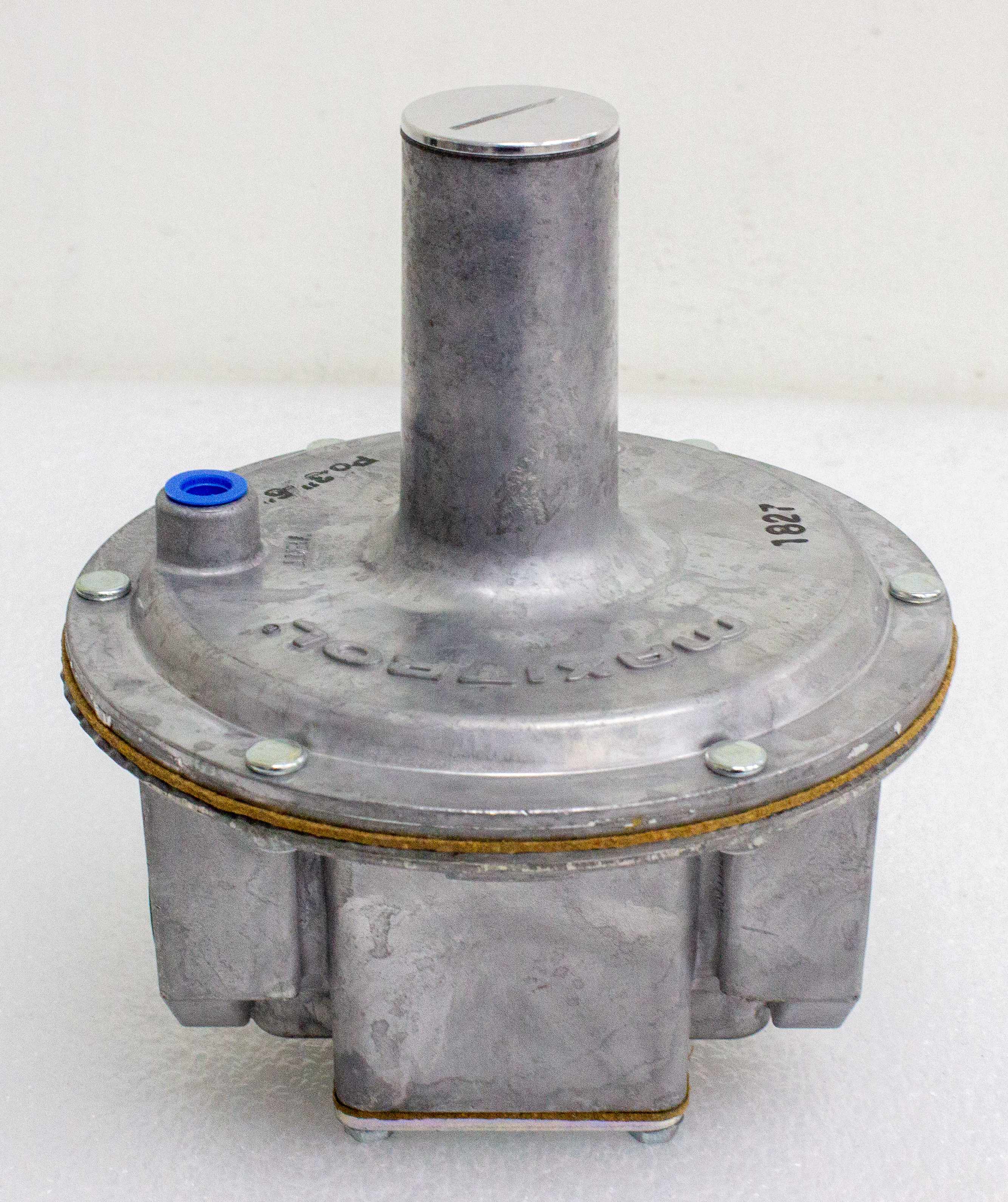

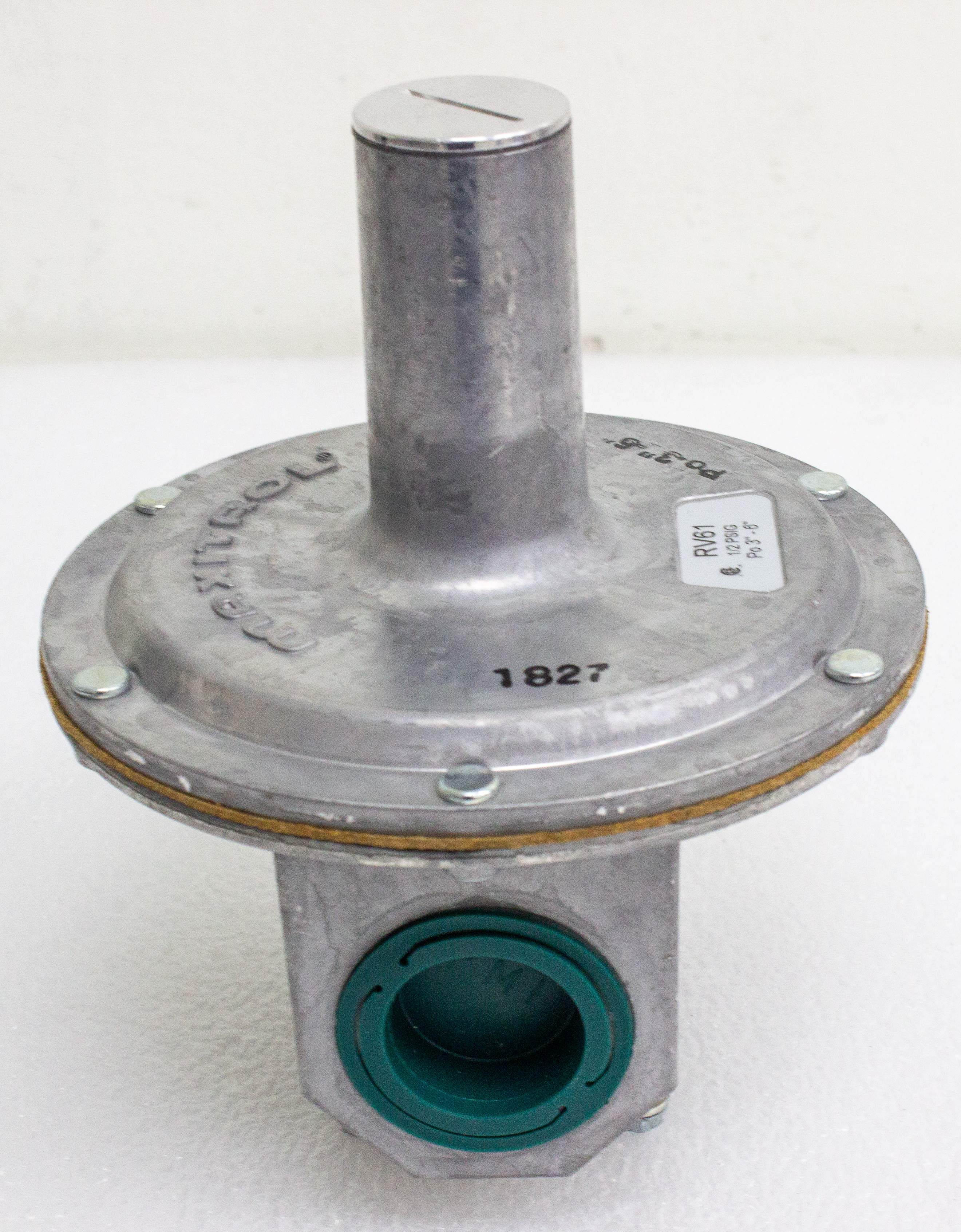

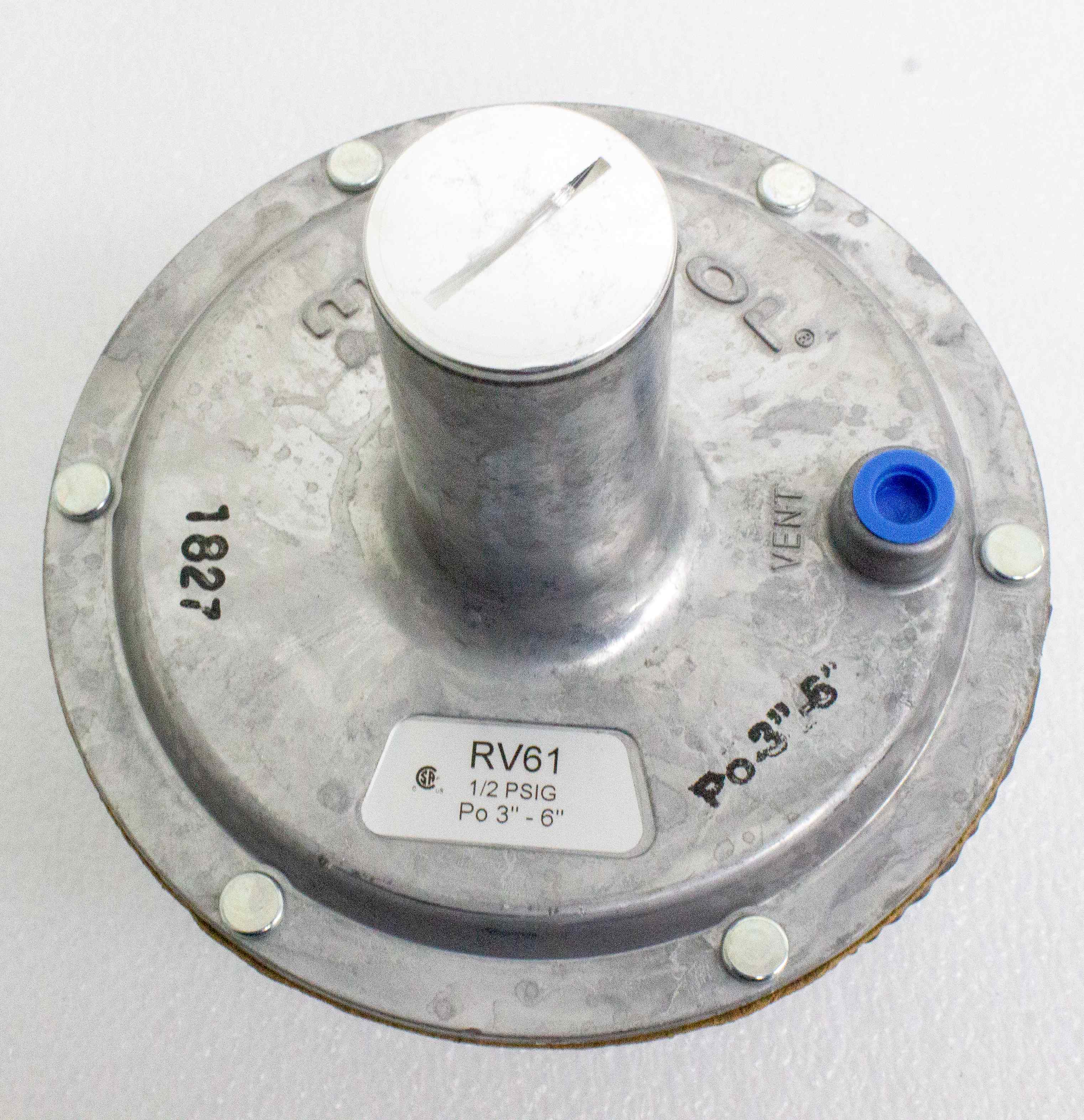

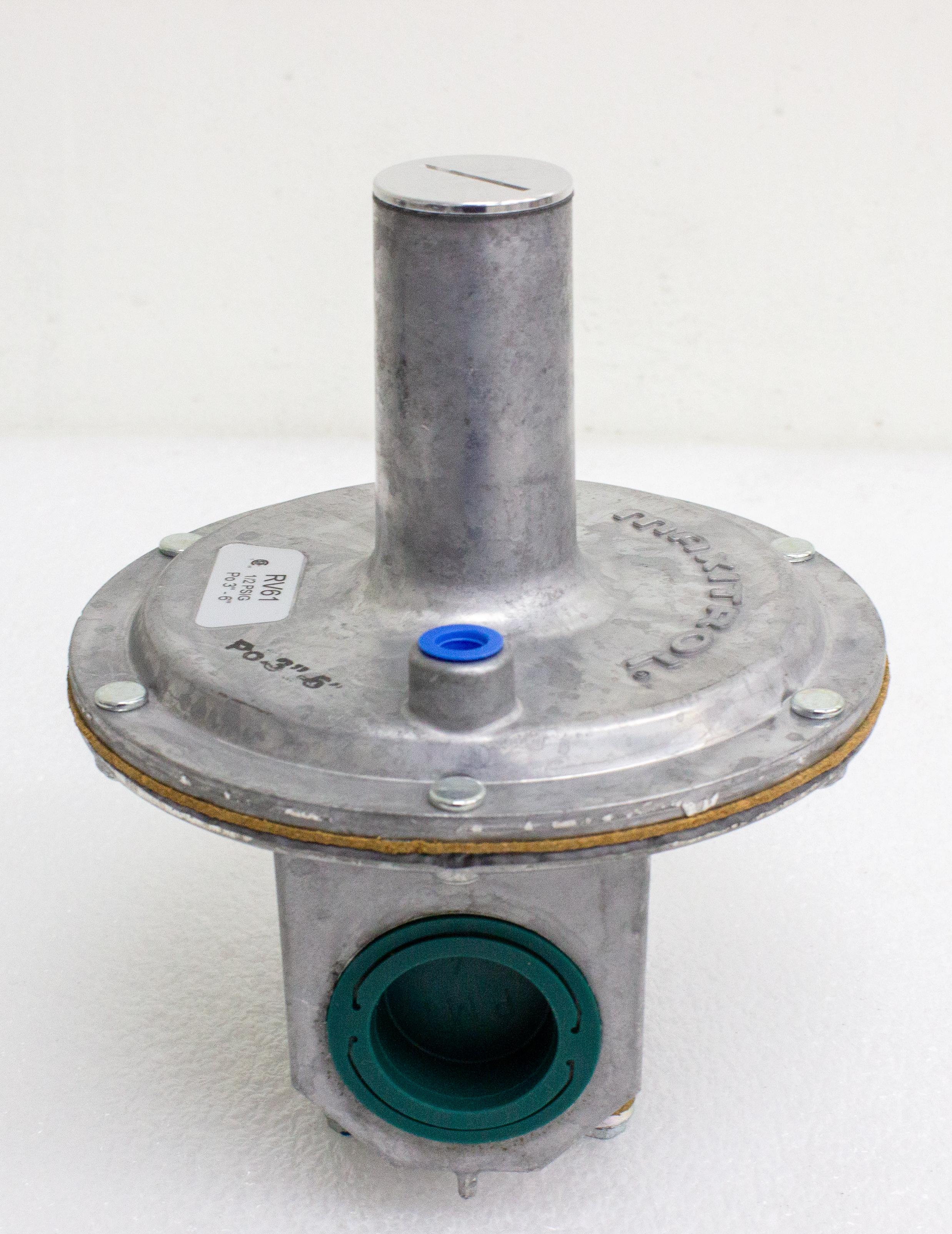

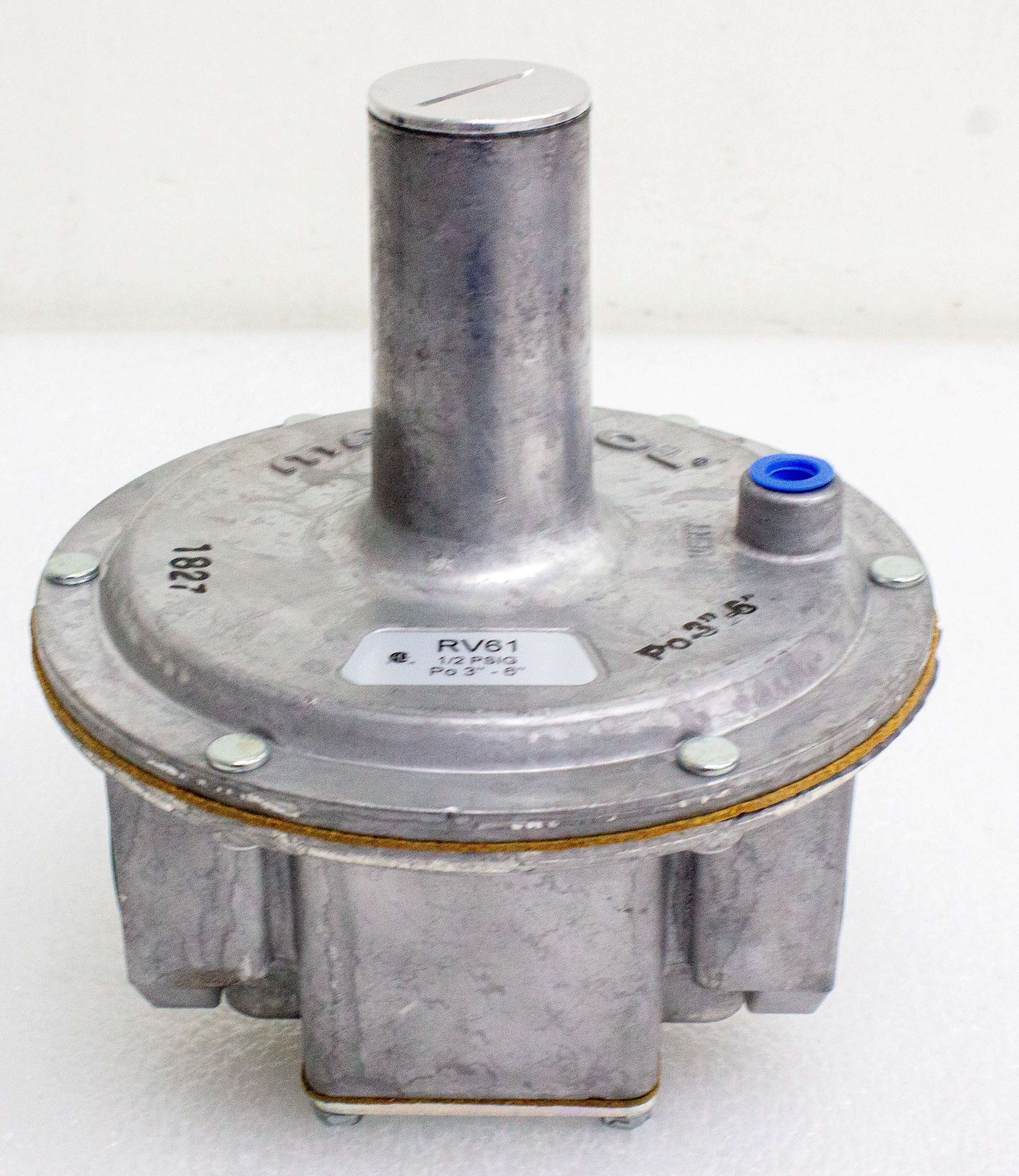

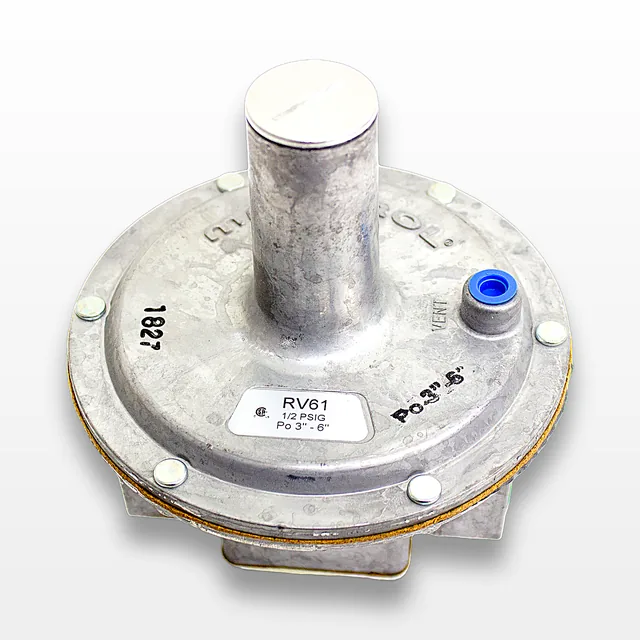

This used Maxitrol RV61 Straight Thru Flow Gas Pressure Regulator, manufactured by Maxitrol, is designed for high capacities at low inlet pressures, utilizing a unique conical valve for reduced flow resistance. Suitable for natural gas, LP (Propane), and other fuel gases, it is certified up to 1 PSIG inlet pressure and includes CSA certification. This robust regulator can operate in temperatures ranging from -40 to 200 degrees F and features a standard outlet range of 3-6" WC. Although unable to be fully tested, it appears functional, with no known functionality issues and some signs of cosmetic wear. Ideal for various industrial and laboratory applications, the regulator must be mounted in an upright position to function optimally.
Key Features
- Maxitrol RV61 Straight Thru Flow design
- High-capacity at low inlet pressures
- Conical valve for reduced flow resistance
- Suitable for all fuel gases and noncorrosive gases
- Operational temperature range: -40 to 200 F
- Standard outlet range: 3-6" WC
- Maximum inlet pressure: 1 PSIG
- CSA certified
Specifications
- Manufacturer: Maxitrol
- Model: RV61
- Type: Gas Pressure Regulator
- Maximum Inlet Pressure: 1 PSIG
- Standard Outlet Range: 3-6" WC
- Temperature Rating: -40 to 200 degrees F
- Certifications: ANSI Z21.1880/CSA 6.3
- Minimum Regulation: 50 CFH
- Orientation: Upright Position
- Use with: Natural Gas or LP (Propane) Gas
Weight
Imperial: 3.6 Pounds
Metric: 1.63 Kilograms
Shipping Dimensions
Imperial: 7.2 lb x 7.2 lb x 8.4 lb
Metric: 18.29 cm x 18.29 cm x 21.34 cm
Harmonized Code
848110
Harmonized Code Details
Code 848110 - Valves, pressure-reducing. This code applies as the product is designed to reduce pressure in gas applications.
