SCIENiON sciFLEXARRAYER Liquid Handling System 120V 50/60Hz
SCIENiON
Details
-
CategoryLiquid Handling
-
Dimension29.0in x 65.0in x 26.0in
-
SerialN/A
-
Shipping TypeFreight
-
Voltage / Hertz120V / 50Hz/60Hz
Description

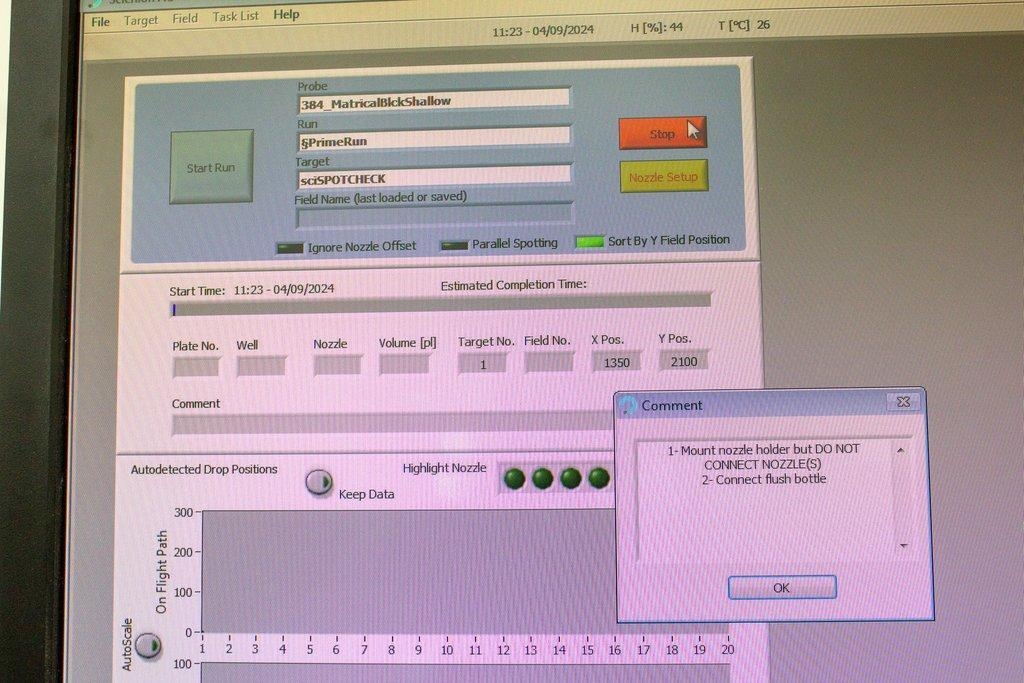

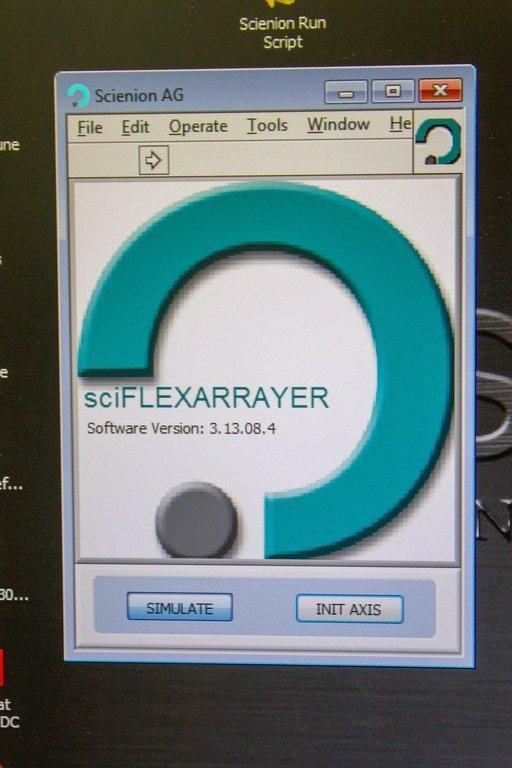

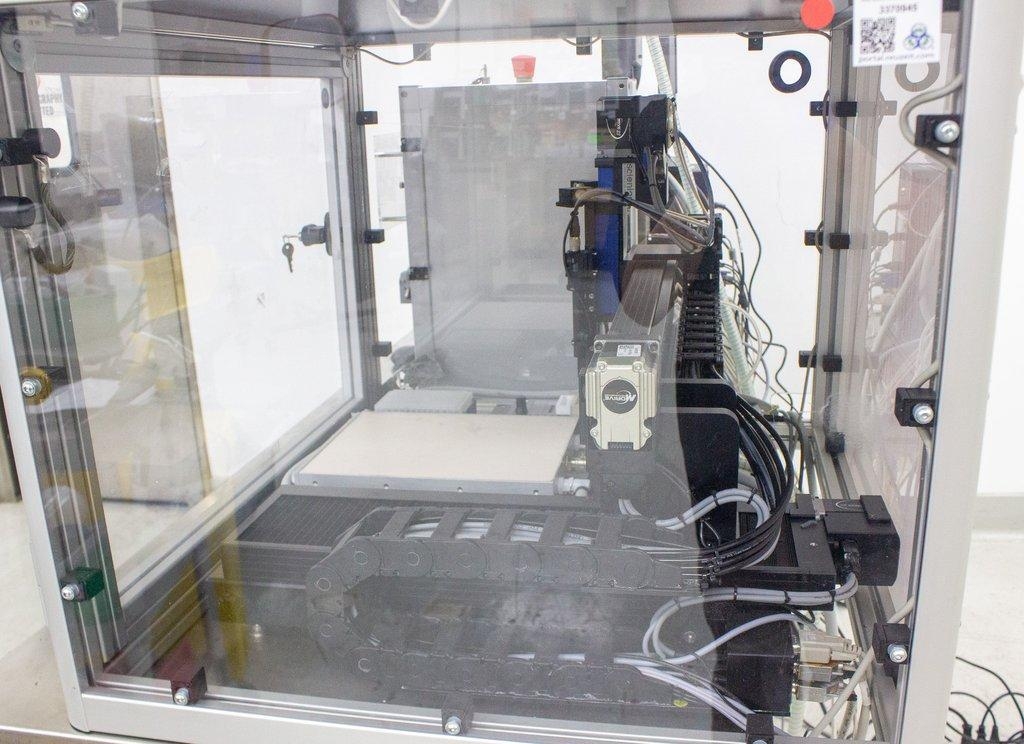

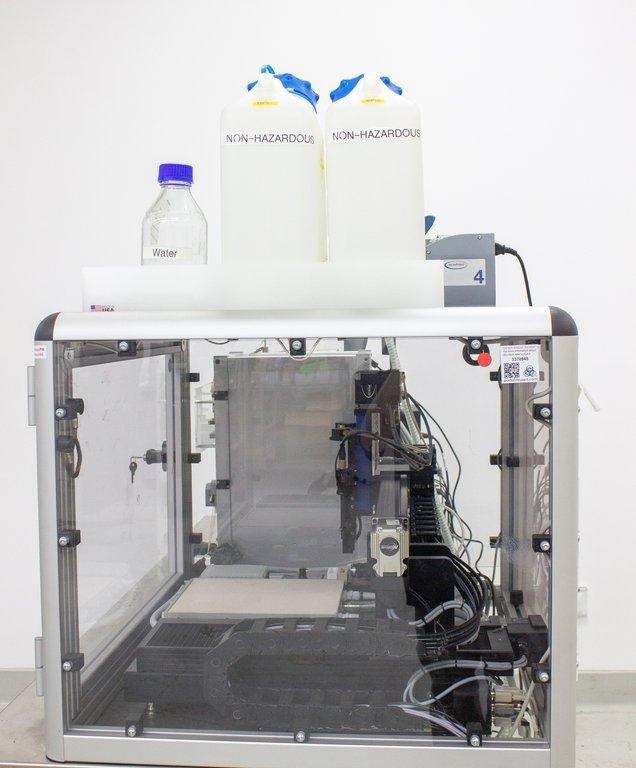

The SCIENiON sciFLEXARRAYER S3 is a pre-owned automated ultra-low volume liquid handling system, ideal for research and development applications. This system, manufactured in the United States, is designed for precise microdispensing tasks, supporting both picoliter and nanoliter dispensing modes. It features up to 8 dispensing capillaries with individual controls, high-speed XYZ spindle drives, and a head camera for position control and quality checks. The system includes a syringe pump, chiller, vacuum pump, and a PC with sciFLEXARRAYER V3.13 software installed. While the unit is in good overall condition with normal signs of use, further application-specific testing and calibration are recommended to ensure optimal performance for your specific needs.
Technician comment

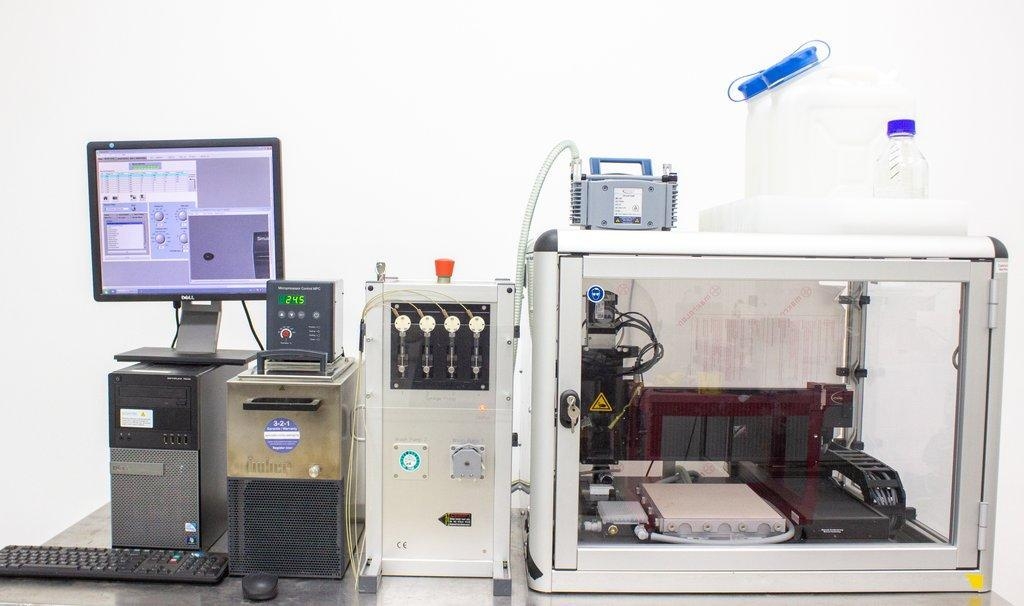

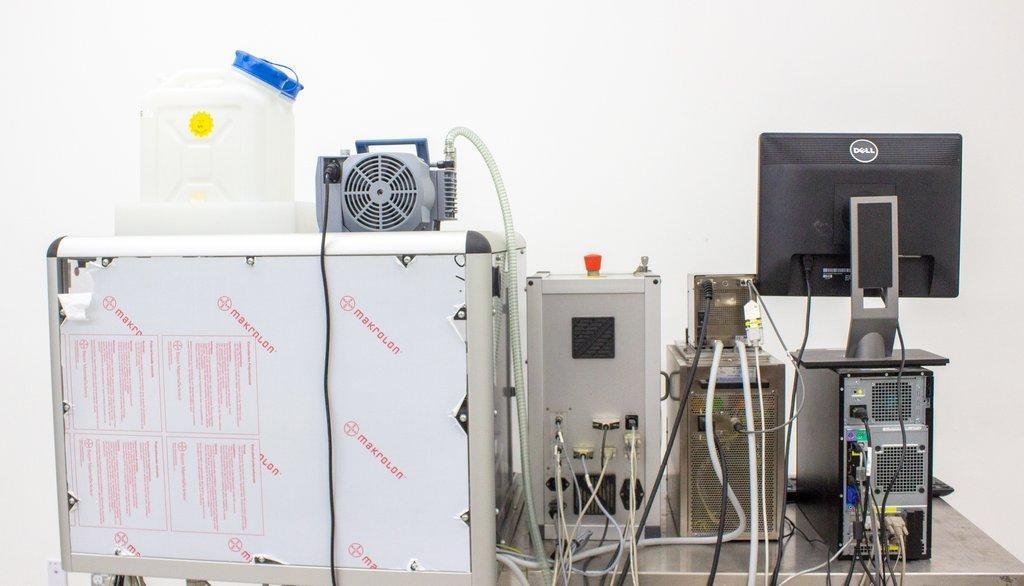

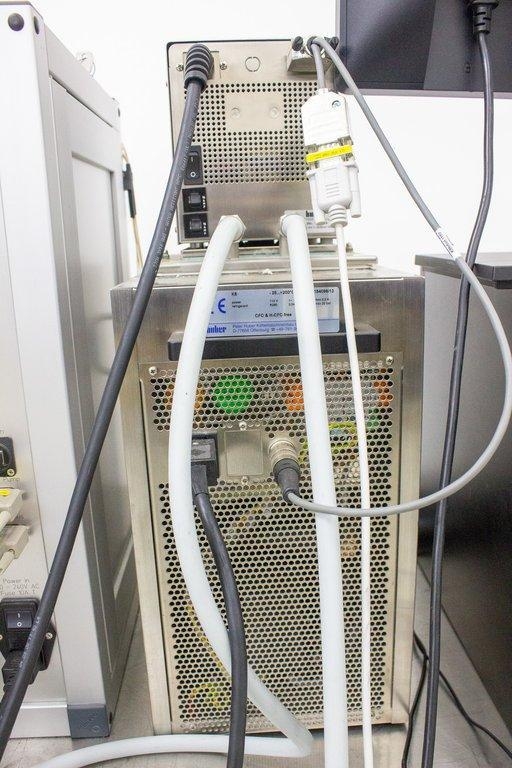

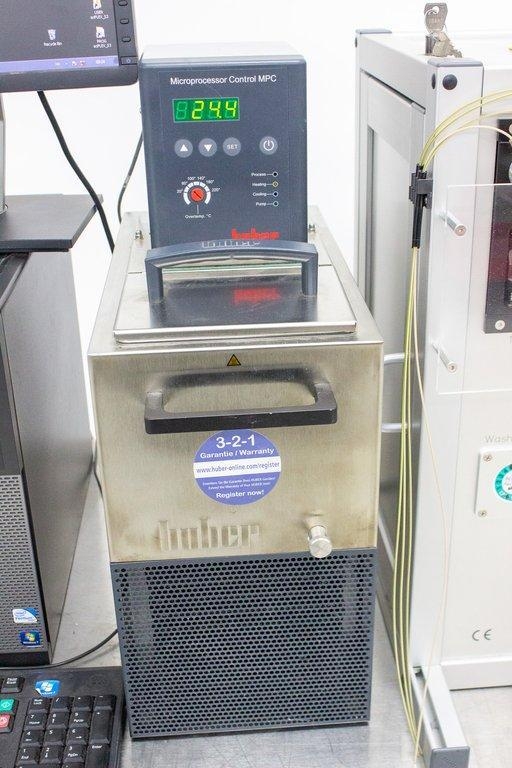

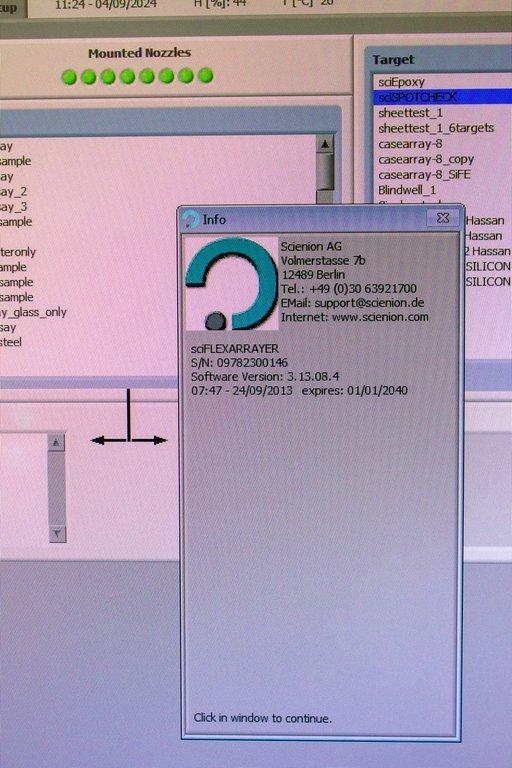

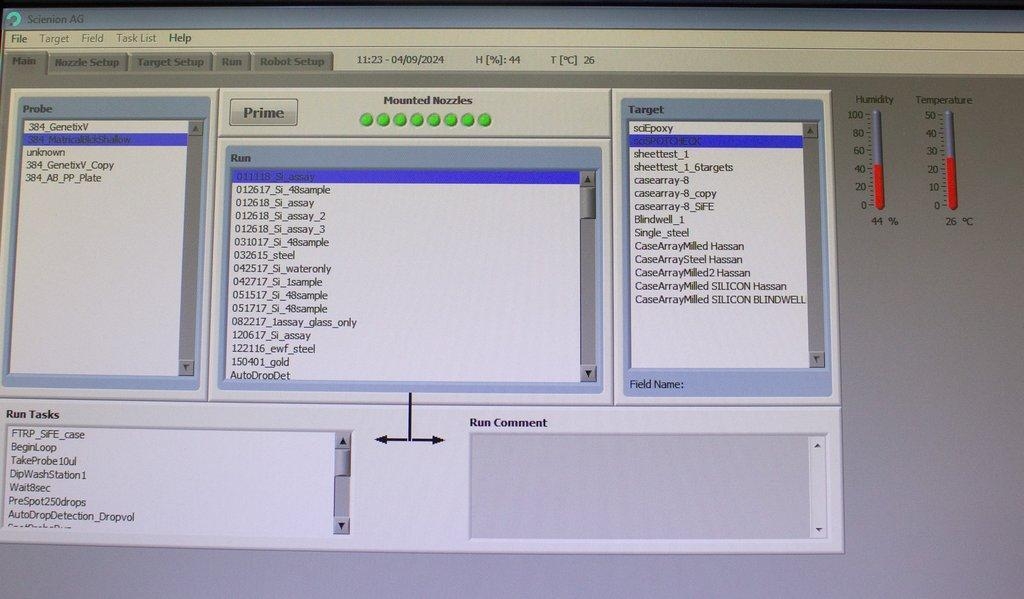

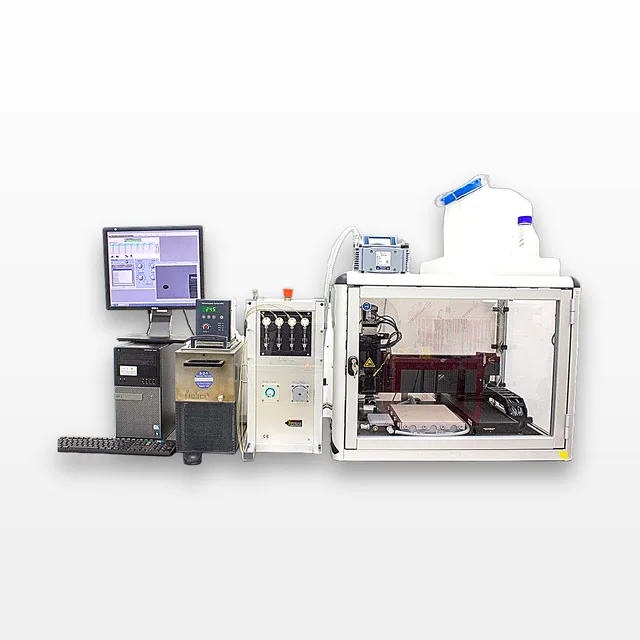

Instrument powers on, communicates with the software, and successfully initializes all axes. System tested to basic functionality with software communication verified. Includes sciFLEXARRAYER S3, syringe pump, chiller, vacuum pump, and PC with sciFLEXARRAYER V3.13 software installed. Unit is preowned and in good overall condition with normal signs of use. Further application-specific testing and calibration are recommended prior to use.
Key Features
- Up to 8 dispensing capillaries with individual controls

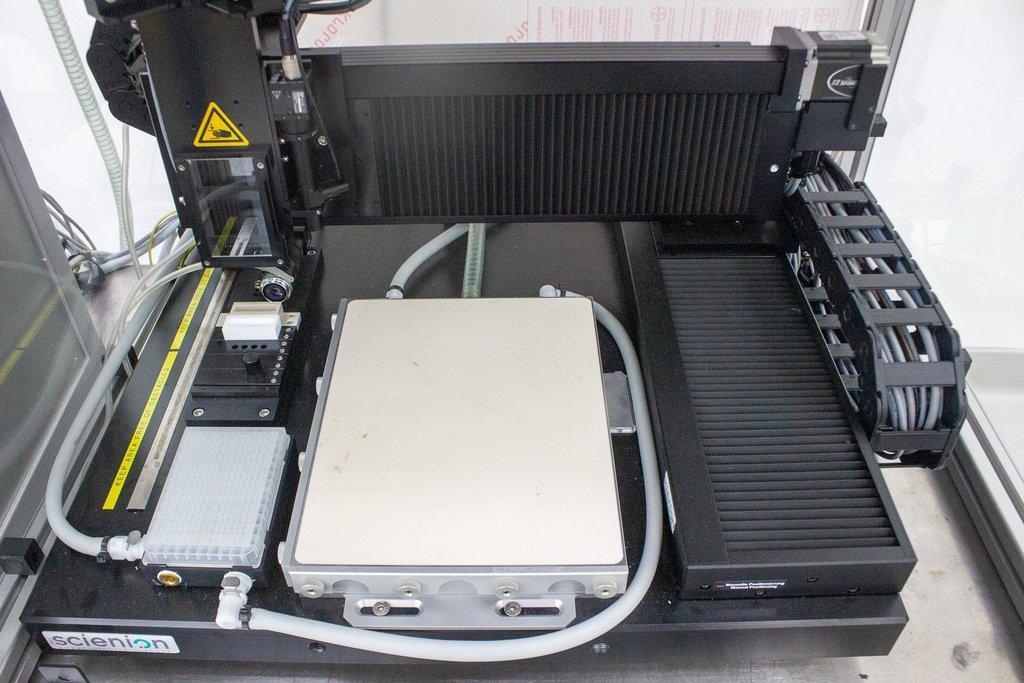

- High precision and high speed XYZ spindle drives

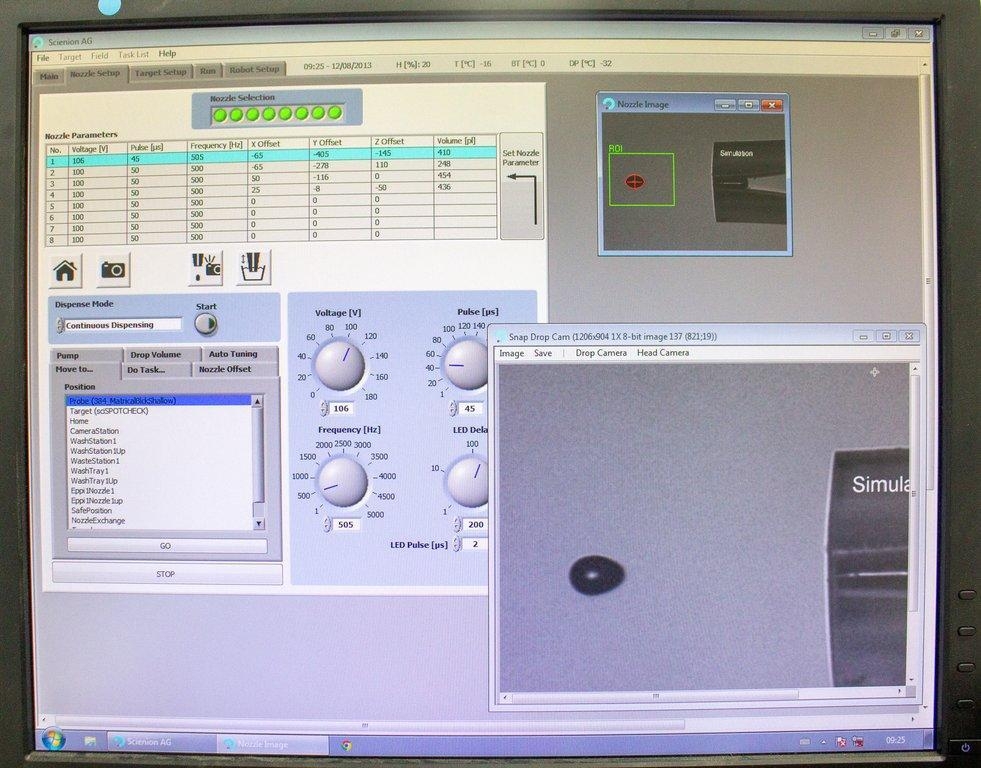

- Head camera for position control and QC
- Supports picoliter and nanoliter dispensing
- PC control with flexible run automation
Specifications
- Voltage: 120V
- Hertz: 50Hz/60Hz
- Dispense Volume: 30-800 pL/drop
- No. of Dispense Capillaries: From 1 to 8 PDC channels
- Distance Dispense Capillaries: 4.5 or 9 mm increments
- Target Holder: 200 x 300 mm or 246 x 300 mm
- Capacity: Up to 4 MTPs or 36 standard glass slides
- Resolution (step size): 5 µm
- Precision: < 5 µm
- Accuracy: < 15 µm
- Dimensions (L,W,H) with enclosure: 760 x 850 x 650 mm
- Weight: 130 kg
Weight
Imperial: 360.0 Pounds
Metric: 163.29 Kilograms
Shipping Dimensions
Imperial: 34.8 in x 78.0 in x 31.2 in
Metric: 88.39 cm x 198.12 cm x 79.25 cm
Harmonized Code
847989
Harmonized Code Details
Machines and mechanical appliances having individual functions, not specified or included elsewhere. This classification is due to the system's specialized function as a liquid handling device for laboratory use.
