JORESTECH l E-CBS-630D Band Sealer, 120V, 60Hz, Dual-Fit, Motorized Belt
JORESTECH
Details
-
CategoryProduction / Manufacturing
-
Dimension15.0in x 33.0in x 12.0in
-
Serial1111220116470
-
Shipping TypeFreight
-
ManufacturingDoes Not Apply
-
Voltage / Hertz120V / 60Hz US
Description

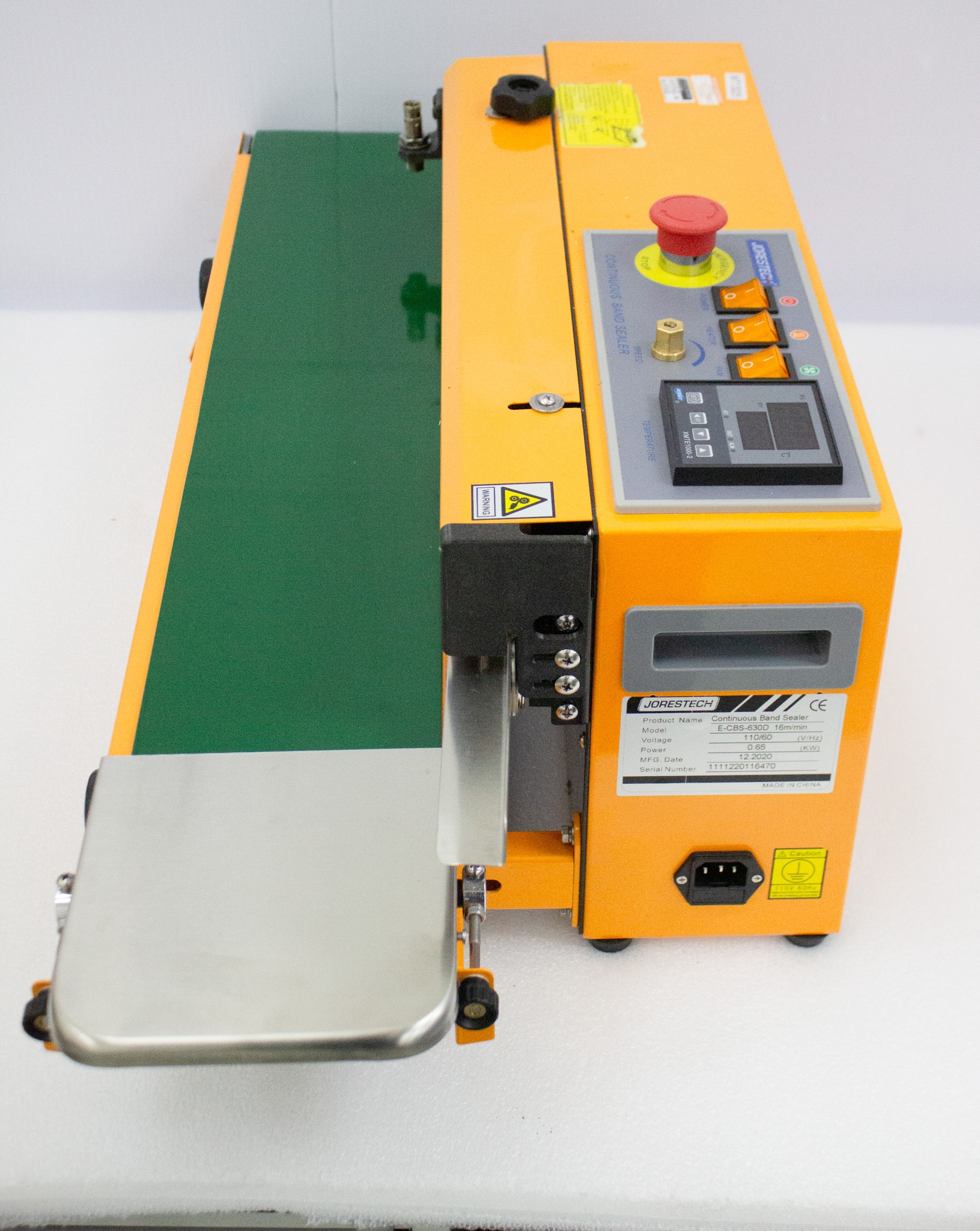

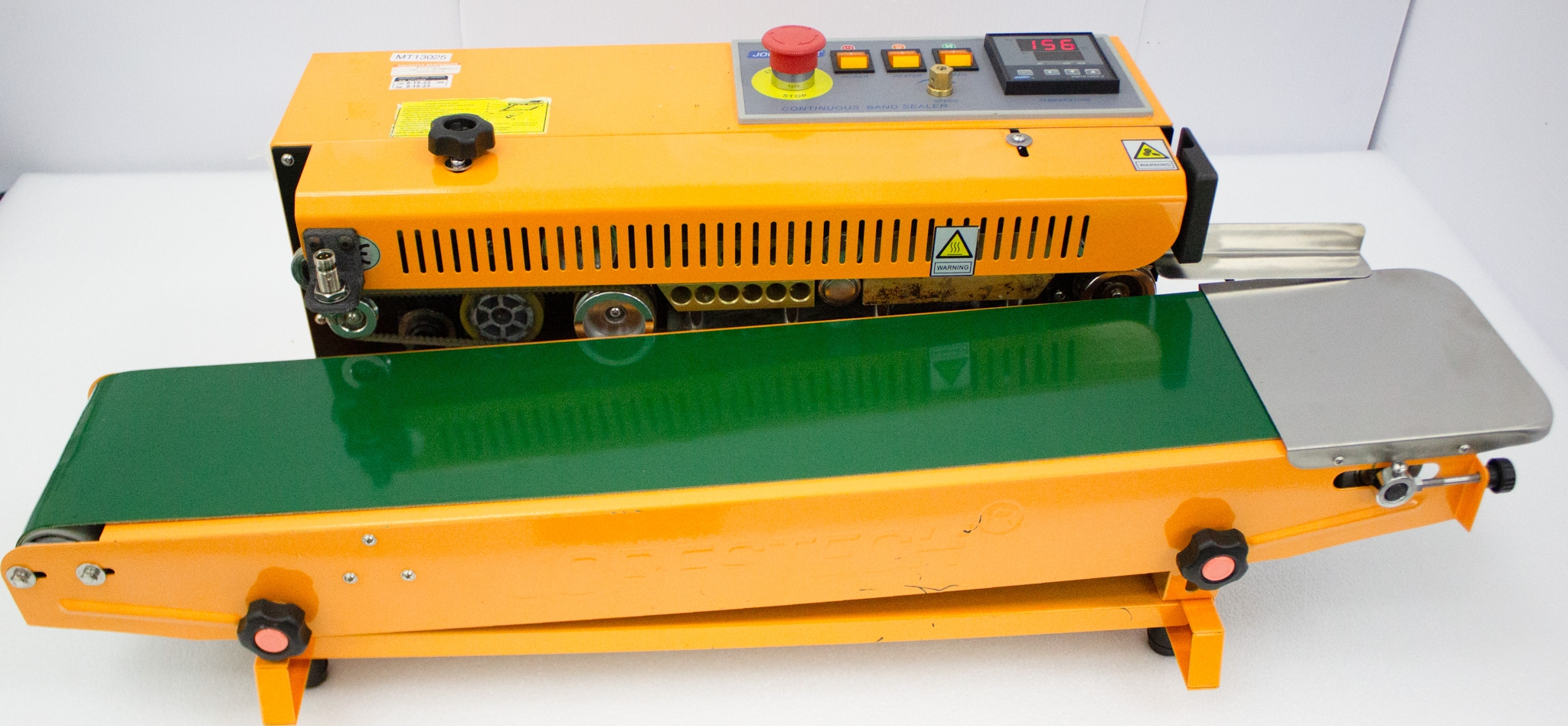

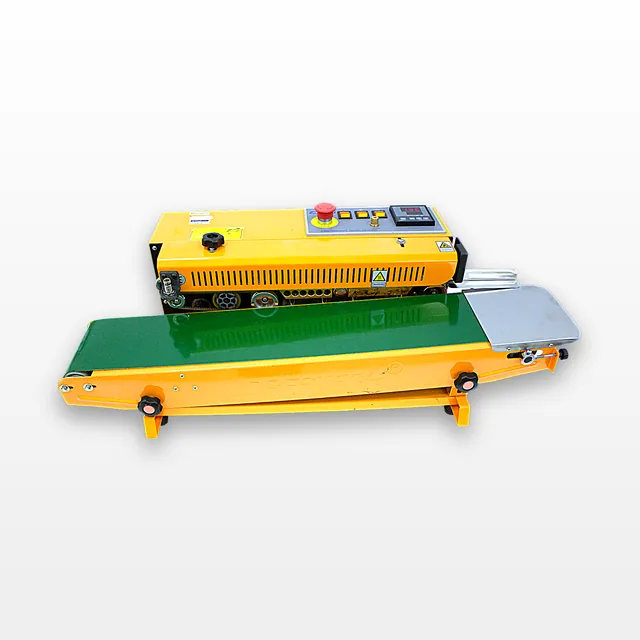

The JORESTECH Continuous Band Sealer Model l E-CBS-630D is an industrial-grade machine designed for medium-duty continuous bag sealing applications. Tested to meet operational specifications, it efficiently seals thermoplastic materials using a dual-fit system for both horizontal and vertical operation. With minor cosmetic wear from normal use, this used sealer provides strong, precise airtight seals, making it ideal for a wide range of bag formats such as sachets, stand-up pouches, and gusseted bags. It features a motorized conveyor with adjustable speed, capable of sealing bags at speeds up to 12 meters per minute. Constructed from metal with electrostatic coating, it is equipped with essential safety features like an E-stop and fuse/breaker protection.
Key Features
- Dual-Fit Horizontal and Vertical Operation
- Supports Various Thermoplastic Materials
- Motorized Conveyor with Adjustable Speed
- Capable of 12 m/min Sealing
- Seal Width 10mm
- E-Stop for Safety
Specifications
- Operation: Semi-Automatic
- Power Type: Constant Heat
- Seal Width: 10 mm / 3/8 in

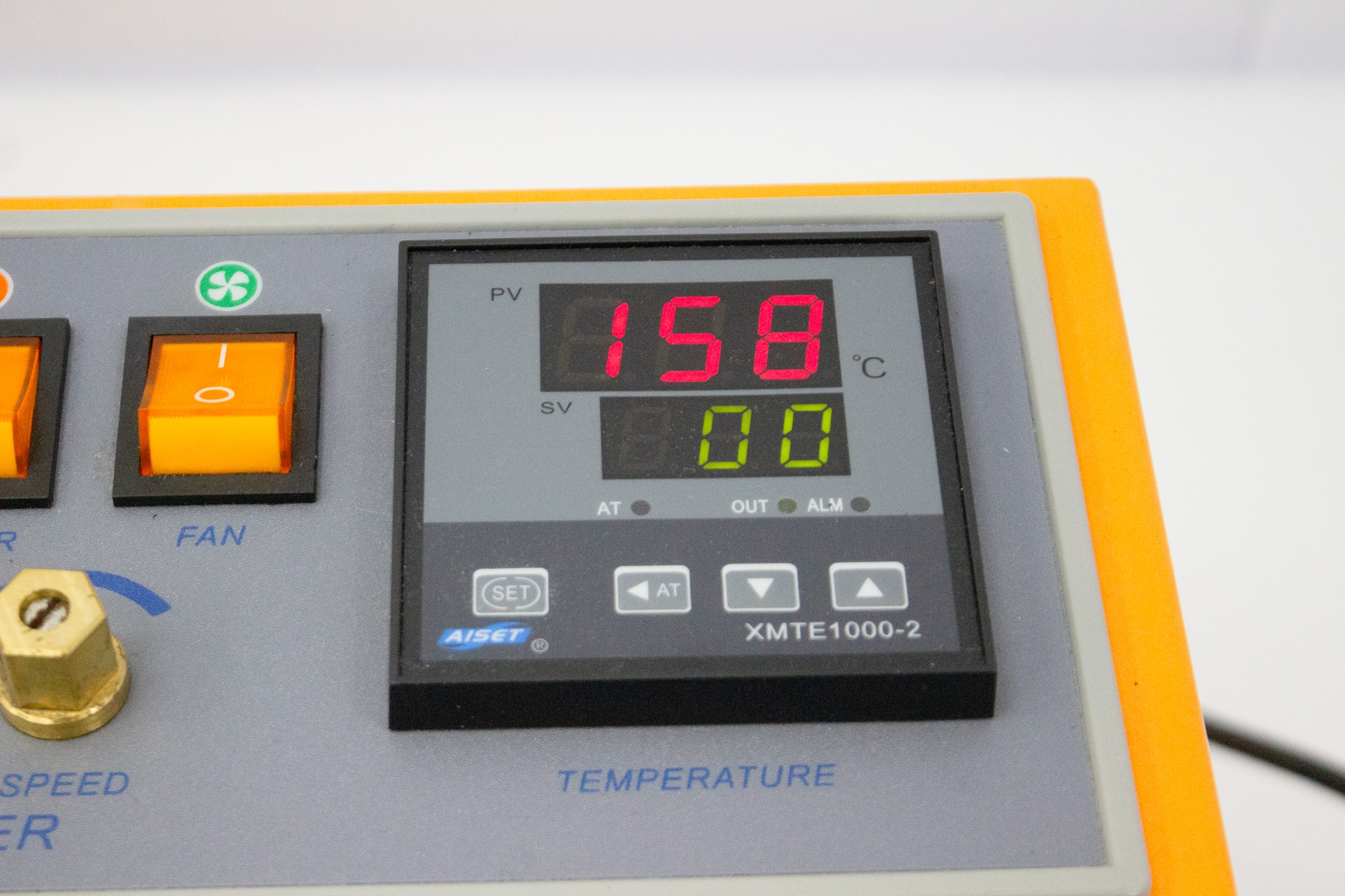

- Temperature Range: 0 - 300 c
- Voltage: 110V/50-60Hz
- Wattage/Amps: 650W/5.9 A
- Conveyor Width: 13.5 cm / 5.3 in
- Plug Type: NEMA 5-15P
- Construction: Metal w/ Electrostatic Coating
- Max Bag Weight: 1 kg / 2.2 lbs
- Cooling Feature: Yes
Weight
Imperial: 60.0 Pounds
Metric: 27.22 Kilograms
Shipping Dimensions
Imperial: 18.0 lb x 39.6 lb x 14.4 lb
Metric: 45.72 cm x 100.58 cm x 36.58 cm
Harmonized Code
84224000
Harmonized Code Details
Harmonized code 84224000: This code is for machinery for packing or wrapping. The JORESTECH Band Sealer is used for sealing plastic bags, fitting the description of this category.
