Thermo Scientific 013010A Orion 4-Cell Conductivity Electrode for Meters
Thermo Scientific
Details
-
CategoryMeter
-
Dimension11.0in x 9.0in x 3.0in
-
Serialn/a
-
Shipping TypeFedEx Ground
-
ManufacturingDoes Not Apply
-
Voltage / HertzDoes Not Apply / Does Not Apply
Description

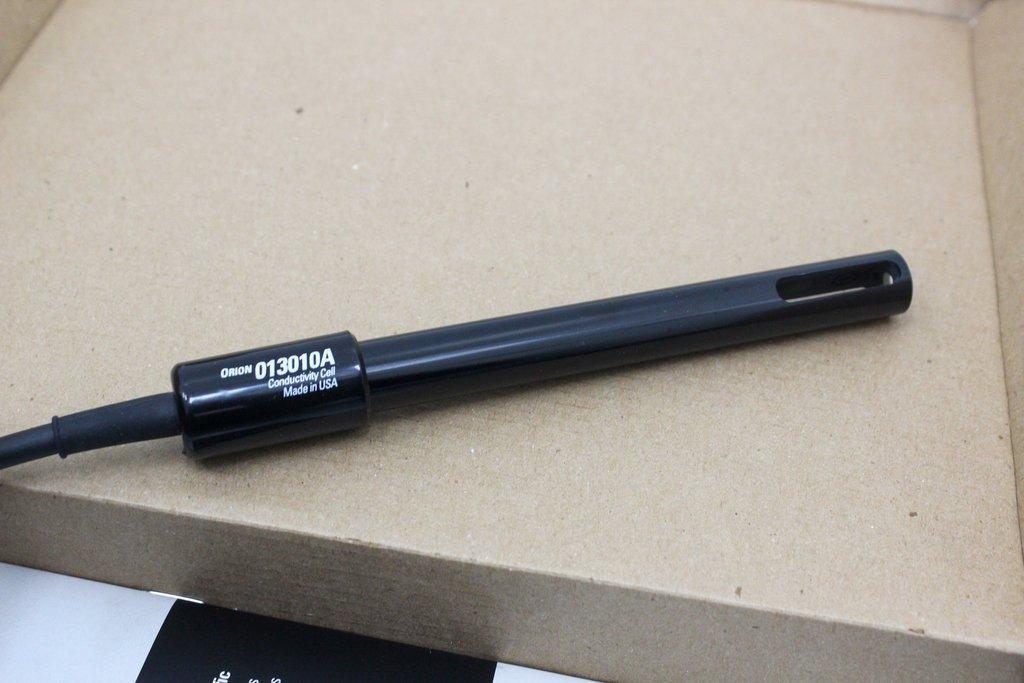

The Thermo Scientific 013010A Orion 4-Cell Conductivity Electrode Graphite is a refurbished, fully functional turnkey system designed for precision measurements. It is compatible with Star A112, Star A122, Star A212, Star A215, Star A222, Star A322, Star A325, Star A329, Versa Star, and Versa Star Pro Conductivity Meters. The system features a 4-electrode graphite cell with a cell constant of 0.475 cm^-1, waterproof 8-Din connector, epoxy-bodied graphite construction, and a built-in ATC temperature sensor. With a measurement range of 1 µS/cm to 200 mS/cm, it is optimized for a variety of conductivity measurement applications. The electrode has a minimum immersion of 35 mm and includes a 10-foot cable for flexible positioning. Item is like new and comes in an open case as shown in the photos.
Technician comment

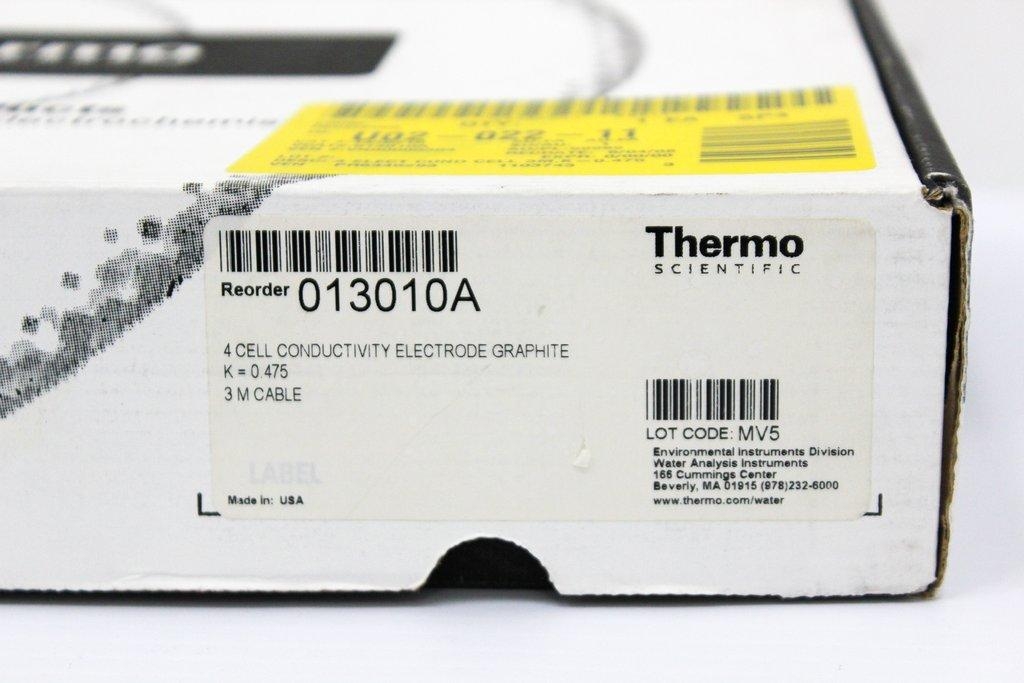

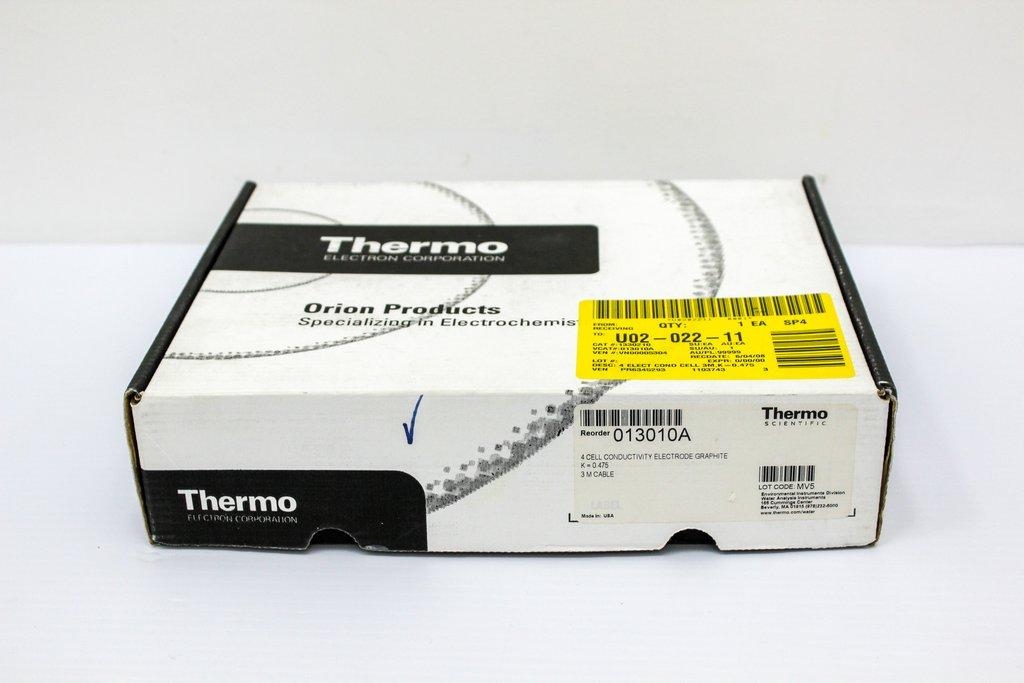

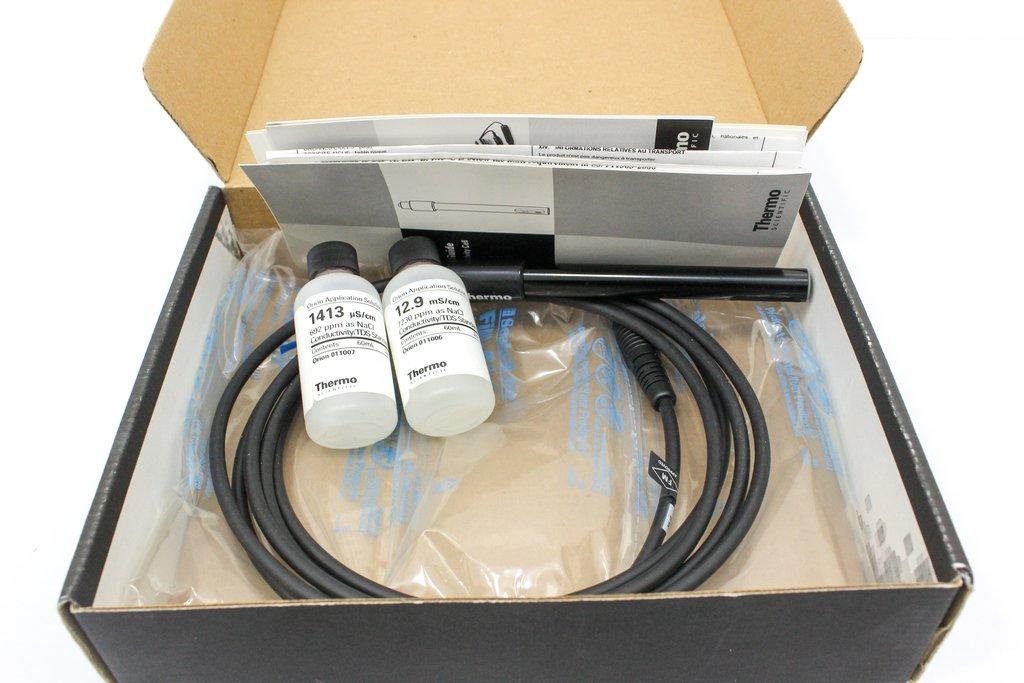

Item like new in open case. All in pictures is included. See photos
Key Features
- Compatible with various Star Conductivity Meters
- 4 Electrode Graphite Cell
- 0.475 cm^-1 cell constant
- Epoxy-bodied with waterproof 8-Din connector
- Measurement range: 1 µS/cm to 200 mS/cm
Specifications
- 4-Electrode Conductivity Cell
- Waterproof 8-Din Connector
- 8-pin Mini-DIN
- Diameter: 0.59 in. (15 mm)
- Cable Length: 10 ft. (3 m)
- Material: Epoxy-Body
- Measurement Ranges: 1 µS/cm to 200 mS/cm
- Min. Immersion: 35 mm
- Storage: Store in distilled or deionized water; rinse and store dry for long-term
- Built-in ATC temperature sensor
Weight
Imperial: 2.4 Pounds
Metric: 1.09 Kilograms
Shipping Dimensions
Imperial: 13.2 lb x 10.8 lb x 3.6 lb
Metric: 33.53 cm x 27.43 cm x 9.14 cm
Harmonized Code
90279050
Harmonized Code Details
90279050: Parts and accessories of instruments and apparatus for measuring or checking flow, level, pressure or other variables of liquids or gases, chromatographs and electrophoresis instruments. Appropriate for this conductivity electrode as it is used for measuring conductivity, a variable of liquids.
