BeverageAir Model 49B34S Refrigeration System Assembly Good Condition 115V 60Hz
Beverage-Air
Details
-
CategoryChiller / Heater
-
Dimension24.0in x 32.0in x 19.0in
-
Serial100365H01
-
Shipping TypeFedEx Ground
-
ManufacturingDoes Not Apply
-
Voltage / Hertz120V / 50Hz/60Hz
Description
The Beverage-Air Model 49B34S475D-01 Refrigeration System Assembly, manufactured in the United States, appears to be in good working condition as noted in a detailed visual inspection. Unable to perform a full test, it powers on and completes basic tests successfully. Housed in a sturdy wooden crate, this system offers reliable performance with components including an Electric Motors & Specs motor, a Tecumseh compressor, and a functional fan assembly. The motor operates on 115V at 60Hz with a rotational speed of 1550 RPM. The fan employs a three-blade configuration, and the system's compressor is shielded by thermal protection and functions with R-134A refrigeration. The entire assembly is a prime fit for industrial and laboratory settings where durable refrigeration solutions are necessary. Important specifications include the size of coils: Evaporator Coil measures 23" x 4" x 7", while the Condenser Coil is sized at 13" x 3" x 11". With locked rotor amperage of 44.5, this robust refrigeration system will meet the cooling demands of your environment.
Technician comment

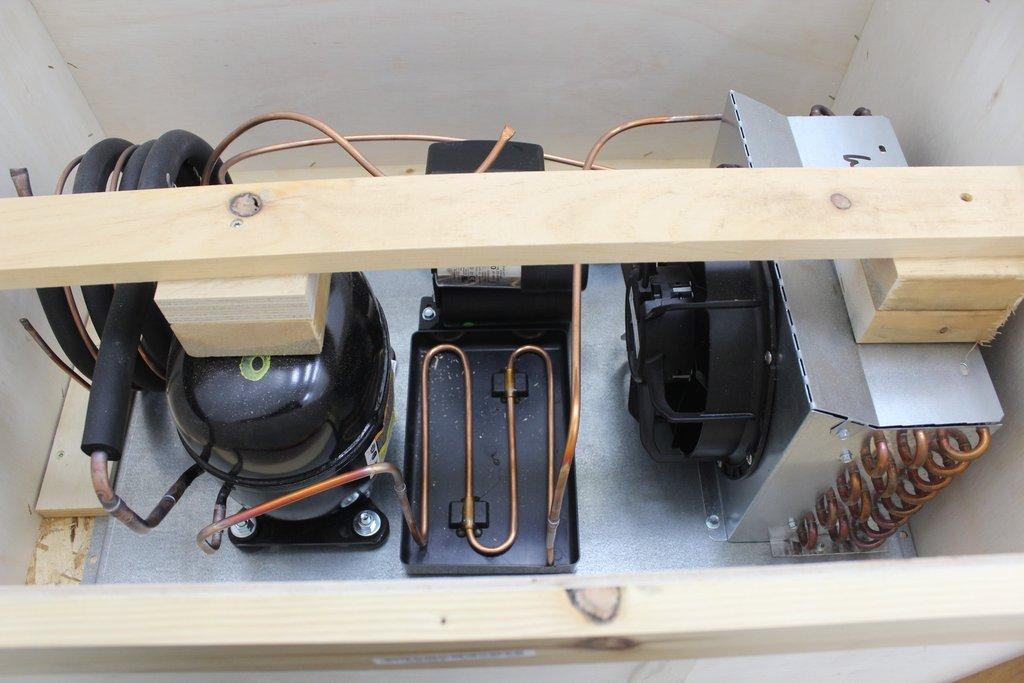

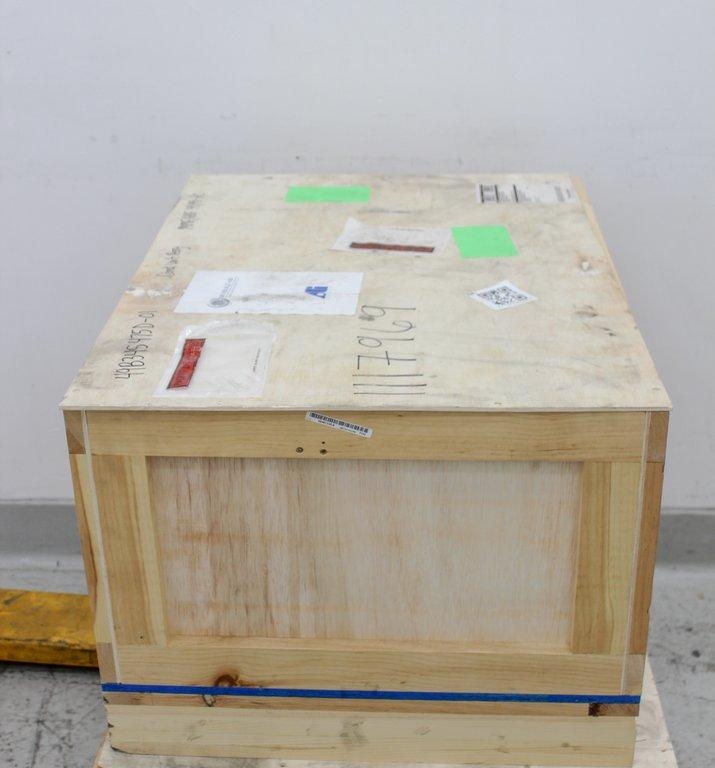

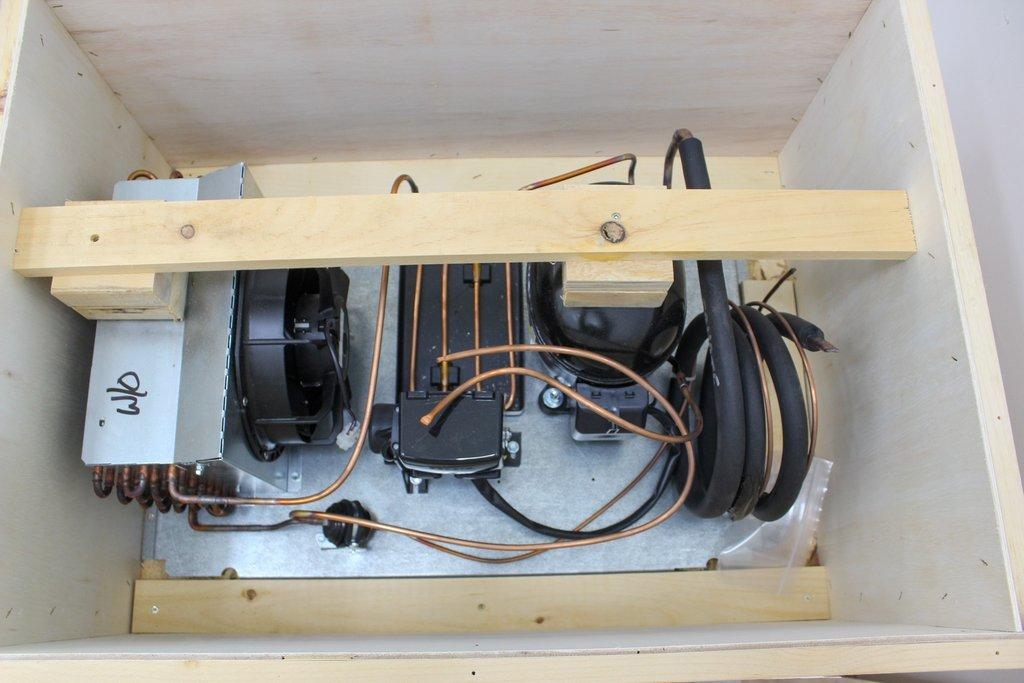

Refrigeration System Assembly Replacement Part in wood crate. Looks in excellent conditions. See photos
Key Features
- 115V motor with 60Hz frequency and 1550 RPM
- Tecumseh compressor with thermal protection
- R-134A refrigeration type
- Operational fan assembly with three-blade design
- Durable design ideal for commercial use
- Evaporator Coil 23" x 4" x 7", Condenser Coil 13" x 3" x 11"
Specifications
- Motor Specifications: Electric Motors & Specs, 115V, 60Hz, 1550 RPM, Class B
- Fan Specifications: 3 Blades, Clockwise Lead End
- Un-insulated Line Set Length: 80"
- Evaporator Coil Dimensions: 23" x 4" x 7"
- Condenser Coil Dimensions: 13" x 3" x 11"
- Compressor Specifications: Manufacturer: Tecumseh, Model: TP217-AR-295-AZ, R-134A
- Start Capacitor: 220V, 216-259 Microfarad, 50/60Hz
Weight
Imperial: 144.0 Pounds
Metric: 65.32 Kilograms
Shipping Dimensions
Imperial: 28.8 lb x 38.4 lb x 22.8 lb
Metric: 73.15 cm x 97.54 cm x 57.91 cm
Harmonized Code
8418.69.0020
Harmonized Code Details
8418.69.0020 - Refrigerators, freezers and other refrigerating or freezing equipment; heat pumps (other than air conditioning machines of heading 8415), other than household type; parts thereof: Other. This code is used as the equipment described is non-domestic refrigeration equipment suitable for scientific or industrial sectors.
