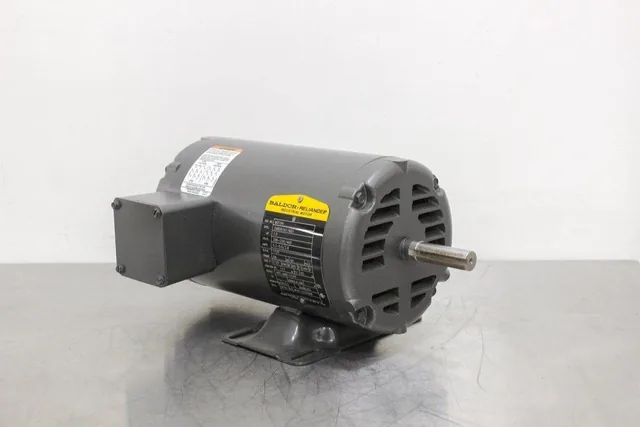

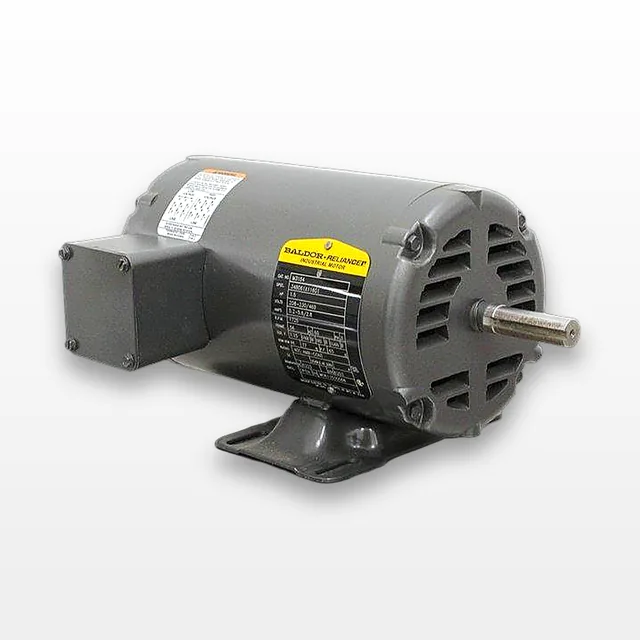

Baldor Reliance M3154 Motor 3-Phase Steel Frame 1.5HP 1725RPM 60Hz
Baldor Reliance
Details
-
CategoryMiscellaneous
-
Dimension12.0in x 16.0in x 11.0in
-
Serial34B061X116G1
-
Shipping TypeFedEx Ground
-
Voltage / Hertz208-230V / 50Hz/60Hz
Description
This Baldor Reliance M3154 Motor is a robust electrical motor designed for industrial applications. With a steel frame and operating in excellent condition, it offers a performance comparable to new. The motor is three-phase, providing a 1.5 HP output at a frequency of 60 Hz, with a synchronous speed of 1800 RPM and a typical speed of 1725 RPM. It can operate on voltages of 208V, 230V, and 460V. The motor is CURUS approved with a duty rating of continuous operation, making it versatile for various general-purpose industrial tasks. The design includes features like reversible shaft rotation and a rigid base, contributing to its durability and flexibility. Its efficient operation ensures optimal power use, making it a reliable choice for your power needs.
Technician comment
Looks like new in open case. Buyer can expect same unit as pictures. See photos
Key Features
- Three-Phase Motor
- Steel Frame
- 1.5 HP Output
- 1725 RPM Speed
- CURUS Approved
- Reversible Shaft Rotation
- Continuous Duty Rating
Specifications
- Catalog Number: M3154
- Frame: 56
- Frame Material: Steel
- Frequency: 60 Hz
- Motor Type: 3432M
- Output @ Frequency: 1.500 HP @ 60 HZ
- Voltage @ Frequency: 208V, 230V, 460V @ 60 HZ
- Synchronous Speed: 1800 RPM
- Phase: 3
- Efficiency @ 100% Load: 77%
- Insulation Class: B
- Mounting Arrangement: F1
- Overall Length: 12.25 IN
- Pulley End Bearing Type: Ball
- Power Factor: 65
- Service Factor: 1.15
Weight
Imperial: 42.0 Pounds
Metric: 19.05 Kilograms
Shipping Dimensions
Imperial: 14.4 lb x 19.2 lb x 13.2 lb
Metric: 36.58 cm x 48.77 cm x 33.53 cm
Harmonized Code
8501.52.4040
Harmonized Code Details
Code 8501.52.4040 covers AC motors multi-phase, with an output exceeding 750 W but not exceeding 1,800 W. This classification is suited given the motor's 1.5 HP output, equivalent to approximately 1,120 W, and its three-phase operation.
