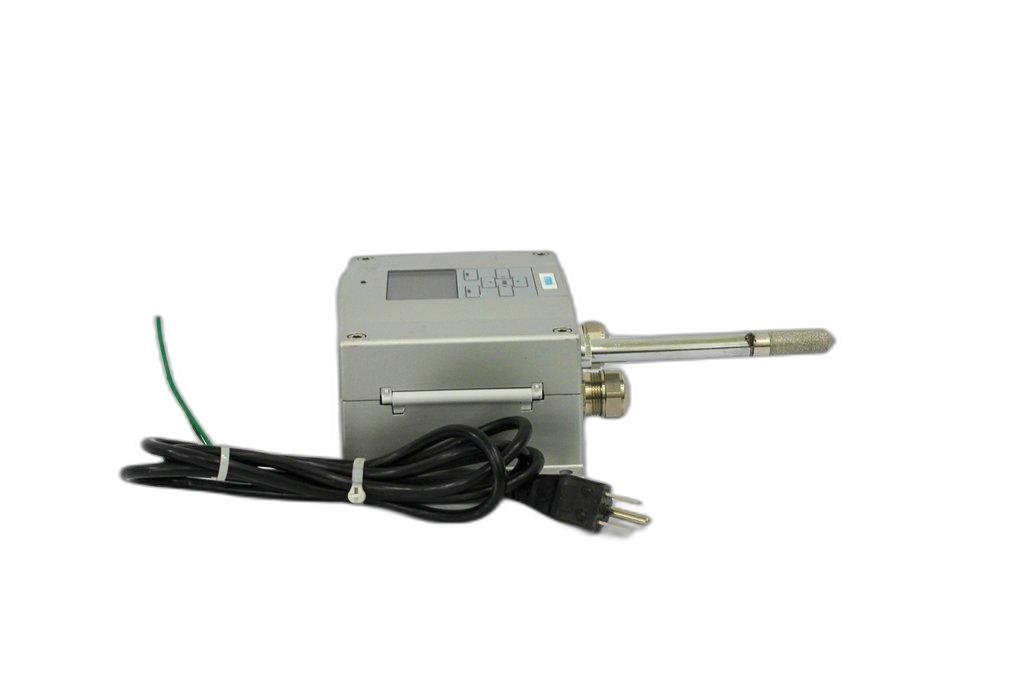

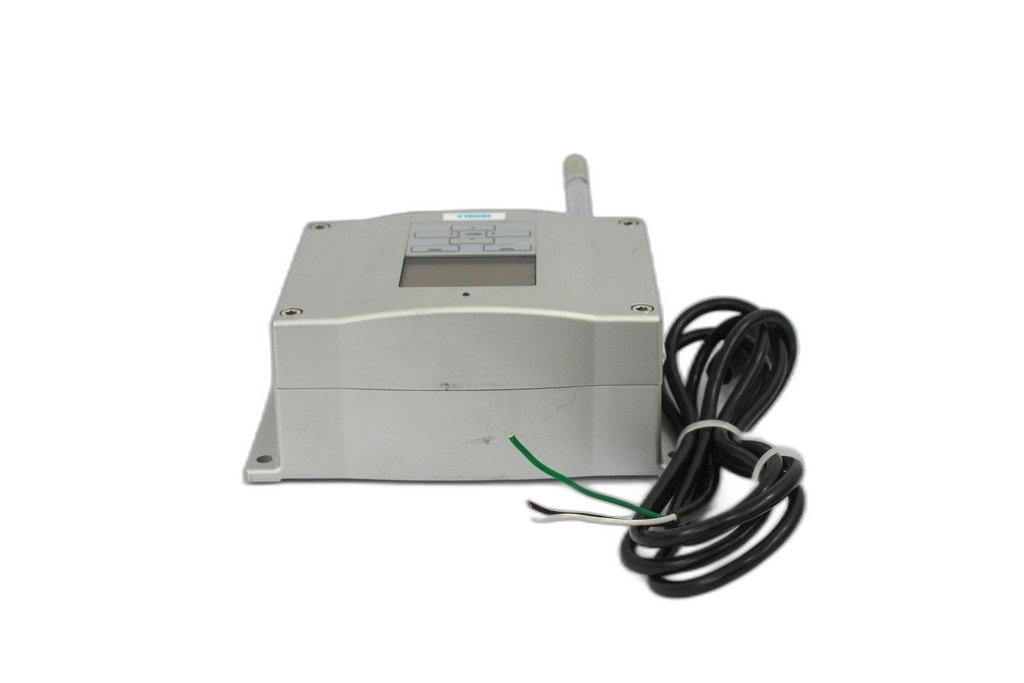

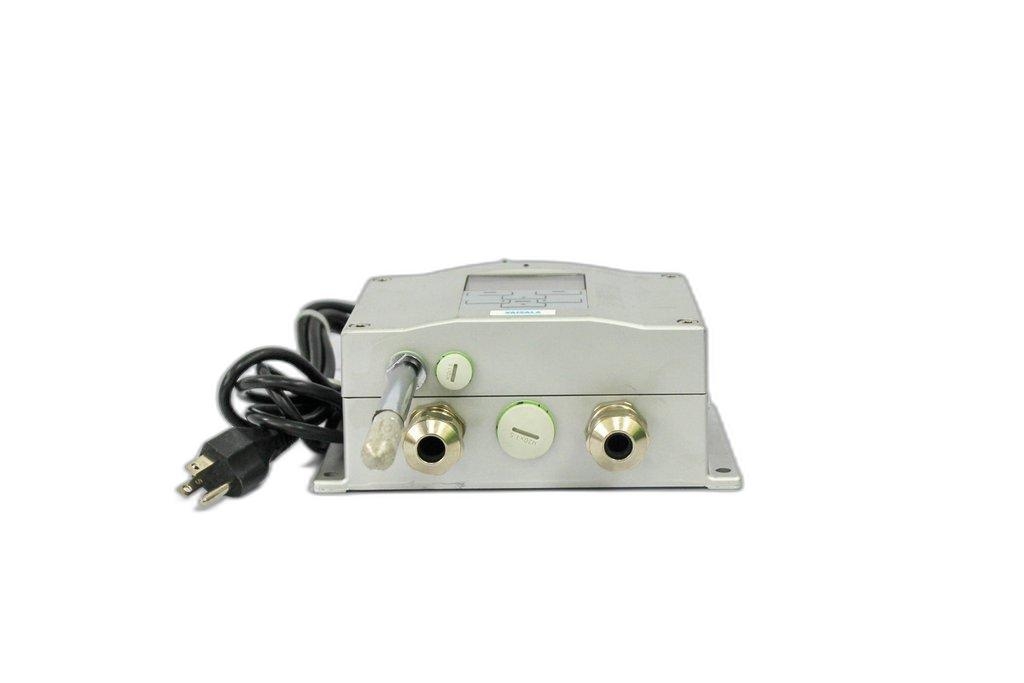

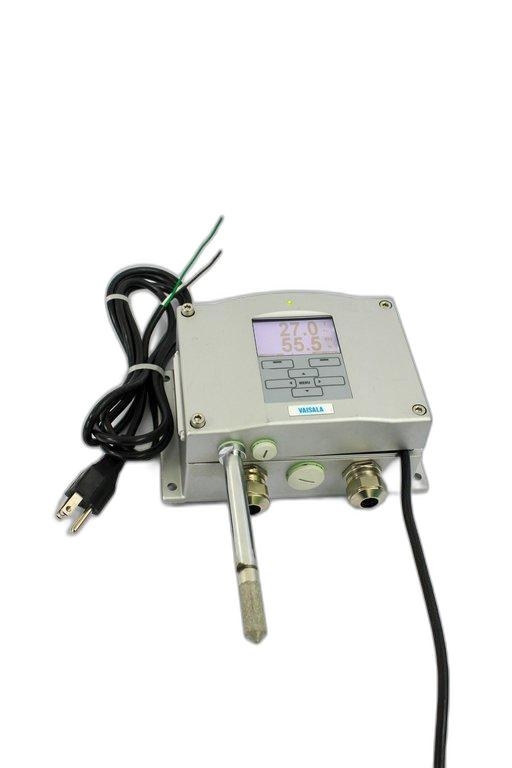

Vaisala DMT 340 Dewpoint Temperature Transmitter - Used
Vaisala
Details
-
CategoryMeter
-
Dimension8.0in x 3.0in x 10.0in
-
SerialS3850432
-
Shipping TypeFedEx Ground
-
Manufacturing2020-01-01
-
Voltage / Hertz100-240V / 50Hz/60Hz
Description
This Vaisala DMT340 Dew Point and Temperature Transmitter, manufactured in 2020, is designed for demanding industrial applications with dry conditions. It excels in settings like compressed air drying and metal treatment, offering reliable and accurate measurements with long-term stability in dew points down to -60°C. The DRYCAP sensor resists particulate contamination, water condensation, oil vapor, and most chemicals. Despite cosmetic wear, it powers on without issues and is fully functional although comprehensive testing was not performed. It includes a power cord for installation. With an LCD display and datalogging capability, this unit offers local or downloadable data access, automatic calibration, and adjustment functionalities.
Technician comment
Preowned item, powers on without issues. Has slight scratches all around from regular use. Power cord ready to be install. See photos for further details.
Key Features
- Designed for dry industrial applications
- Dew point stability down to -60°C
- DRYCAP sensor technology

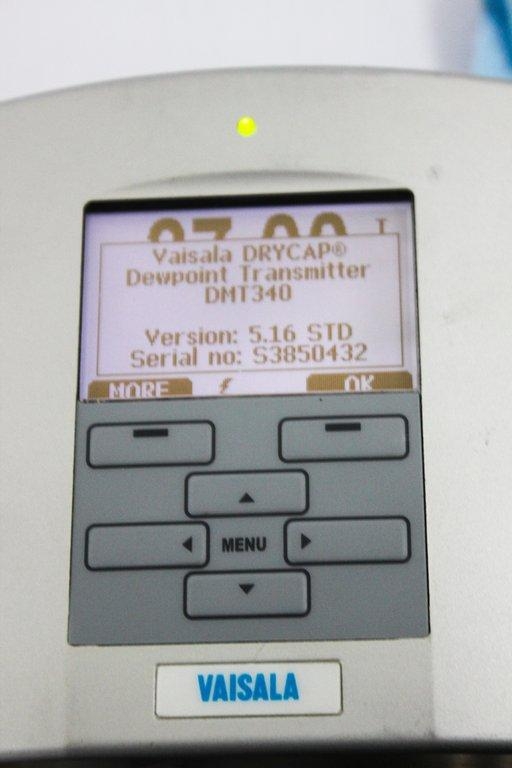

- LCD display with menu-based interface
- Auto-calibration functionality
- Data logging capability
Specifications
- Min RH Range: 0%
- Max RH Range: 70%
- RH Accuracy: 0.004% RH at 20% of reading
- Min Temperature: 0°C
- Max Temperature: 80°C
- Temperature Accuracy: 0.2°C
- Min Dew Point Range: -60°C
- Max Dew Point Range: 80°C
- Response Time: 30 seconds
- Output: 4-20mA
- Power: 100-240V, 50Hz/60Hz, 10 to 35 VDC
Weight
Imperial: 4.8 Pounds
Metric: 2.18 Kilograms
Shipping Dimensions
Imperial: 9.6 lb x 3.6 lb x 12.0 lb
Metric: 24.38 cm x 9.14 cm x 30.48 cm
Harmonized Code
90259000
Harmonized Code Details
Harmonized code 90259000 covers instruments and apparatus for measuring or checking variables of liquids or gases. This code was chosen because the product measures dew points and temperatures within industrial environments.
