Vaisala DMT 340 Temperature and Dewpoint Transmitter - Used, 100-240V
Vaisala
Details
-
CategoryMeter
-
Dimension8.0in x 3.0in x 10.0in
-
SerialS2240101
-
Shipping TypeFedEx Ground
-
Manufacturing2020-01-01
-
Voltage / Hertz100-240V / 50Hz/60Hz
Description

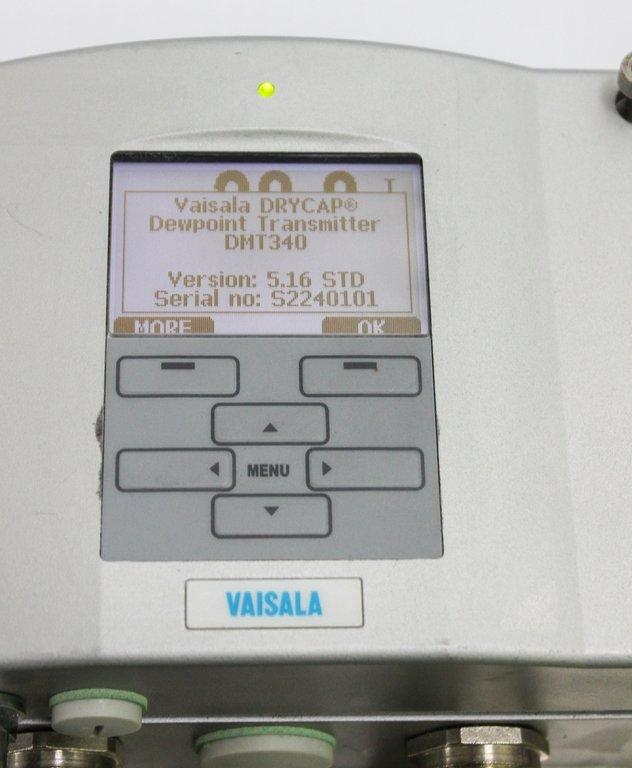

The Vaisala DMT340 Dewpoint and Temperature Transmitter is designed for precision measurement in demanding industrial environments. Manufactured by Vaisala in 2020, this transmitter offers outstanding reliability with long-term stability, suitable for applications such as compressed air drying and metal treatment. Equipped with DRYCAP sensor technology, it withstands particulate contamination and water condensation. This used unit, which powers on without issues, features an LCD display and a menu-based user interface, providing accurate dew point and temperature data logging over a year. Although not fully tested, it shows no signs of malfunction and includes a power cord for immediate setup.
Technician comment

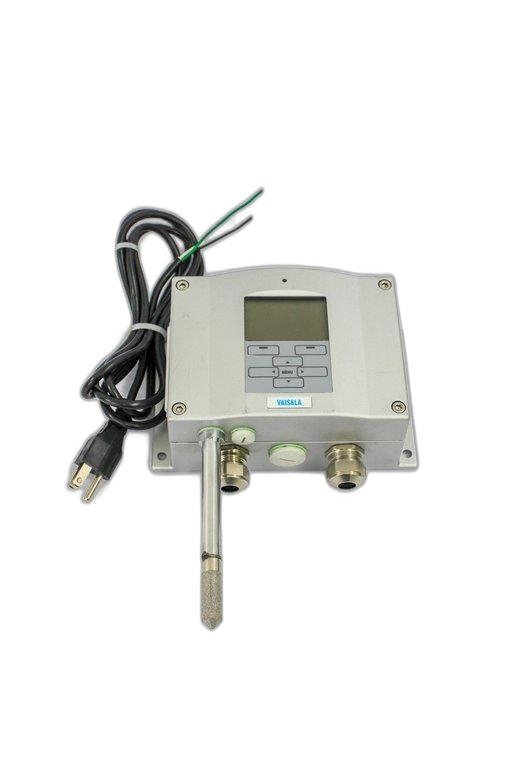

Preowned item, powers on without issues. Has slight scratches all around from regular use. Power cord ready to be install. See photos for further details.
Key Features
- Designed for industrial applications
- DRYCAP sensor technology
- Reliable long-term stability
- LCD display with easy-to-use interface
- Data logging and local history viewing capability
- Auto-calibration function
Specifications
- Min RH Range: 0%
- Max RH Range: 70%
- RH Accuracy: 0.004% RH at 20% of reading
- Min Temperature: 0°C (32°F)
- Max Temperature: 80°C (176°F)
- Temperature Accuracy: ±0.2°C
- Min Dew Point Range: -60°C (-76°F)
- Max Dew Point Range: 80°C (176°F)
- Response Time: 30 seconds
- Display Type: LCD
- Output: 4-20mA
- Power (VDC): 10 to 35
- Dimensions: Height 4 1/2 in, Width 7 1/4 in, Depth 3 in
- Voltage: 100-240V
- Hertz: 50Hz/60Hz
Weight
Imperial: 4.8 Pounds
Metric: 2.18 Kilograms
Shipping Dimensions
Imperial: 9.6 lb x 3.6 lb x 12.0 lb
Metric: 24.38 cm x 9.14 cm x 30.48 cm
Harmonized Code
9025.80.5000
Harmonized Code Details
9025.80.5000: Instruments and apparatus for measuring or checking the temperature, humidity, pressure, level or other variables of liquids or gases, including combined meters. This code is selected for units specific to temperature and dew point measurement.
