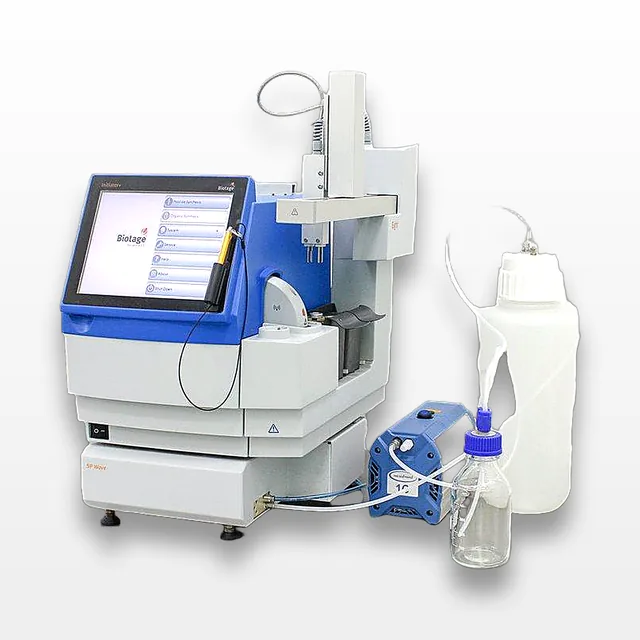

BIOTAGE Initiator+ SP Wave Microwave Peptide Synthesizer 40-100C 2-10mL
BIOTAGE
Details
-
CategoryMolecular Biology
-
Dimension26.0in x 22.0in x 28.0in
-
Serial154-44G
-
Shipping TypeFedEx Ground
-
Voltage / Hertz100-240V / 50Hz/60Hz
Description
The BIOTAGE Initiator+ SP Wave System is designed for precision in microwave-assisted peptide or organic synthesis. Manufactured in Sweden, this programmable synthesizer adapts to either peptides or organic syntheses, featuring temperature control from 40 to 100 ºC and variable vortex mixing (300-1300 rpm). Though the unit powers on and conducts basic tests, comprehensive testing requires additional accessories. The robotic arm efficiently accesses vials, and the digital syringe pump offers a volume range of 10 µl to 11 mL. It includes necessary components such as a vacuum pump and exhibits no known functionality issues, making it an ideal fit for laboratories seeking equipment for chemical synthesis applications.
Technician comment
Has been tested for power function only. The Robotic arm on right side respond without issues to access reaction vessels/vials. Instrument Error occurred may due for need accessories and other components as needle, reactors, reagents and solutions for fully test). See photos
Key Features
- Microwave-assisted peptide and organic synthesis
- Temperature range: 40-100 ºC
- Variable vortex mixer with speeds from 300-1300 rpm
- Digital syringe pump: 10 µl to 11 mL capacity
- Includes Vacuum Pump, ME 1C
Specifications
- Programmable temperature range: 40-100 ºC
- Temperature increase: Typically 2–5 ºC/sec
- Pressure: Operates at atmospheric pressure
- Power: 0–200 W at 2.45 GHz, capped at 60 W during steady state
- Reactor vial sizes: 2, 5, and 10 mL
- Inert gas (optional): Approx. 2 L/min at 2 bar
- Flow rate of syringe pump: 1-50 mL/min
- Touch screen: 10.4 inch
- Supports Ethernet LAN and USB 2.0 for data transfer
- Operating conditions: 18–32 °C, 20–95% humidity
Weight
Imperial: 132.0 Pounds
Metric: 59.87 Kilograms
Shipping Dimensions
Imperial: 31.2 lb x 26.4 lb x 33.6 lb
Metric: 79.25 cm x 67.06 cm x 85.34 cm
Harmonized Code
84798200
Harmonized Code Details
The harmonized code 84798200 corresponds to mixing, kneading, crushing, grinding, screening, sifting, homogenizing, emulsifying or stirring machines. This code aptly applies as the equipment is primarily used for synthesis processes involving chemical mixtures and reactions.
