Jorestech E-CBS-630D Sealer Packager 57 ft/min PID Temp Control
JORESTECH
Details
-
CategoryProduction / Manufacturing
-
Dimension15.0in x 34.0in x 11.0in
-

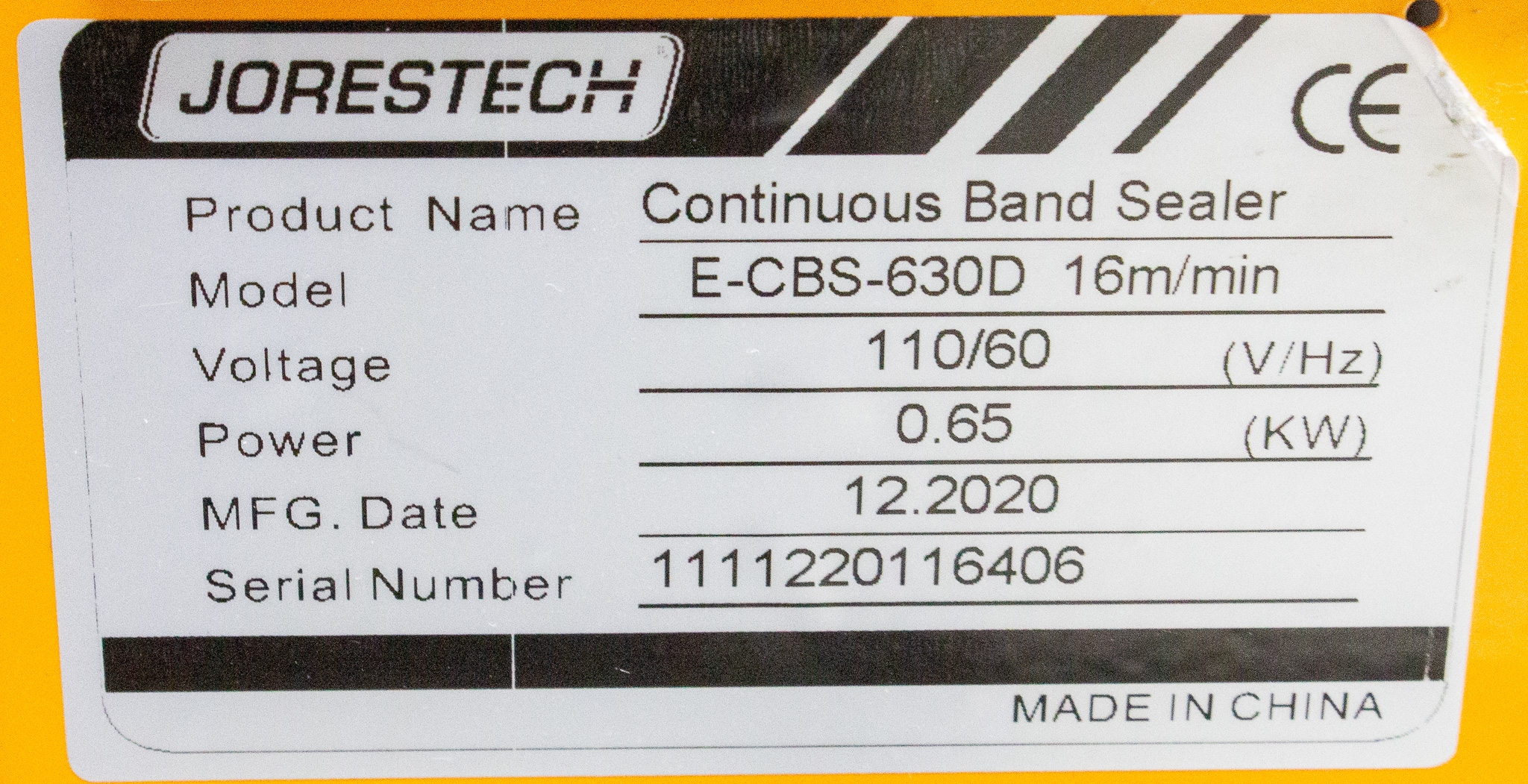

Serial1111220116406
-
Shipping TypeFreight
-
ManufacturingDoes Not Apply
-
Voltage / Hertz120V / 60Hz US
Description

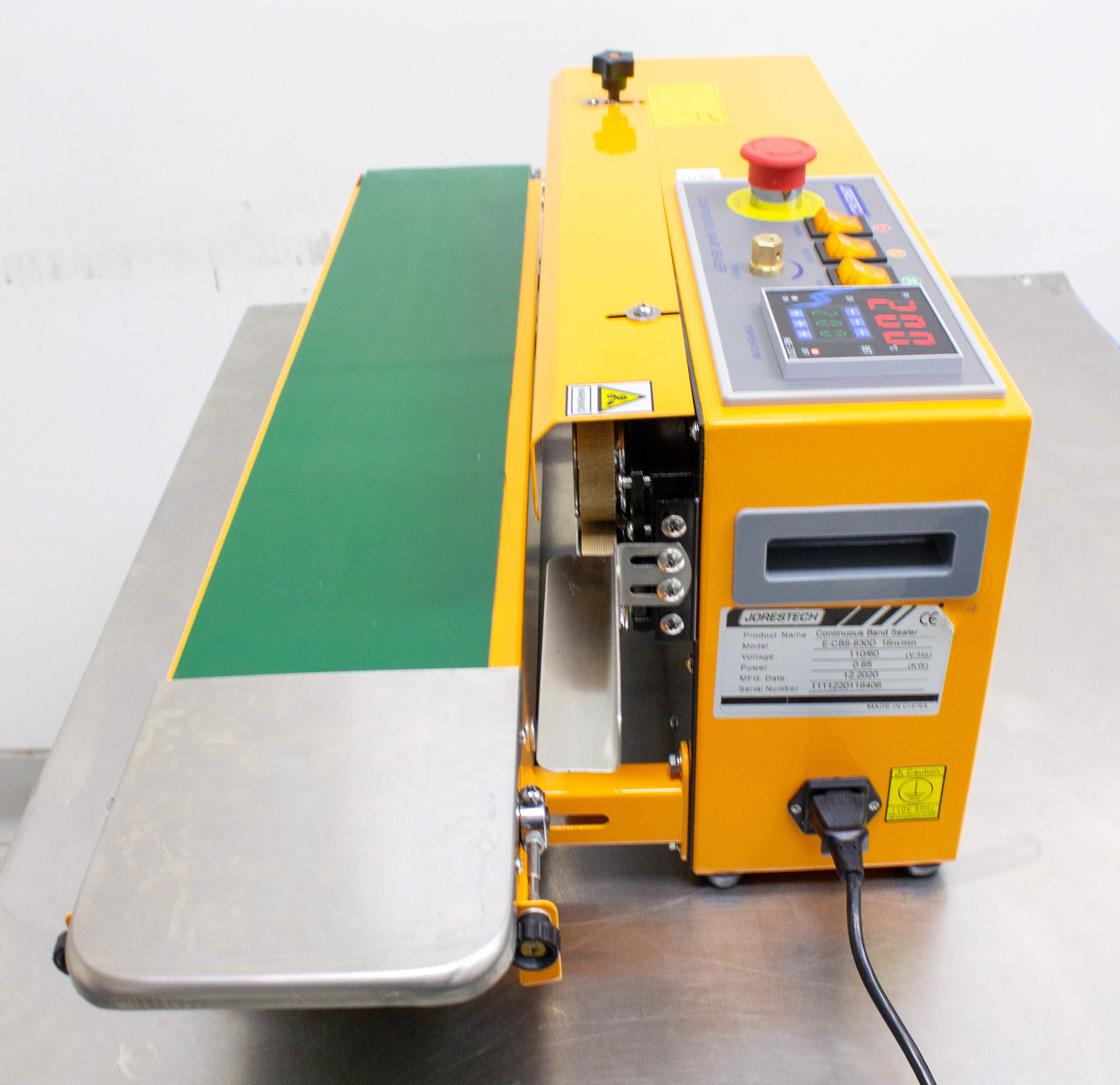

Manufactured by JORESTECH, the E-CBS-630D Continuous Band Sealer offers precise heat sealing capabilities for plastic bags made from thermoplastic materials such as Polyethylene (PE), Polypropylene (PP), and Bo PET. Despite being used, it is in excellent condition with minimal cosmetic damage and performs its functions efficiently. This versatile sealer allows for both horizontal and vertical operation, and includes a motorized belt conveyor with synchronized speed adjustment, capable of sealing speeds up to 57 feet per minute. The PID Digital Temperature Controller provides temperature controls ranging from 0-300C (572F), ideal for applications in food packaging, pharmaceuticals, and other industries requiring airtight seals. Features include a dual alphanumeric display for target and current temperatures, compatibility with various bag formats, and a seal width of 10 mm. Made in the USA and built with a user-friendly interface, this sealer can accommodate a range of packaging needs and demands a modest footprint.
Key Features
- Versatile dual operation: horizontal and vertical
- Compatible with various thermoplastic materials
- Sealing speed up to 57 ft/min

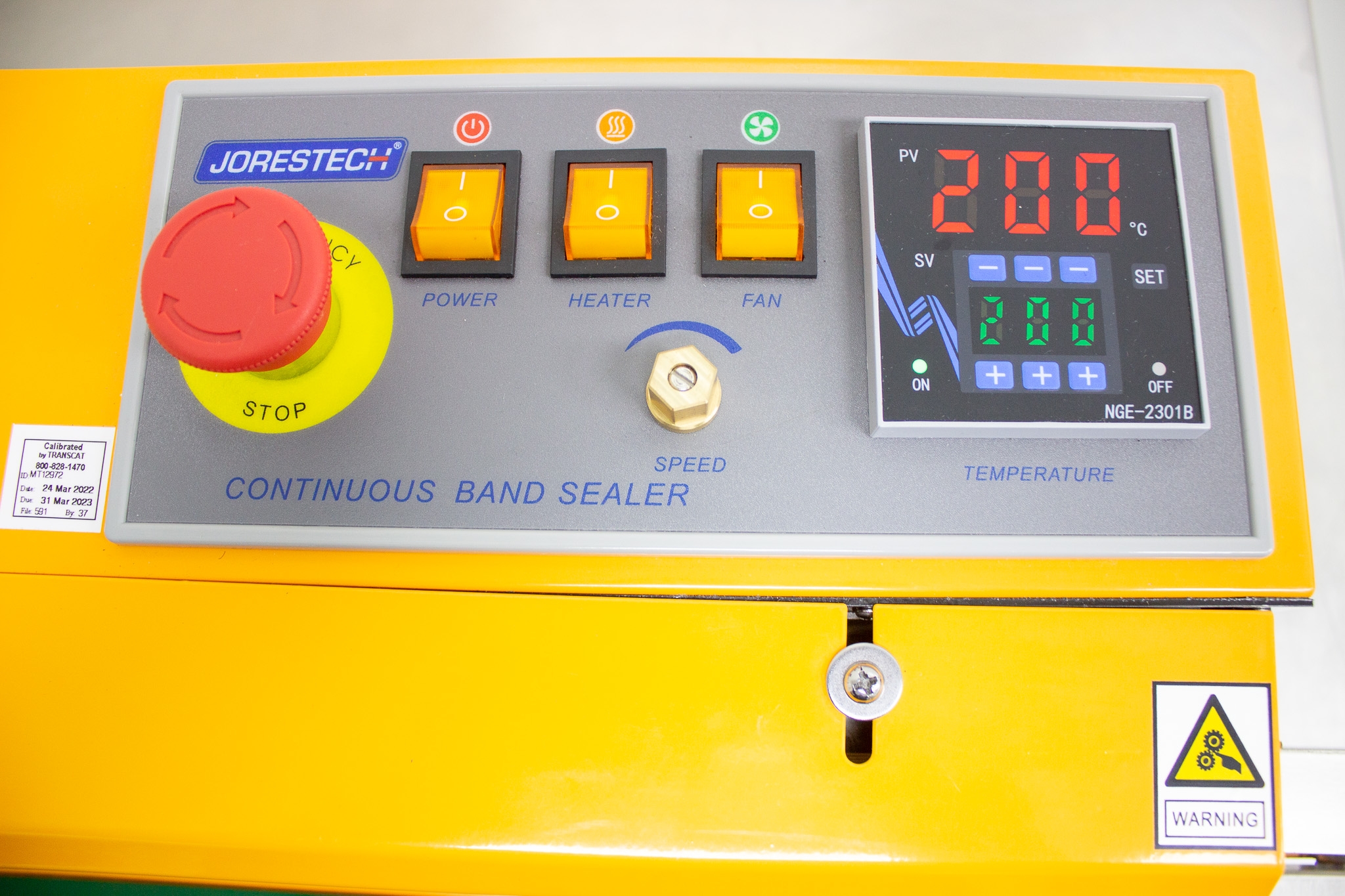

- PID digital temperature control 0-300C

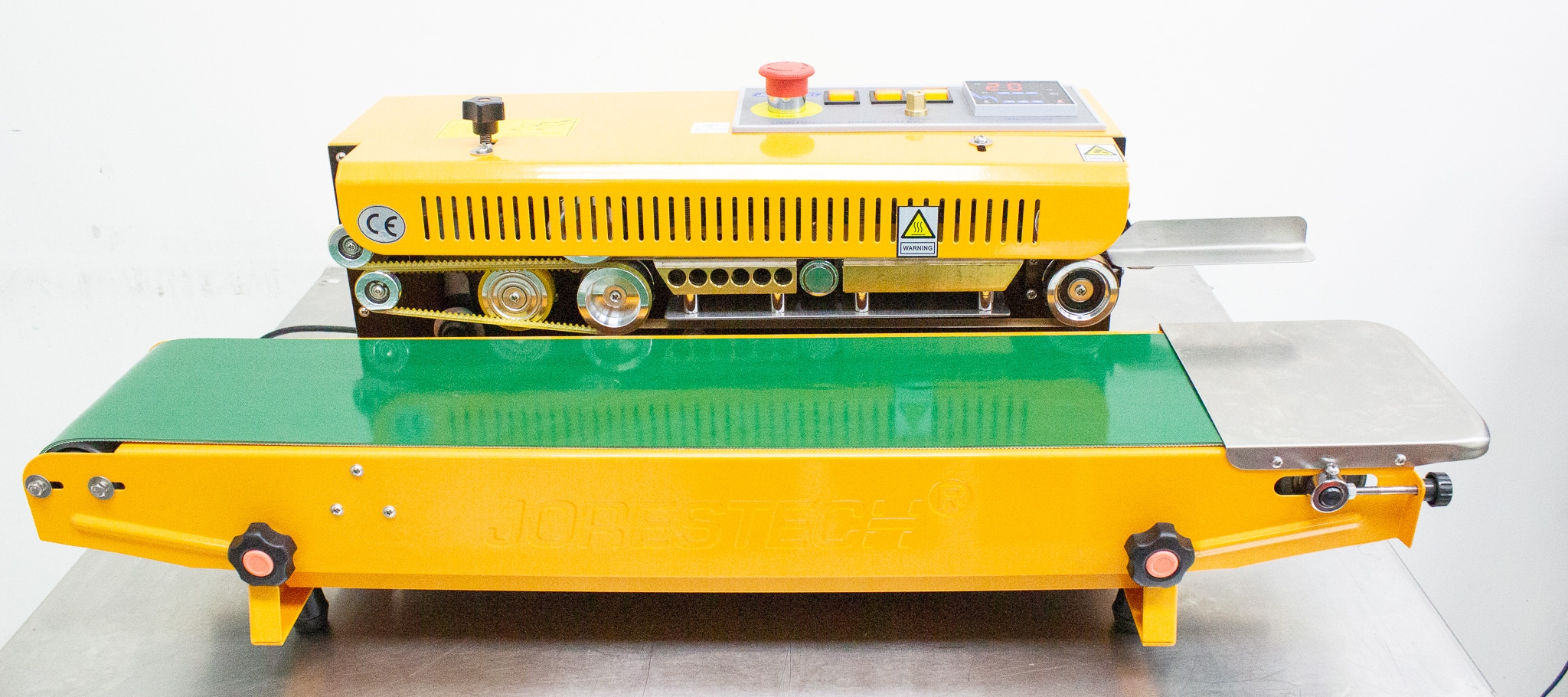

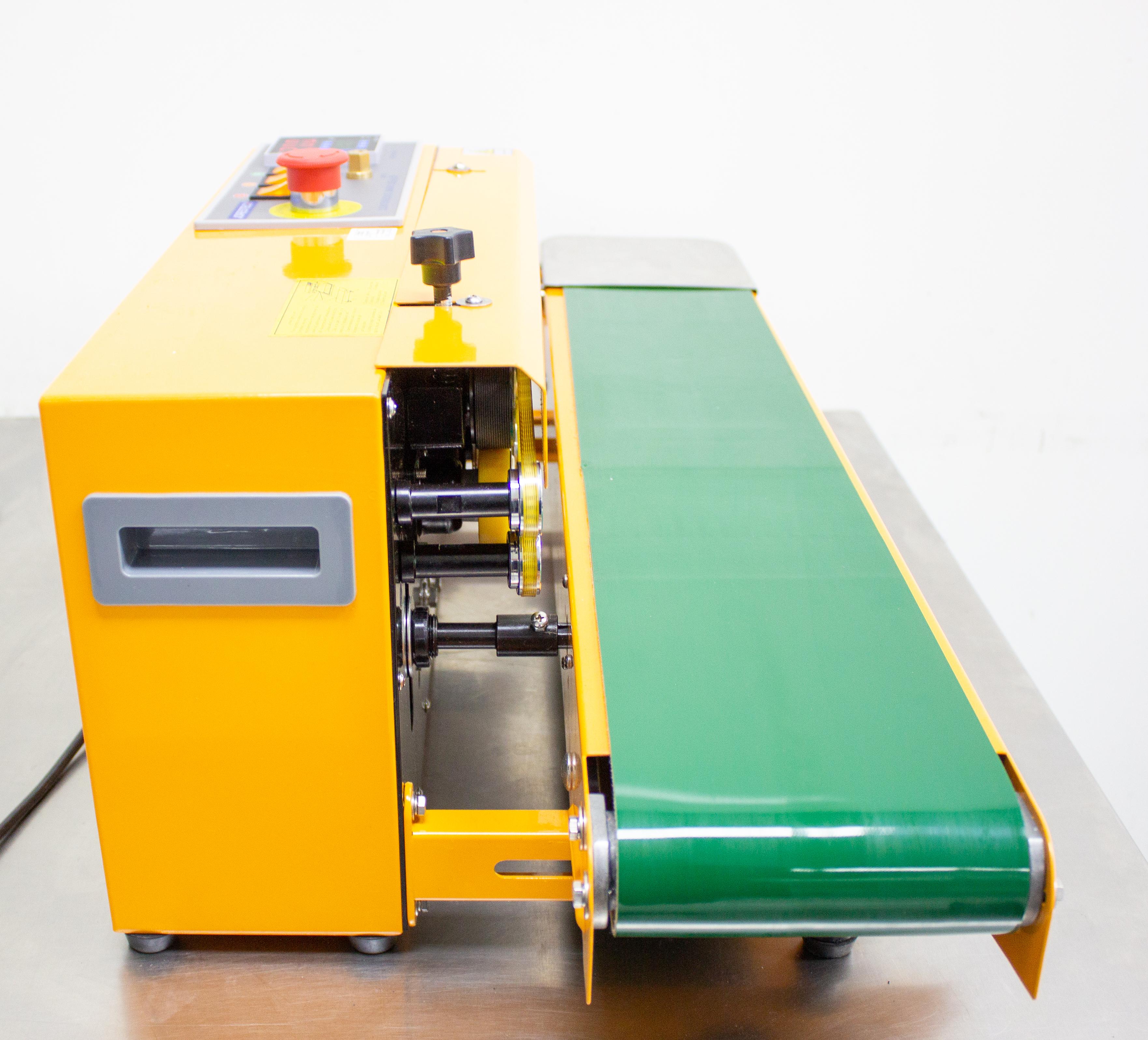

- Motorized belt conveyor for material movement
- Minimal cosmetic damage, excellent working condition
Specifications
- Thermoplastic materials: Polyethylene (PE), Polypropylene (PP), Bo PET
- Sealing Speed: Up to 54 ft/min
- Temperature Range: 0-300C (572F)
- Seal Width: 10 mm (3/8 in)
- Bag Compatibility: Pillow, Pouch, Stand-up, Gusseted, Multi-Ply, Flat Bottom
- Power: 120V, 60Hz
- Weight: Actual 49 lb, Shipping 54 lb
- Dimensions: Actual L: 15 W: 34 H: 11 in
Weight
Imperial: 58.8 Pounds
Metric: 26.67 Kilograms
Shipping Dimensions
Imperial: 18.0 lb x 40.8 lb x 13.2 lb
Metric: 45.72 cm x 103.63 cm x 33.53 cm
Harmonized Code
842240
Harmonized Code Details
842240 - Other packing or wrapping machinery (including heat-shrink wrapping machinery). This code is appropriate due to the equipment's use in packaging and heat sealing applications in manufacturing and other industries.
