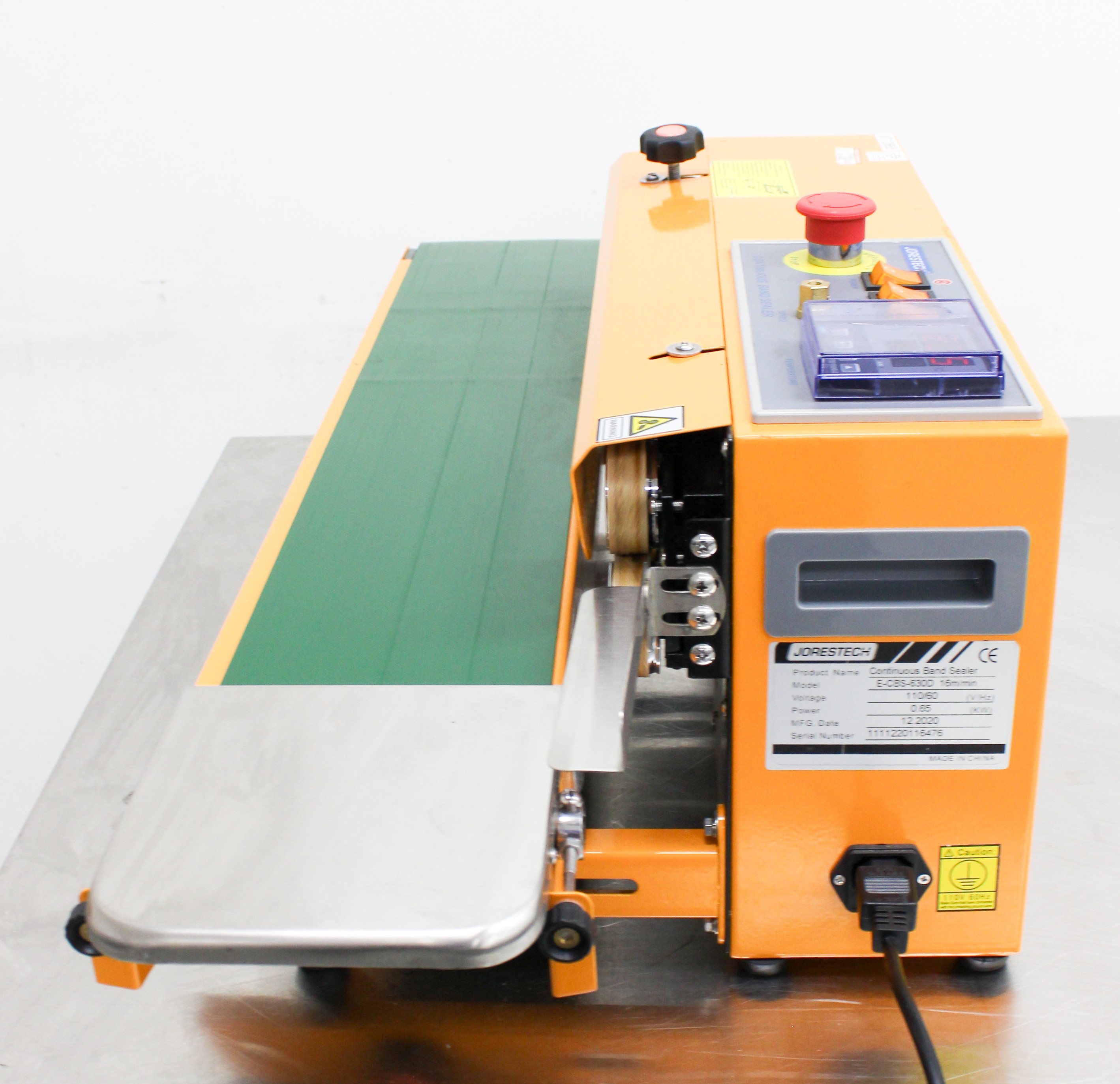

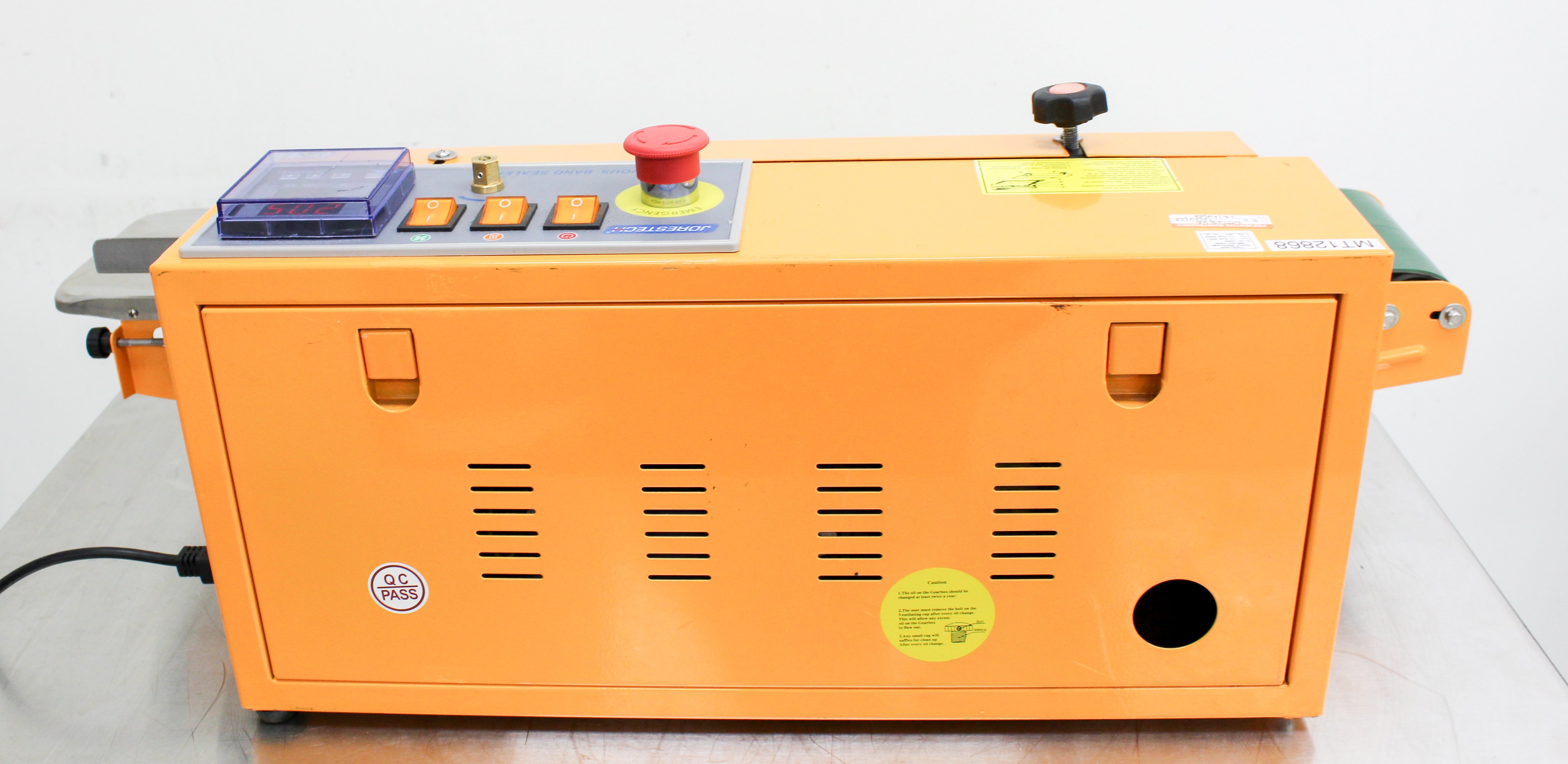

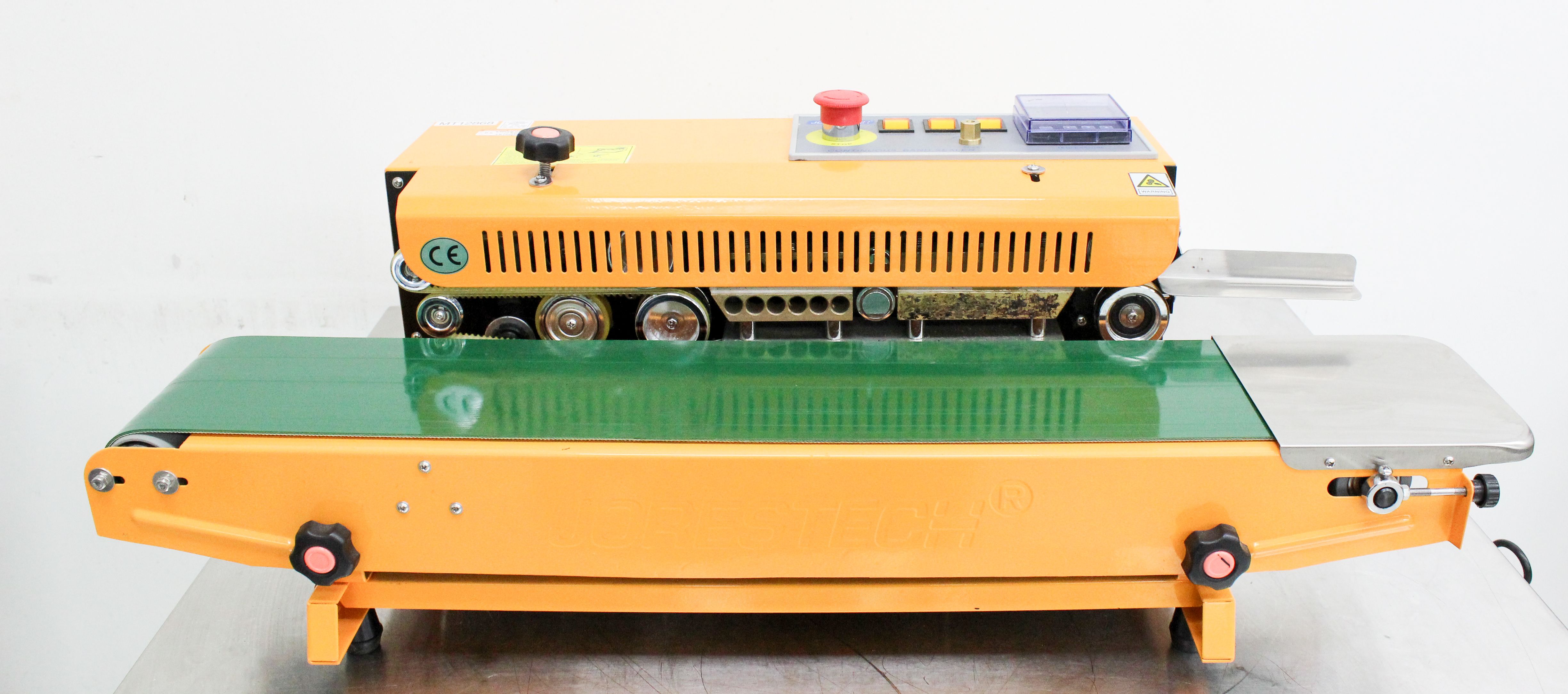

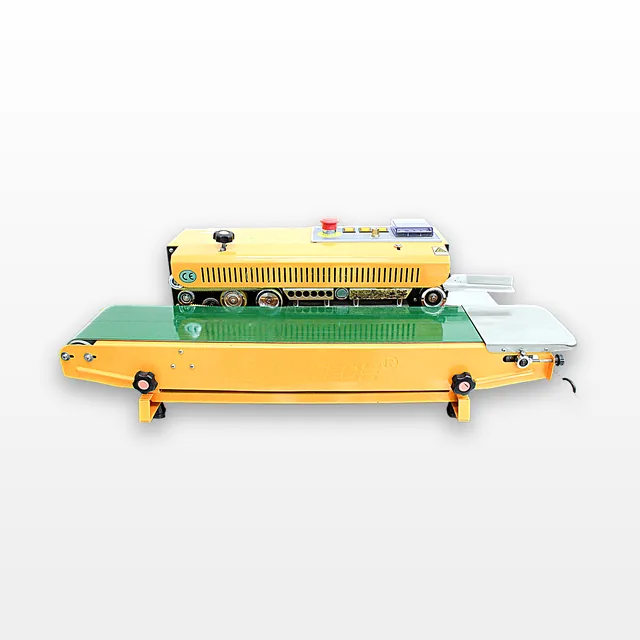

JORESTECH E-CBS-630D Sealer Packager High-Speed Temp Control 54ft/min
JORESTECH
Details
-
CategoryProduction / Manufacturing
-
Dimension15.0in x 34.0in x 11.0in
-
Serial1111220116476
-
Shipping TypeFreight
-
ManufacturingDoes Not Apply
-
Voltage / Hertz120V / 60Hz US
Description
The JORESTECH E-CBS-630D, manufactured in China, is a digitally controlled continuous band sealer designed for efficient high-speed bag sealing. This versatile machine accommodates both polyethylene and heat-sealable laminations, making it ideal for industries needing reliable package closures such as food, pharmaceutical, and industrial products. Tested to meet specifications, this unit achieves target temperatures quickly and maintains functionality despite minor cosmetic wear. The band sealer offers options for both horizontal and vertical operations, and it includes a motorized belt conveyor for synchronized speed adjustments, sealing bags at speeds up to 54 ft/min. It is engineered to produce professional quality, airtight seals comparable to those in automated systems. Equipped with a PID Digital Temperature Controller that ranges from 0 - 300C, this device ensures precise heat application. Despite its used condition, it delivers confident usability and performance, making it a valuable asset for sealing applications.
Key Features

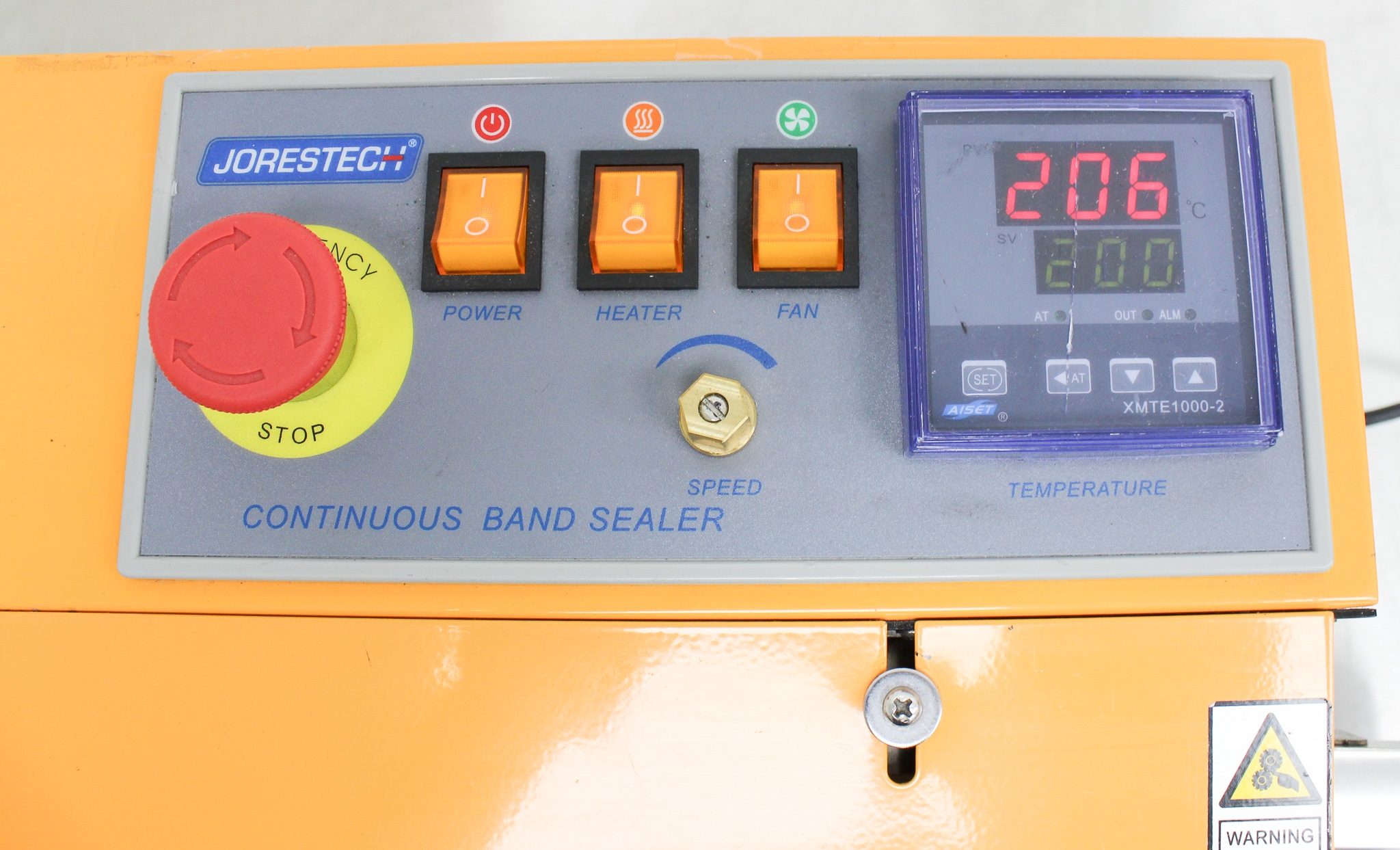

- Digital PID Temperature Controller (0-300C)
- High-speed sealing up to 54 ft/min
- Convertible to horizontal and vertical operations
- Embossing printing coder compatible
- Motorized belt conveyor with adjustable speed
Specifications
- Operation: Semi-Automatic
- Power: 120V, 60Hz
- Seal Head Orientation: Dual Fit System (Vertical & Horizontal)
- Seals: Most Heat Sealable Bags, BOPP, PVC, PE, PU, Bo PET, Cello, Laminated bags
- Seal Width: 10 mm / 3/8 in
- Compatible Bag Formats: Pillow, Pouch, Sack, Open Mouth, Stand-up, Doy pack, Gusseted, Multi-Ply, Flat Bottom
- Recommended Bag Height (Vertical Machines): 125 - 280 mm / 4.9 - 11 in
- Max Distance from Bag Opening to Top of Seal: 12 mm / 1/2 in
Weight
Imperial: 46.8 Pounds
Metric: 21.23 Kilograms
Shipping Dimensions
Imperial: 18.0 lb x 40.8 lb x 13.2 lb
Metric: 45.72 cm x 103.63 cm x 33.53 cm
Harmonized Code
842240
Harmonized Code Details
Harmonized Code 842240 corresponds to 'Packing or Wrapping Machinery' which justifies its choice as the JORESTECH E-CBS-630D is used in packaging applications through sealing.
