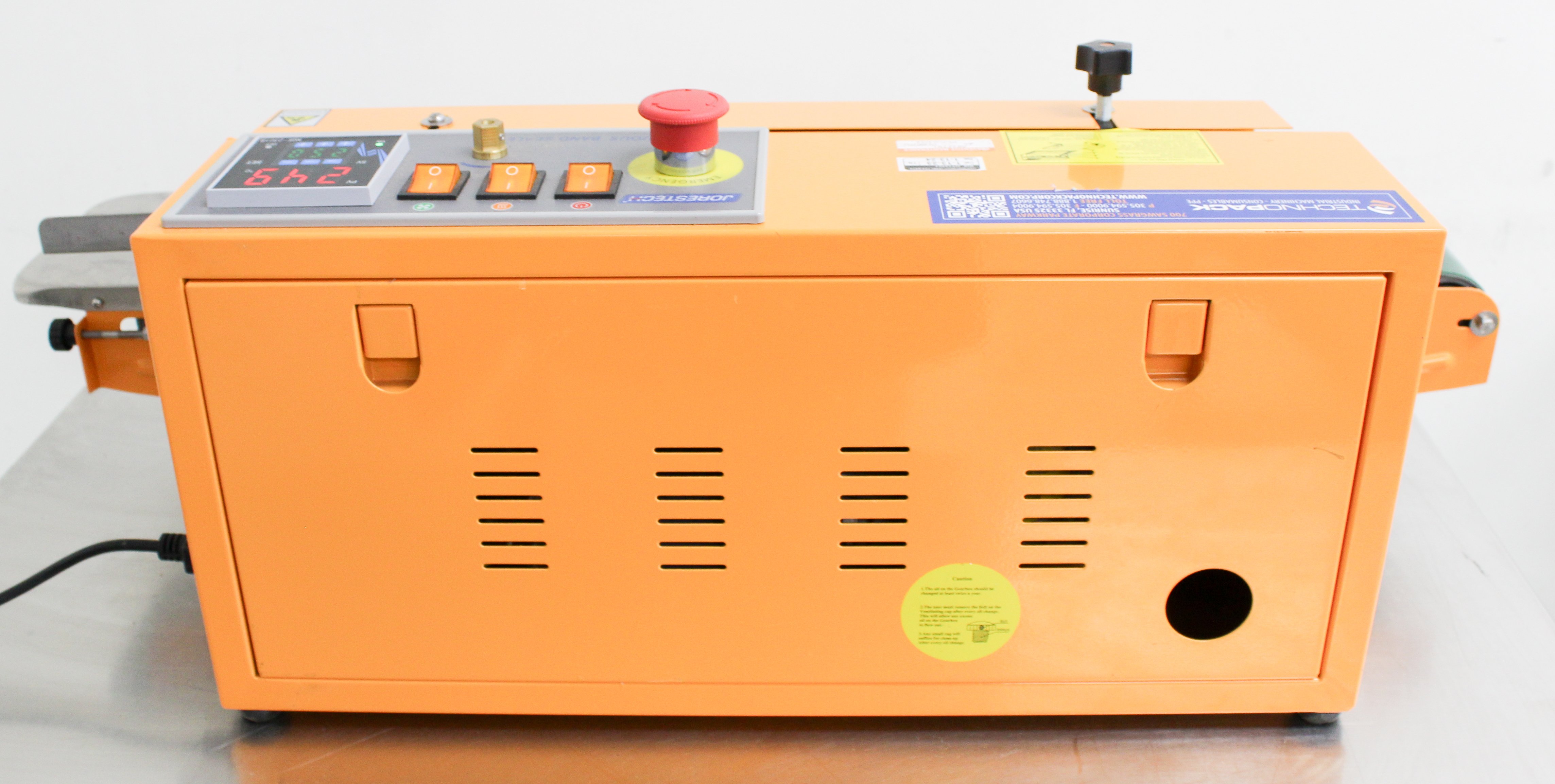

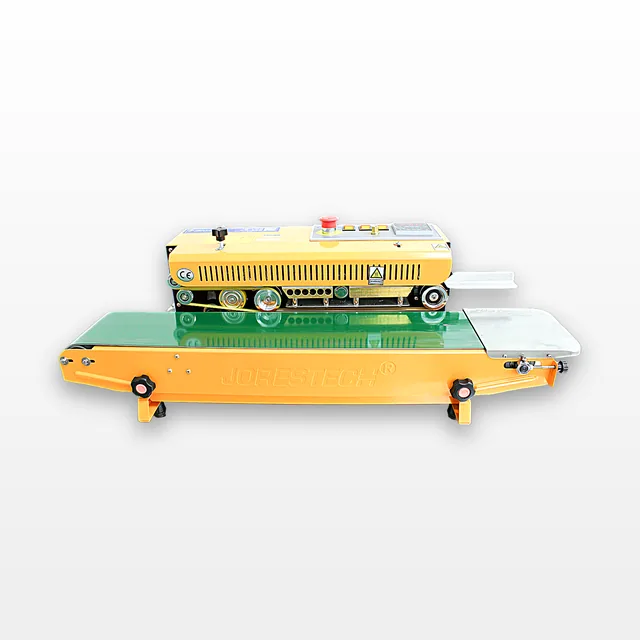

JORESTECH E-CBS-630D Continuous Band Sealer 54ft/min Digital Control PE PP
JORESTECH
Details
-
CategoryProduction / Manufacturing
-
Dimension15.0in x 34.0in x 11.0in
-
Serial1111221047336
-
Shipping TypeFreight
-
ManufacturingDoes Not Apply
-
Voltage / Hertz120V / 60Hz US
Description
The JORESTECH E-CBS-630D Continuous Band Sealer is a reliable and versatile machine ideal for sealing various plastic bags such as Polyethylene (PE) and Bo PET. This used, very good condition sealer is equipped with a precise PID Digital Temperature Controller capable of reaching temperatures between 0 - 300C (572F) quickly, efficiently sealing plastic bags for food, medicine, and more, at speeds of up to 54 ft/min. It features a user-friendly digital control panel, motorized belt conveyor, and Dual Fit System for operation in both horizontal and vertical positions. This unit, originating from the United States, functions as intended with minor signs of use. The professional sealing results can rival those of more expensive systems.

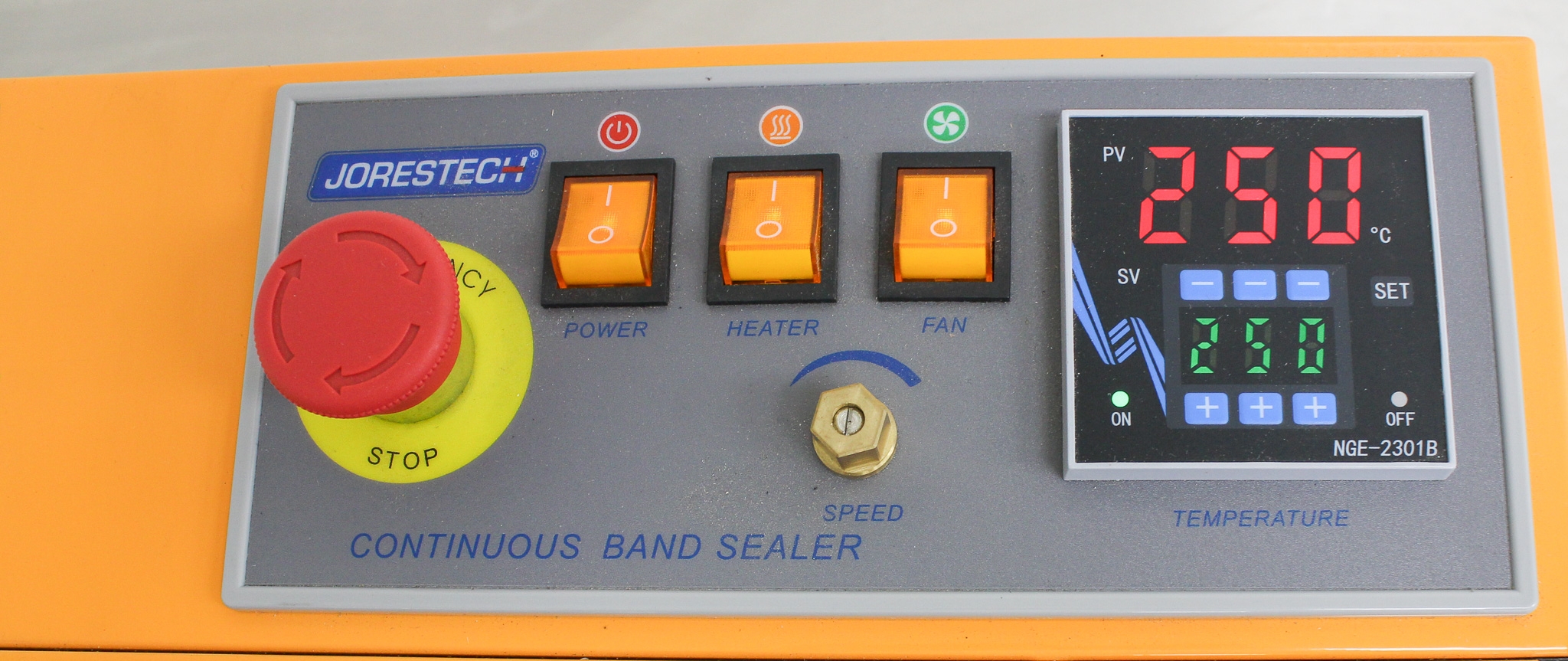

Key Features
- PID Digital Temperature Controller: 0 - 300C (572F)
- Dual Fit System: Convertible to horizontal and vertical operation
- Compatible with thermoplastic materials: PE, PP, Bo PET
- High-speed sealing: Up to 54 ft/min (16 m/min)
- Motorized belt conveyor with synchronized speed adjustment
- Seal Width: 10 mm / 3/8 in
Specifications
- Operation: Semi-Automatic
- Power Type: Constant Heat
- Seal Head Orientation: Vertical & Horizontal
- Seal Width: 10 mm / 3/8 in
- Recommended Bag Height (Vertical Machines): 125 - 280 mm / 4.9 - 11 in
- Max Distance from Bag Opening to Top of Seal: 12 mm / 1/2 in
- Compatible Bag Formats: Pillow, Pouch, Sack, Open Mouth, Stand-up, Doy pack, Gusseted, Multi-Ply, Flat Bottom
Weight
Imperial: 46.8 Pounds
Metric: 21.23 Kilograms
Shipping Dimensions
Imperial: 18.0 lb x 40.8 lb x 13.2 lb
Metric: 45.72 cm x 103.63 cm x 33.53 cm
Harmonized Code
84223000
Harmonized Code Details
Harmonized code 84223000 is used for machinery designed for packaging purposes. This code aligns with the equipment's primary function of sealing plastic bags, which is a key aspect of packaging machinery.
