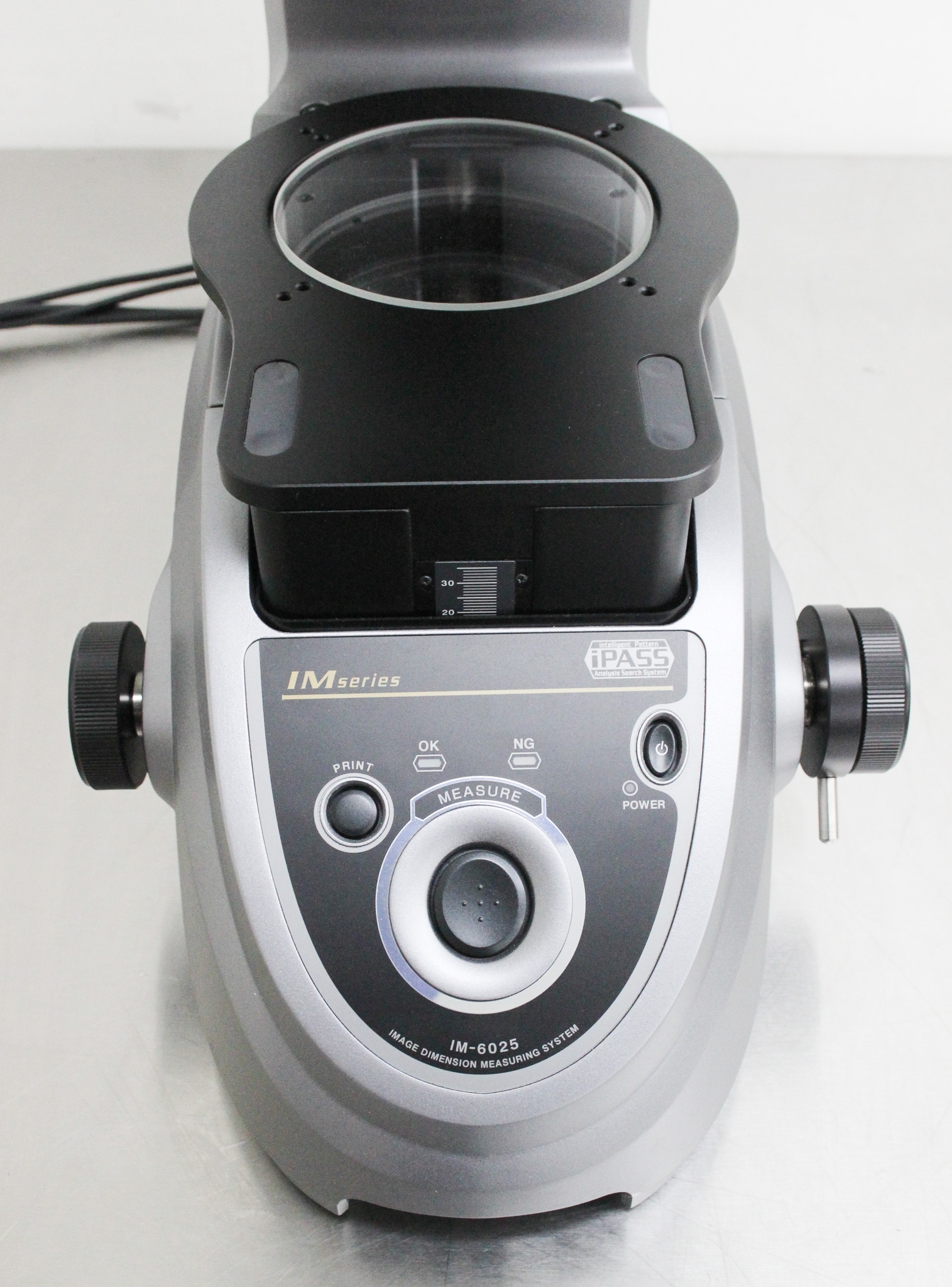

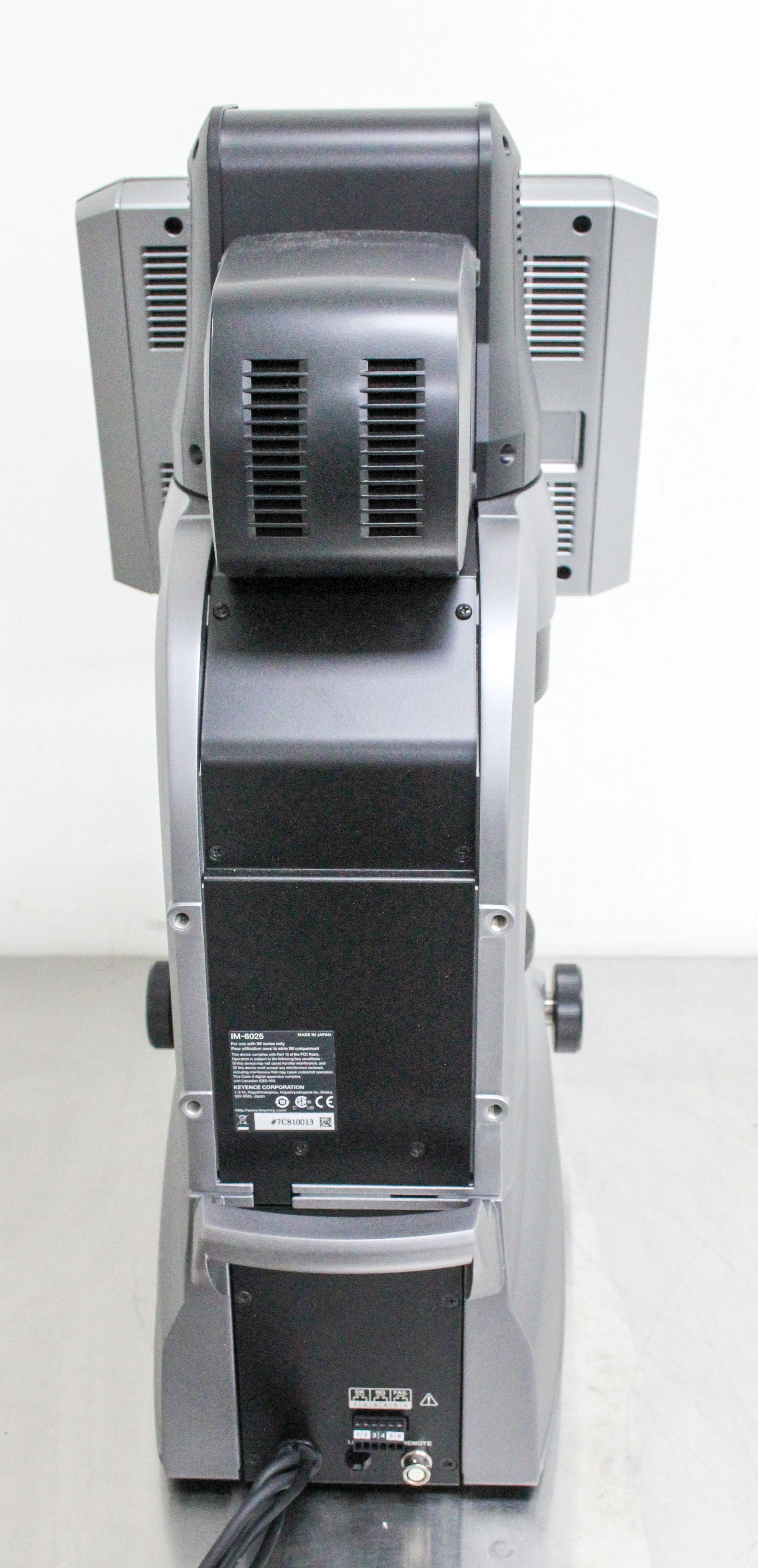

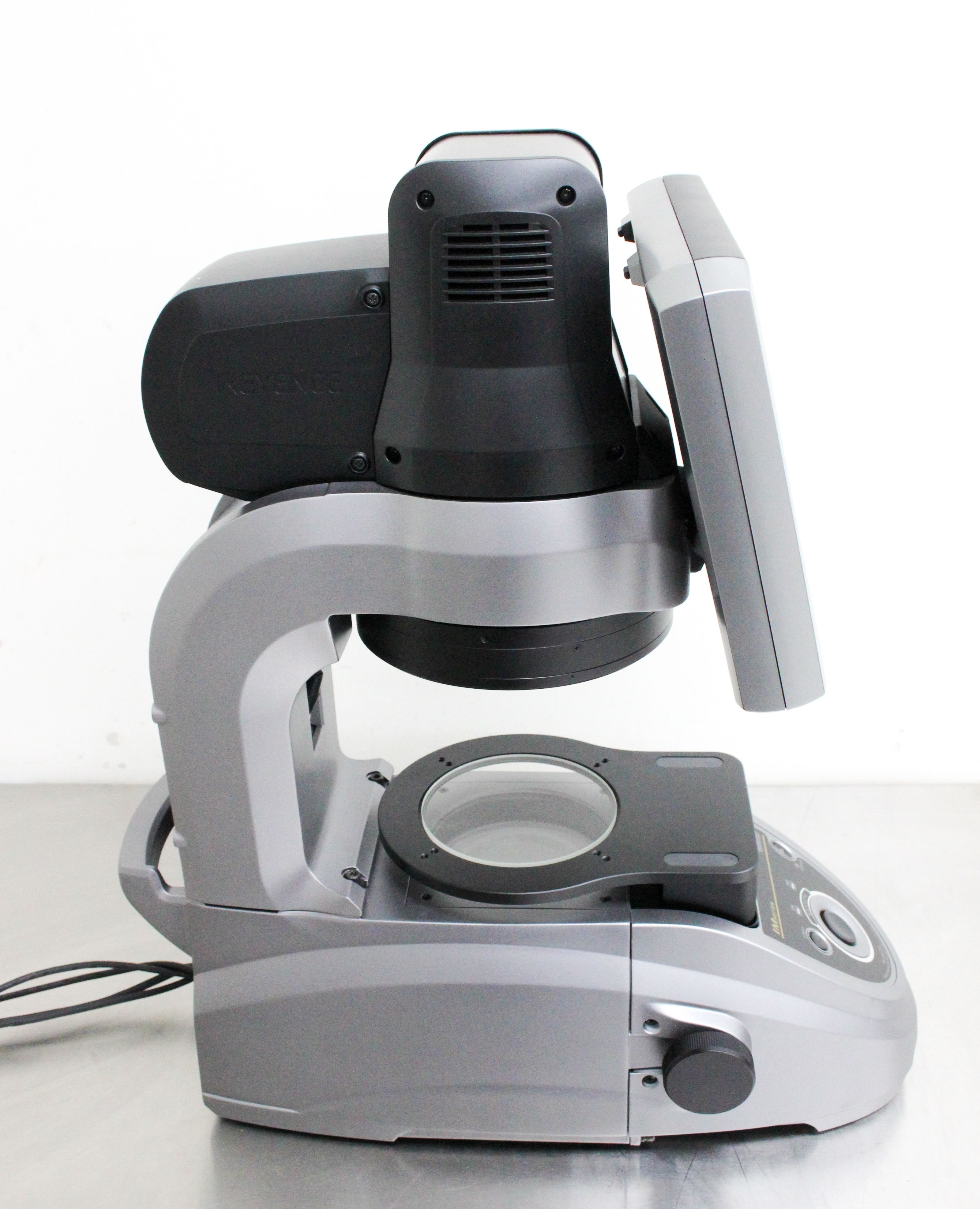

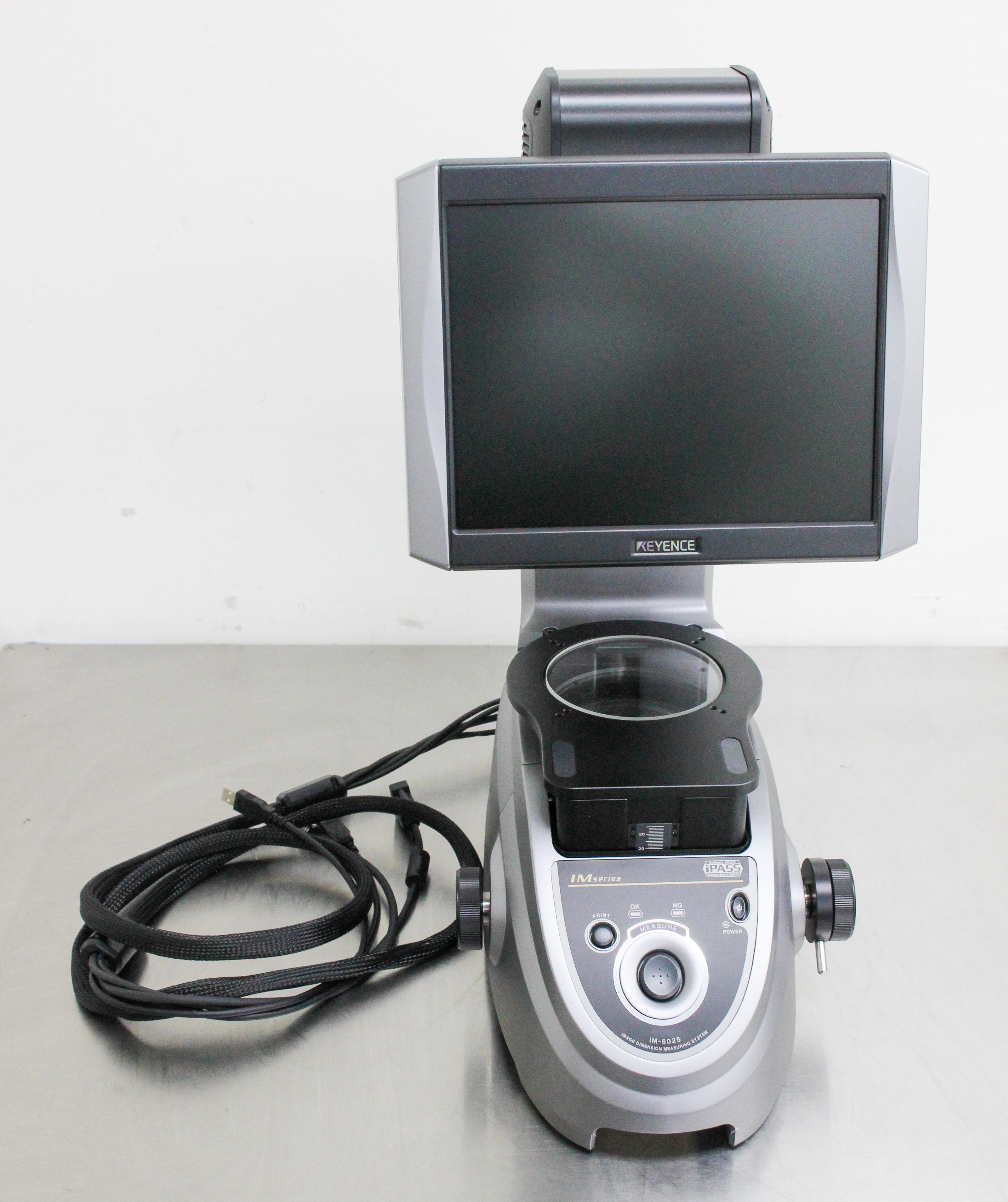

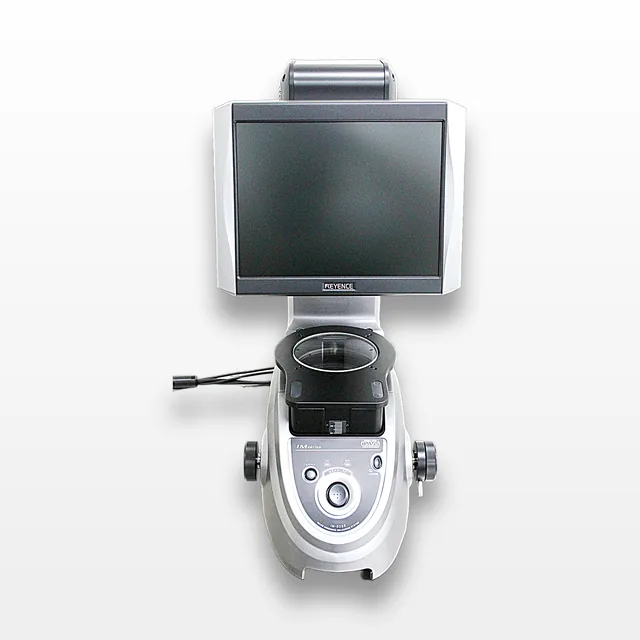

Keyence IM-6025 Measurement Microscope Imager Fine Detail Precision Used
Keyence
Details
-
CategoryMicroscope / Imager
-
Dimension22.0in x 26.0in x 45.0in
-
Serial7C810013
-
Shipping TypeFedEx Ground
-
ManufacturingDoes Not Apply
-
Voltage / HertzDoes Not Apply / Does Not Apply
Description
The Keyence IM Series IM-6025 Image Dimension Measurement System offers an innovative and efficient approach to dimension inspection. In a good used condition, this sophisticated system is unable to be fully tested due to the missing controller/power supply but appears operational and powers on. Manufactured by Keyence in the United States, it features a 1" CMOS image sensor, a 10.4" LCD monitor, double telecentric lens, and automatic stage movement for precise measurements. Ideal for measuring small three-dimensional parts with a minimum display unit of 0.1 microns and various field of views, this system drastically reduces measurement time and enhances work efficiency. Notably, it supports LAN connectivity and offers intimate versatility with USB ports. Please note, the unit does not come with a computer and software is not included. Evaluate its compelling features to enhance your laboratory's measuring capabilities.
Key Features
- 1" 6.6 mega-pixel CMOS image sensor
- 10.4" LCD monitor
- Double telecentric lens for high accuracy
- LAN connectivity and USB 2.0 ports
- Automatic stage movement
- Measurement accuracy up to 0.1 micron
- Telecentric transparent illumination with Green LED
- Ability to measure small three-dimensional parts
Specifications
- Model: IM-6025
- Image sensor: 1" 6.6 MP CMOS
- Display: 10.4" LCD monitor (XGA: 1024x768)
- Field of view: Wide field 100mm, High precision 25mm
- Minimum display unit: 0.1 microns
- Measurement accuracy: Wide field 5 microns, High precision 2 microns
- Repetition accuracy: Wide field 1 microns, High precision 0.5 microns
- External interfaces: LAN (10/100/1000BASE-T), 6 USB 2.0 ports
- Hard disk drive capacity: 250 GB
- Illumination: Telecentric Green LED, ring illumination with White LED
- Z stage movement range: 30mm, load capacity: 3 kg
- Power requirements: 100 to 240 VAC, 50/60 Hz
Weight
Imperial: 93.6 Pounds
Metric: 42.46 Kilograms
Shipping Dimensions
Imperial: 26.4 lb x 31.2 lb x 54.0 lb
Metric: 67.06 cm x 79.25 cm x 137.16 cm
Harmonized Code
9031.49
Harmonized Code Details
9031.49 - Measuring or checking instruments, appliances and machines, n.e.s. (Not elsewhere specified or included). This code is selected due to the equipment's use as a measurement and dimension inspection system.
