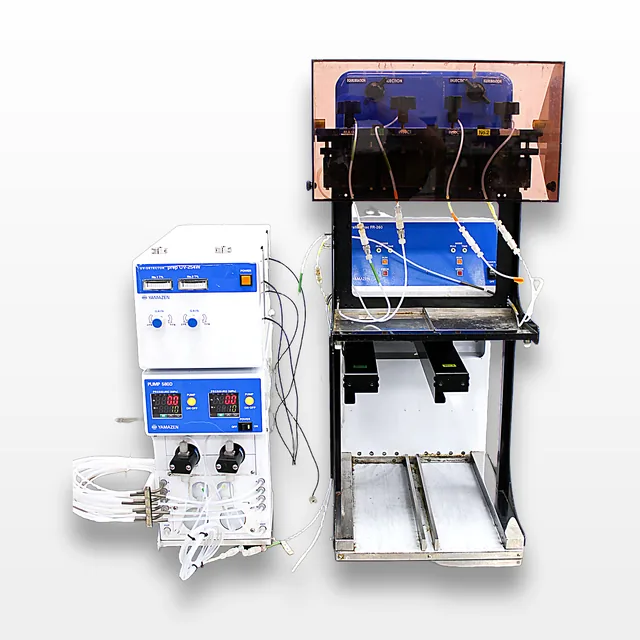

Yamazen Parallel Frac FR-260 Chromatography System with UV Detector & Pump
Yamazen
Details
-
CategoryHPLC / FPLC / GC / CE
-
Dimension17.0in x 23.0in x 30.0in
-
SerialFR-070503
-
Shipping TypeFedEx Ground
-
ManufacturingDoes Not Apply
-
Voltage / Hertz120V / 50Hz/60Hz
Description
The Yamazen Parallel Frac FR-260 Chromatography System, used in laboratory settings, showcases a configuration that includes the Parallel Frac FR-260 unit, a Prep UV-254W UV-Detector, and a Pump 580D. This chromatography system is engineered for fraction collection, featuring an XY-driven, dual-channel mode with independently controlled flow paths. The FR-260 model is capable of time, peak, and slope fraction modes, managed by a compatible PC. Despite minor cosmetic defects and an untended issue not affecting the core functionality, it remains a valuable instrument for precision laboratory work. Key components include an independently controlled Hg lamp with a 254 nm wavelength for UV detection, supporting two flow paths with a detector range of 0.08-5.12 AUFS. The integrated pump offers a 0-80 mL/min flow rate, managed by two independently controlled heads. All components were designed to complement high-performance liquid chromatographic techniques.
Key Features
- Consists of Parallel Frac FR-260, Prep UV-254W UV-Detector, Pump 580D
- Dual-channel, independently controlled design
- Time, Peak, and Slope fraction modes
- Hg lamp Wavelength: 254 nm; UV Detector range: 0.08-5.12 AUFS
- Pump Flow Rate: 0-80 ml/min with PC controls
Specifications
- Includes Fraction Collector, Model No. FR-260
- Fraction Collector Detecting Flow Paths: Two, independently controlled
- X-Y driven with dual-channel, independently controlled racks
- Fraction modes: Time, Peak, Peak & Slope
- Fixed Wavelength UV Detector, Model No. prepUV-254W
- Light source: Hg lamp, Wavelength: 254 nm, Range: 0.08-5.12 AUFS
- Pump Model No. 580D, Two Flow Paths, independently controlled
- Pump Flow Rate: 0~80 ml/min, Rated Pressure: 1.0 Mpa
Weight
Imperial: 116.4 Pounds
Metric: 52.8 Kilograms
Shipping Dimensions
Imperial: 20.4 lb x 27.6 lb x 36.0 lb
Metric: 51.82 cm x 70.1 cm x 91.44 cm
Harmonized Code
9027.20.4560
Harmonized Code Details
9027.20.4560 covers 'Chromatographs, electrophoresis instruments and apparatus'. It is suitable for the Yamazen Parallel Frac FR-260 as it falls under chromatography systems commonly used for separation and analysis in the lab setting.
