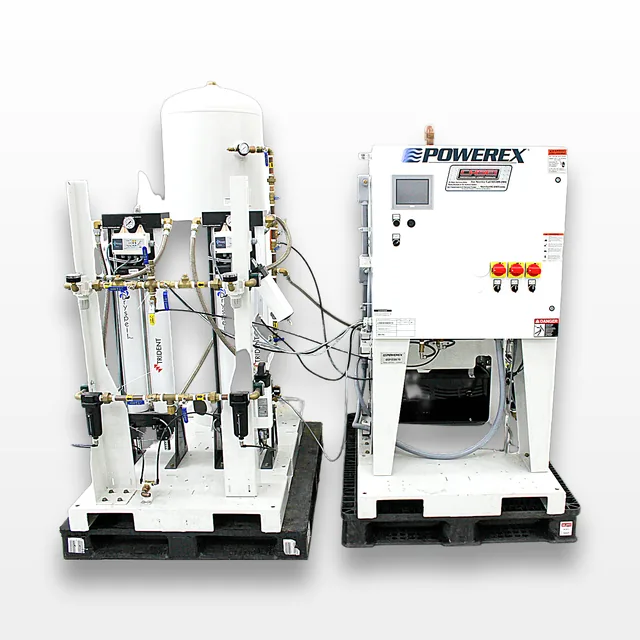

Powerex LSD03A3 Air Compressor System 80 Gallon Tank 14.2 SCFM 145 PSIG 220V
Powerex
Details
-
CategoryPump
-
Dimension52.0in x 68.0in x 73.0in
-
Serial(H)9/30/2021-29315-17
-
Shipping TypeFreight
-
ManufacturingDoes Not Apply
-
Voltage / Hertz220V / 50Hz/60Hz
Description

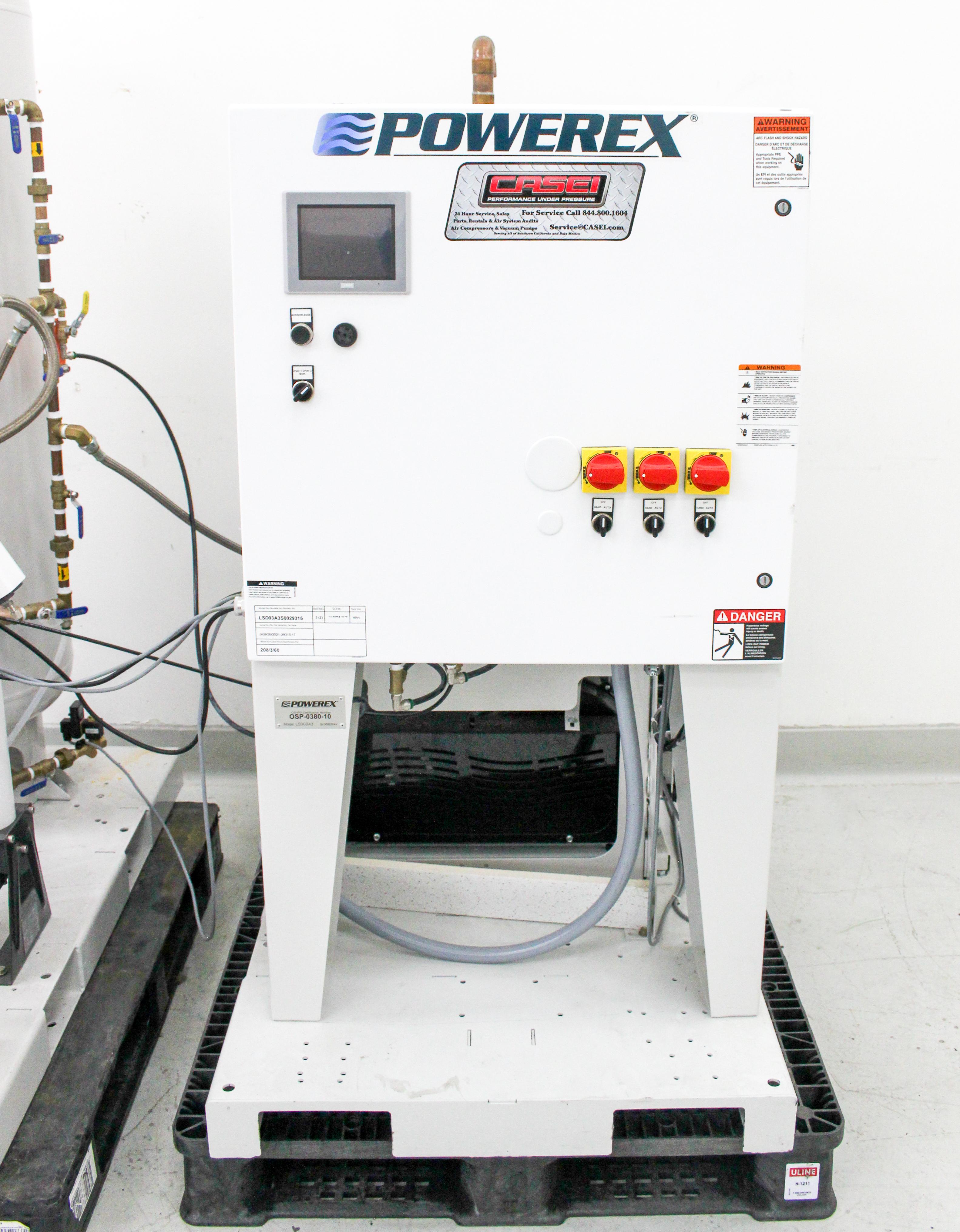

The Powerex LSD03A3 Laboratory Open Scroll Air Compressor System, manufactured in the United States, is a high-performance solution designed to deliver clean, dry air essential for critical applications. Featuring a near new condition with minimal wear, this durable system operates at a maximum of 145 psig and is equipped with an 80-gallon ASME-rated air receiver. Its oil-less rotary scroll compressor ensures reliability while reducing maintenance demands with a belt-driven motor rated at 1750 RPM. This system integrates an advanced Premium NFPA Control Panel for automated compressor management, complete with a 6-inch touchscreen display and comprehensive alarm notifications. The included Air Purification Package comprises dual desiccant air dryers and a two-stage filtration system for optimal air quality. Ideal for labs needing a consistent and efficient air supply, this model demands minimal upkeep, ensuring long-term operation with EPA-compliant features.
Key Features
- Near new condition, minimal wear
- 145 psig maximum pressure
- 80-gallon ASME-rated air receiver

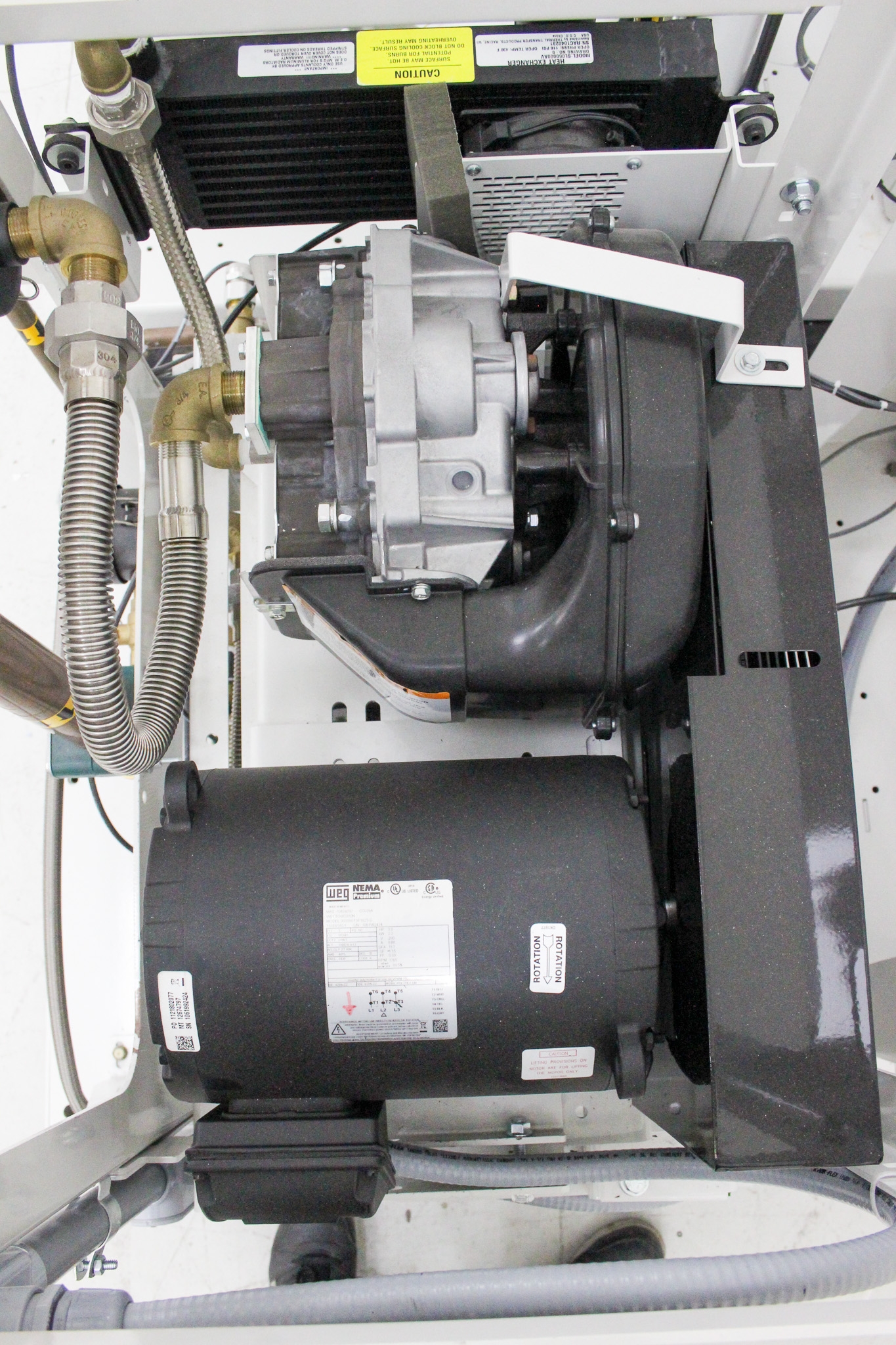

- Oil-less rotary scroll compressor
- Belt-driven motor at 1750 RPM

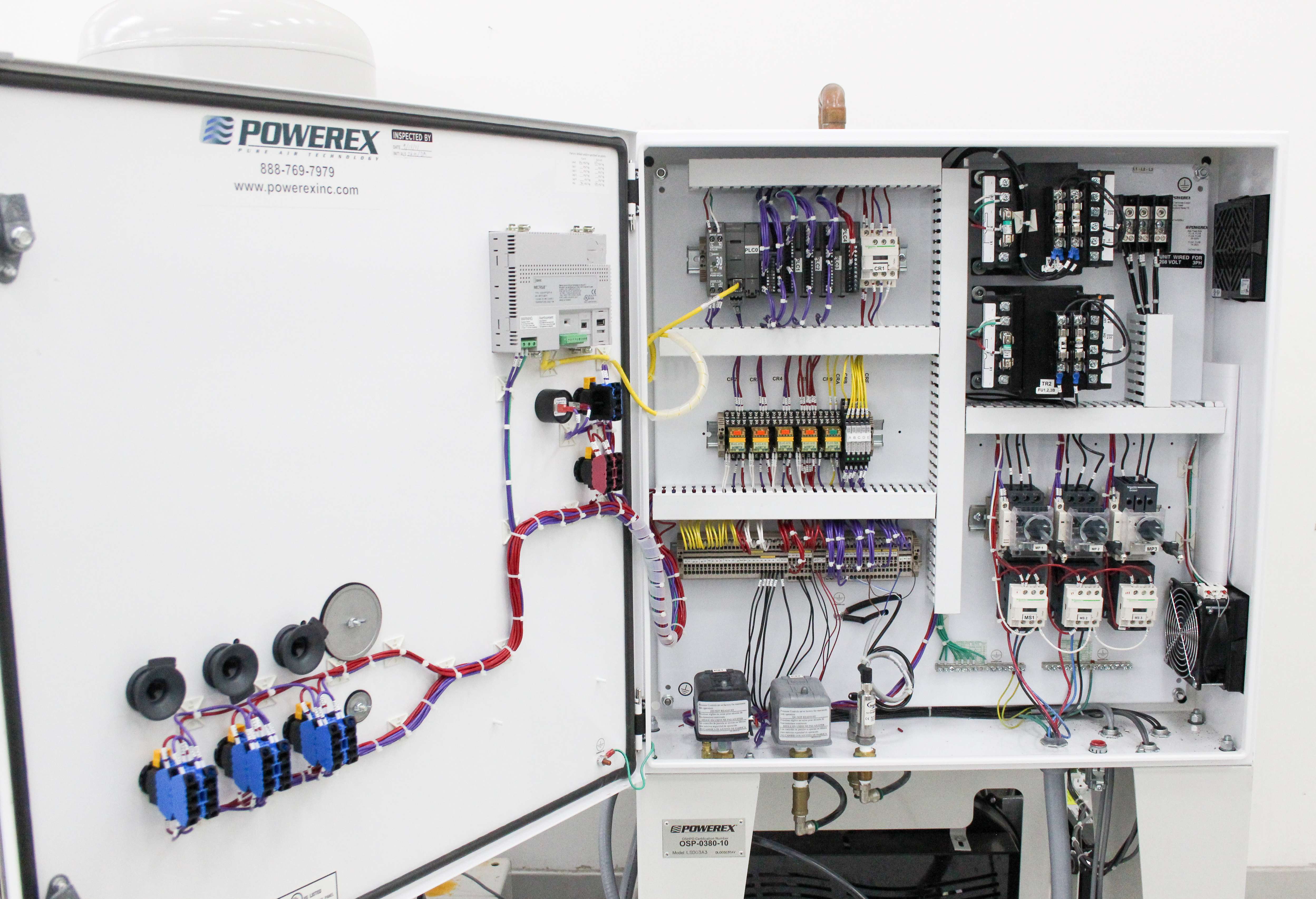

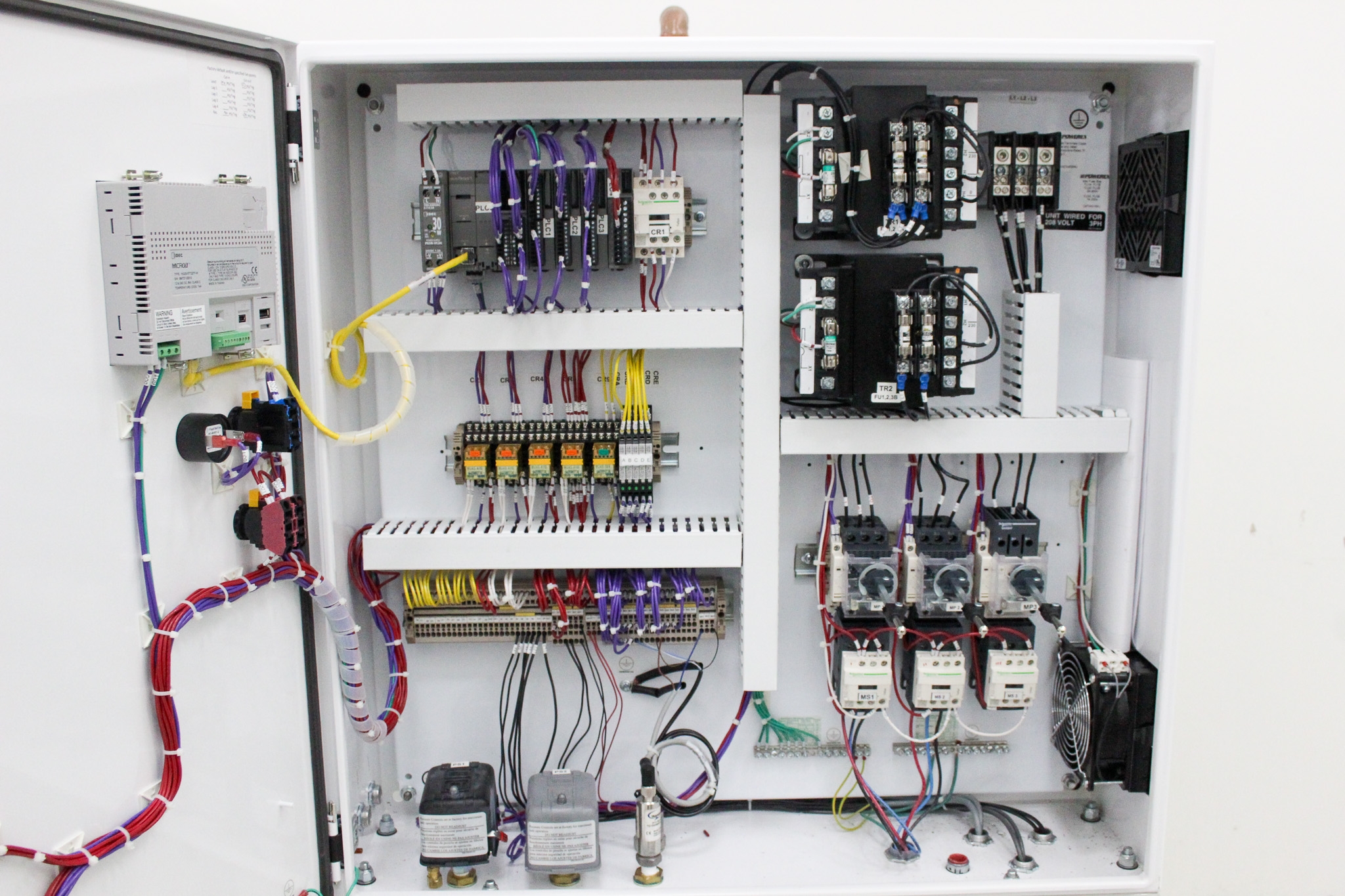

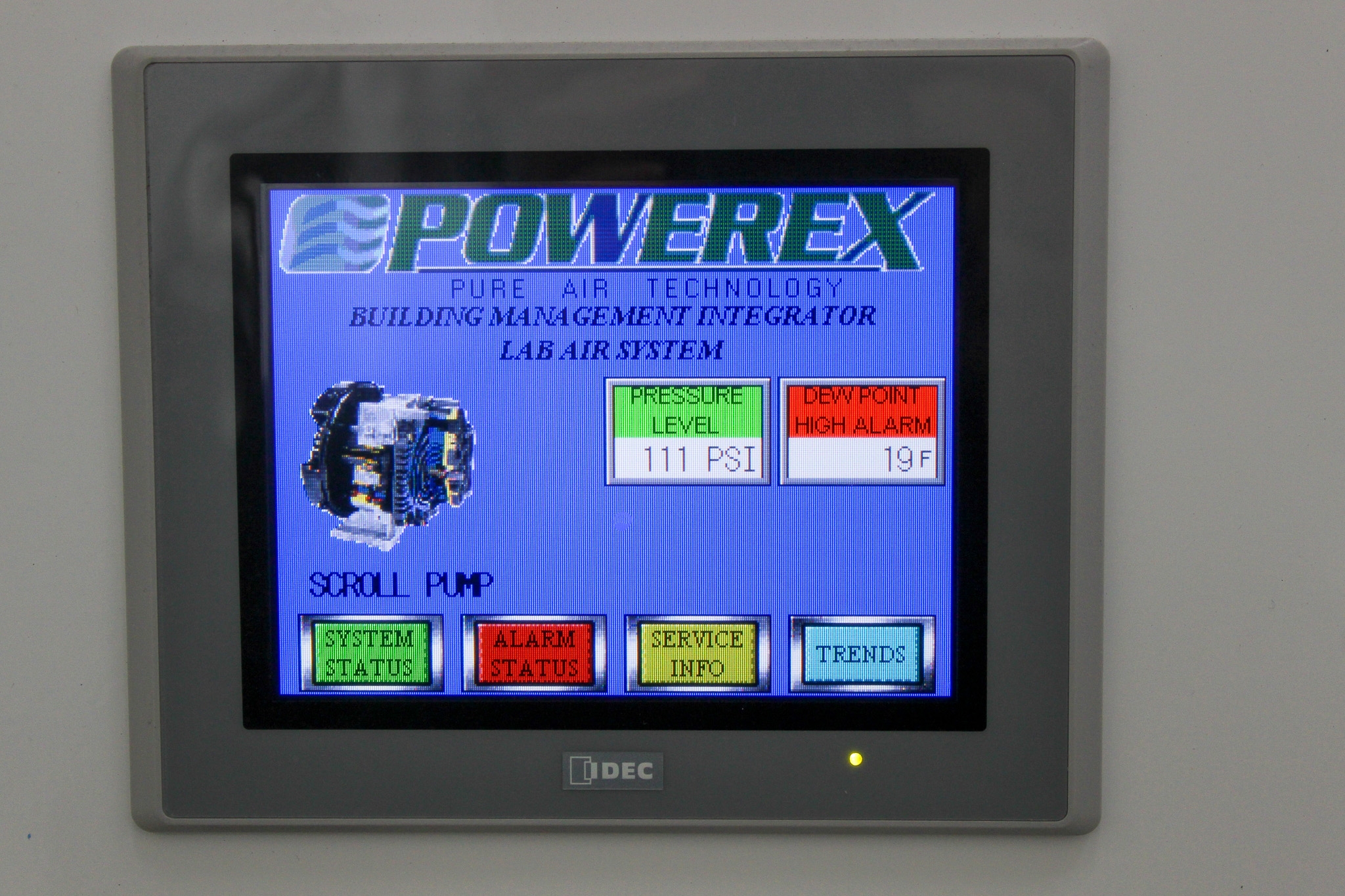

- Premium NFPA Control Panel with touchscreen

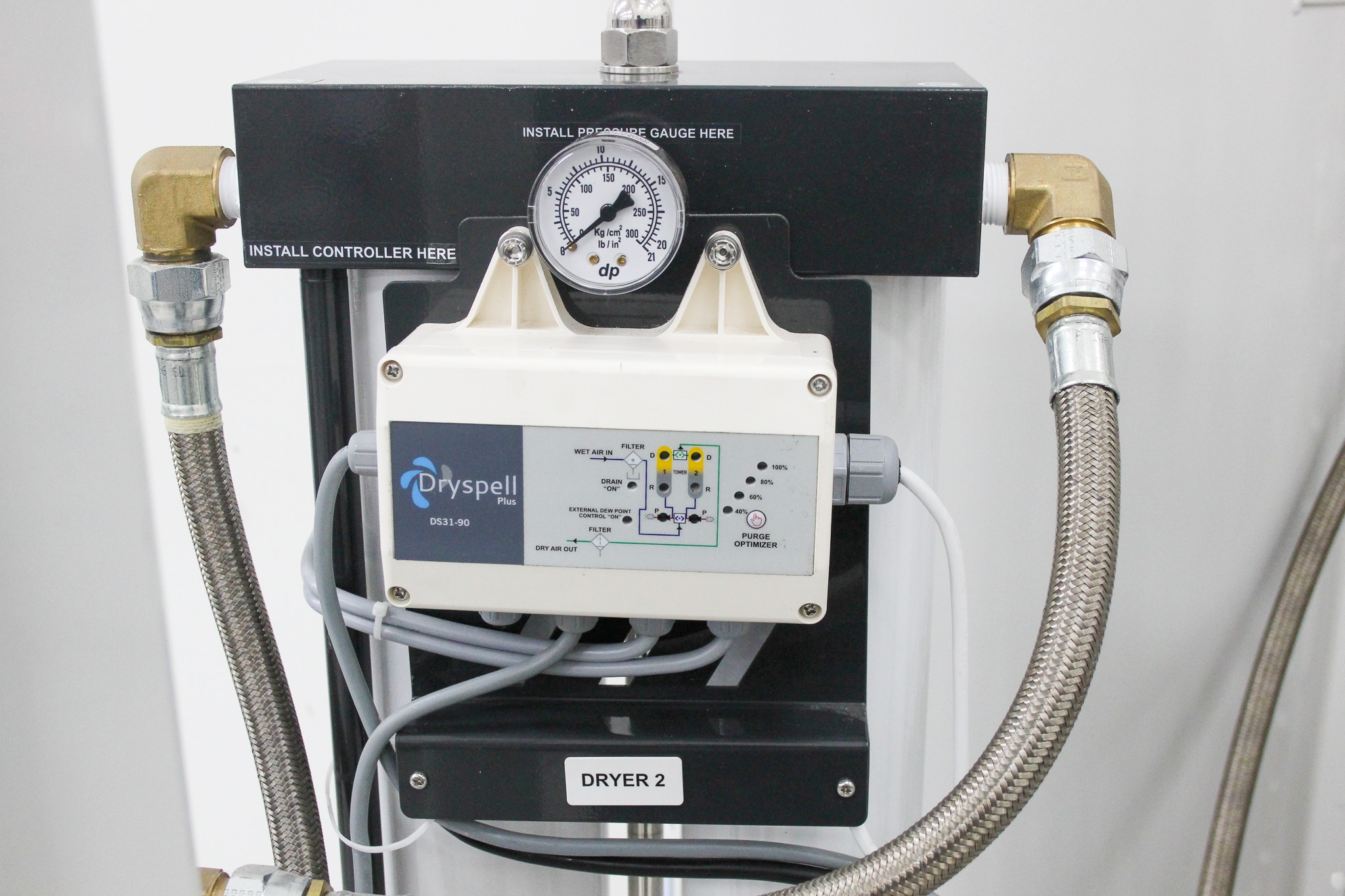

- Dual desiccant air dryers and dual-stage filtration
- Corrosion-resistant air receiver
Specifications
- Operating Voltage: 220V, Frequency: 50Hz/60Hz
- Max Pressure: 145 psig
- Air Flow: 14.2 scfm
- Tank Capacity: 80 gallons
- Sound Level: 75 dBA
- Power: 3 hp
- System Full Load Current (F.L.A) at 208 V: 21.2 A
- System Full Load Current (F.L.A) at 230 V: 19.2 A
- System Full Load Current (F.L.A) at 460 V: 9.6 A
- Dimensions: 52 in x 68 in x 73 in
- Weight: 1450 lb
Weight
Imperial: 1740.0 Pounds
Metric: 789.25 Kilograms
Shipping Dimensions
Imperial: 62.4 lb x 81.6 lb x 87.6 lb
Metric: 158.5 cm x 207.26 cm x 222.5 cm
Harmonized Code
841480
Harmonized Code Details
841480 - Air or vacuum pumps; air or other gas compressors and fans; ventilating or recycling hoods incorporating a fan, whether or not fitted with filters. Selected due to the product's primary function as an air compressor.
