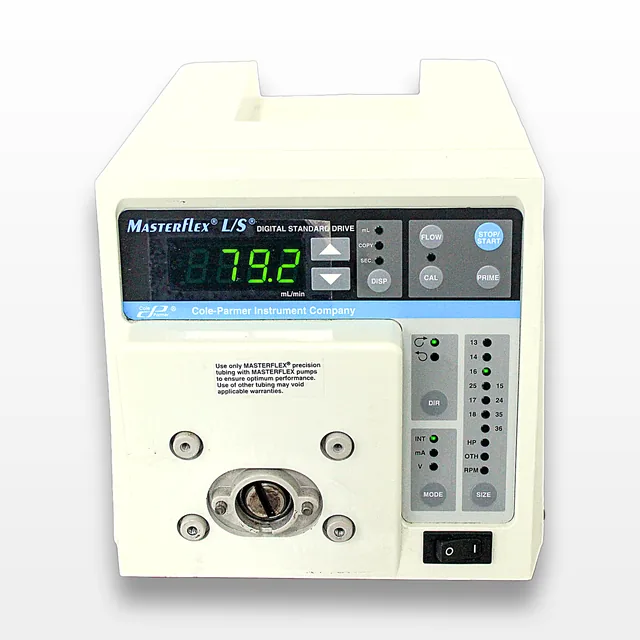

Cole Parmer 7524-50 Peristaltic Pump Reverse Metering Dispensing 580mL/min
Cole Parmer
Details
-
CategoryPump
-
Dimension18.0in x 8.0in x 8.0in
-
SerialH01002841
-
Shipping TypeFedEx Ground
-
ManufacturingDoes Not Apply
-
Voltage / Hertz120V / 50Hz/60Hz
Description
The Cole Parmer Masterflex Model 7524-50 is a versatile peristaltic pump drive, ideal for precise metering and dispensing. Featuring a brushless motor, this digital economy drive offers variable-speed control and digital dispensing capabilities, suitable for use in laboratory and industrial settings. With a speed control accuracy of 0.25% and a flow rate range from 0.1 mL/min to 580 mL/min, this unit supports reversible operations and accepts up to four pump heads. Various pump head types, such as Standard, Easy-Load, and Quick Load, are compatible. Although used, the device powers on and performs basic operations successfully, with no known functionality issues. Please note, this unit does not include a pump head. Manufactured in the USA by Cole Parmer, it features a power supply of 120V, making it a valuable addition for precise flow control applications. IP rated at 23 for effective protection in laboratory environments.
Key Features
- Brushless variable-speed digital drive
- Supports standard, Easy-Load, Quick Load pump heads
- Accurate digital dispensing for critical applications
- Flow rate range: 0.1 mL/min to 580 mL/min
- Speed control accuracy at 0.25%
- Reversible motor for versatile use
- Accepts up to 4 pump heads
- Motor: 75 Watts
- IP Rating: IP 23
Specifications
- Model: 7524-50
- Manufacturer: Cole Parmer
- Condition: Used, no known functionality issues
- Power: 120V, 50Hz/60Hz
- Motor power: 75 Watts
- Max Flow Rate: 580 mL/min
- Min Flow Rate: 0.1 mL/min
- No. of Pump Heads Accepted: 4
- Speed Control: 0.25% (1 rpm at 600 rpm; 0.1 rpm at 100 rpm)
- Drive IP Rating: IP 23
Weight
Imperial: 15.6 Pounds
Metric: 7.08 Kilograms
Shipping Dimensions
Imperial: 21.6 lb x 9.6 lb x 9.6 lb
Metric: 54.86 cm x 24.38 cm x 24.38 cm
Harmonized Code
841330
Harmonized Code Details
841330: Fuel, lubricating or cooling medium pumps for internal combustion piston engine (other than fuel, lubricating or cooling medium pumps of subheading 8413.30). Selected based on the peristaltic pump's function for metering and dispensing fluid, aligning with laboratory uses.
